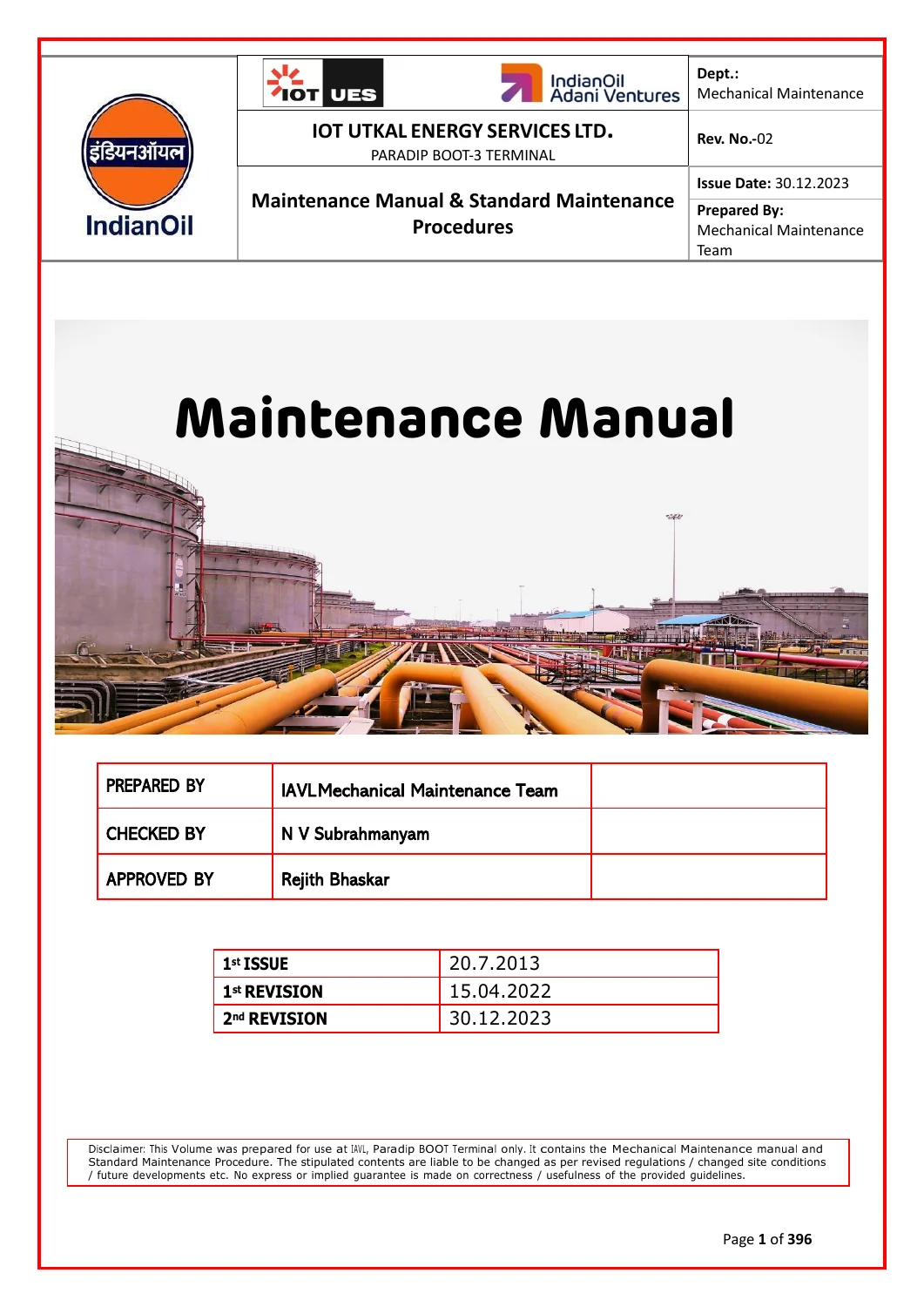

IOT Utkal Paradip BOOT-3 Terminal Mechanical Maintenance Manual & Standard Procedures 2023

IOT Utkal Paradip BOOT-3 Terminal – Mechanical Maintenance Manual and Standard Procedures

Revision 2, Effective December 30, 2023

This is the complete IOT Utkal Paradip BOOT-3 Terminal – Mechanical Maintenance Manual and Standard Procedures, Revision 2, effective December 30, 2023. This is the definitive guide for maintenance personnel, engineers, and contractors responsible for the upkeep of the extensive mechanical equipment at this major hydrocarbon storage and handling facility. Spanning 396 pages, this manual provides the standardized, step-by-step procedures necessary to ensure zero breakdowns, minimum downtime, and the highest level of safety and operational efficiency as mandated by HSSE guidelines.

File Details

• Manual Type: Mechanical Maintenance Manual & Standard Operating Procedures
• Brand/Company: IOT Utkal Energy Services Ltd. (IAVL, APSEZ, IVRCL)
• Language: English
• Total Pages: 396
• File Format: PDF
• Document Revision: Rev. No. – 02
• Issue Date: 30.12.2023

Chapters Covered

The manual is structured to provide a complete maintenance framework for the Paradip BOOT-3 Terminal, from general introduction to specific equipment procedures.

IMAGES PREVIEW

• 1.0 Introduction: Overview of the Paradip BOOT Terminal, purpose, scope, and applicability of the manual.
• 2.0 Mechanical Equipment Details: A comprehensive breakdown of all facility assets, including Tanks, Bullets, Pumps, Pipeline details, and Valves (Gate, Globe, Plug, Check, Ball, Relief, MOV, etc.).

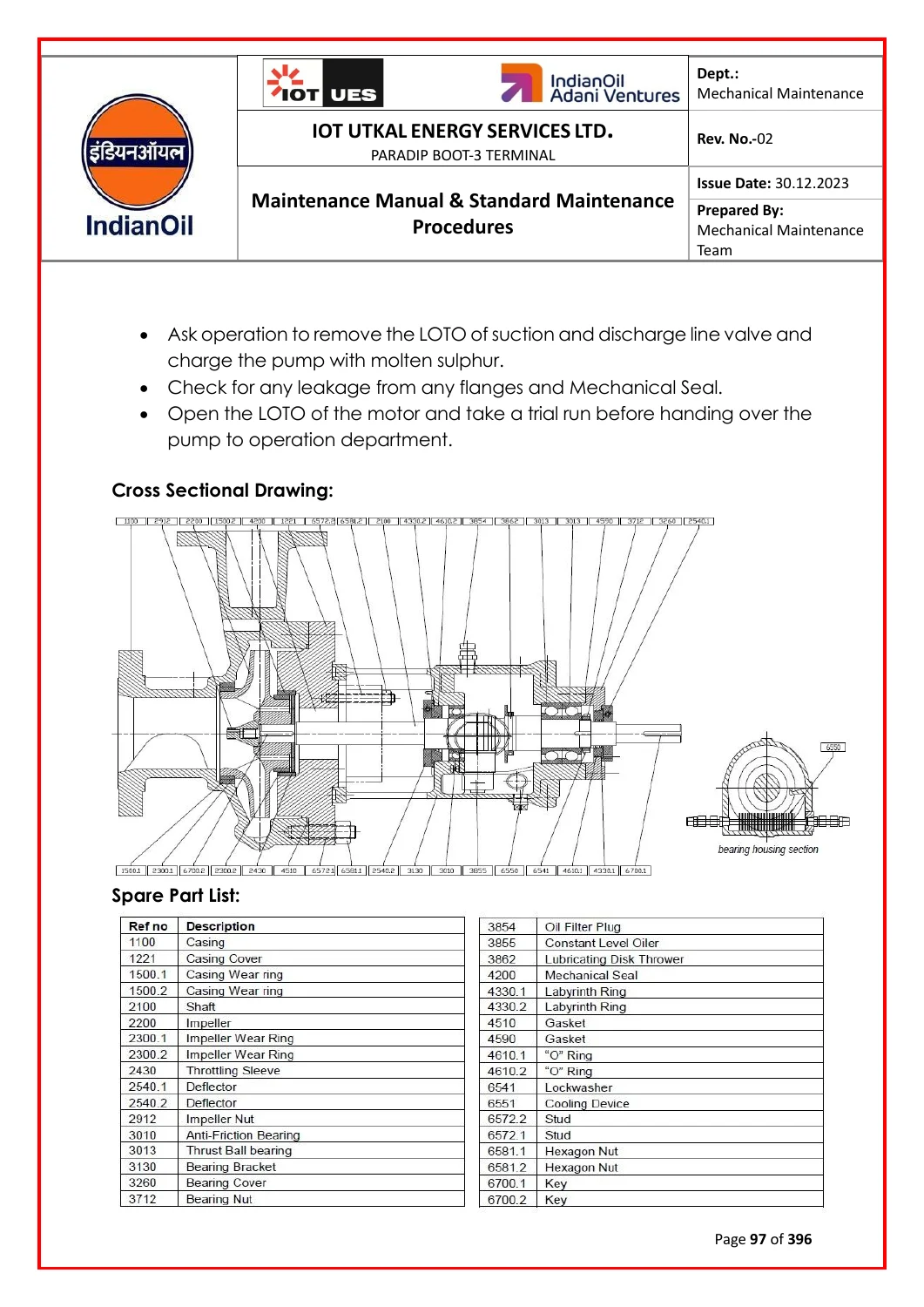

• 3.0 Pumps: In-depth coverage of all pump types, including Vertical Can, Between Bearing, Overhung, Gear, Screw, and Molten Sulphur pumps. Includes asset details, datasheets, performance curves, spare parts lists, maintenance schedules, checklists, and detailed maintenance and installation procedures.

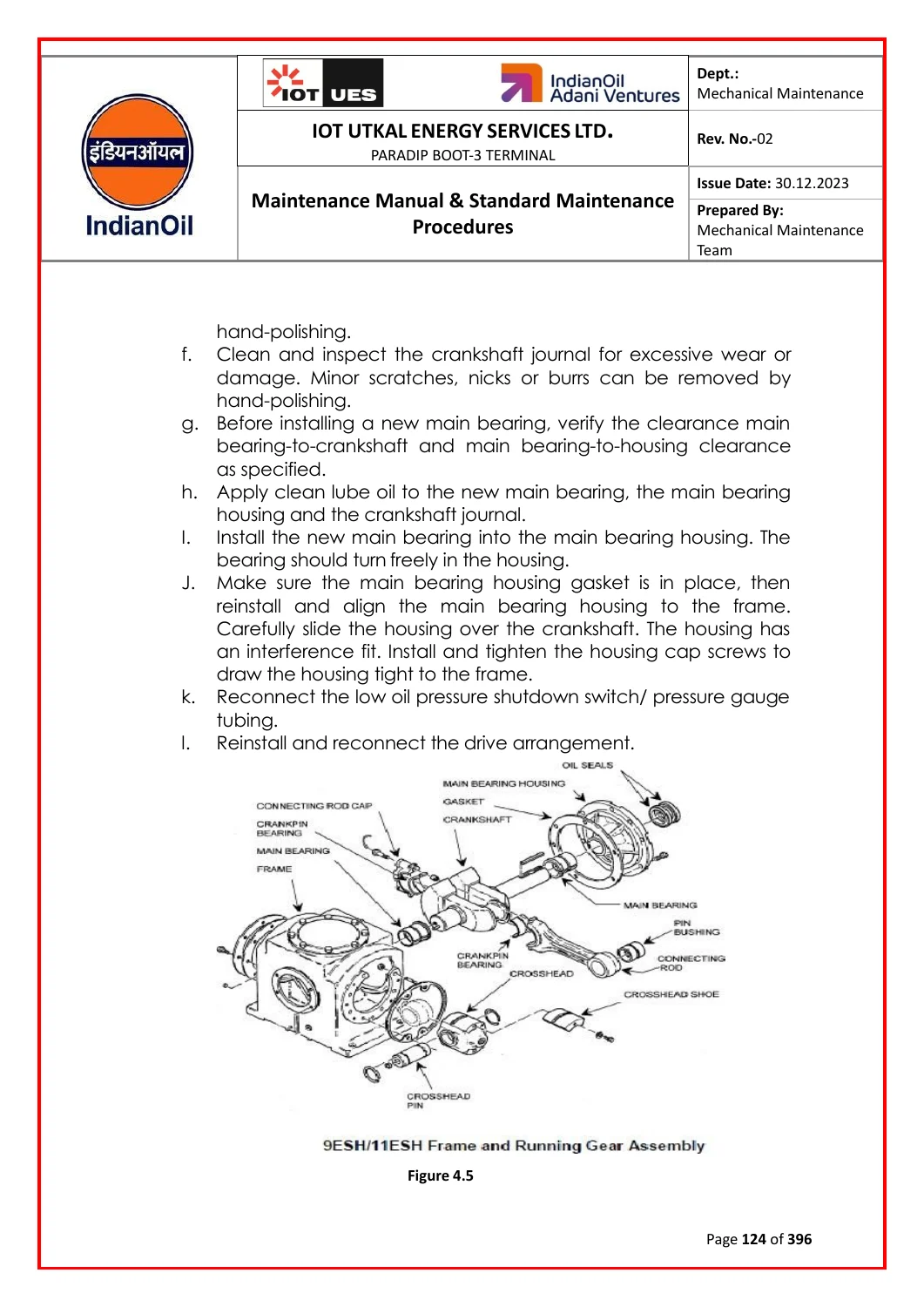

• 4.0 Vapour Compressor Package: Complete maintenance guide for the vapour compressor, covering asset details, datasheets, maintenance schedules, checklists, and procedures for frame oil pump replacement, breather maintenance, and bearing replacement.
• 5.0 Steam Desuperheater: Maintenance procedures for the steam desuperheater, including a half-yearly checklist and specific instructions for the Mazda steam desuperheater.
• 6.0 Valves: Extensive valve maintenance section covering maintenance schedules, checklists, and detailed breakdown and reassembly procedures for Pressure Balanced Plug Valves, Triple Offset Butterfly Valves, and Shutdown Ball Valves.
• 7.0 Sulphur Pit Ejector: Maintenance procedures for the Mazda sulphur pit ejector, including gasket replacement and painting instructions.
• 8.0 DG Set: Full preventive and breakdown maintenance procedures for the DG set, including oil top-up, filter replacement, and aneroid cleaning/calibration.
• 9.0 LPG/Propylene Loading & Unloading Arm: Detailed maintenance for loading arms, including flange/coupling disassembly, lubrication, and composite balancing spring maintenance.
• 10.0 Liquid Sulphur Tanker Loading Arm: Maintenance procedures for the sulphur loading arm, including seal replacement, compression spring assembly, and pneumatic system checks.
• 11.0 Strainers: Instructions for cleaning strainers and performing internal modifications.
• 12.0 Marine Loading Arm: Comprehensive preventive and breakdown maintenance for the Marine Loading Arm (MLA), covering hydraulic systems, structural bearings, swivel joints, and drive cables.
• 13.0 Quick Release Mooring Hook: Maintenance and inspection procedures for QRMH units, including hooks and capstans.
• 14.0 Gangway: Detailed maintenance for the Gangway, including its hydraulic network, swivel pin, and ladder structure.
• 15.0 Annexures: Includes Asset Details, Datasheets, Pump Performance Curves, and Spare Part Details for reference.

This IOT Utkal Paradip BOOT-3 Terminal Mechanical Maintenance Manual 2023 is an essential resource for any professional involved in the maintenance of a large-scale oil and gas terminal. It provides the official, standardized procedures for maintaining critical equipment like pumps, compressors, and loading arms, ensuring operations run smoothly and safely. With its detailed checklists, step-by-step disassembly/reassembly guides, and troubleshooting tables, this manual empowers technicians to handle preventive, predictive, and breakdown maintenance with confidence.

What This Manual Enables You To Do

This manual is your key to effective and safe maintenance at the Paradip BOOT-3 Terminal. It equips you to:

• Follow standardized procedures for all mechanical equipment to ensure consistency and quality.
• Perform preventive maintenance using detailed checklists and schedules to minimize downtime.
• Diagnose and rectify issues using the provided troubleshooting guides for various equipment.
• Execute complex tasks like pump alignment, bearing replacement, and valve overhaul with confidence.
• Adhere to stringent safety and HSSE guidelines through mandatory permits and LOTO procedures.

Having the correct procedures and specifications is critical in this industry. This manual ensures you are working with the latest, revision-controlled standards for the Paradip facility, helping to avoid costly errors, maintain safety, and extend the life of valuable assets. It’s an indispensable tool for the maintenance team, shift in-charges, and contractors.

Instant Download

This is a digital PDF download. No physical item will be shipped. You will receive immediate access to the complete 396-page manual upon purchase, allowing you to view it on any device (computer, tablet, smartphone) or print specific sections as needed.
