Mahindra Jeeto Maintenance Manual – MAN-00295 Rev 1 – June 2015 PDF

Description

Mahindra Jeeto Maintenance Manual – MAN-00295 Rev 1 (June 2015) PDF

This Mahindra Jeeto Maintenance Manual, document number MAN-00295, Revision 1, published June 2015 by Mahindra & Mahindra’s Service Engineering Technical Hub, is a complete periodic-maintenance reference for the Jeeto small commercial vehicle. Unlike a full workshop repair manual, this document is purpose-built around scheduled maintenance: it walks a technician through every operation on the Jeeto service schedule, using the standard operation coding format 726-MAT-XXXX, with man-hours, tools, torque values, and lubricant grades called out for each job.

File Details

• Manual type: Maintenance Manual (periodic service operations)
• Brand / Model: Mahindra Jeeto
• Document number: MAN-00295
• Revision: 1
• Publication date: June 2015
• Published by: Mahindra & Mahindra Service Engineering, Technical Hub
• Language: English
• Page count: 128 pages
• File format: PDF

Chapters Covered

• About the Maintenance Manual
• Explanation on Colour Codes Used in Illustrations
• Good Workshop Practices (attire, vehicle protection, safety, parts and tools, removed parts handling)
• Legend of the Safety Symbols
• Legend of the Illustration Symbols (locate/show, move/fit, torque tightening, tightening sequence, lubrication symbols, etc.)
• JEETO Maintenance Schedule (3,000 km to 100,000 km service intervals)
• JEETO Lubrication Chart (engine oil, coolant, transaxle oil, brake fluid grades and capacities)

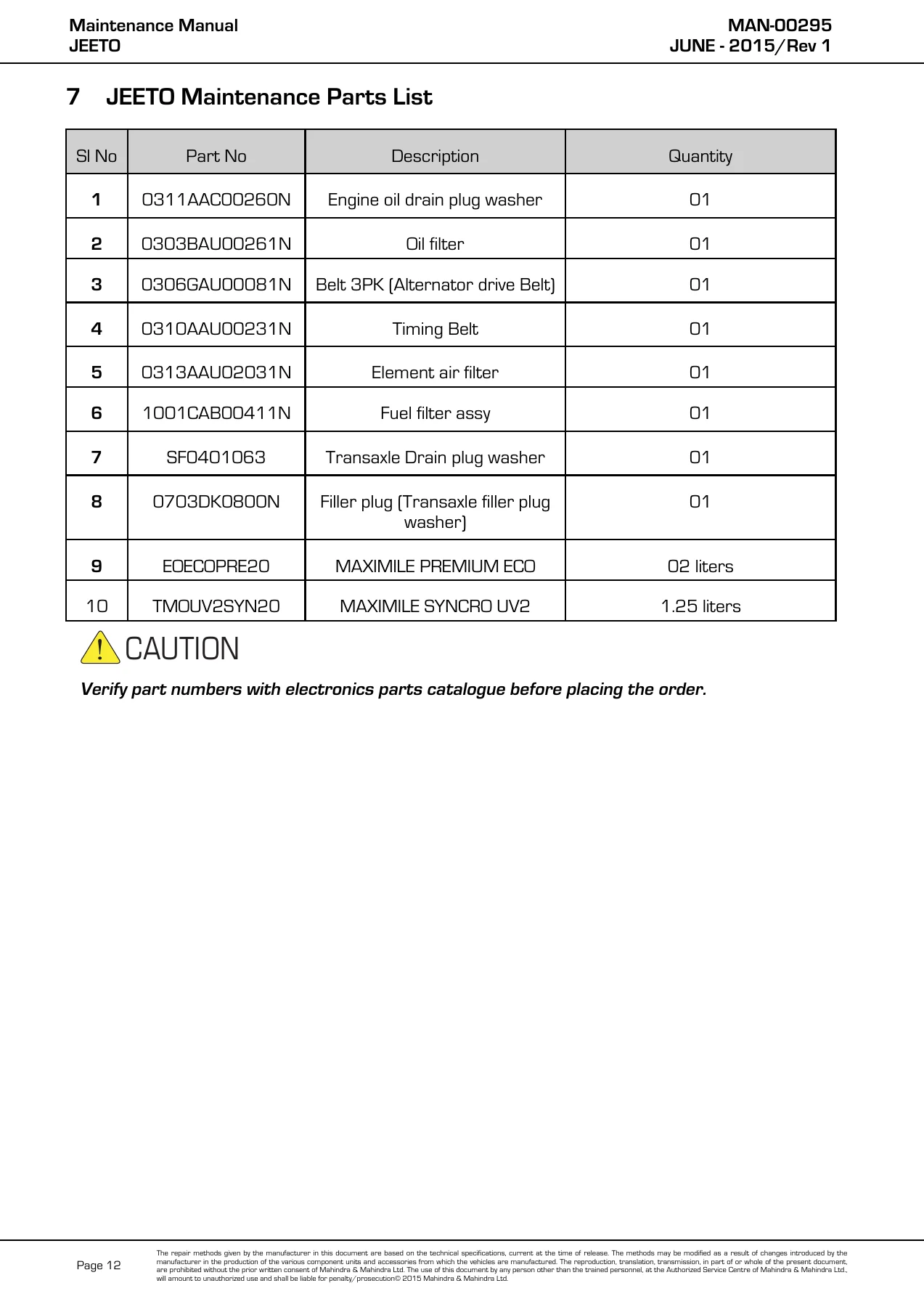

• JEETO Maintenance Parts List with part numbers and quantities
• 726-MAT-0012 Engine Oil – Replace
• 726-MAT-0013 Engine Oil Filter – Replace
• 726-MAT-0017 Timing Belt – Inspect
• 726-MAT-0018 Timing Belt – Replace
• 726-MAT-0015 Alternator Belt – Inspect
• 726-MAT-0016 Alternator Belt – Replace
• 726-MAT-0021 Coolant Level & Leak – Inspect
• 726-MAT-0022 Coolant – Replace
• 726-MAT-0031 Air Filter Element – Clean
• 726-MAT-0032 Air Filter Element – Replace

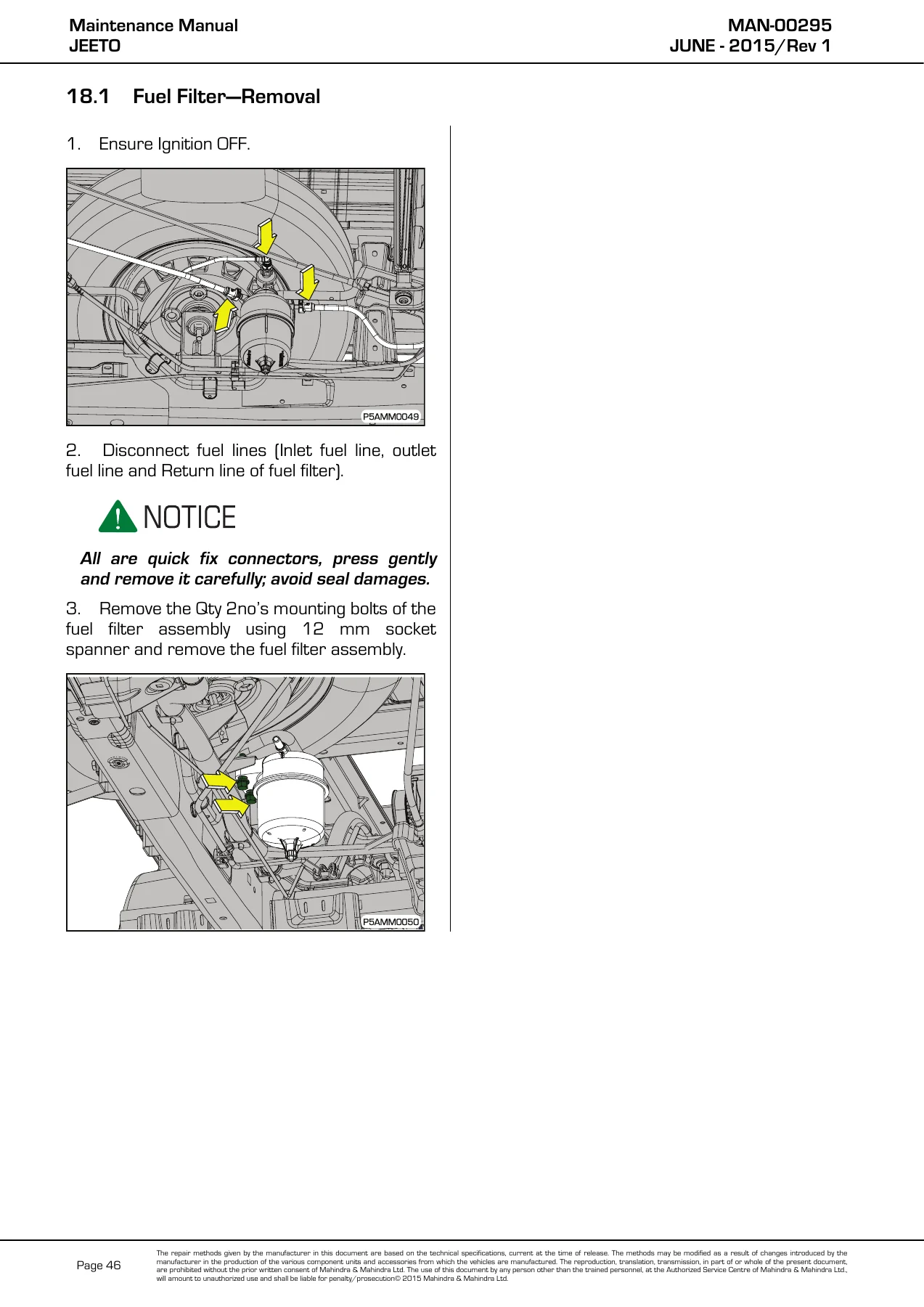

• 726-MAT-0042 Fuel Filter – Replace
• 726-MAT-0046 Water Sediment Drain – Fuel Filter
• 726-MAT-0056 Clutch Free Play – Adjust
• 726-MAT-0062 Transaxle Oil – Replace
• 726-MAT-0131 Brake Fluid Level & Leak – Inspect
• 726-MAT-0132 Brake Fluid – Replace
• 726-MAT-0133 Front Brake Pads or Caliper – Inspect
• 726-MAT-0135 Brake Drum & Lining – Inspect
• 726-MAT-0137 Parking Brake – Check & Adjust
• 726-MAT-0141 Suspension Bushes – Inspect
• 726-MAT-0142 Suspension Arms & Links – Inspect
• 726-MAT-0146 Wheel Alignment
• 726-MAT-0161 Battery Electrolyte – Inspect
• 726-MAT-0162 Battery Specific Gravity – Inspect
• 726-MAT-0163 All Lights, Horn, Wiper, Washer – Check
• 726-MAT-0122 Tyre Pressure – Adjust & Inspect
• 726-MAT-0121 Tyre Rotation
• 726-MAT-0182 Cargo Mounting Bolts – Inspect
• 726-MAT-0185 Door Latches & Door Locks – Lubricate
• Maintenance Check Sheet

IMAGES PREVIEW

Taken together, these chapters give a technician everything needed to run a Jeeto through its full scheduled-service life: the correct interval for every job from 3,000 km through 100,000 km, the exact lubricant and fluid specification for each system, the special tools and torque figures for each fastener, and a photographed, numbered step sequence for every operation on the list.

What This Maintenance Manual Covers in Detail

The JEETO Maintenance Schedule table lays out every free and paid service interval from 3,000 km to 100,000 km, showing exactly which items get adjusted, inspected, replaced, lubricated, cleaned, or drained at each stage. The JEETO Lubrication Chart specifies the exact grade and capacity for each fluid – for example 2.0 litres of SAE 15W-40 API CH4 engine oil, 1.25 litres of SAE 80W-90 API GL4 transaxle oil, and DOT 3 brake fluid meeting SAE J1703 / FMVSS 116 / IS 8654 Type-1 – along with guidance for acceptable alternative brands.

Each of the 29 numbered service operations follows the same structured format: required tools and sizes, preliminary conditions, a photographed step-by-step procedure, and, where applicable, a torque value table. Fastener torque figures documented in this Mahindra Jeeto manual include the timing belt front cover mounting bolt (10±2 Nm), tensioner mounting bolt (35±4 Nm), alternator drive pulley mounting bolt (125±5 Nm plus 60°), and the tie rod adjustment nut (42±5 Nm) used during wheel alignment. The brake section documents front brake pad specifications (new pad thickness 9.5 mm, minimum useful thickness 1 mm), brake disc thickness limits (actual 17 mm, minimum useful 15 mm), and the rear brake lining wear limit of 0.75 mm. The clutch free play adjustment procedure specifies a target free play of 10-20 mm measured at the pedal pad, and the wheel alignment chapter gives the full alignment specification table – camber 0.6°±1°, caster 4.6°±1°, king pin inclination 12.8°±2°, individual toe 0°10′, and total toe 0°20’±7′.

Why Technicians Rely on This Jeeto Maintenance Manual

This Mahindra Jeeto Maintenance Manual gives a workshop the ability to carry out every scheduled service correctly the first time – engine oil and filter changes, timing and alternator belt inspection or replacement, coolant service, air and fuel filter maintenance, clutch adjustment, transaxle oil change, brake fluid and pad/drum service, suspension and wheel alignment checks, battery maintenance, and tyre service – all performed to the exact specification, torque, and lubricant grade Mahindra designed for the vehicle. Working from the correct procedures and figures in this manual protects the vehicle from premature wear, keeps warranty and service records consistent, and prevents the guesswork that leads to comebacks. Once purchased, the Mahindra Jeeto Maintenance Manual – MAN-00295 Rev 1 downloads instantly as a PDF, with no shipping or waiting – open it on a phone, tablet, laptop, or shop PC, or print out only the pages you need for the job at hand.
