Piper PA28 TAE 125-02-99 & TAE 125-02-114 Airplane Maintenance Manual Supplement PDF

This is the official Supplement Airplane Maintenance Manual for the Piper PA28 equipped with TAE 125-02-99 and TAE 125-02-114 diesel engines. Published by Technify Motors GmbH, this essential supplement provides all the critical maintenance and service information required for these specific engine installations in Piper PA28-140 through PA28-181 series aircraft. Without this supplement, the standard Piper AMM lacks the complete procedures, limits, and safety information for these unique diesel powerplants.

Complete File Details

• Manual Type: Supplement to Airplane Maintenance Manual
• Applicable Aircraft: Piper PA28-140, -150, -151, -160, -161, -180, -181
• Engine Models: TAE 125-02-99 (CD-135 / CENTURION 2.0) and TAE 125-02-114 (CD-135 / CENTURION 2.0 S)
• Document Number: AMM-40-02 (US-Version)
• Issue: 2
• Revision: 2
• Issue Date: 02 December 2014
• Revision Date: 13 July 2018
• Language: English
• Page Count: 230
• Format: PDF

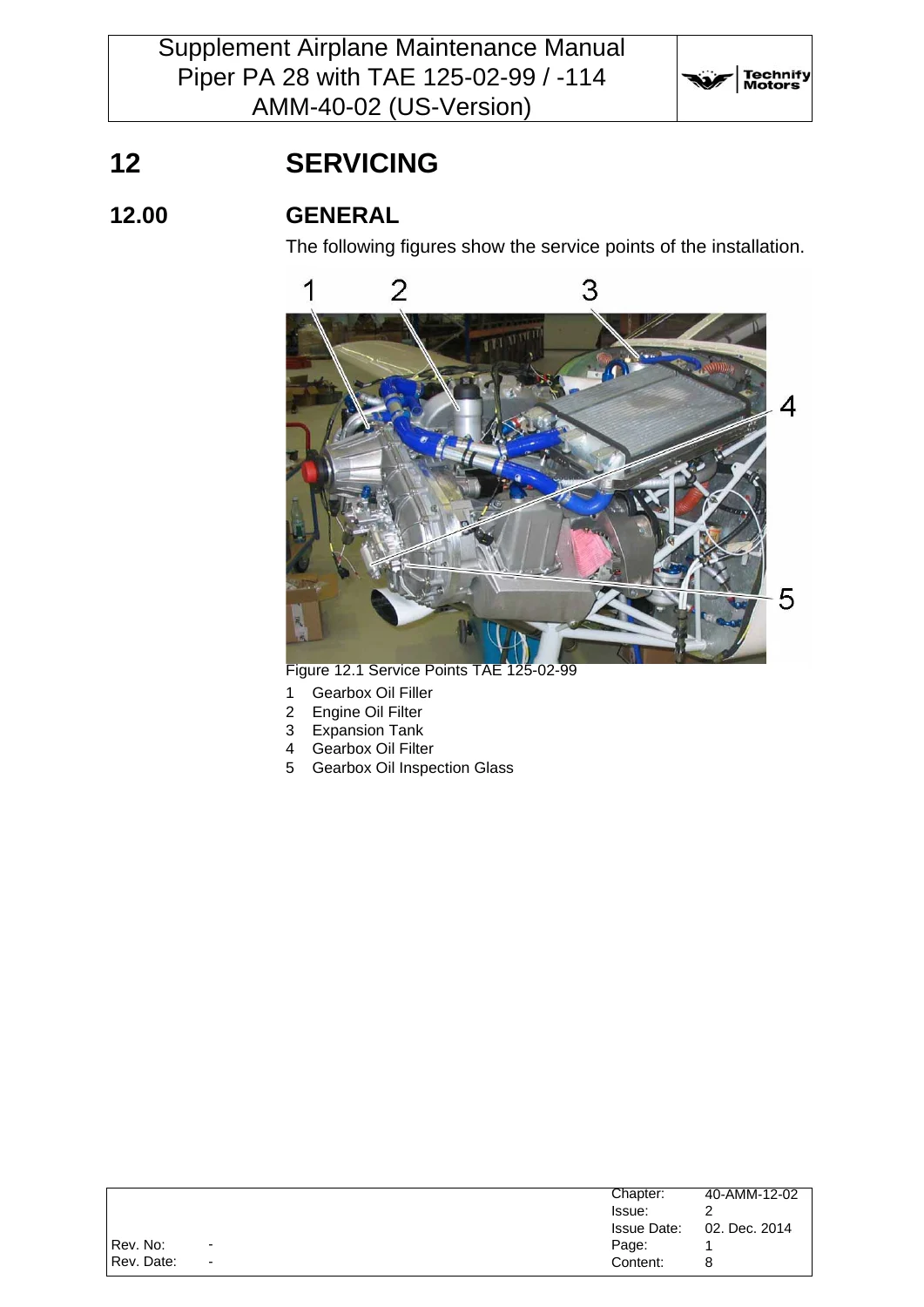

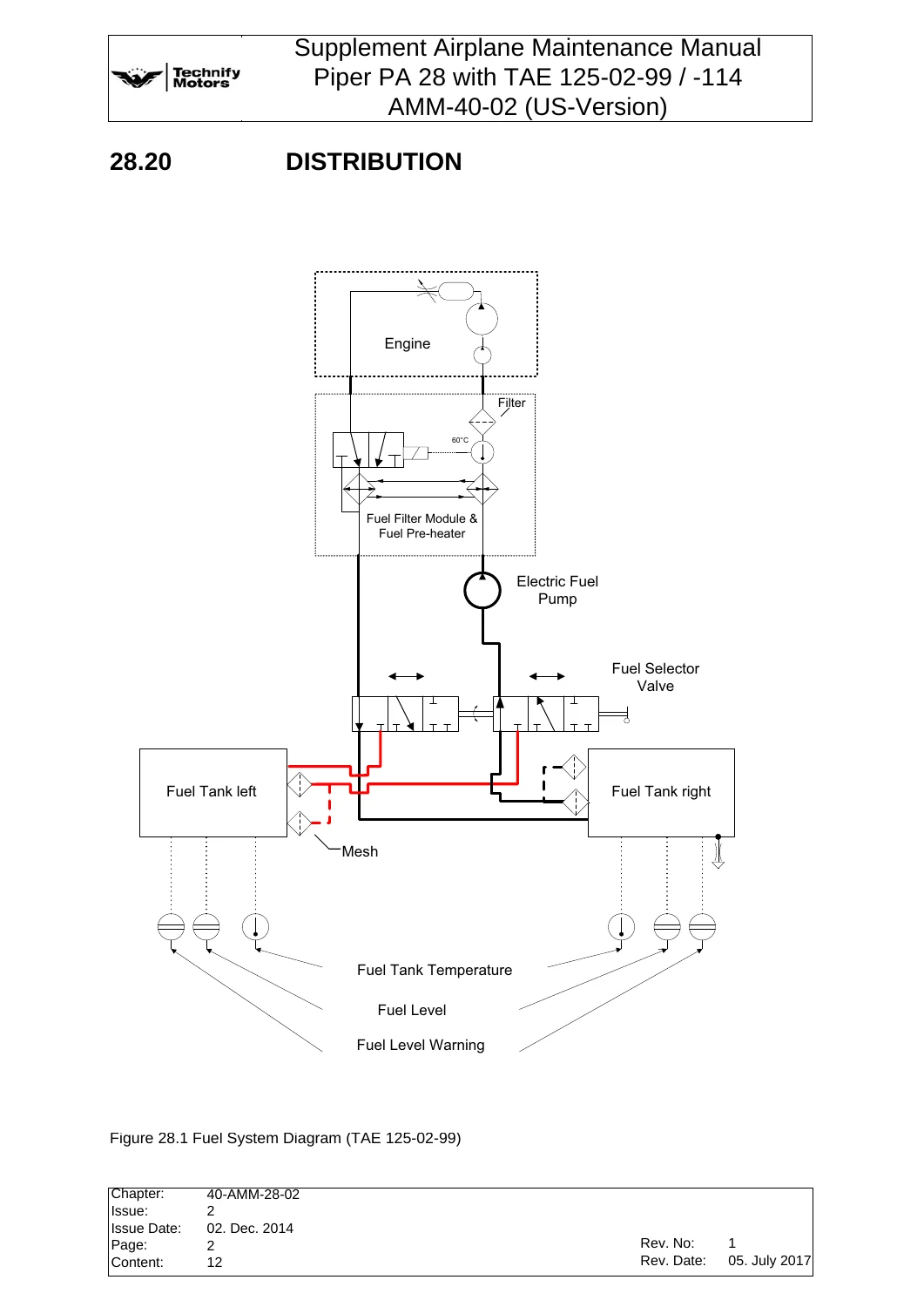

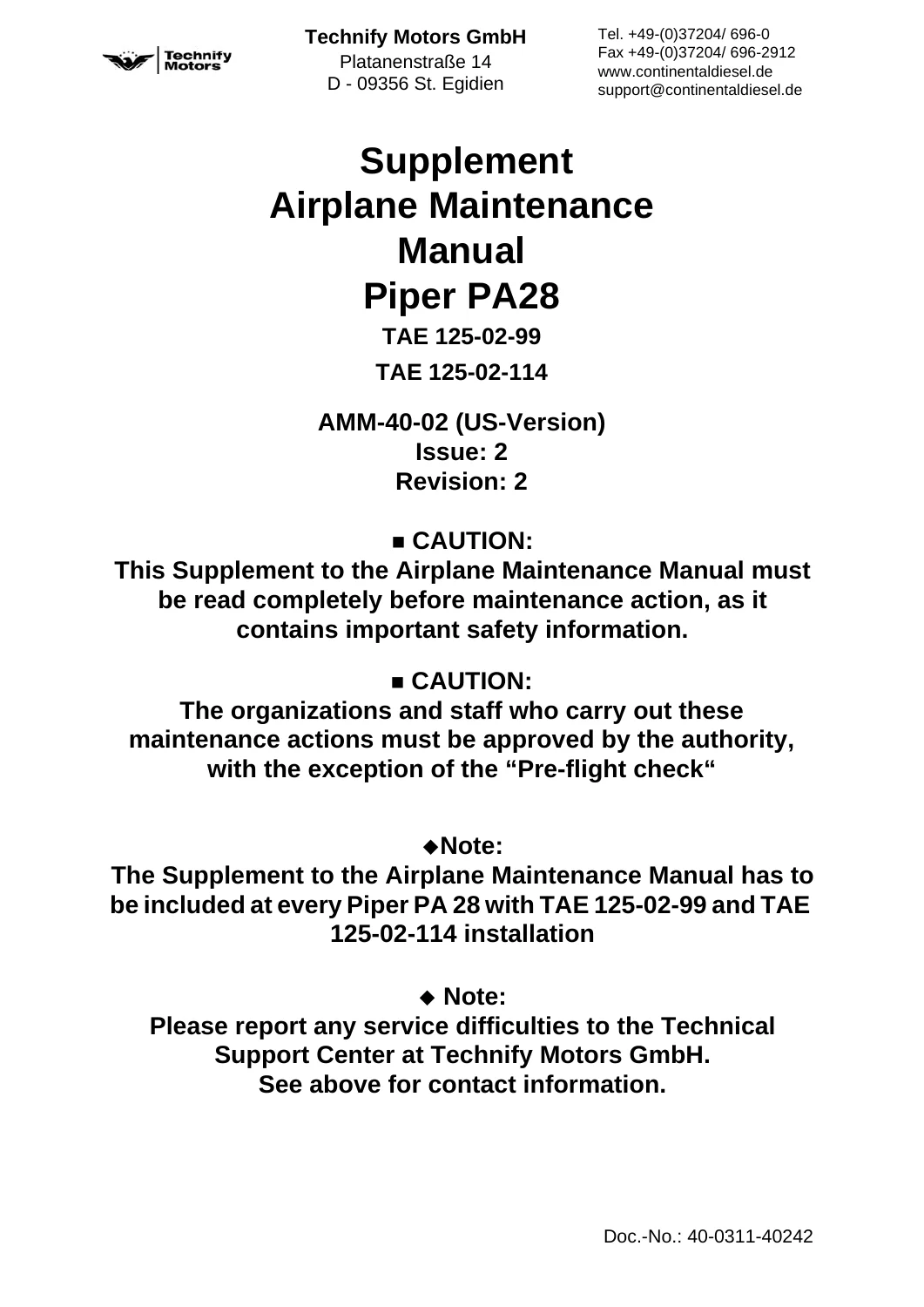

IMAGES PREVIEW

What This Manual Covers

This supplement is mandatory for all maintenance actions on these installations. It replaces and overrides the standard Piper AMM information related to carburetor and pre-heating, ignition magnetos and spark plugs, and mixture control and priming systems—all of which are no longer valid for the diesel engine.

The Airworthiness Limitations section is FAA approved and specifies maintenance required under 14 CFR § 43.16 and 91.403. This includes mandatory maintenance actions at defined intervals, such as fuel filter replacements, gearbox inspections, alternator replacements, and coolant exchange.

The comprehensive Time Limits / Maintenance Checks chapter provides detailed scheduled maintenance schedules based on both operating hours and calendar time. It covers everything from preflight checks to 3000-hour replacements.

Detailed coverage is given to:

• Placards and markings for the installation
• Servicing points (engine oil, gearbox oil, coolant, fuel system)
• Standard practices including torque values for AN and DIN fasteners
• Electrical system architecture (14V and 28V variants)
• Fuel system distribution and filter replacement
• Engine systems: power plant, cooling, oil, exhaust, ignition (glow plugs)
• Constant Speed Unit (CSU) maintenance and calibration
• Propeller (MTV-6-A/187-129 and MTV-6-A/190-69) installation and pitch limits
• Sensor replacement and troubleshooting
• Complete wiring diagrams
• Special tools list

This manual is essential for correctly maintaining the unique systems of these aircraft, including the FADEC-controlled engine, common-rail fuel system, and the propeller control system. It enables certified technicians to perform all necessary inspections, servicing, troubleshooting, and repairs in full compliance with the manufacturer’s specifications and airworthiness regulations.

Why This Supplement Is Critical

Maintaining a diesel-powered Piper PA28 requires specific knowledge and procedures not found in the original airframe manual. This supplement provides the necessary safety information, maintenance intervals, and technical data to ensure the aircraft remains safe and airworthy. Using this document is not optional; it must be included with every Piper PA28 that has this engine installation.

Instant Digital Delivery

You will receive a complete, high-quality PDF download immediately after purchase. No shipping costs, no waiting. The document is fully printable and can be used on any device, allowing you to have the exact information you need at your fingertips in the hangar or workshop.

Ensure you have the correct procedures and specifications for your Piper PA28 with a TAE 125 diesel engine. Add this essential supplement to your maintenance library today.
