Isuzu 4LB1 4LC1 4LE1 Industrial Diesel Engine Workshop Manual IDE-2270

Description

Isuzu 4LB1 4LC1 4LE1 Industrial Diesel Engine Workshop Manual

This is the full Isuzu workshop manual for the 4LB1, 4LB1T, 4LC1 and 4LE1 industrial diesel engines — the four-cylinder, in-line, water-cooled OHV family used across a wide range of industrial and agricultural machinery. Published by Isuzu Motors Limited under document number IDE-2270, it is the same reference a service technician uses at the bench: every disassembly step, every measurement, every torque figure and every clearance value the engine needs.

Whether you are rebuilding a 4LB1 for a generator set, servicing a 4LC1 in a forklift, diagnosing a 4LE1 in a tractor, or overhauling a turbocharged 4LB1T, this Isuzu 4LB1 4LC1 4LE1 workshop manual gives you the procedure and the numbers together, rather than sending you hunting through forums for a torque value that may not even match your engine variant.

File Details

• Manual type: Workshop Manual (service, repair, overhaul)
• Brand / Manufacturer: Isuzu Motors Limited
• Models covered: 4LB1, 4LB1T (turbocharged), 4LC1, 4LE1
• Document number: IDE-2270
• Publication year: 2003
• Language: English
• Page count: 125 pages
• File format: PDF

Chapters Covered

The Isuzu 4LB1 4LC1 4LE1 workshop manual is organised into the following sections:

• Section 1 — General Information
  • General Repair Instructions

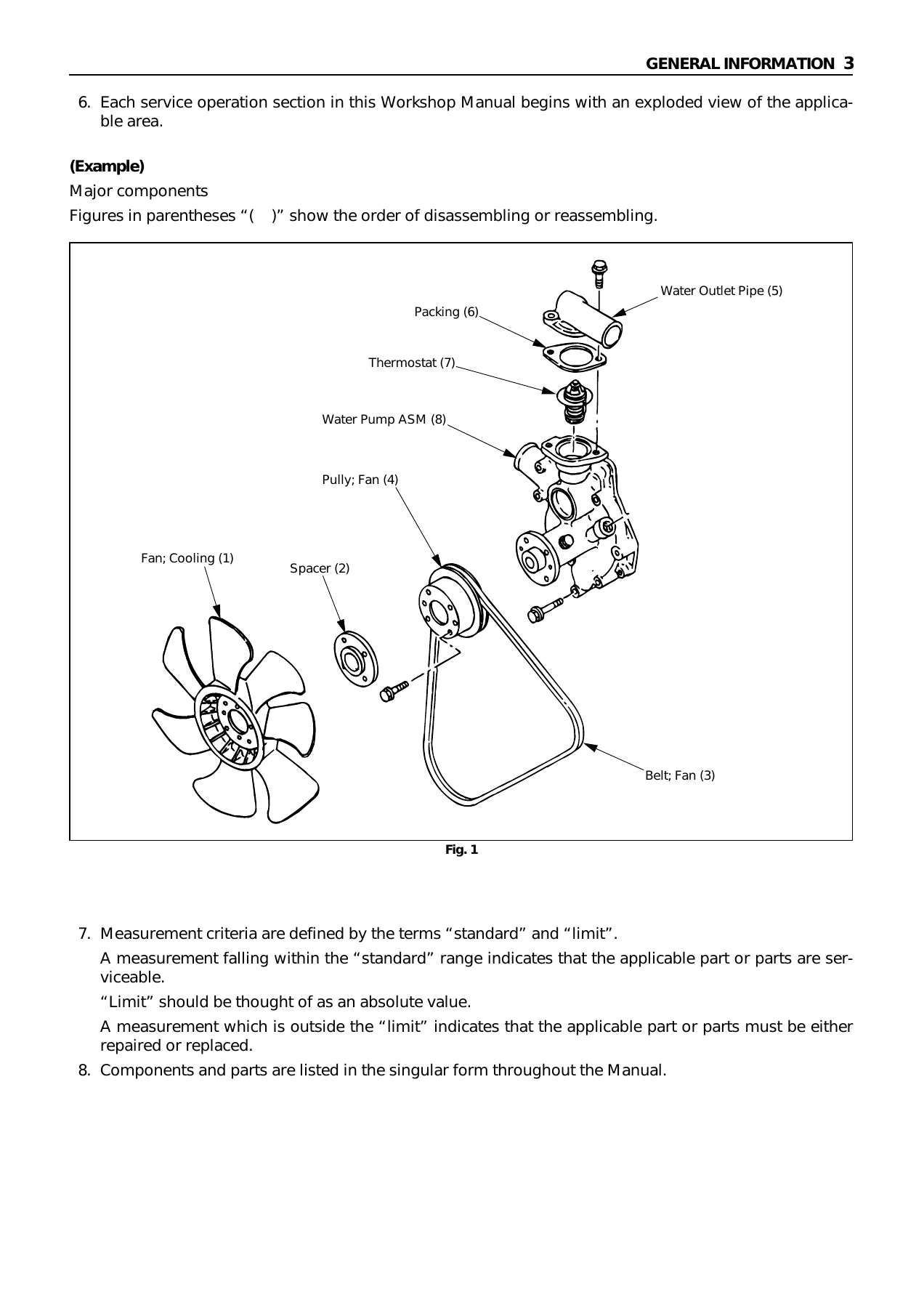

  • Notes on the Format of This Manual
  • Appearance (engine side views for 4LB1 / 4LC1 / 4LE1 and 4LB1T)
  • Main Data and Specifications
  • Tightening Torque Specifications (standard bolts and flanged head bolts)
  • Angular Nut and Bolt Tightening Method
  • Tightening Torque on Major Components (cooling fan and water pump; cylinder head and cover; cylinder block and other components; turbocharger)

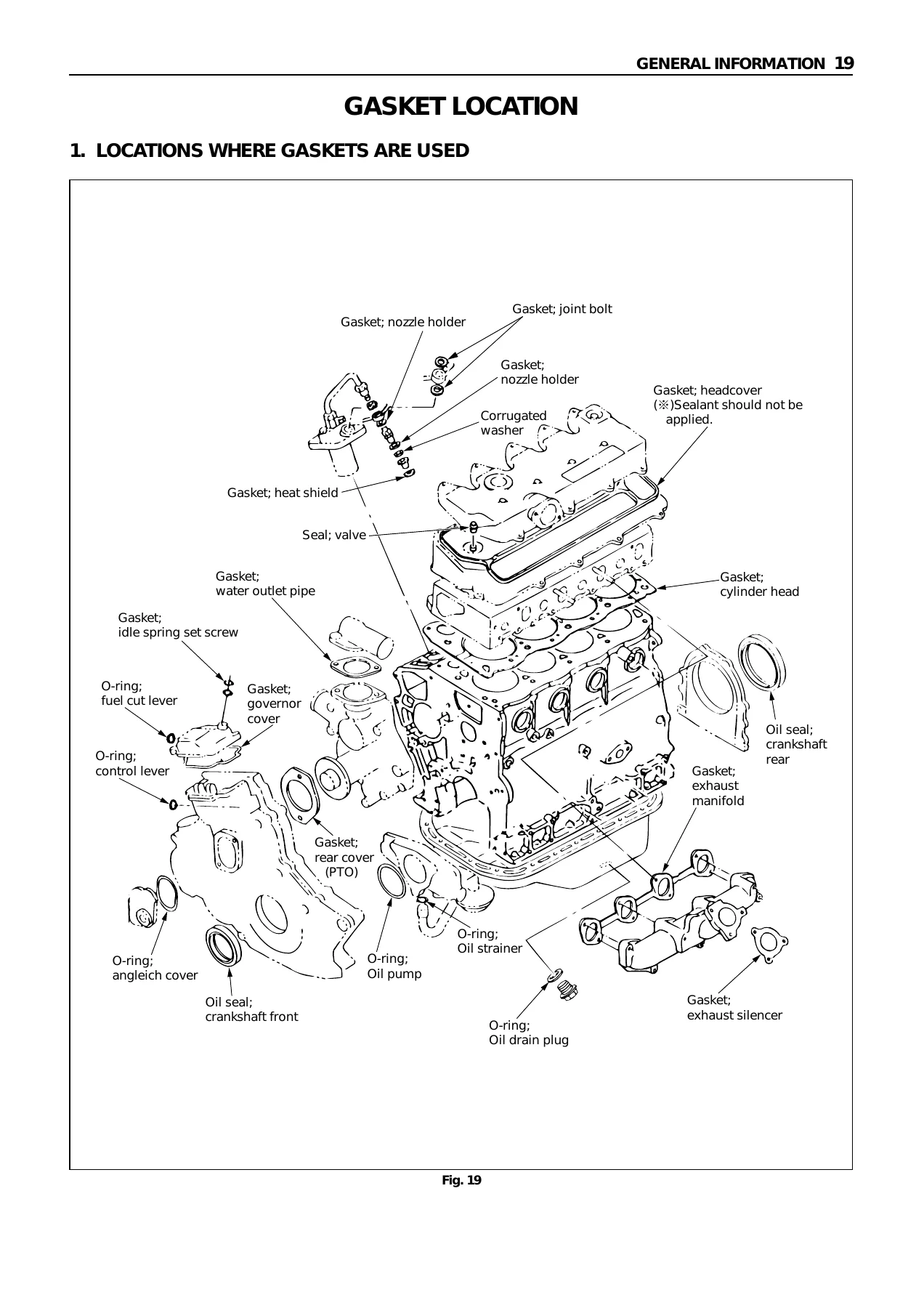

  • Gasket Location
  • Locations Where Sealant Is Applied
  • Maintenance (valve clearance, lubricating system, cooling system, injection timing, air bleeding, compression pressure measurement, fuel system)
  • Recommended Lubricating Oil and Engine Oil Viscosity Chart
• Section 2 — Engine
  • Disassembly (external parts left and right hand side; injection pipe, leak-off pipe, fuel pipe, injection pump, turbocharger; internal parts)
  • Inspection and Repair (cylinder block, cylinder bore, cylinder head, hot plug, valve and valve seat insert, valve spring, tappet and push rod, camshaft, rocker arm shaft and rocker arm, piston / piston pin / piston ring, connecting rod and bearing, crankshaft and bearing, flywheel and ring gear, timing gear)
  • Reassembly (cylinder head assembly, piston and connecting rod, internal parts, external parts)
• Section 3 — Lubricating System
  • Lubricating Oil Circulation System Diagram
  • Oil Pump Inspection and Replacement
• Section 4 — Cooling System
  • Cooling Water Circulation System Diagram
  • Water Pump (disassembly, inspection, reassembly, clearances)
  • Thermostat (inspection, opening temperature and valve lift)
• Section 5 — Fuel System
  • Fuel Circulation System Diagram
  • Governor (structural drawings, control lever reassembly, shifter, governor cover, full-load stopper, governor lever components)
  • Nozzle Holder Assembly
• Section 6 — Troubleshooting
  • Engine does not start
  • Unstable engine rotation
  • Insufficient output
  • Overheat
  • Abnormal exhaust gas
  • Over-discharge of battery
  • Oil pressure too low / oil consumption too much
  • Engine knocking
• Section 7 — Special Tools
• Section 8 — Conversion Table (length, area, volume, mass, pressure, torque, temperature)

What This Manual Gives You

Taken as a whole, the Isuzu 4LB1 4LC1 4LE1 service manual is a single-source reference for the complete engine — not just the headline service jobs. It walks you through removing the injection pump with the control rack correctly pinned and the shim thickness recorded, measuring cylinder bore wear 13 mm below the top in both X-X and Y-Y directions, checking idler gear backlash against the crank and cam gears, verifying crankshaft end play, and checking the hot plug depression in the cylinder head with a straight edge and feeler gauge.

Because the same manual covers the naturally aspirated 4LB1, the turbocharged 4LB1T, the 4LC1 and the larger-bore 4LE1, the specifications section separates the four variants wherever they differ — bore, stroke, displacement, compression ratio, dry weight and overall dimensions. Firing order, valve timing, injection timing, valve clearance, compression pressure and injection pressure are all listed so you can confirm you are working to the correct figure for your specific engine.

Repairs and Procedures Covered

Jobs this Isuzu industrial diesel engine workshop manual supports directly include:

• Valve clearance adjustment (cold, intake and exhaust) using the TDC mark on the front cover and the groove mark on the crank pulley
• Injection timing check and adjustment via shim selection between the injection pump and cylinder block
• Fuel filter and oil filter replacement (cartridge / spin-on type) with correct tightening turns
• Injection nozzle spray condition and injection pressure adjustment on a nozzle tester
• Compression pressure measurement cylinder by cylinder with the specified gauge and adapter
• Cooling fan drive belt tension check and adjustment
• Cylinder head removal and installation with the correct bolt loosening and tightening sequence
• Piston and connecting rod removal, piston ring fitting and piston pin service
• Camshaft, idler gear, cam gear and timing mark alignment
• Crankshaft bearing cap tightening with the numbered sequence
• Front and rear oil seal installation with the correct installed depth
• Governor disassembly and reassembly including control lever, shifter, governor cover, idle spring and full-load stopper
• Turbocharger removal and installation with associated pipes and gaskets (4LB1T)
• Troubleshooting through the flow charts for no-start, hunting, low output, overheat, smoke, low oil pressure and knocking

Why the Correct Numbers Matter on These Engines

The 4LB1 / 4LC1 / 4LE1 family uses a Bosch-type injection pump with mechanical governor, a throttle-type nozzle and a swirl-chamber combustion design. Get the injection timing a few degrees out and the engine will smoke, run hot or lose power. Set the valve clearance wrong on the turbocharged 4LB1T and you risk valve and piston damage. Use the wrong cylinder head bolt sequence and the head gasket will not seal. This Isuzu 4LB1 4LC1 4LE1 repair manual gives you the actual specification — not a generic value — for each of those jobs, plus the tightening method (including the angular tightening procedure where specified) that Isuzu prints for that component.

The troubleshooting section is a set of diagnostic flow charts rather than a list of symptoms: starter does not run, starter runs but engine does not start, engine starts but does not run continuously, unstable rotation at idle, medium or high speed, insufficient output, overheat, white or black smoke, low oil pressure, excessive oil consumption and engine knocking. Each chart ends at a specific component to check or replace, which saves time compared to swapping parts blindly.

Delivery

IMAGES PREVIEW

This listing is for the Isuzu 4LB1 4LC1 4LE1 workshop manual IDE-2270 delivered as an instant PDF download — no shipping, no waiting. Once payment is complete you can open it on a phone, tablet, laptop or workshop PC, search for the section you need, and print the pages you want to take under the machine. Keep it on the shop computer, keep a copy on your phone, and print the torque tables for the job at hand.
