Isuzu 4B & 6B Series Industrial Diesel Engine Workshop Manual IDE-2041 – 4BB1 4BD1 6BB1 6BD1 6BG1 4BD1T 6BD1T 6BG1T PDF

Description

Isuzu 4B & 6B Series Industrial Diesel Engine Workshop Manual IDE-2041

This is the complete Isuzu 4B & 6B Series Industrial Diesel Engine Workshop Manual, document number IDE-2041, published by Isuzu Motors Limited. It covers the full 4BB1, 4BD1, 6BB1, 6BD1, 6BG1, 4BD1T, 6BD1T and 6BG1T industrial diesel engine family, including both the naturally aspirated and turbocharged variants. The manual is written in English and spans 216 pages of assembly procedures, inspection tolerances, torque values, adjustment methods and troubleshooting flowcharts.

File Details

• Manual type: Workshop Manual
• Publisher: Isuzu Motors Limited
• Document number: IDE-2041
• Models covered: 4BB1, 4BD1, 6BB1, 6BD1, 6BG1, 4BD1T, 6BD1T, 6BG1T
• Language: English
• Format: PDF
• Page count: 216

Chapters Covered

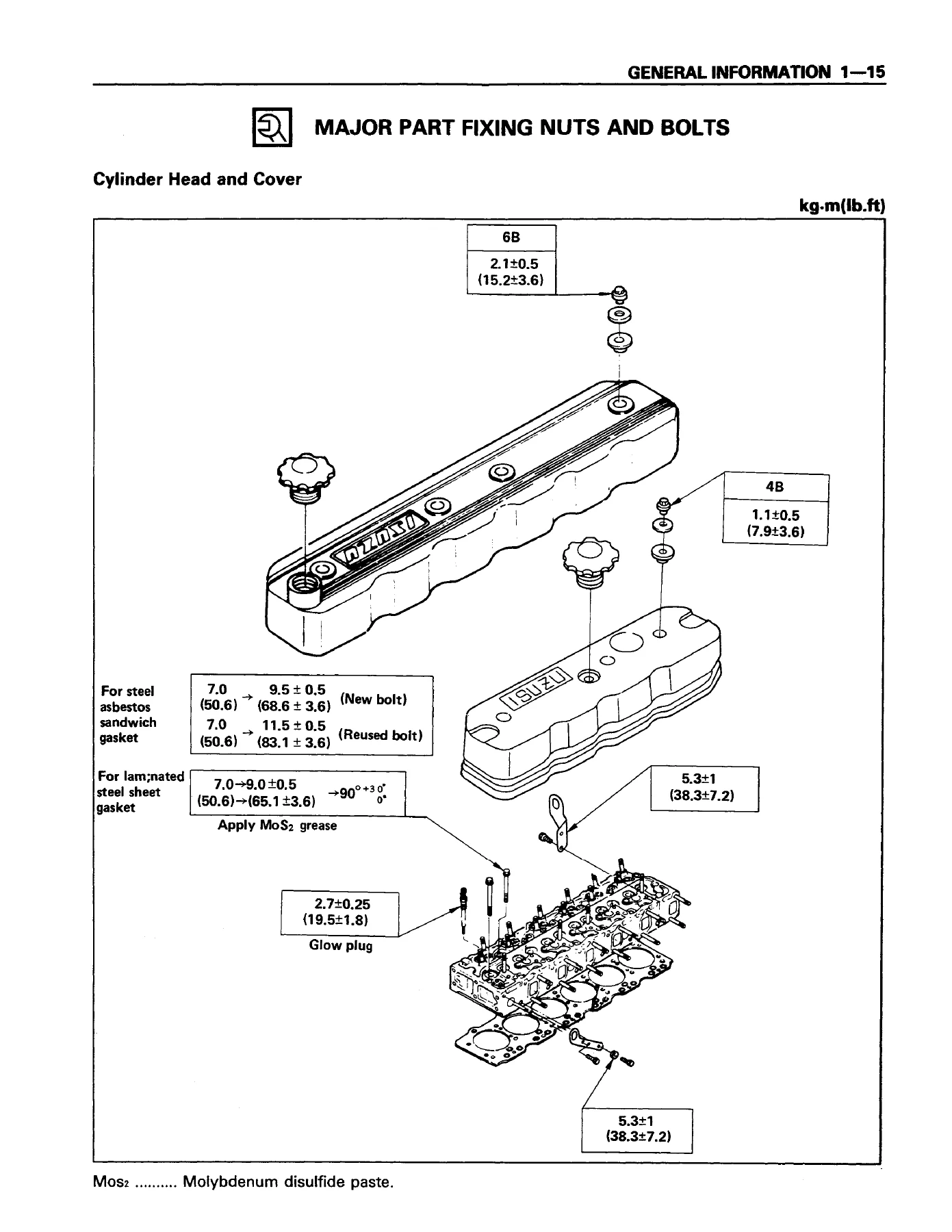

• General Information: notes on the format of the manual, main data and specifications, design features and general outline, tightening torque specifications, angular nut and bolt tightening method, major parts fixing nuts and bolts, identifications
• Maintenance: lubricating system, fuel system, cooling system, valve clearance adjustment, injection timing, compression pressure measurement, turbocharger inspection, engine repair kit, recommended lubricants, engine oil viscosity chart
• Engine Assembly I (Disassembly)
• Engine Assembly II (Inspection & Repair)
• Engine Assembly III (Reassembly)
• Lubricating System: general description, oil pump, main oil filter, oil cooler
• Cooling System: general description, water pump, thermostat
• Fuel System: general description, fuel filter, injection nozzle, injection pump calibration data
• Turbocharger: general description, turbocharger identification, rotor shaft play inspection
• Air Compressor
• Engine Electricals: starter motor and alternator identification, main data and specifications, sectional views, exploded views
• Troubleshooting: hard starting, unstable low idling, insufficient power, excessive fuel consumption, excessive oil consumption, overheating, whitish exhaust smoke, darkish exhaust smoke, oil pressure does not rise, abnormal engine noise
• Special Tool List
• Conversion Table

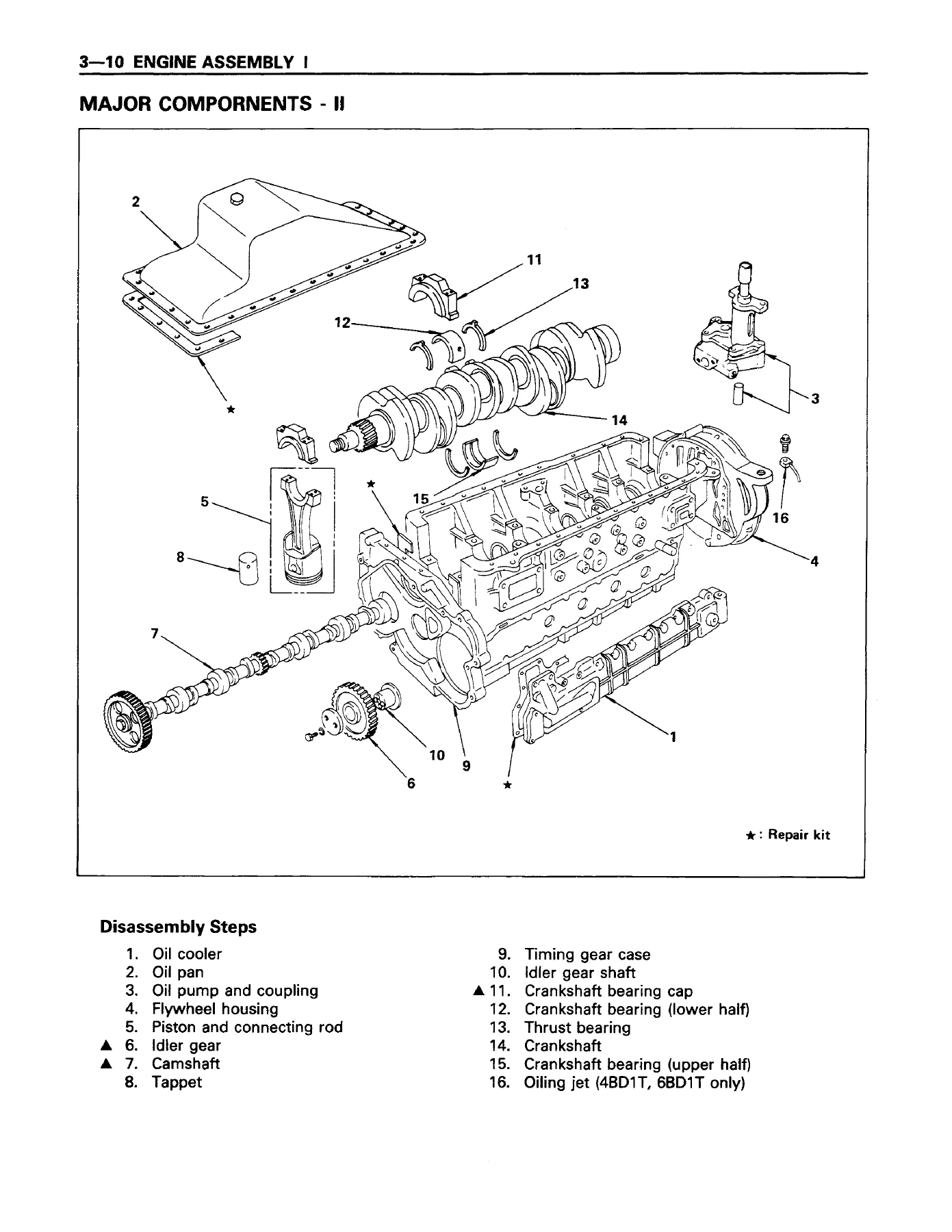

Altogether, the Isuzu 4B & 6B Series Industrial Diesel Engine Workshop Manual gives a technician the complete service approach used by the factory. It opens with general repair instructions and an explanation of the symbol-and-callout system used throughout every subsequent illustration, then walks through disassembly, part-by-part inspection and repair, and reassembly of the engine, cylinder head, piston and connecting rod assemblies. Each service operation section begins with an exploded view, and the important steps are flagged with a triangle symbol and covered in detail in the accompanying text. Sub-assembly sections are broken out by system so a specific repair can be found without reading the whole book.

Specification coverage is unusually broad for an industrial engine family of this size. The General Information section lists engine type, combustion chamber type, cylinder liner type, number of cylinders, bore and stroke, total piston displacement, compression ratio, engine dimensions, dry engine weight, fuel injection order, specified fuel, injection pump type, governor type, injection nozzle type, injection starting pressure, fuel filter type, water sedimentor, compression pressure, valve clearances, lubrication method, oil pump type, main oil filter type, lubricating oil capacity, oil cooler type, cooling method, coolant capacity, water pump type, thermostat type, alternator specification, starter specification, and turbocharger manufacturer and model for the turbocharged units.

Models and Applications Covered

Four-cylinder units: 4BB1, 4BD1, 4BD1T. Six-cylinder units: 6BB1, 6BD1, 6BD1T, 6BG1, 6BG1T. The T-suffix engines (4BD1T, 6BD1T, 6BG1T) are turbocharged, and the manual includes turbocharger identification, rotor shaft axial and radial play measurement, and turbo-specific oil feed and drain pipe torque figures alongside the base engine content. Because the manual is written to cover the whole family, the turbocharged and non-turbocharged variants share most inspection values and disassembly steps, with differences called out where they exist, such as the piston cooling oil jets on the turbo engines, the tuftrided crankshafts on the 6BG1, 6BG1T, 6BD1T and 4BD1T, and the single-bearing water pump on the 4BD1 and 4BD1T.

What This Manual Enables You to Do

• Disassemble the engine from the external parts inward, following the numbered disassembly steps and exploded views for both left-hand and right-hand sides
• Remove and reinstall the cylinder head, rocker arm shaft assembly, push rods and cylinder head bolts in the correct sequence
• Inspect and repair the cylinder head, valve guides, valve springs, tappets, push rods, rocker arm shafts and rocker arms to published limits
• Measure and correct cylinder head lower face warpage, valve depression, valve contact width and valve stem clearance
• Replace dry-type cylinder liners, measure liner bore and projection, and select the correct piston grade
• Inspect, measure and repair pistons, piston rings, piston pins, connecting rods, crankshafts and bearings, including Plastigage clearance measurement
• Adjust valve clearances on both 4B and 6B engines at Top Dead Center on the compression stroke
• Check and adjust flange-mounted and coupling-driven injection pump timing using the fuel-flow method
• Measure compression pressure and diagnose poor cylinder sealing
• Service the lubricating system: oil pump inspection, center bolt and spin-on oil filter replacement, oil cooler disassembly and reassembly
• Service the cooling system: water pump disassembly, bearing and seal replacement, impeller clearance, thermostat inspection and valve lift measurement
• Service the fuel system: fuel filter replacement, feed pump strainer cleaning, water separator float inspection, injection nozzle testing and injection starting pressure adjustment
• Torque every fastener correctly using the standard bolt torque table plus the many component-specific torque callouts throughout the manual
• Apply the angular tightening method (snug torque plus specified angle) to cylinder head bolts, connecting rod bolts and other critical fasteners
• Work through troubleshooting flowcharts for hard starting, unstable idling, lack of power, excessive fuel or oil consumption, overheating, exhaust smoke colour and low oil pressure
• Identify the engine by serial number location and the injection pump by its identification plate before ordering parts or setting injection volume

Why the Correct Procedures and Specs Matter

On an industrial diesel, a torque value taken from the wrong source or a clearance guessed at will cost far more than the manual. Cylinder head bolts used with the laminated steel gasket are tightened using the angular method, and the manual spells out the snug torque, the angle, and the exact bolt tightening sequence for both 4B and 6B engines. Get that wrong and the gasket fails. Valve clearances are 0.40 mm intake and exhaust on a cold engine, and injection starting pressure varies between 150 kg/cm2 and 185 kg/cm2 depending on model and machine application. Cylinder liners are chrome plated on the inside and cannot be rebored or honed; if scored, they must be replaced. Crankshafts on the turbocharged engines and the 6BG1 are tuftrided and cannot be reground, and undersize bearings are not available for them. Those are exactly the facts a general-purpose repair book leaves out.

The Isuzu 4B & 6B Series Industrial Diesel Engine Workshop Manual IDE-2041 also carries the identification data you need before touching anything: where the engine serial number is stamped on the front left hand side of the cylinder body, and where the injection pump identification plate sits. Injection volume adjustment depends on the identification number on that plate, and the manual warns directly that using the wrong service data will reduce engine performance and can damage the engine.
