Mahindra Genio BS-III & BS-IV MAN-00120 Repair Manual – March 2011

Description

Mahindra Genio BS-III & BS-IV MAN-00120 Repair Manual – March 2011

The Mahindra Genio BS-III & BS-IV MAN-00120 Repair Manual – March 2011 is a detailed service and repair reference for the GENIO mDI CRDe platform. Published by the Technical Publication Cell of Mahindra & Mahindra Ltd., the manual was prepared to guide service technicians through maintenance, adjustment, diagnosis, removal, installation, dismantling, inspection and assembly work on the vehicle and its major aggregates. The coverage extends from basic vehicle specifications and scheduled maintenance through engine overhaul, driveline repairs, chassis systems and electrical specifications.

The manual identifies the basic vehicle as the Mahindra GENIO SC 2-WD BS-III & BS-IV, a goods carrier with cab and chassis configuration. Its engine section is devoted to the 2.49L mDI CRDe (BS-III & BS-IV) diesel engine. The document distinguishes between BS-III and BS-IV equipment where required; for example, the BS-IV engine is described with an intercooler, EGR cooler and catalytic converter, while the BS-III version does not use those components. This makes the Mahindra Genio BS-III and BS-IV repair manual useful when the job requires attention to configuration-specific intake and emission components rather than treating both versions as identical.

File Details

• Manual type: Repair Manual
• Brand: Mahindra & Mahindra Ltd.
• Model: GENIO (BS-III & BS-IV)
• Basic model: Mahindra GENIO SC 2-WD BS-III & BS-IV
• Engine: 2.49L mDI CRDe (BS-III & BS-IV)
• Document number: MAN-00120
• Revision: Rev 1
• Date: March 2011
• Language: English
• Pages: 455
• File format: PDF

Workshop Information and Repair Procedures

The manual is organized around the work a technician performs on the vehicle. Individual systems commonly include a description of operation, specifications, component identification, care and adjustment information, troubleshooting, in-car repair, dismantling or overhauling, assembly procedures, tightening torques, repair and maintenance data and applicable Mahindra Special Tools. The document explains that repair and maintenance data can include both new-part dimensions and allowable wear, while the torque sections identify specified values for important fasteners.

The engine material is especially extensive. It begins with engine identification and illustrated component locations, then moves into troubleshooting, maintenance, in-car repairs, engine dismantling and overhaul, inspection, assembly, specifications and wear data, lubricants and sealants, tightening torques and special tools. The engine is described as a 2489 cc turbocharged common-rail direct-injection diesel producing 56 kW / 75 BHP at 3200 RPM and 220 Nm at 1400-2200 RPM. The engine chapter also covers compression-pressure testing and diagnosis of conditions such as cylinder-head-gasket leakage, loss of power, black, blue, white or grey smoke, excessive oil consumption and starting complaints.

IMAGES PREVIEW

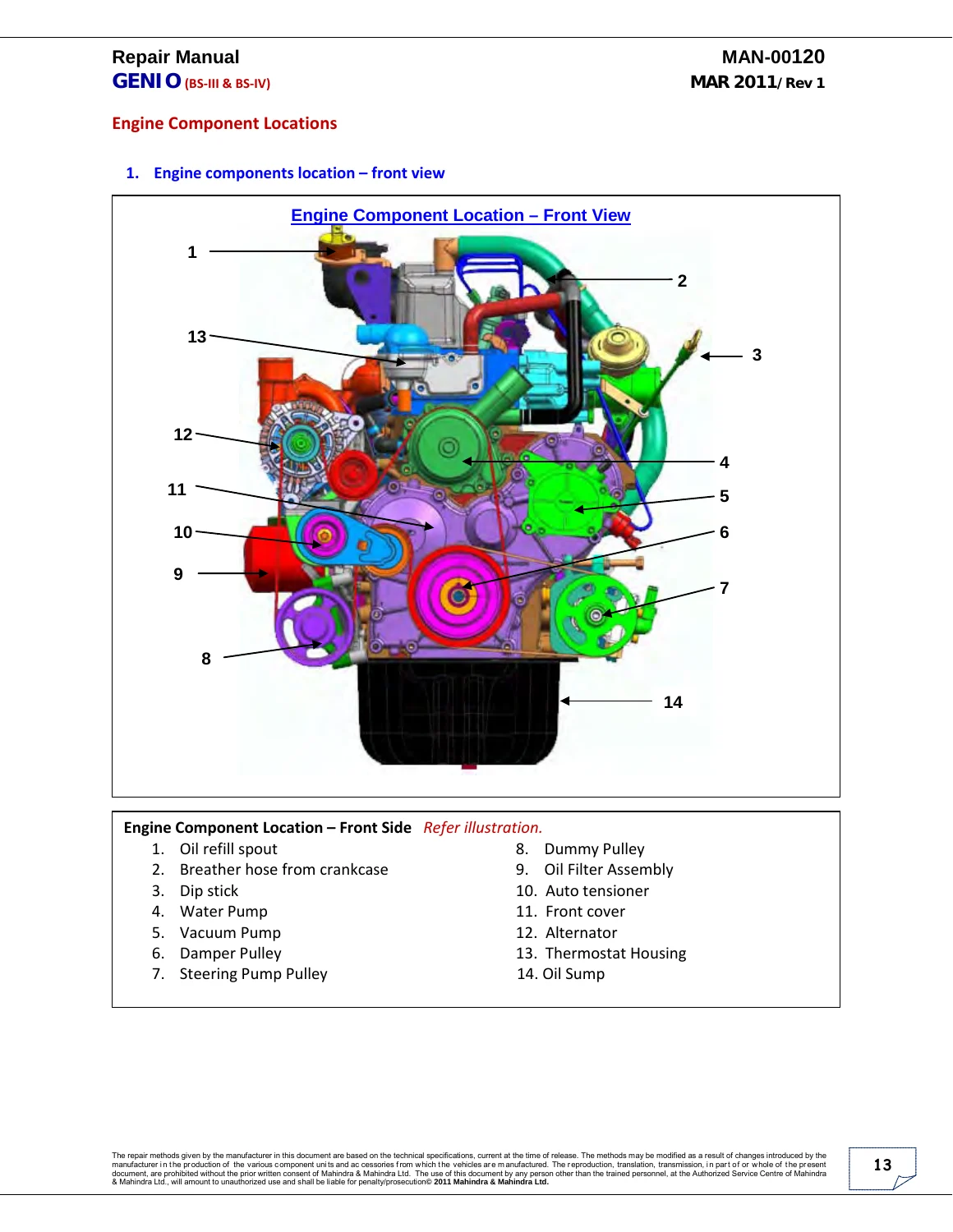

Illustrated engine component-location pages identify the water pump, vacuum pump, alternator, oil filter, thermostat housing, oil sump, high-pressure fuel pump, turbocharger and exhaust manifold, EGR valve, intake manifold, common-rail assembly, injectors and associated high-pressure pipes. Engine serial-number identification is also provided, including the printed formats JE XX X XXXXX for BS III and JFXX X XXXXX for BS IV.

Major Systems Covered

Beyond the engine itself, the Mahindra Genio BS-III & BS-IV MAN-00120 Repair Manual follows the complete powertrain and running gear. The air-intake section describes the air cleaner, turbocharger-related ducting and BS-IV intercooler arrangement, with troubleshooting, service care, removal and refitting procedures and specifications. Cooling-system coverage includes system description, fault diagnosis, maintenance, in-car repair, dismantling and assembly, specifications and tightening torques.

The fuel-system chapter covers the path from the fuel tank to the high-pressure pump and injectors, including high-pressure pipework and the return line. The emission-control section addresses the EGR system and configuration-specific components, with troubleshooting, care information and procedures for removing the EGR valve, EGR pipe and EGR cooler. These chapters are particularly valuable when repair work crosses several connected systems, such as an engine performance complaint involving air supply, boost, fuel delivery, EGR operation or cooling.

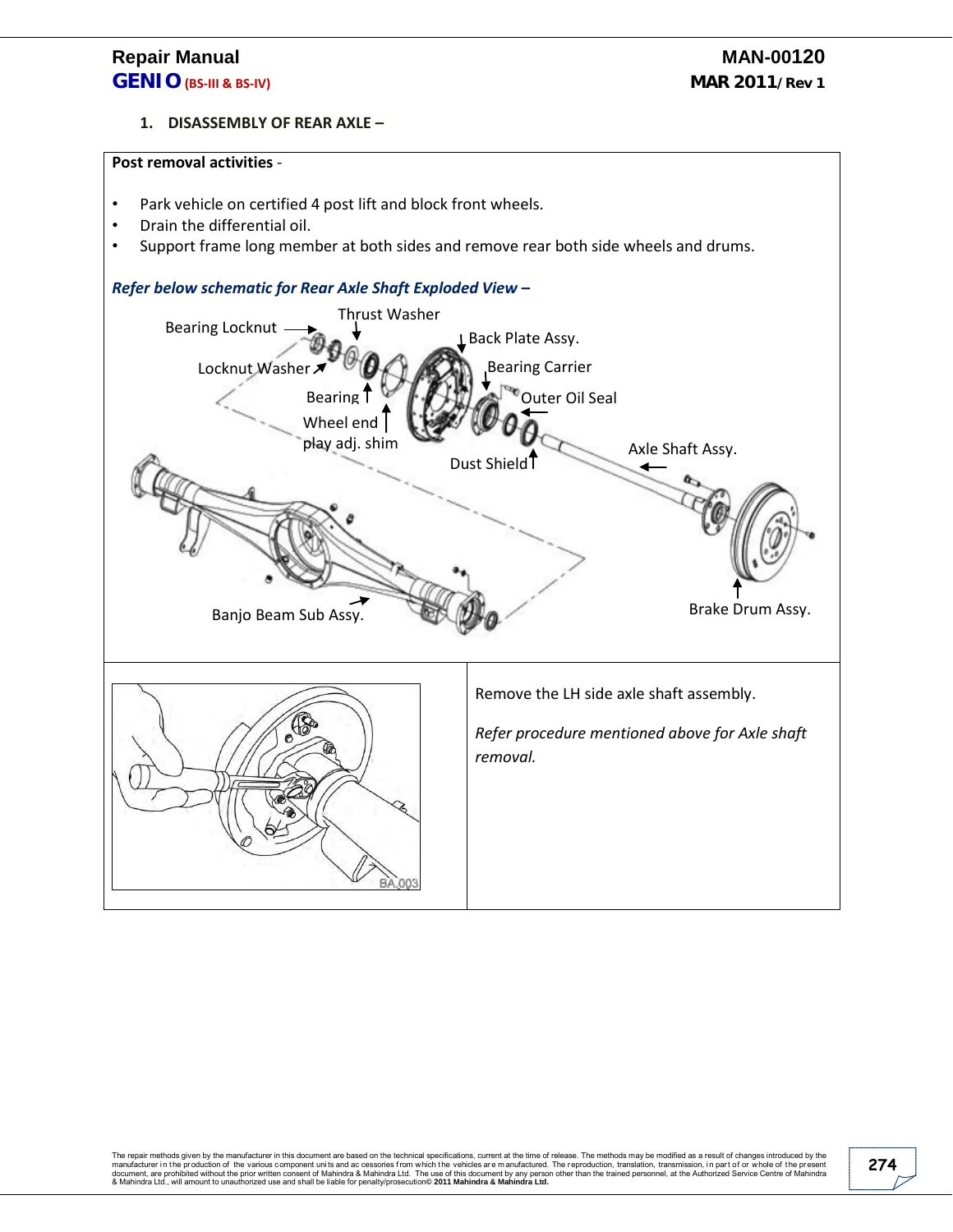

Driveline coverage continues through the clutch, the NGT 520 manual transmission, propeller shaft and rear axle. The transmission section includes diagnosis, service care, in-car repairs, transmission dismantling, component inspection, sub-assemblies, assembly inspection, specifications, tightening torques, sealant recommendations and special tools. The manual describes the NGT 520 as a five-speed gearbox with synchromesh forward gears and a sliding-mesh reverse gear. Propeller-shaft procedures include removal, centre-bearing disassembly and related service precautions, while the rear-axle chapter provides in-car repair, complete axle-component dismantling, inspection, sub-assemblies, specifications and adjustment information.

The chassis-side chapters cover hydraulic power-assisted rack-and-pinion steering, independent front suspension, rear suspension, brakes, wheels and tyres and the chassis frame. The suspension material includes troubleshooting, in-car repairs, specifications, wear data, tightening torques and special tools. Wheel-alignment guidance covers checks such as ride height, camber and caster adjustment and specifies tightening requirements for critical suspension fasteners. Brake-system material combines description, troubleshooting, service care, repair procedures and explanations of system operation. Wheels and tyres receive their own service, fault-finding and specification section rather than being treated only as general vehicle data.

The electrical chapter provides GENIO electrical technical specifications and directs the technician to the separate GENIO Wiring Manual MAN-000108 for additional wiring-system detail. This repair manual itself includes battery, windscreen-wiper and washer-system specifications among its electrical information.

Chapters Covered

• How to use this manual
• Safety Instructions – general precautions, vehicle safety and service safety terms
• Vehicle Specification – vehicle, engine, transmission, steering, suspension, brake, wheel and tyre, electrical, dimensional and weight data
• Vehicle Maintenance – scheduled inspection, replacement, lubrication and adjustment items
• Engine – 2.49L mDI CRDe (BS-III & BS-IV) – description; identification and component locations; troubleshooting; care; in-car repairs; dismantling and overhaul; inspection; assembly; specifications and wear data; lubricants and sealants; tightening torques; special tools
• Air Intake System – description; troubleshooting; care; in-car repairs; specification
• Cooling System – description; troubleshooting; care; in-car repairs; dismantling and assembly; specification; tightening torques
• Fuel System – description; troubleshooting; care; in-car repairs; tightening torques
• Emission Control System – description; troubleshooting; care; in-car repairs
• Clutch – description; troubleshooting; care; in-car repairs; specification and wear limits
• Transmission – NGT 520 – description; troubleshooting; care; in-car repairs; dismantling; component inspection; sub-assemblies; assembly inspection; specifications; tightening torques; sealant recommendations; special tools
• Propeller Shaft – description; troubleshooting; care; in-car repairs; specifications and wear limits
• Rear Axle – description; troubleshooting; care; in-car repairs; component dismantling; component inspection; sub-assemblies; specifications; tightening torques; sealant recommendations; special tools
• Steering System – description; troubleshooting; care; in-car repairs; steering-pump working principle and service information
• Front Suspension – description; troubleshooting; care; in-car repairs; specifications and wear data; tightening torques; sealant recommendations; special tools
• Rear Suspension – description; troubleshooting; in-car repairs; specifications; tightening torques
• Brake System – description; troubleshooting; care; in-car repairs; working principles of the various systems
• Wheels and Tyres – description; troubleshooting; care; in-car repairs; specifications
• Chassis – description; frame repair; in-car repair; tightening torques
• Electricals – GENIO electrical-system technical specifications
• Appendices – abbreviations and measuring units; lubrication chart; greasing points; Do’s and Don’ts; vehicle preservation; Mahindra Special Tools applicable to the model

Together, these sections give the technician a single reference for routine maintenance and inspection as well as component-level repair. Rather than stopping at general service instructions, MAN-00120 follows many assemblies through diagnosis, removal, dismantling, inspection, reassembly and refitting, with dimensional data, wear limits, lubricants, sealants, torque values and special-tool references positioned alongside the applicable work.

Vehicle and Engine Reference Data

The manual’s vehicle specification section provides a useful baseline before mechanical work begins. It identifies the GENIO SC 2-WD BS-III & BS-IV, 2489 cc four-cylinder inline diesel, 88.9 x 100.3 mm bore and stroke, 18.5:1 +/- 0.5 compression ratio, NGT 520 manual gearbox with five forward gears and one reverse, rear drive axle, hydraulic power-assisted rack-and-pinion steering, independent front suspension with coil spring and rigid rear suspension with leaf spring. The brake specification lists ventilated front discs and rear drums, while the wheel and tyre data identifies 6.0J X 15 rims and 215/70R 15 tyres.

The document also records vehicle dimensions, weights, tyre pressures and capacities, including a 55 L fuel tank. Maintenance information is tied to service intervals and includes engine oil and filter, air cleaner, transmission oil, differential oil, clutch and brake checks, steering, suspension, battery, lighting and final inspection items. This allows the same Mahindra GENIO repair manual to support both scheduled workshop servicing and more involved corrective repair.

Repair Your Mahindra GENIO with the Correct Procedures and Data

The Mahindra Genio BS-III & BS-IV MAN-00120 Repair Manual – March 2011 supports a wide range of workshop jobs, from scheduled maintenance, compression testing and engine diagnosis through turbocharger and intercooler work, cooling and fuel-system repairs, clutch and NGT 520 transmission servicing, propeller-shaft and rear-axle work, steering and suspension repairs, brake servicing, wheel alignment and chassis maintenance. Following the documented procedures, wear limits, adjustment data, specified tightening torques and special-tool guidance helps keep repair work consistent with the service information prepared for this GENIO platform.

After payment, the manual is supplied as an instant PDF download. There is no physical book and no shipping delay. The PDF can be opened on compatible computers, tablets and phones and pages can be printed when a paper reference is more convenient at the vehicle or workbench.
