Isuzu 6WG1-TC Common Rail Engine Service Manual – 6WG1 Diesel Workshop Repair

Description

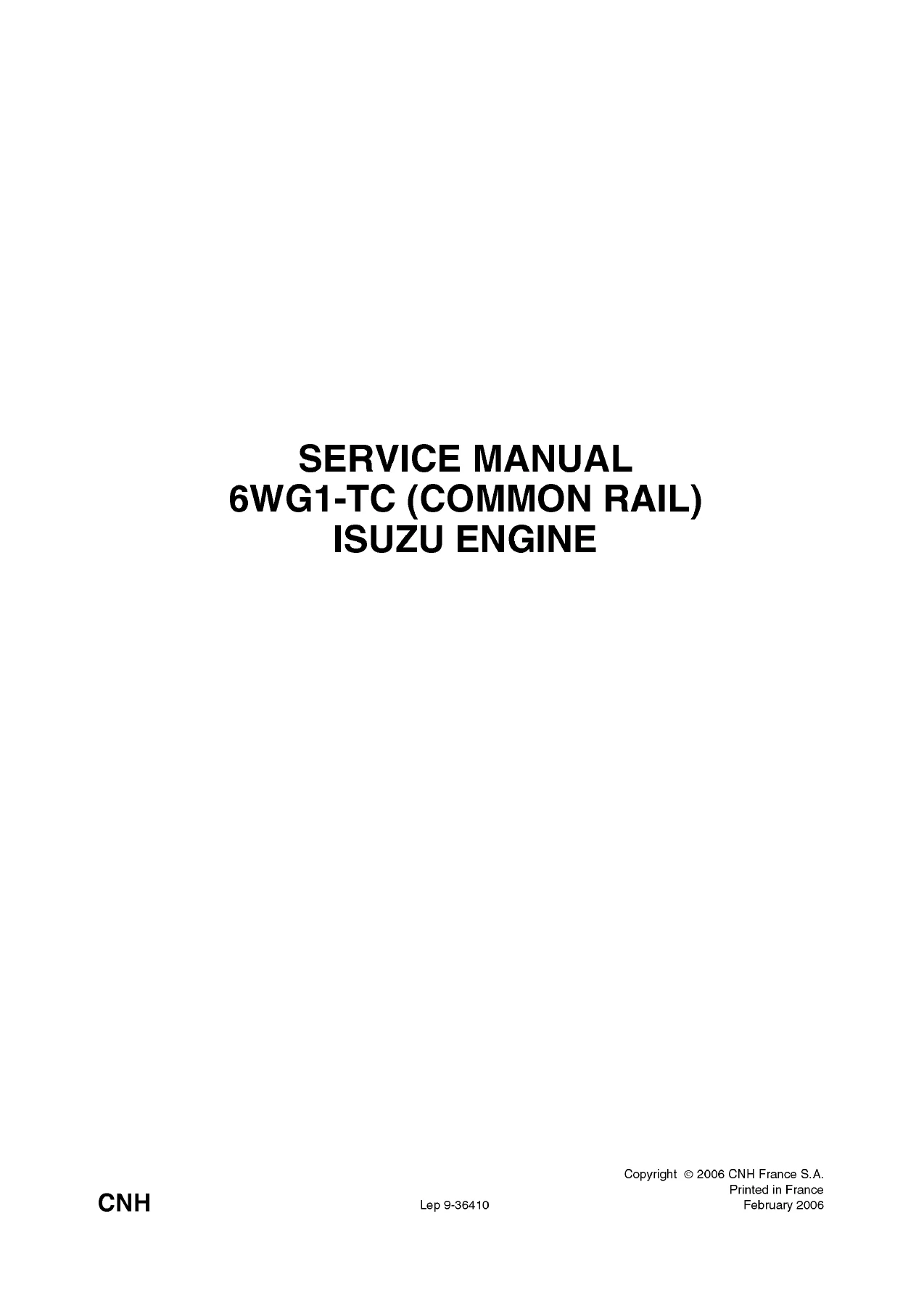

Isuzu 6WG1-TC Common Rail Engine Service Manual

This is the complete Isuzu engine service manual for the 6WG1-TC (Common Rail) diesel engine. The 6WG1-TC is a water-cooled, 4-cycle, in-line 6-cylinder, 24-valve OHC direct injection diesel engine with a displacement of 15.681 liters. This PDF covers every major system on the engine, from cylinder head and crankshaft rebuilds through the common rail fuel system, electrical, cooling, lubrication, intake and preheating systems. It is the same technical reference used by professional diesel technicians working on Isuzu commercial vehicles and industrial equipment powered by the 6WG1-TC.

File Details

• Manual Type: Engine Service Manual
• Brand: Isuzu
• Engine Model: 6WG1-TC (Common Rail)
• Language: English
• Page Count: 224 pages
• File Format: PDF
• Document Number: 9-36410

Chapters Covered

• 0A — General Information
• 1B — Engine Mechanical
• 1C — Cooling System
• 1D — Fuel System
• 1E — Electrical System
• 1H — Lubricating System
• 1J — Intake System
• 1K — Preheating System

0A — General Information

Covers the service precautions that apply across the entire engine, including safe handling of the engine, battery isolation, and the correct use of specialized tools. Includes the liquid gasket application table listing the exact sealant products and manufacturers specified for each joint — Three Bond 1207B, Loctite FMD-127, Loctite TL290, and others — plus the standard tightening torque tables for Isuzu bolts and nuts across strength classifications 4.8/4T, 7T, 8.8, 9.8/9T, and flare nut torque values. Also contains the plastigauge procedure for measuring bearing clearances, the SI unit conversion tables, and the full abbreviation glossary used throughout the manual.

1B — Engine Mechanical

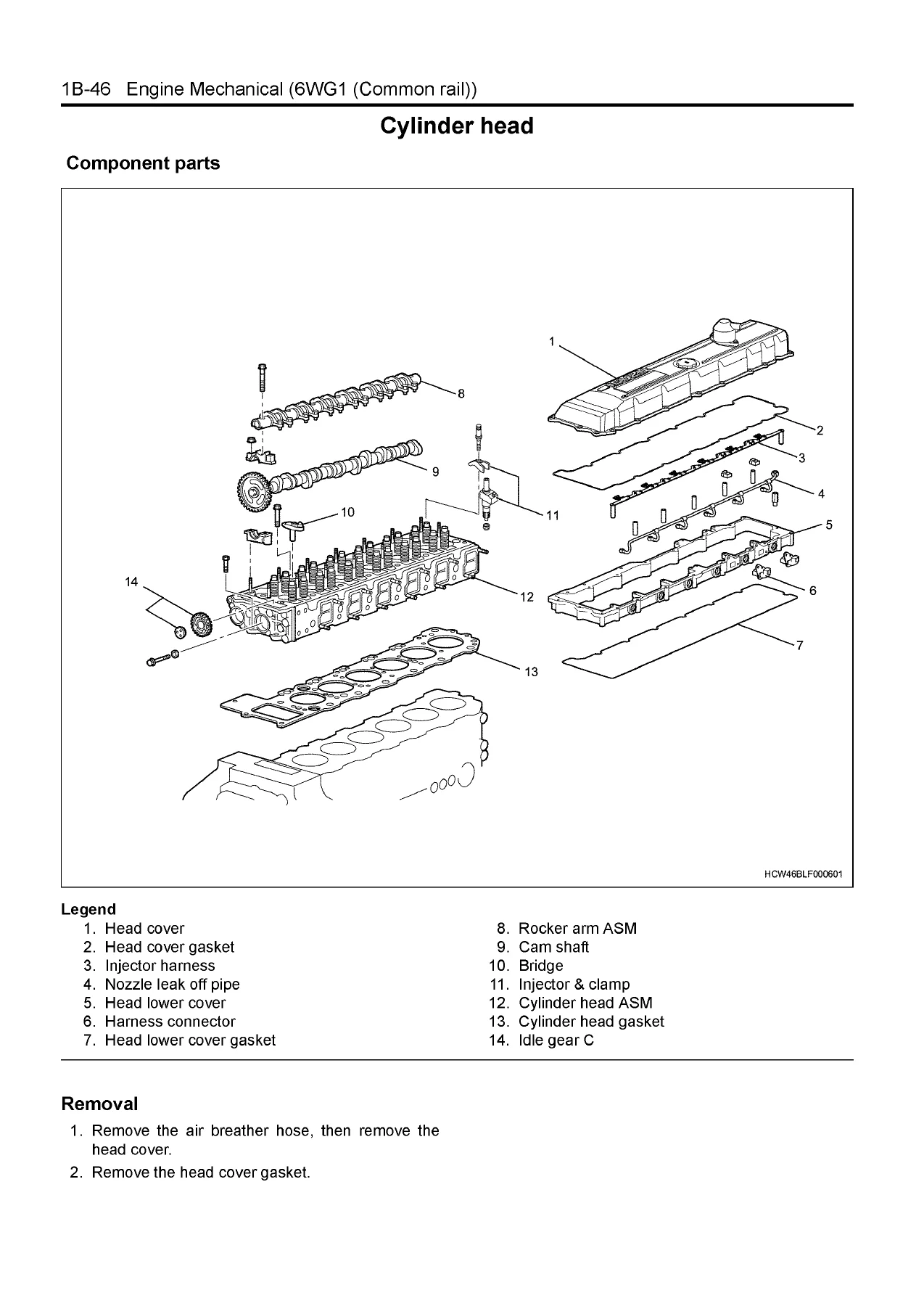

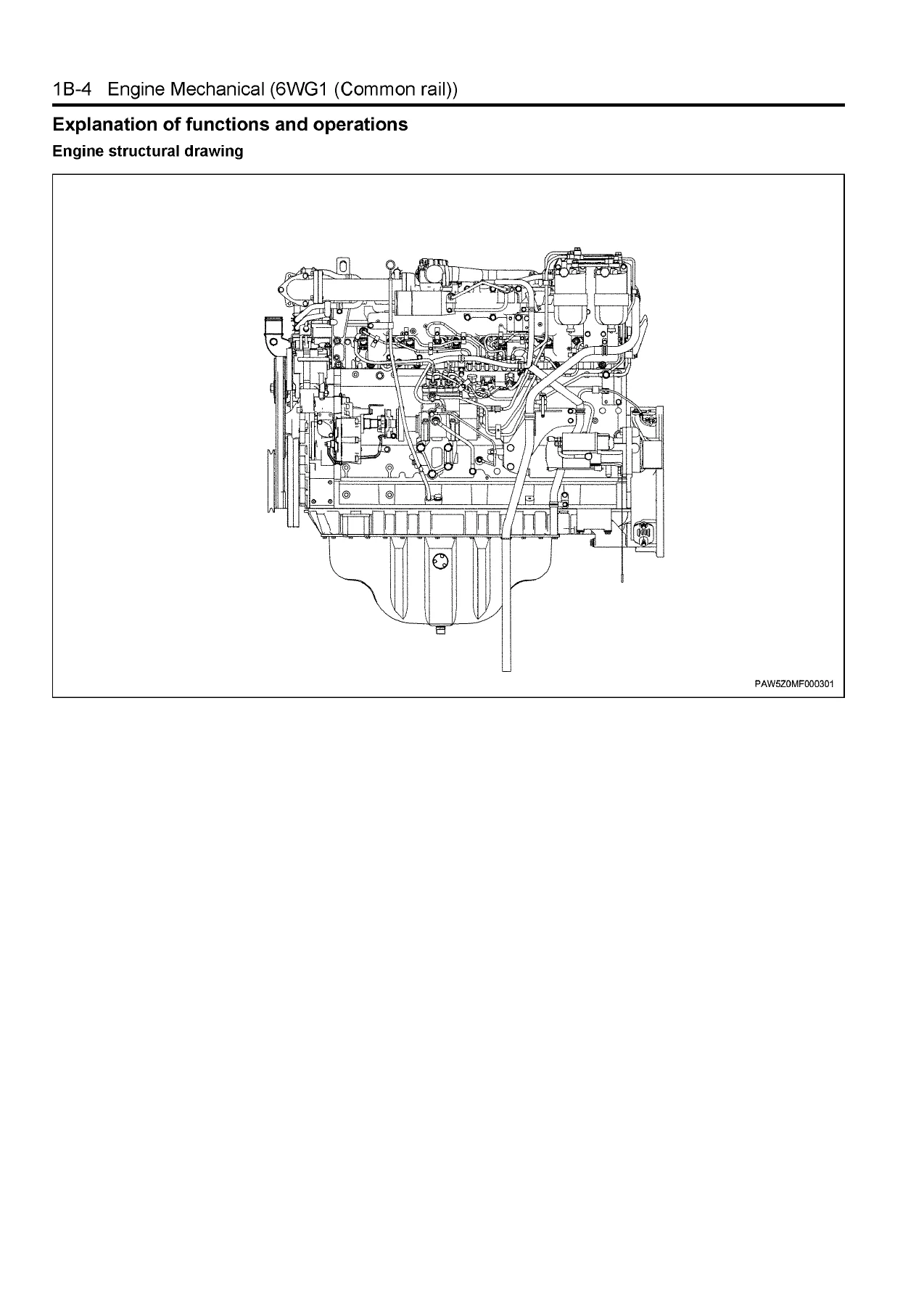

The largest section. Covers compression pressure measurement (selection of a reference point 2750 kPa/200 rpm, limit 2260 kPa), valve clearance adjustment at 0.40 mm for both intake and exhaust, and overhaul judging criteria based on compression loss, oil consumption increase, fuel consumption increase, and abnormal engine noise. Includes full removal, disassembly, inspection, assembly and installation procedures with torque specifications for the cylinder head, rocker arm, camshaft, timing gear, flywheel and flywheel housing, piston and connecting rod, crankshaft, and cylinder block. Component part diagrams and special tool references are included for each assembly.

1C — Cooling System

Covers the forced-circulation cooling system, thermostat operation and inspection (valve opening start 82°C, fully open 95°C, lift 11 mm at 95°C), and water pump disassembly, inspection, and assembly. Includes troubleshooting for engine overheating and overcooling with probable causes and corrections, plus torque specifications and seal ring installation procedures.

1D — Fuel System

Documents the electronic control common rail fuel injection system. Includes the fuel system diagram, common rail component layout with flow damper and pressure limiter, supply pump specifications (SP160-6HD, max discharge 490 mm³/ST, plunger diameter φ8.5, overflow valve opening 255 kPa), injector specifications (DLL-P, φ0.19 × 8 nozzle holes), and the fuel filter assembly. Emphasizes dust prevention procedures required for this precision fuel system.

1E — Electrical System

Two main systems: starting and charging. The starting section covers the 24 V, 7.0 kW Mitsubishi starter — disassembly, inspection (growler test, commutator, brush, field coil, magnetic switch), assembly, and pinion pulled-out position adjustment (0.5–2.0 mm). The charging section covers the brushless 24 V-50 A generator, disassembly, stator/rotor/rectifier/regulator inspection, assembly, and the generator bench test with adjustment voltage (28–29 V) and output characteristics.

1H — Lubricating System

Documents the forced circulation lubrication system with oil pump, full flow filter, water-cooled oil cooler, and piston cooling oil jets. Includes oil pump specifications (gear type, 154 L/min at 3,200 rpm, relief valve opening 686 kPa), oil cooler element cleaning and inspection, oil thermo valve opening temperature (98°C), oil pan and oil jet installation, plus maintenance standard tables for oil pump clearances and driven gear shaft tolerances.

1J — Intake System

Covers the turbocharging system, specifically the TD08H turbocharger (Mitsubishi). Includes troubleshooting for faults, low output, and oil leakage, plus full turbocharger disassembly, cleaning, inspection (bearing housing, bearing, shaft, insert, piston ring), and assembly. Provides maintenance standards for shaft orientation play, journal diameter, concentricity, and clearances.

1K — Preheating System

Covers the QOS-II preheating system with its controller-based timer, thermo sensor inspection and resistance values, glow plug inspection (approx. 4.3 Ω at room temperature), and troubleshooting for glow indicator lamp faults, preheating failures, and preheating timing issues.

What This Manual Covers

The 6WG1-TC common rail engine is a 15.681-liter inline-six found in Isuzu heavy commercial vehicles and industrial applications. Its specifications include:

• Bore × stroke: φ147 mm × 154 mm
• Compression ratio: 16.0
• Firing order: 1-5-3-6-2-4
• Compression pressure: 2750 kPa (28 kgf/cm²) at 200 rpm
• Engine oil capacity: 37–52 L (oil pan)
• Cooling water capacity: 36.1 L
• Dry weight: 1185 kg
• Turbocharger: TD08H

All torque values throughout the manual are given in N·m with kgf·m in brackets, and service limits are separated from standard values so you know exactly when a part needs replacement or repair.

Why this manual matters: The 6WG1-TC common rail engine has extremely tight fuel system tolerances — the injector internal passages and clearances are made to a precision standard that makes dust contamination a real breakdown risk. This manual tells you exactly how to handle, seal, and reassemble every fuel-related part without introducing contamination. It also gives you the correct tightening torques, sealant products, and assembly sequences that keep the engine reliable after a rebuild.

Whether you’re diagnosing a compression loss, pulling the cylinder head, rebuilding the fuel system, servicing the turbocharger, or tracking down an electrical fault, this manual supports the job with procedures, component diagrams, and the exact values you need.

IMAGES PREVIEW

Delivery: Your manual is available as an instant PDF download after checkout. No shipping, no waiting. Read it on any device — laptop, tablet, or phone — or print the pages you need for the shop floor. Every section is laid out the same way it appears in the original service documentation, with chapter markers keyed to the numbering used throughout the manual.
