Kubota WG752-E2 and DF752-E2 Gasoline and LPG Engine Workshop Manual
Original price was: $29.95.$18.95Current price is: $18.95.
Comprehensive factory workshop manual for Kubota WG752-E2 gasoline and DF752-E2 dual fuel (gasoline/LPG) engines. Delivers full mechanism descriptions, overhaul steps, torque specs, electrical schematics, and servicing limits across 124 pages.
Description
Kubota WG752-E2 and DF752-E2 Gasoline and LPG Engine Workshop Manual Overview
The Kubota WG752-E2 and DF752-E2 Gasoline and LPG Engine Workshop Manual provides professional technicians and engine mechanics with factory-grade service, overhaul, and technical diagnostic procedures. Specifically engineered for the Kubota WG752-E2 liquid-cooled 3-cylinder gasoline engine and the DF752-E2 dual-fuel gasoline/liquid propane gas (LPG) engine, this comprehensive technical document covers every core assembly. The manual is organized into two primary divisions: Mechanism, detailing operational theory and internal construction, and Servicing, delivering step-by-step disassembly, inspection, rebuilding, and adjustment procedures.
Manual File Details
| Attribute | Value |
|---|---|
| Manual Type | Factory Workshop Manual (WSM) |
| Brand | Kubota |
| Applicable Models | WG752-E2 (Gasoline), DF752-E2 (Dual Fuel Gasoline / LPG) |
| Document / Publication Number | 981-0538 (Reprint Code 97897-02100) |
| Publication Date | February 2001 (1-2003 Printing) |
| Page Count | 124 pages |
| Language | English |
| File Format | Portable Document Format (PDF) |
Complete Chapters & Structural Breakdown
- Safety First: Safety instructions, starting precautions, fluid handling, and EPA/CARB emission regulations
- Specifications & Dimensions: General engine data, performance torque curves, bare speeds, and external mounting dimensions
- Mechanism — Engine Body: Tunnel-type linerless cylinder block, cross-flow OHV cylinder head, combustion chambers, crankshaft, pistons, piston rings, connecting rods, chilled cast-iron camshaft, distributor driveshaft, rocker arm assembly, valves, flywheel, and closed breather
- Mechanism — Lubricating System: Forced-feed lubrication flow, trochoid oil pump, ball-type relief valve, full-flow paper filter cartridge, and oil pressure switch operation
- Mechanism — Cooling System: Centrifugal water pump, bypass wax-pellet thermostat, louverless corrugated radiator, pressure cap, and DF752-E2 hot water vaporizer circuit
- Mechanism — Fuel System: Fuel delivery architecture, WG752-E2 float carburetor with anti-afterfire cut-off solenoid, DF752-E2 dual-fuel carburetor, two-stage vaporizer/pressure regulator, vacuum lock safety chamber, centrifugal ball governor, and intake manifold preheating
- Mechanism — Electrical System: Complete wiring diagrams for WG752-E2 and DF752-E2, 12V 0.7 kW reduction starter, 8-pole rotating magnet alternator, RS5130 thyristor-controlled regulator, and transistorized distributor with waveform dwell control
- Servicing — General: Engine identification and serial decoding, tightening torques for special and standard hardware, comprehensive gasoline and LPG troubleshooting matrices, and maintenance checklists
- Servicing — Engine Body: Compression testing, top clearance measurement, cold valve clearance adjustment, external stripping, cylinder head rebuilding, valve guide replacement, timing gear backlash, piston and rod overhaul, crankshaft bearing fitting, and cylinder boring/honing
- Servicing — Lubricating System: Operating oil pressure checks, relief pressure verification, and oil pump rotor clearances
- Servicing — Cooling System: Fan belt deflection, radiator leak pressure testing, thermostat opening temperature inspection, and water pump rebuild
- Servicing — Fuel System: Mechanical governor setting, low/high bare idle adjustment, altitude compensation jet replacement, LPG vaporizer tar draining, primary chamber pressure checks, and vacuum lock testing
- Servicing — Electrical System: Starter no-load testing and bench overhaul, alternator no-load output verification, RS5130 regulator testing, ignition coil primary/secondary resistance checks, spark plug gaps, solenoid testing, high-tension lead resistance, and timing light adjustment
- Special Tools: Factory service tools, pullers, testers, and dimensioned fabrication drawings for shop-made drift tools
This structural arrangement ensures that workshop personnel can rapidly correlate functional operational theory directly with hands-on service specifications, allowable wear tolerances, and exacting assembly steps for both gasoline and dual-fuel configurations.
Engine Architecture & Internal Construction
Both the WG752-E2 and DF752-E2 engines share a 740 cc displacement (68 x 68 mm bore and stroke) featuring an overhead-valve configuration and a 9.2:1 compression ratio. The crankcase utilizes a rigid tunnel-type linerless cylinder block that maximizes structural stiffness, reduces distortion, and promotes uniform cylinder heat dissipation. The cross-flow cylinder head separates the intake and exhaust pathways to stop thermal transfer from heating incoming air charges. Inside the reciprocating assembly, three-ring aluminum pistons utilize a barrel-faced top compression ring, taper-faced second ring, and combined steel oil ring, driving through precision-aligned connecting rods to a four-journal counterweighted crankshaft supported by three main bearing case assemblies.
Fuel Delivery & LPG Vaporizer Operation
Fuel induction differences between the models are thoroughly documented in this Kubota WG752-E2 and DF752-E2 service manual. The WG752-E2 utilizes a float bowl carburetor equipped with a slow pilot system, main discharge nozzle, choke valve, and an electric fuel cut-off solenoid. The DF752-E2 incorporates a specialized dual-fuel carburetor paired with a secondary LPG mixer and a dedicated two-stage vaporizer/regulator unit. Liquid propane passes from the supply tank through an electromechanical shut-off valve into the vaporizer’s primary chamber, where it decompresses to 32.7 kPa (4.3 psi) while drawing heat from engine coolant circulating through internal water passages to prevent icing. The secondary chamber further regulates the gaseous fuel to near-atmospheric pressure before introducing it into the air horn via the mixer. Built-in vacuum lock diaphragms ensure fuel supply automatically cuts off the instant engine vacuum ceases.
Electrical, Charging & Ignition Mechanics
The electrical section details a distributor-based, fully transistorized ignition system operating at 18 degrees B.T.D.C. timing. A specially contoured signal rotor dynamically expands the dwell angle across increasing engine speeds to ensure strong secondary coil discharge under heavy loads. Charging is maintained by an 8-8 pole rotating magnet alternator delivering over 20V AC no-load output at 5200 rpm, coupled with an RS5130 thyristor regulator maintaining a steady 14 to 15 VDC charge while protecting circuits against battery reverse-polarity damage.
Maintenance Schedules & Service Standards
Detailed service tables supply both factory tolerances and allowable wear limits. Critical engine specifications include:
| Specification | Factory Spec | Allowable Limit | Notes |
|---|---|---|---|
| Compression Pressure | 1.27 MPa (185 psi) | 0.88 MPa (128 psi) with variance under 10% | |
| Top Clearance | 1.45 to 1.75 mm (0.0571 to 0.0690 in.) | ||
| Valve Clearance (Cold) | 0.145 to 0.185 mm (0.0057 to 0.0073 in.) for intake and exhaust | ||
| Valve Recessing | 0.75 to 0.95 mm | 1.20 mm | |
| Cylinder Liner Standard I.D. | 68.000 to 68.019 mm | 68.169 mm (0.50 mm oversize available at 68.500 mm) | |
| Crankshaft Side Clearance | 0.15 to 0.31 mm | 0.50 mm | |
| Engine Oil Pressure | Above 69 kPa (10 psi) at idle; 196 to 441 kPa (28 to 64 psi) at rated speed | ||
| Thermostat Opening | 80.5 to 83.5°C (177 to 182°F); Fully open at 95°C (203°F) |

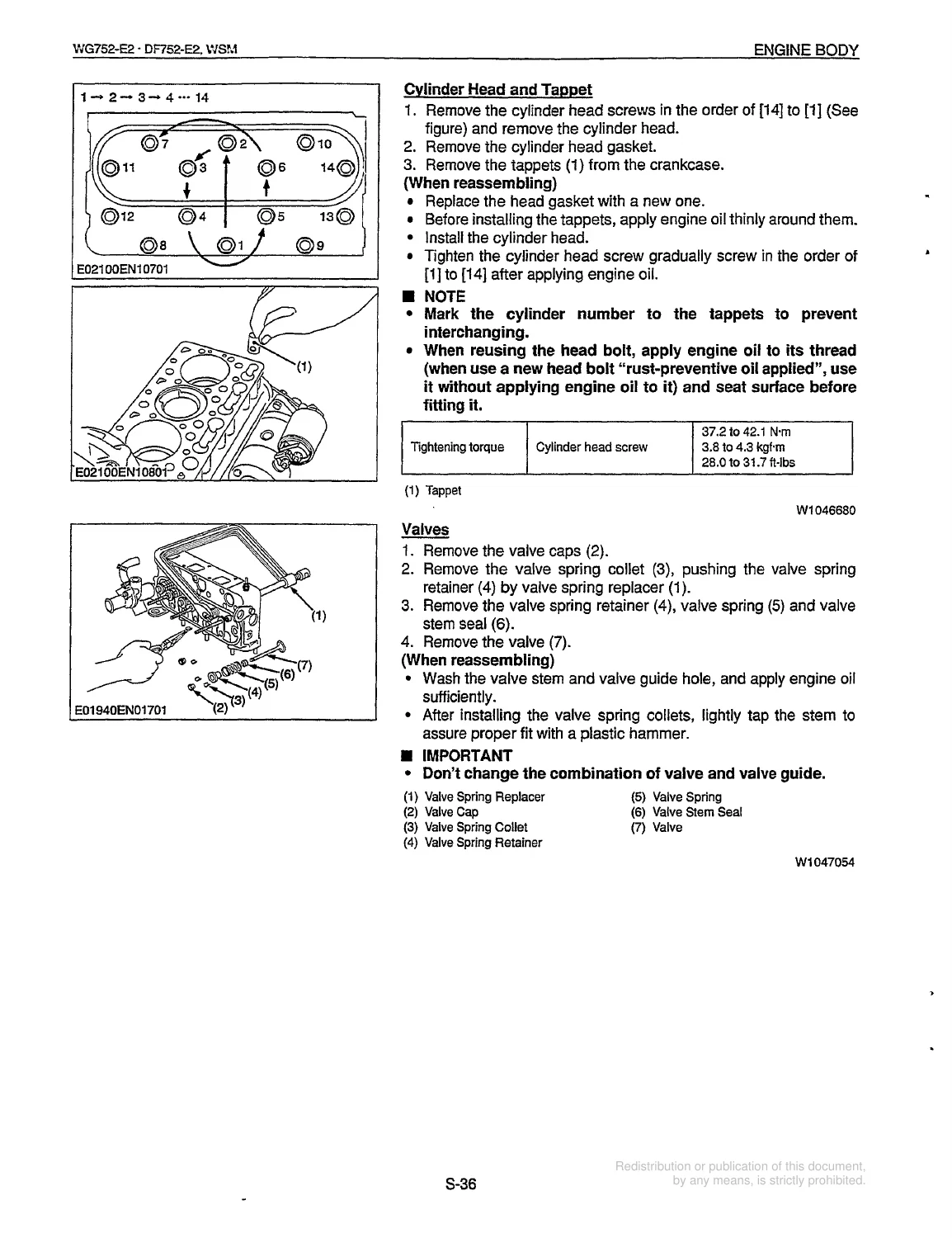

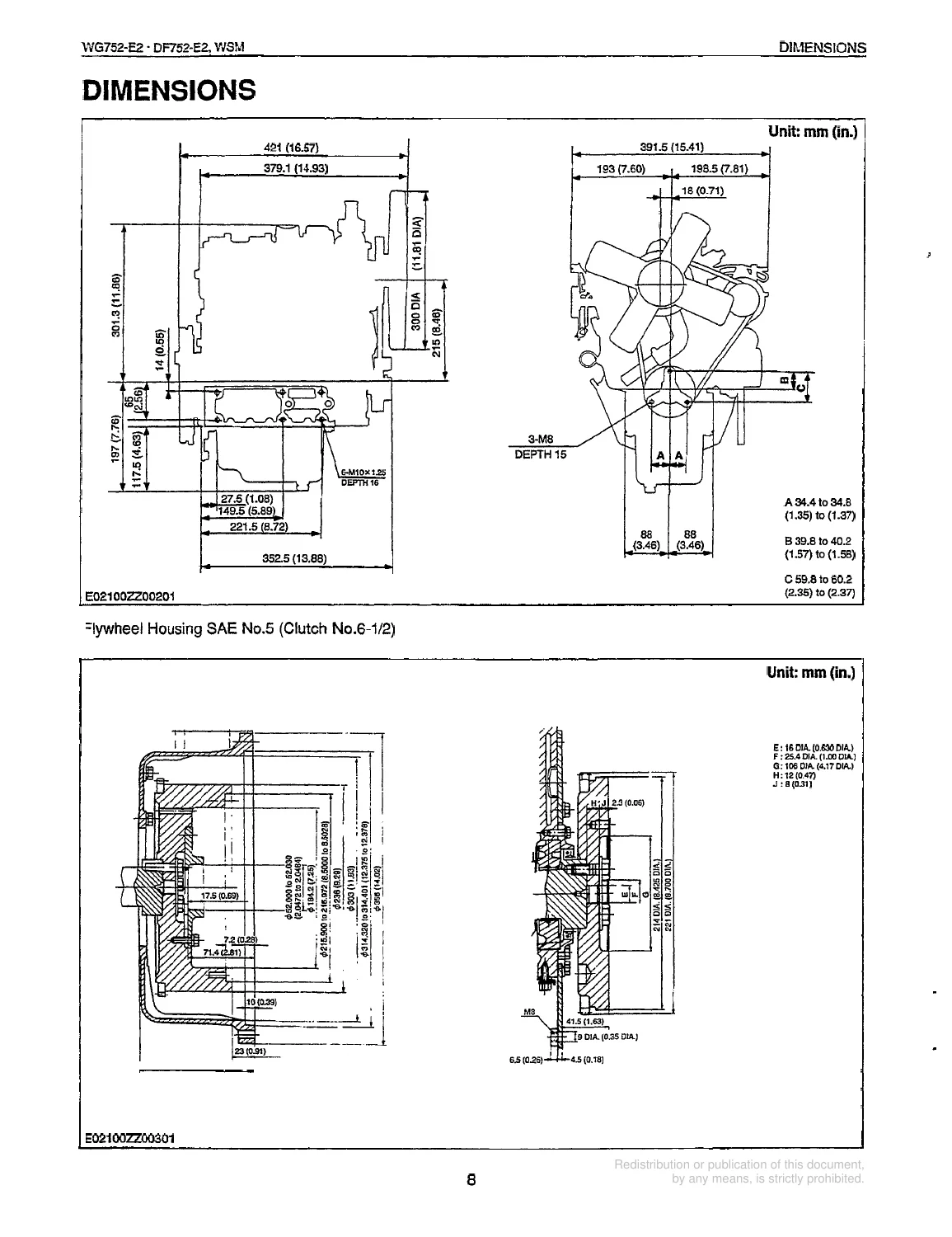

IMAGES PREVIEW
Key Tightening Torques:
| Component | Torque |
|---|---|
| Cylinder head screws | 37.2 to 42.1 N·m (28.0 to 31.7 ft-lbs) |
| Connecting rod screws | 26.5 to 30.4 N·m (19.5 to 22.4 ft-lbs) |
| Flywheel screws | 53.9 to 58.8 N·m (39.8 to 43.4 ft-lbs) |
| Fan drive pulley bolt | 118 to 127 N·m (86.8 to 94.0 ft-lbs) |
Professional Workshop Utility & Instant Delivery
Equipping your repair shop with the authentic Kubota WG752-E2 and DF752-E2 Gasoline and LPG Engine Workshop Manual gives mechanics the capabilities needed to conduct everything from routine governor calibration and valve relapping to total crankshaft rebuilds and dual-fuel LPG troubleshooting. Using authentic factory clearance values, tightening sequences, and wiring schematics ensures that all mechanical work meets Kubota factory durability standards while preserving required EPA and CARB emissions compliance. Delivered as an instant high-quality digital PDF download immediately upon purchase, this manual requires no waiting for shipping, runs seamlessly across desktop computers, tablets, and mobile devices, and is fully printable for workbench reference.
