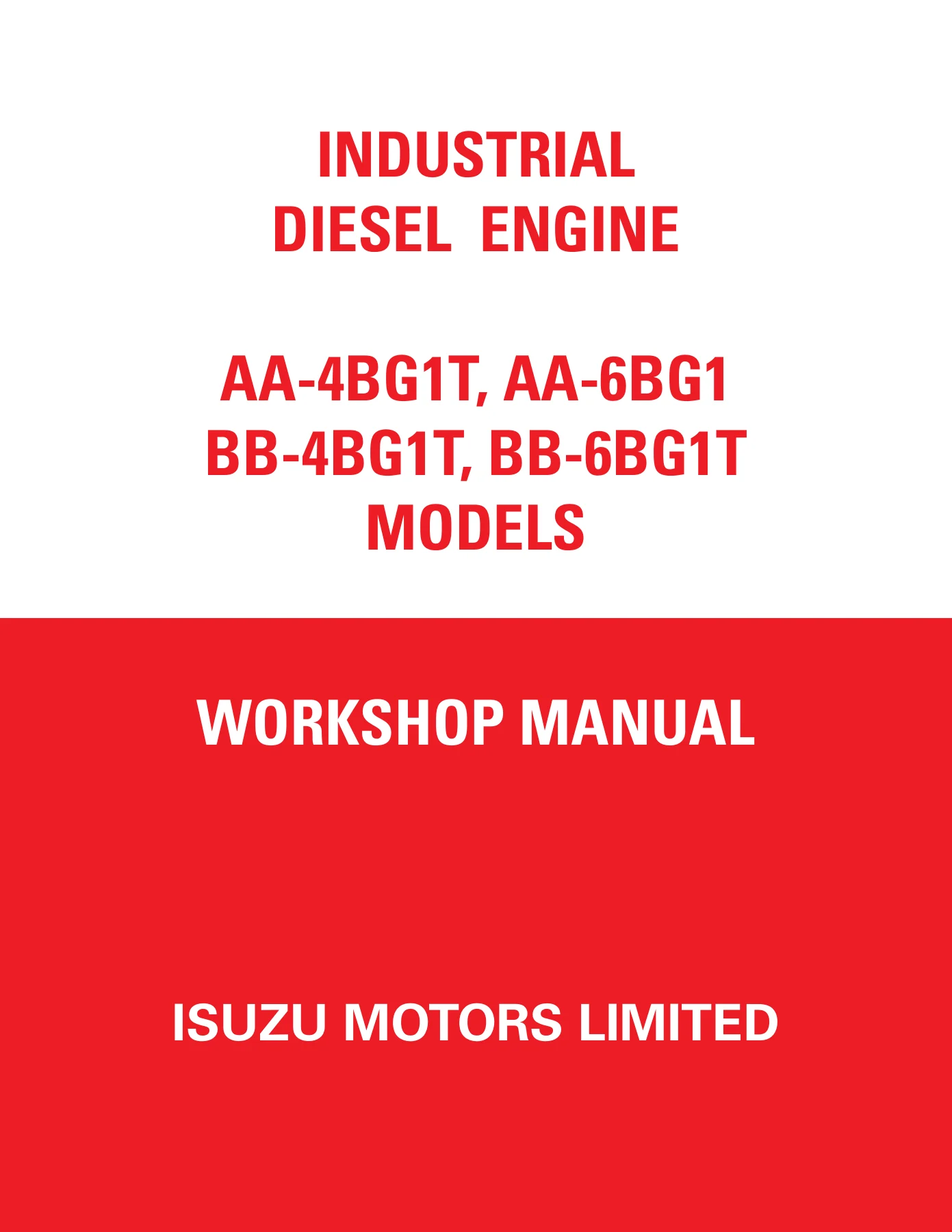

Isuzu AA-4BG1T AA-6BG1 BB-4BG1T BB-6BG1T Industrial Diesel Engine Workshop Manual 1999 Onwards

Description

Isuzu AA-4BG1T AA-6BG1 BB-4BG1T BB-6BG1T Industrial Diesel Engine Workshop Manual

This Isuzu AA-4BG1T AA-6BG1 BB-4BG1T BB-6BG1T Industrial Diesel Engine Workshop Manual is the complete service document produced by Isuzu Motors Limited for the 4BG1, 4BG1T, 6BG1 and 6BG1T family of industrial diesel engines. Covering 1999 and later models, it walks a technician through general repair instructions, periodic maintenance, full engine disassembly, component inspection and repair, and reassembly — all in one publication.

Whether you are servicing an AA-4BG1T, keeping an AA-6BG1 running in industrial equipment, or rebuilding a BB-4BG1T or BB-6BG1T, this Isuzu industrial diesel engine workshop manual gives you the procedures, the tightening torques, the measurement criteria and the special tool references needed to do the job correctly.

File Details

• Manual type: Workshop Manual (service, repair, overhaul)
• Manufacturer: Isuzu Motors Limited
• Models covered: AA-4BG1T, AA-6BG1, BB-4BG1T, BB-6BG1T
• Engine family: 4BG1, 4BG1T, 6BG1, 6BG1T
• Applicable years: 1999 and later models
• Language: English
• File format: PDF
• Page count: 222 pages

Chapters Covered

The Isuzu AA-4BG1T AA-6BG1 BB-4BG1T BB-6BG1T workshop manual is organised into fifteen numbered sections, each opening with its own table of contents.

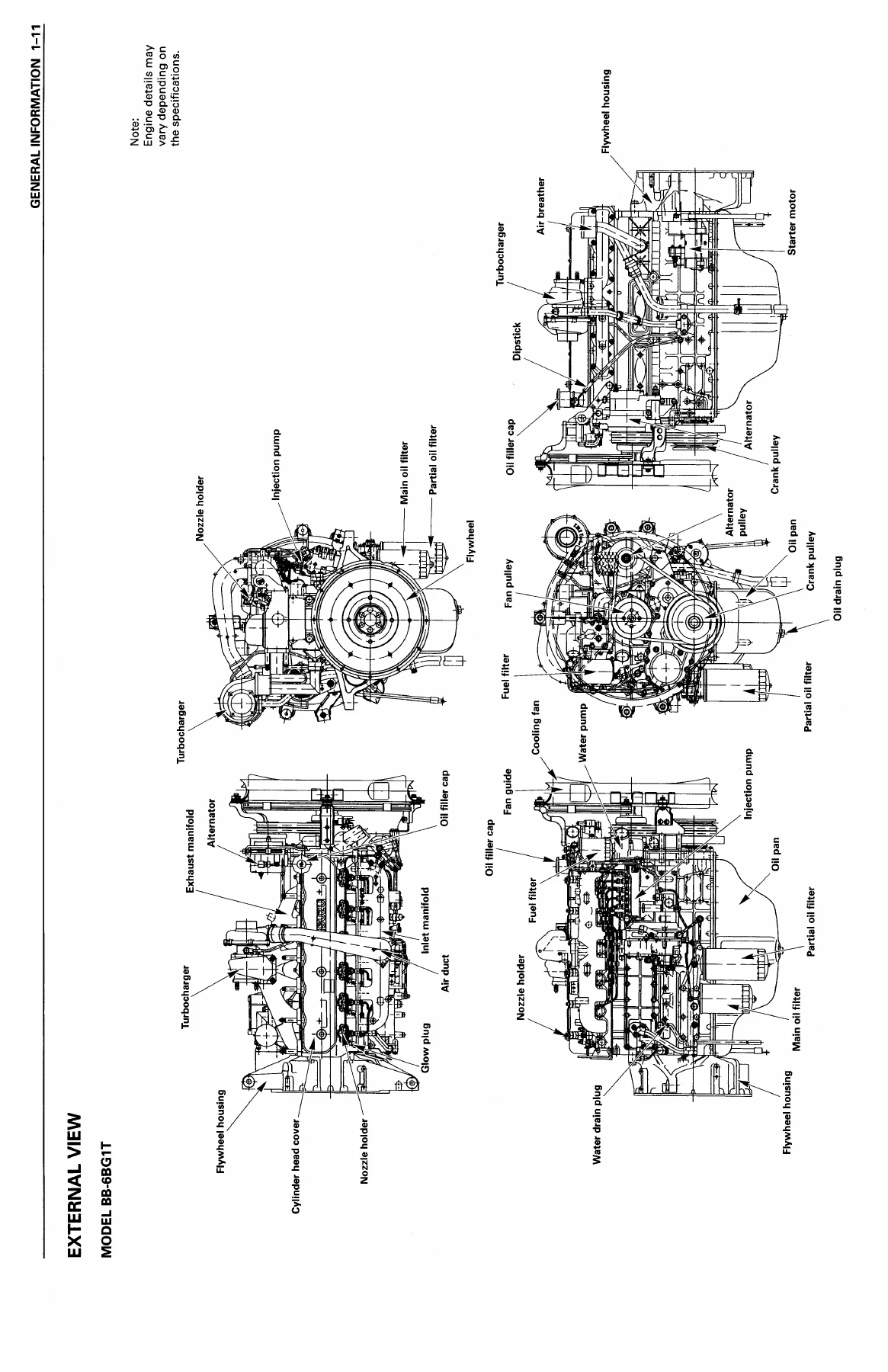

• 1. General Information — general repair instructions, notes on the format of the manual, main data and specifications, external view, tightening torque specifications, angular nut and bolt tightening method, major parts fixing nuts and bolts, identifications
• 2. Maintenance — fuel system, cooling system, valve clearance adjustment, injection timing, compression pressure measurement, turbocharger inspection, engine repair kit, recommended lubricants, engine oil viscosity chart
• 3. Engine Assembly I (Disassembly) — external parts disassembly, major components, rocker arm and rocker arm shaft, cylinder head, piston and connecting rod
• 4. Engine Assembly II (Inspection & Repair) — cylinder head, valve guide, valve spring, tappet, push rod, rocker arm shaft and rocker arm, idler gear and shaft, camshaft, cylinder body and liner, piston and piston ring, piston pin, connecting rod, crankshaft, flywheel and flywheel housing, timing gear case cover

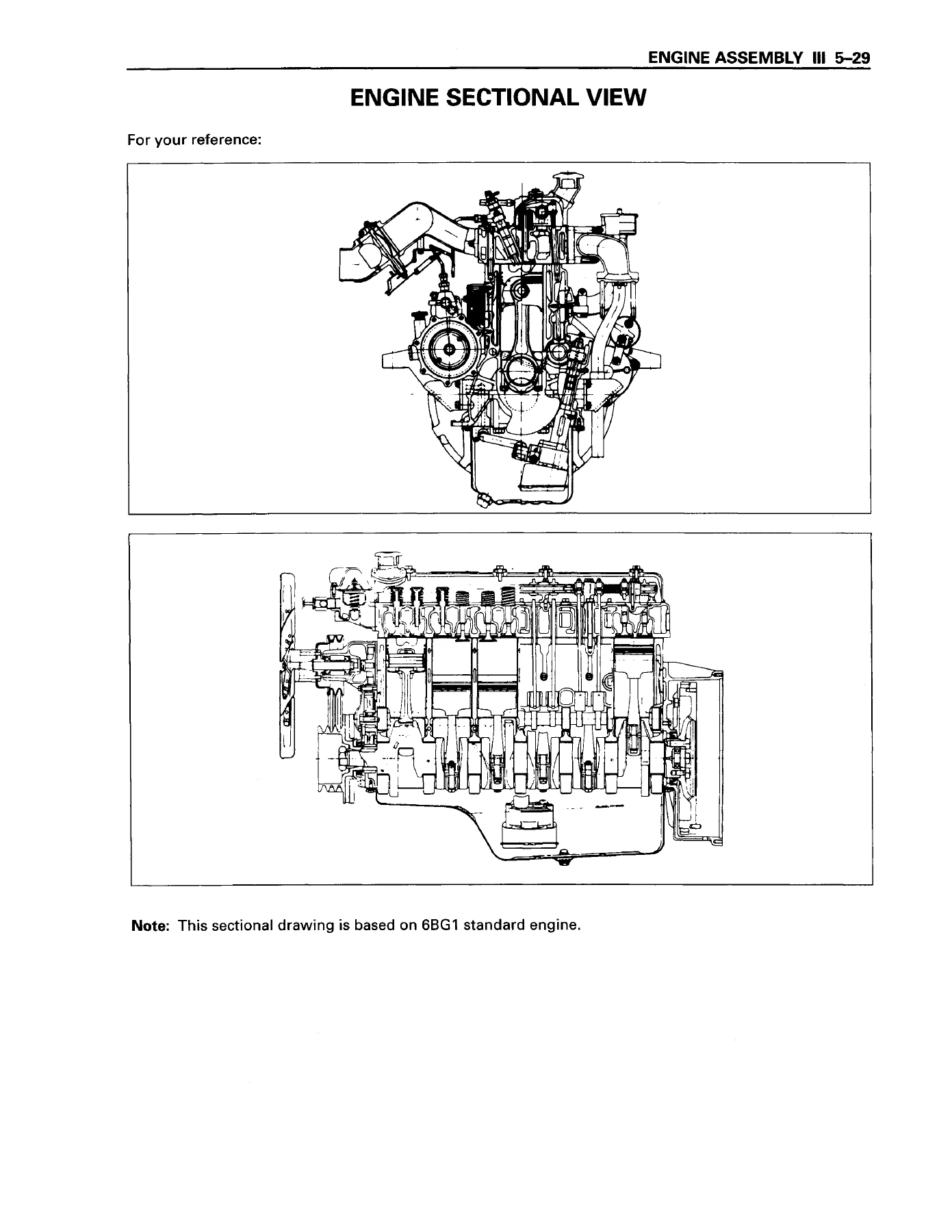

• 5. Engine Assembly III (Reassembly) — piston and connecting rod, cylinder head, rocker arm and rocker arm shaft, major component reassembly, external parts reassembly, engine tuning operation, engine sectional view
• 6. Lubricating System — general description, oil pump, oil cooler
• 7. Cooling System — general description, thermostat
• 8. Fuel System — general description, injection nozzle, injection pump calibration data
• 9. Turbocharger — general description, turbocharger identification (TD04H and RHG6), inspection and repair
• 10. Air Compressor — general description, disassembly, inspection and repair, reassembly
• 11. Engine Electricals — starter identification, starter main data and specifications, starter sectional view and performance, alternator identification, alternator main data and specifications, alternator sectional view, charging circuit
• 12. Troubleshooting — starter inoperative, starter operates but engine does not turn over, engine turns over but does not start, unstable low idling, insufficient power, excessive fuel consumption, excessive oil consumption, overheating, white exhaust smoke, dark exhaust smoke, oil pressure does not rise, abnormal engine noise
• 13. Special Tool List
• 14. Repair Standard
• 15. Conversion Table

What This Isuzu Industrial Diesel Engine Workshop Manual Delivers

The document opens by laying down the rules a technician must follow before touching the engine — disconnecting the battery ground cable, using the correct special tool, replacing every cotter pin, gasket, O-ring, lock washer and self-locking nut, keeping dismantled parts grouped, cleaning oil ports with compressed air, lubricating sliding surfaces before reassembly, and releasing air pressure from any machine-mounted air tank before disconnecting pipes and hoses. It then defines the measurement criteria used throughout: a reading inside the standard range means the part is serviceable, and a reading past the limit means it must be repaired or replaced.

From there, the manual moves into the maintenance chapter, which covers fuel system and cooling system checks, valve clearance adjustment for both the 4BG1 and 6BG1, injection timing checking and adjustment for flange-mounted and coupling-driven injection pumps, compression pressure measurement with the specified gauge and adapter, and turbocharger inspection. Recommended lubricants are listed as diesel engine oil meeting API CD grade, and an engine oil viscosity chart maps SAE 10W, 20W, 30, 40, 50 and multi-grade 10W-30, 15W-40, 20W-40 and 20W-50 against ambient temperatures from -30°C to 30°C.

The three engine assembly sections — disassembly, inspection and repair, and reassembly — form the technical core of the manual. Disassembly is shown both as an external parts sequence for the right-hand and left-hand sides of the engine and as a series of major components exploded views, with a dedicated page set for the rocker arm and rocker arm shaft, the cylinder head, and the piston and connecting rod. Inspection and repair covers each part in turn with its measurement method and its standard, limit and repair procedure values — cylinder head lower face warpage and grinding allowance, valve stem clearance, valve guide replacement, valve depression, valve contact width, valve seat insert replacement and correction, valve spring free length, inclination and tension, tappet diameter and tappet travelling bore clearance, push rod run-out, rocker arm shaft and bushing clearance, idler gear and shaft clearance, camshaft journal clearance and run-out, cylinder liner bore and projection, piston and piston ring clearance, piston ring gap, piston pin clearance, connecting rod alignment and bushing clearance, crankshaft journal and crankpin diameters, crankshaft run-out, main and connecting rod bearing clearances, and the ammonium cuprous chloride inspection for crankshaft tuftriding.

Reassembly mirrors the disassembly sequence, with the important operations called out — the oil jet orientation, the crankshaft bearing upper and lower half configuration, the thrust bearing oil groove side, the crankshaft bearing cap arrow direction, the cylinder liner installation, the piston ring gaps, the cylinder head bolt angular tightening sequence for the laminated steel type gasket, the rocker arm shaft installation, the injection pump timing and the engine tuning procedure after reassembly.

Separate system chapters cover the lubricating system (gear-type oil pump driven by the camshaft, oil cooler with by-pass valve), the cooling system (pressurised forced circulation with wax pellet thermostat), the fuel system (injection nozzle disassembly, inspection and adjustment, and injection pump calibration data), the turbocharger (TD04H for the 4BG1T and RHG6 for the 6BG1T, with rotor shaft axial and radial play measurement), and the air compressor (cylinder, piston, ring and bearing measurement).

The engine electricals chapter identifies the Hitachi starter and the Mitsubishi alternator, lists their main data and specifications in tabular form, and includes a sectional view of each and the charging circuit. The troubleshooting chapter presents every common failure as a checkpoint / trouble cause / remedy flowchart — starter inoperative, starter operates but engine does not turn over, engine turns over but does not start (with fuel being delivered and without), unstable low idling, insufficient power, excessive fuel consumption, excessive oil consumption, overheating, white exhaust smoke, dark exhaust smoke, oil pressure does not rise, and abnormal engine noise. The manual closes with the special tool list, the repair standard tables, and a conversion table.

Why This Manual Matters for 4BG1, 4BG1T, 6BG1 and 6BG1T Work

An industrial Isuzu diesel engine is expected to run hard, hour after hour, in equipment where downtime costs money. Doing the work by feel — guessing at valve lash, tightening a cylinder head by torque alone when the manual specifies a torque-plus-angle method, or replacing a bearing without measuring the journal — is how small jobs turn into failures. This Isuzu AA-4BG1T AA-6BG1 BB-4BG1T BB-6BG1T Industrial Diesel Engine Workshop Manual puts the factory measurement criteria, the standard and limit values, the tightening torques and the angular tightening method in front of you so the engine goes back together the way it left the plant.

The torque tables alone are worth the price of the download. Standard bolt torques are listed by bolt diameter and pitch from M6 × 1.0 all the way to M24 × 3.0, with separate columns for the different head markings so you can pick the right value for the bolt in your hand. The major parts fixing nuts and bolts pages show the cylinder head cover, cylinder head, flywheel housing, oil pan, rocker arm shaft, camshaft, crankshaft, flywheel, timing gear case cover, intake and exhaust manifolds, turbocharger, injection pump and fuel system with their specific torque values — 6B and 4B values given side by side where they differ.

Special tool numbers are listed throughout, so you can identify the crankshaft taper bushing remover, the rear oil seal remover, the valve spring compressor, the valve guide remover and installer, the camshaft bearing remover and installer, the cylinder liner remover and installer, the connecting rod bushing installer, the crankshaft gear remover and installer, the crankshaft front oil seal installer, the valve stem oil seal installer, the piston ring compressor and the rear oil seal installer — and know exactly what you need before you start.

Who This Manual Is For

This Isuzu industrial diesel engine workshop manual is written for the working technician, the fleet mechanic, the equipment owner who does their own service, and the rebuilder who needs factory measurement data on the bench. It is equally useful as a reference for the apprentice learning how a direct-injection industrial diesel engine is put together and taken apart. Directional references throughout the manual are given from the engine’s own point of view — front is the cooling fan side viewed from the flywheel, right is the injection pump side, left is the exhaust manifold side, rear is the flywheel side, cylinders are numbered from the front, and rotation is counterclockwise viewed from the flywheel — so there is no confusion about which end of the engine you are working on.
