Iveco Truck Parts Catalog PIC VHAA15CB – 190T38 AD TRAK.2007 E. Spare Parts Manual PDF

Description

Iveco Truck Parts Catalog – PIC VHAA15CB

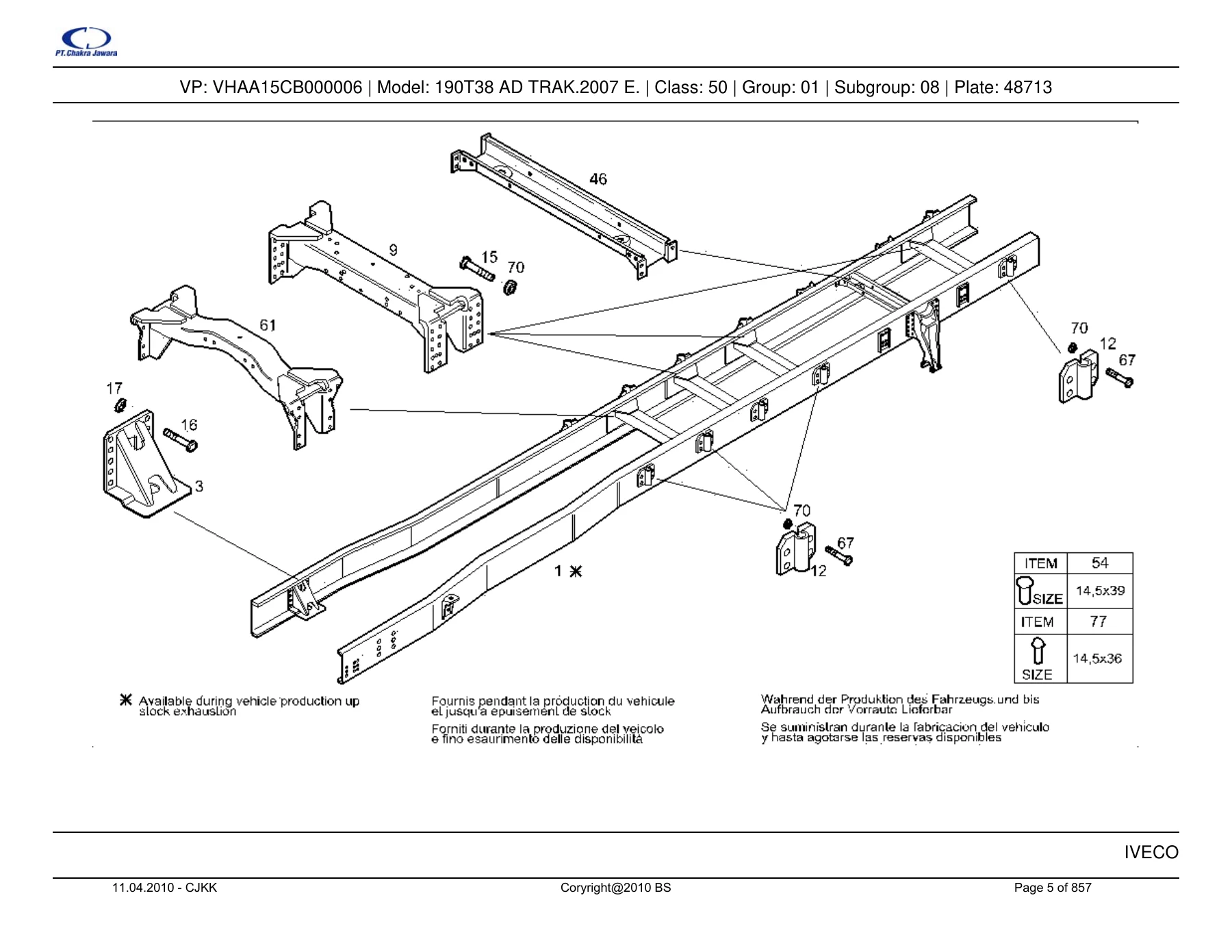

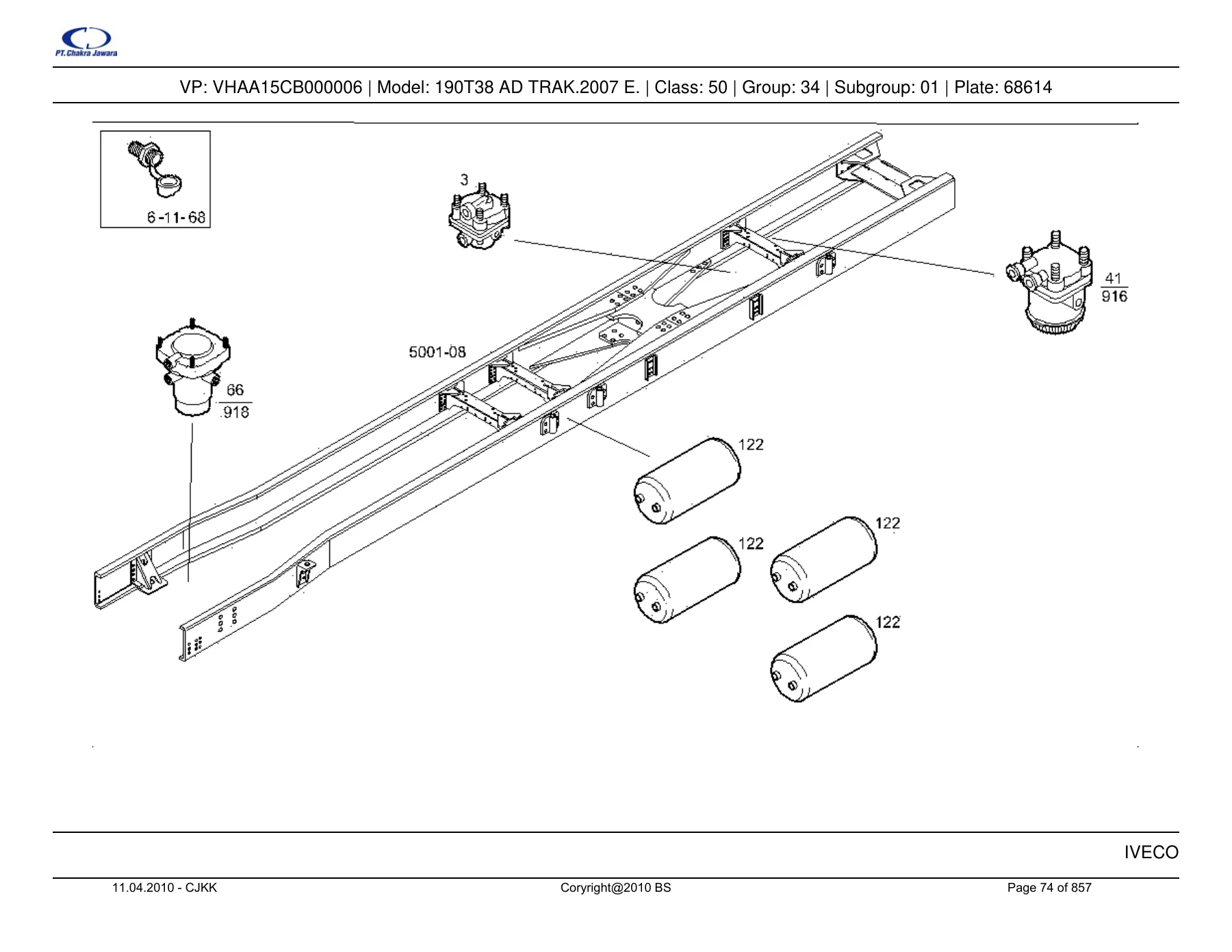

This is the complete Iveco Truck spare parts catalog issued under PIC VHAA15CB for the Commercial Model 190T38 AD TRAK.2007 E., identified by Vehicle Production code VP VHAA15CB000006. Every group and subgroup is laid out as a plate: an exploded illustration with numbered callouts beside a parts list giving position number, part number, quantity, description and any standard note or modification flag. It is the reference used to identify exactly which component belongs on this truck before a part is ordered, replaced or cross-checked.

File Details

• Manual type: Illustrated spare parts catalog
• Brand: Iveco
• Commercial model: 190T38 AD TRAK.2007 E.
• PIC: VHAA15CB
• VP code: VHAA15CB000006
• Range: Heavy Off Road
• Wheel base: 4500
• Drive: RHD
• Version: Truck
• Suspension: Mechanical
• Cab: AD-N DX
• Engine: F3BEE681
• Gearbox: 16AS 2630 TO
• Language: English
• Page count: 859
• Format: PDF
• Revision date on document: 1.04.2010 / 11.04.2010 (CJKK)
• Distributed by: PT. Chakra Jawara, Jakarta

Groups and Subgroups Covered

The catalog is split into class/group/subgroup plates. The subgroups documented in this Iveco Truck parts catalog include:

• 01 – Frame
• 02 – Bumper
• 04 – Mechanical Suspension (front leaf spring, rear leaf spring, front stabilizer rod, rear stabilizer rod)
• 06 – Front Tow Hook
• 09 – Shock Absorber (front and rear)
• 14 – Steering (steering linkage, steering wheel, line system)
• 25 – Wheels (tyre valve, disc wheel, fixing wheels extension)
• 26 – Pedal Assembly
• 34 – Pneumatic System
• 50 – Gearbox
• 51 – Air Filter
• 52 – Clutch Assembly
• 54 – Power Take Off
• 56 – Propeller Shafts
• 57 – Engine Suspension
• 58 – Gearbox Suspension
• 59 – Accelerator Linkage
• 60 – Engine Cooling
• 65 – Group Plates (technical characteristics, standard options, name plates and labels)
• 71 – Exhaust System
• 72 – Fuel Tank
• 75 – Conditioning / Heating
• 83 – Electrical Equipment
• 85 – Tools
• 86 – Accessories
• 52 / 21, 24, 26, 35, 36, 50, 65, 70, 89, 90 – Front and Rear Axle groups (drive axle, axle head, bevel drive, wheel brakes, brake shoes, linings, drums, planetary carriers, differential housings)
• 53 – Gearbox groups (gearbox assembly, PTO cover, clutch rings, flange)
• 54 – Engine groups (crankcase, cylinder liners, oil sump, timing gear housing, cylinder head, valves, rocker shaft, crankshaft, connecting rods, pistons, flywheel, vibration damper, pulleys, camshaft, injection, sensors, fuel lines, turbocharger, engine brake, lubrication, cooling, water pump, thermostat, alternator, starter motor, air compressor, steering pump)
• 55 – Cab groups (floor, front wall, side panels, roof, doors, locks, hinges, window lifters, dashboard, seats, mirrors, mudguards, insulation)
• 76 – Electrical System groups (switches, relays, fuse boxes, wiring, batteries, lighting, wiper system)
• 78 / 79 – Cab tilt, air conditioning, pneumatic valve kits, air dryer

What This Parts Catalog Gives You

Because the catalog works plate by plate, it does not simply list components – it shows how they fit together. A front axle plate will show the axle body, side shafts, bevel drive, differential housing, brake backplates, planetary carriers, wheel hubs and the fasteners that hold them, each tagged with a position number that resolves to a specific Iveco part number. The same applies through the gearbox, engine, cab, electrical and pneumatic sections.

Beyond the illustrations, the catalog records modification and substitution flags next to affected part numbers, plus standard notes carrying thread sizes, diameters, lengths and pressure ratings for the hardware. That makes it possible to verify that a part on the shelf is the correct one for this exact truck rather than an earlier or later variant, and to know when a number has been superseded.

Group 65 also reproduces the build data for this truck – the technical characteristics table, the standard option list, and the label and nameplate allocations – so the vehicle identity and configuration are documented alongside the parts themselves.

Who This Iveco Parts Catalog Is For

This is a working document for anyone who has to identify parts for a 190T38 AD TRAK.2007 E. under PIC VHAA15CB rather than guess from a generic listing. That includes workshop parts departments, fleet maintenance planners, rebuilders, and owners restoring or keeping a heavy off-road Iveco truck in service.

It is equally useful for validating a quote from a supplier, resolving a mismatch between what arrived and what was ordered, and cross-referencing a part number before committing to a purchase.

Why a Correct Parts Catalog Matters

On a heavy truck, ordering the wrong component is not a small inconvenience – it can mean a vehicle off the road for another parts cycle, an assembly that will not seat, or a fastener that fails under load. This catalog removes that risk by pairing every part number with an exploded view and a position number, so the component you select is the one the drawing shows.

Hardware callouts are particularly valuable: the standard notes give the exact thread, diameter and length for bolts, nuts, rivets and unions, which means replacements can be sourced correctly instead of approximated.

Delivery

IMAGES PREVIEW

The Iveco Truck Parts Catalog PIC VHAA15CB – 190T38 AD TRAK.2007 E. Spare Parts Manual PDF is delivered as an instant download after payment. There is no shipping and no waiting on a physical book. The file opens on any laptop, tablet or phone and pages can be printed for use on the workshop floor, so the relevant plate can sit next to the truck while the part is being fitted.

Start Using It Straight Away

Whether you are ordering a brake shoe set, chasing a pneumatic valve, replacing a cab hinge or rebuilding a gearbox, this 859-page Iveco Truck parts catalog for PIC VHAA15CB gives you the exploded views, part numbers and quantities to do it correctly the first time. Download it and identify the right part before you order.
