JCB 3CX, 4CX Excavator Loader Service Manual 9803 3250-11

APPLICABLE MODELS :

JCB Excavator Loader 3CX
JCB Excavator Loader 4CX
S/N: 290000 to 400000
From Machine Serial No. 290000

FILE DETAILS:

JCB 3CX, 4CX Excavator Loader Service Manual 9803 3250-11

File Format : PDF
Language : English
Printable : Yes
Searchable : Yes
Bookmarked : Yes
P/N : 9803/3250-11
Total Pages : 458

DESCRIPTION:

JCB 3CX, 4CX Excavator Loader Service Manual 9803 3250-11

INTRODUCTION:

• This publication is designed for the benefit of JCB Distributor Service Engineers who are receiving, or have received training by the JCB Technical Training Department it is assumed that such personnel have at least a sound knowledge of workshop practice, safety procedures and general techniques associated with the maintenance and repair of hydraulic earthmoving equipment.
• Details of such are therefore generally omitted from this manual, the intention being to convey only the more specialised information concerning particular aspects of the machine or component in question.
• For example, renewal of oil seals, gaskets etc. and any component showing obvious wear or damage is expected as a matter of course and information on these matters is therefore only included where a specialised procedure or range of wear tolerances is required. Similarly, it is expected that components will be thoroughly cleaned and lubricated where appropriate, also that any opened hose or pipe connections will be blanked to prevent entry of dirt and excessive loss of hydraulic fluid.
• For convenience the manual is compiled in sections, e.g. “Hydraulics“, “Electrics” etc., but to find details of a specific component, reference should be made to the alphabetical index at the back of the book. Illustrations showing a dismantled component are numbered as a guide to the dismantling sequence which can generally be reversed for assembly.

TABLE OF CONTENTS:

JCB 3CX, 4CX Excavator Loader Service Manual 9803 3250-11

General 1
Hydraulics 2
Attachments 3
Body & Framework 4
Engine 5
Transmission 6
Axles 7
Brakes 8
Hydraulic Steering 9
Electrics 10
Service Tools 11
Index

JCB 3CX, 4CX EXCAVATOR LOADER SERVICE MANUAL 9803 3250-11 – PDF DOWNLOAD:

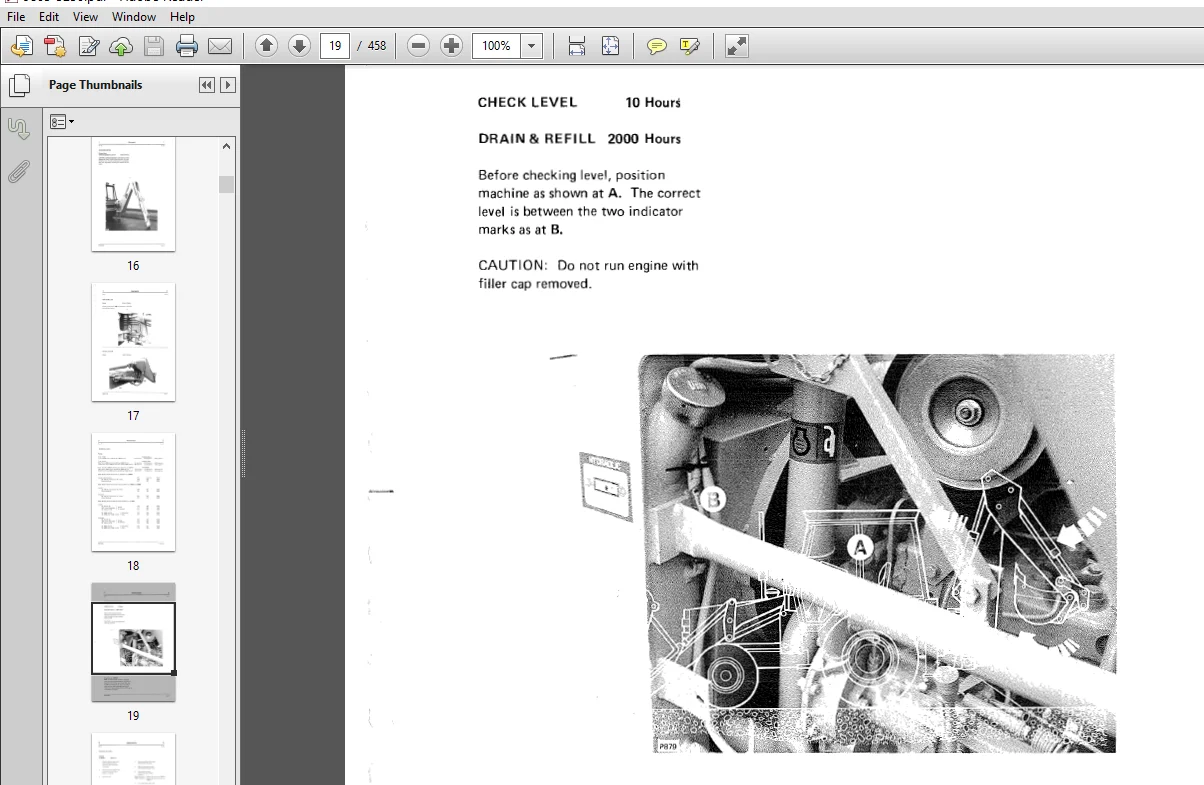

IMAGES PREVIEW OF THE MANUAL:
