📘 DOCUMENT OVERVIEW

This comprehensive JCB 8250 Fastrac service manual is an invaluable resource for professional mechanics and experienced DIY enthusiasts tackling repairs and maintenance on this high-performance tractor. The manual is meticulously structured, guiding users through various procedures with detailed instructions and clear diagrams.

🔧 Service Manual Type: This is a detailed service manual providing comprehensive instructions for maintenance and repair procedures.

🚜 Equipment Covered: The manual specifically covers the JCB 8250 Fastrac tractor model. While the specific VIN structure is explained, the detailed service instructions primarily benefit owners of JCB 8250 Fastrac tractors.

Major Sections and Procedures: The manual is organized into logical sections, covering all major systems of the tractor. These include:

• General Information: Provides essential introductory information, including serial number identification, torque settings, and fastener types.
• Care and Safety: Highlights critical safety procedures and warnings to ensure safe operation and maintenance practices.
• Routine Maintenance: Presents detailed routine maintenance schedules, procedures for servicing various components (engine, transmission, brakes, hydraulics, suspension, electrics), including fluid and lubricant specifications.

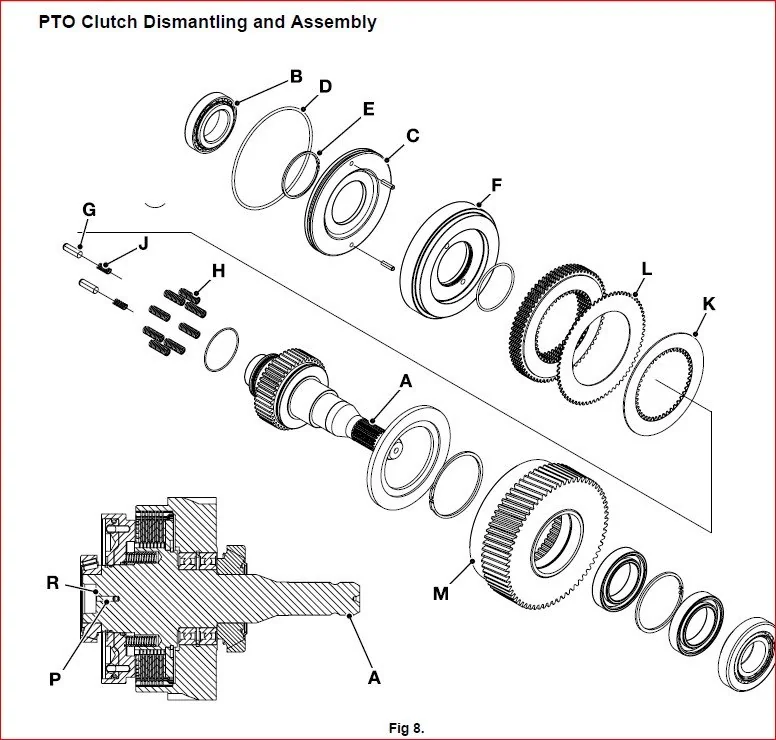

• Optional Equipment: Includes specific maintenance and operational information for optional components (e.g., front PTO).

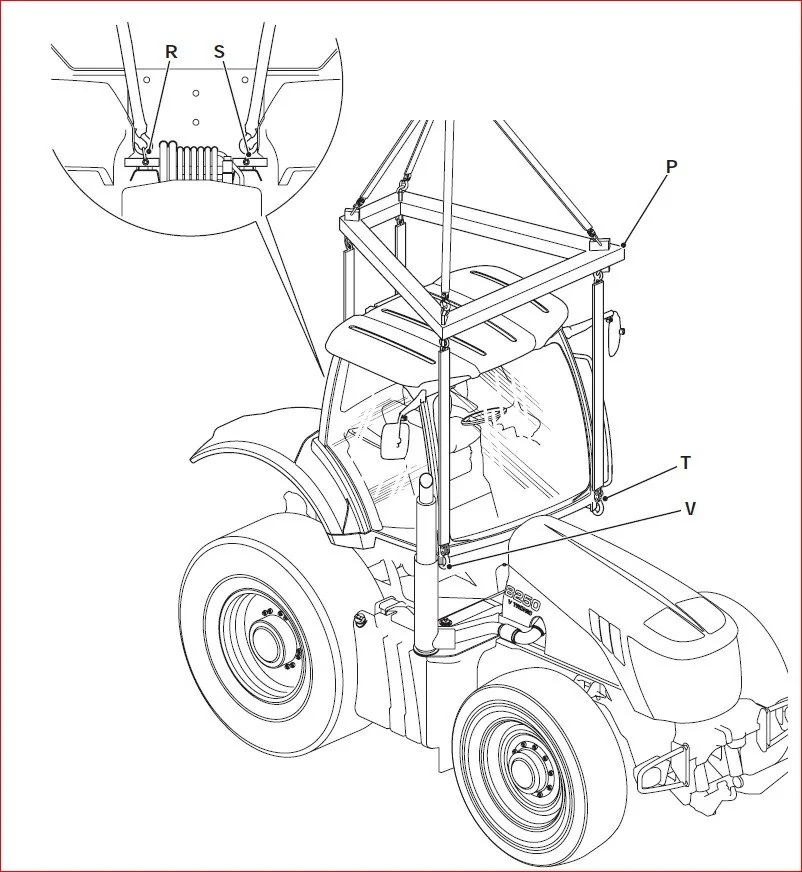

• Body and Framework: Details cab removal and replacement, glass installation, and air conditioning system operation and maintenance.
• Hydraulics: Covers a detailed analysis of the hydraulic system, including pressure testing, pump replacement, control valve maintenance, and spool valve configuration.
• Transmission: Provides in-depth coverage of the CVT (Continuously Variable Transmission), outlining operational modes, pressure testing, valve replacement, and CVT cartridge removal and replacement.
• Brakes: Offers detailed information on the brake system, including circuit descriptions, fault finding, calliper removal and replacement, and valve maintenance.
• Steering: Describes steer box operation, pressure testing, and removal/replacement procedures.
• Suspension: Includes technical data on the rear suspension system, pressure testing, and component removal and replacement.
• Engine: Covers routine maintenance aspects of the engine (oil and filter change, cooling system).

Key Technical Information: The manual provides essential technical specifications, including torque settings, fluid and lubricant capacities, standard pressures, flow rates for different systems, and detailed diagrams illustrating component locations and assembly procedures. This level of detail is vital for effective troubleshooting and repair.

❌ WHAT’S NOT INCLUDED

• Detailed parts diagrams or ordering information.
• Wiring schematics for the entire machine.

📊 RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

• Q: What models does this manual cover?
  A: This manual primarily covers the JCB 8250 Fastrac tractor. Specific VIN decoding is provided for more precise identification.
• Q: What type of procedures are included?
  A: The manual provides detailed instructions for maintenance, repair, and troubleshooting across various systems: engine, transmission, brakes, hydraulics, suspension, steering, and electrics.
• Q: Is this suitable for DIY mechanics?
  A: While comprehensive, this manual’s technical depth and complexity make it most suitable for experienced DIYers or professional mechanics.
• Q: What format is this manual in?
  A: This service manual is provided as a downloadable digital PDF file.
• Q: What safety precautions are highlighted?
  A: The manual emphasizes safety throughout, including warnings about high-pressure systems, hot components, and electrical hazards.
• Q: What kind of technical data is available?
  A: The manual offers detailed technical specifications such as torque settings, fluid capacities, pressures, and flow rates for various systems.
• Q: What if I have a fault code I don’t understand?
  A: The manual directs users to consult the JCB Service Master software for comprehensive fault code diagnosis and resolution.

📂 PDF SNAPSHOT & USABILITY REPORT

• Overall Quality: Excellent. The manual appears very comprehensive and detailed.
• Content Type: Service Manual
• Language: English
• Technical Level: Professional
• Recommended For: Professional mechanics and very experienced DIY users familiar with heavy machinery repair.
• Page Count: Approximately 280+
• Image Quality: Excellent; diagrams and illustrations are clear and well-labeled.

📋 Original Product Description:

Jcb 8250 Fastrac Sn 01139000-01139999 Service Manual

DESCRIPTION:

The numerical sequence shown on the illustration is intended as a guide to dismantling K Fig 33. ( T E-26). Before removing and dismantling the pump, check the flow and pressure for each section of the pump (see Section H, Steering and Section S, Suspension – Technical Data). If the values are low, renewal of components such as gears, bearings and housings will not effect a permanent cure. If the pump output is satisfactory but there is external leakage, dismantle the pump for re-sealing only. Note: If the steering flow rate is low, make sure that there is no dirt in the end cover 12 and that the spool 10 moves freely. The size of washer 9 controls the steering flow rate (see Technical Information Bulletin 10/183). For assembly the sequence should be reversed.

When Dismantling Mark housings and covers to ensure correct re-assembly. Remove sharp edges and burrs from shafts to avoid seal damage. Remove all the seals. Keep bearing blocks 25, 27, 38, 40 and gears 26 and 39 together in sets to ensure refitting of the bearing blocks in their original positions. Inspection Clean all the components using a proprietary washing agent (do not use trichloroethylene or similar as this will damage the seals). Dry the components immediately afterwards with compressed air. Be sure to blow out the ports and cross drillings in the end cover 12. Inspect the flow control valve spool 10 for signs of wear or damage. Inspect the spool bore in end cover 12. Make sure the flow control components 1 to 10 are free from dirt. Inspect all components for damage or signs of wear.

It is normal for the gears to have cut a slight track in the body bore on the inlet (large port) side. A groove up to 0.3mm (0.01 in) deep across the full width of the gear teeth is permissible. If the wear is greater than 0.3mm (0.01 in), renew the pump. The bores and side faces of the bearing blocks and gears are coated with Teflon during manufacture. If the coating is worn away, or if the bearing surfaces are scored or damaged the pump must be renewed. If the faces of the gear teeth are damaged the pump must be renewed. DO NOT use any abrasives on the bearing blocks or gears as this would destroy critical manufacturing dimensions It is only worth reassembling (with new seals) if the body, bearings, bushes and gears are in perfect condition.

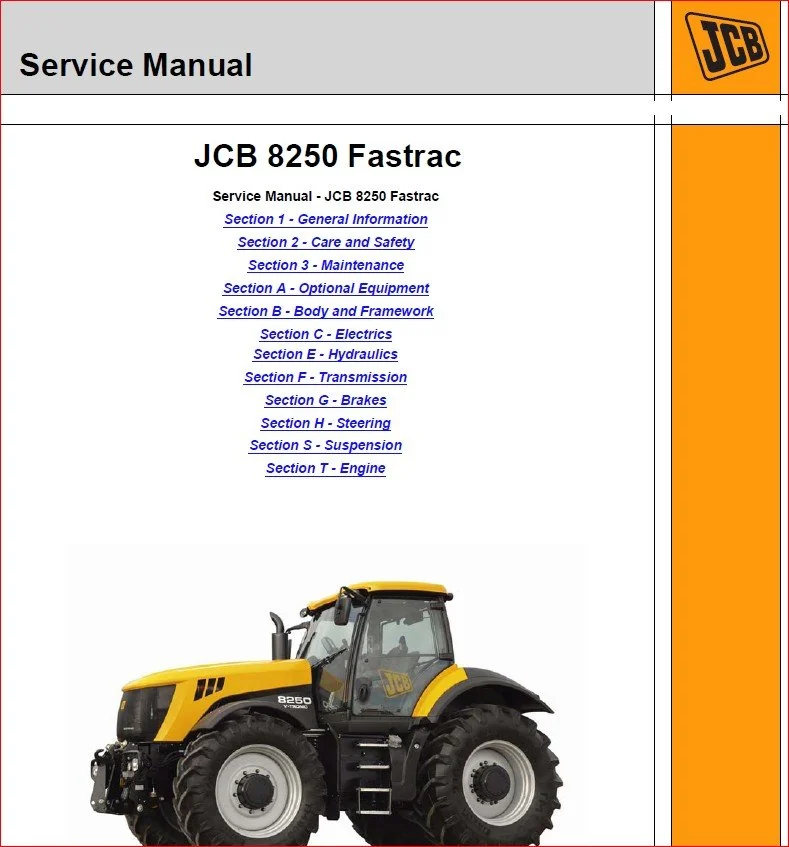

TABLE OF CONTENTS:

Section 1 – General Information
Section 2 – Care and Safety
Section 3 – Maintenance
Section A – Optional Equipment
Section B – Body and Framework
Section C – Electrics
Section E – Hydraulics
Section F – Transmission
Section G – Brakes
Section H – Steering
Section S – Suspension
Section T – Engine

JCB 8250 FASTRAC SN 01139000-01139999 SERVICE MANUAL – PDF DOWNLOAD!!:[/embed]

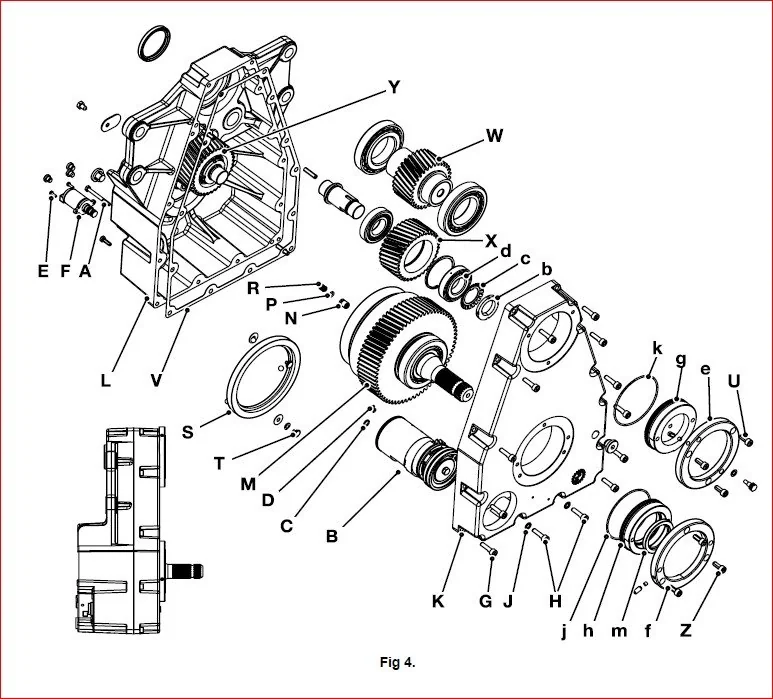

IMAGE PREVIEW:
