JCB 8052 Mini Excavator Spare Parts Catalogue 2013 – Parts Catalog 9802/5480 PDF

Description

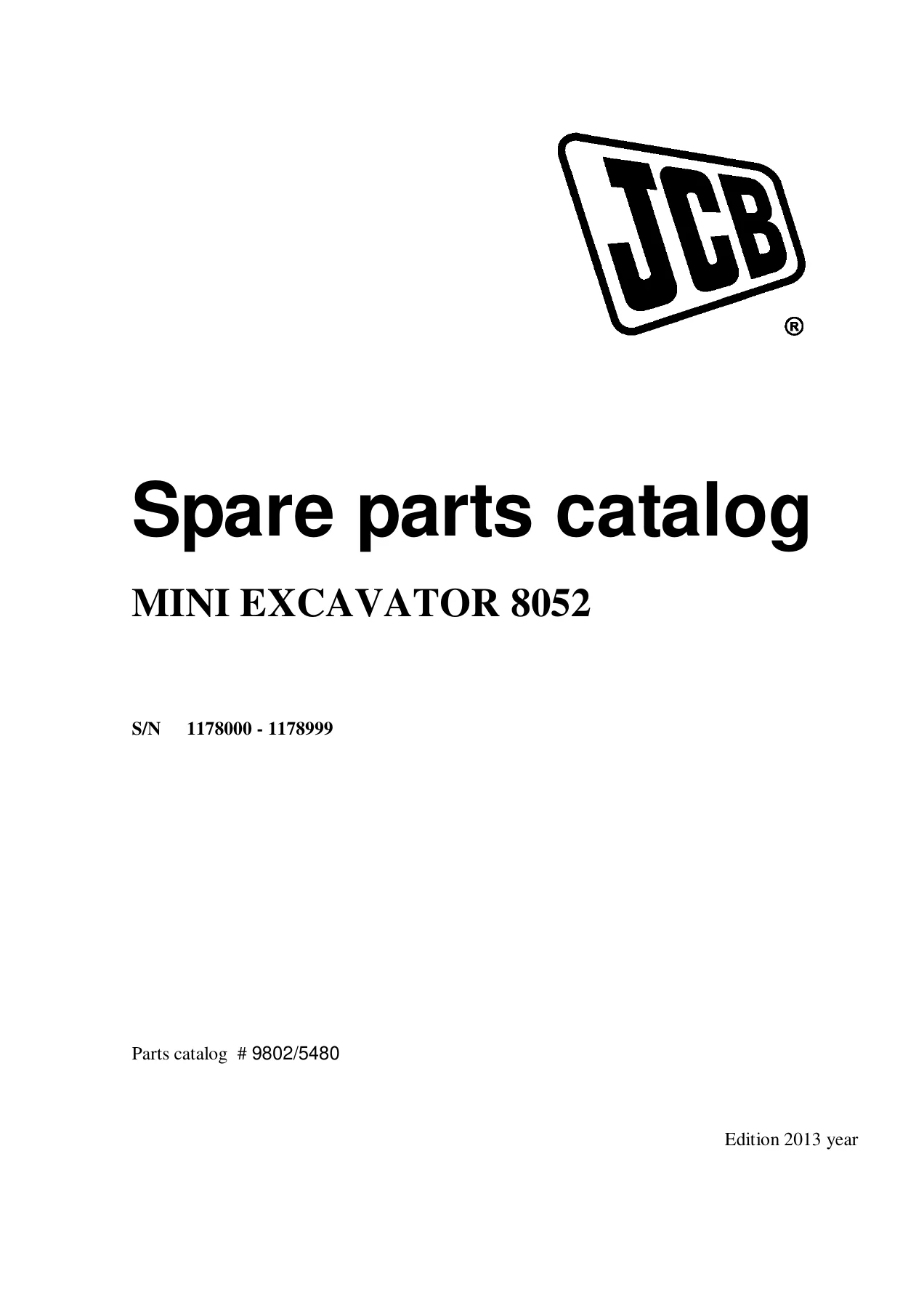

JCB 8052 Mini Excavator Spare Parts Catalogue – Parts Catalog 9802/5480

This is the complete spare parts catalogue for the JCB 8052 Mini Excavator, covering serial numbers 1178000 through 1178999. Published as Parts Catalog 9802/5480 in the 2013 edition, this document provides exploded-view illustrations and part numbers for every major assembly, component and attachment offered for this compact crawler excavator. Whether you are ordering a replacement hydraulic hose, identifying a cab fitting, sourcing a track roller or rebuilding a dozer blade assembly, the JCB 8052 spare parts catalogue gives you the exact part numbers needed to source the right component the first time.

The catalogue is organised into functional groups that mirror the machine’s build: attachments, buckets, backhoe, cab, bodywork, electrics, controls, hydraulics, undercarriage, engine and cooling. Each section presents illustrated breakdowns with itemised part numbers, quantities and remarks, so you can trace every component from the boom pivot pin down to the smallest washer. This is the same parts identification structure used by JCB dealers and parts counters, reproduced here as a convenient PDF for instant access.

File Details

• Manual Type: Spare Parts Catalogue
• Brand: JCB
• Model: 8052 Mini Excavator
• Serial Number Range: 1178000 – 1178999
• Parts Catalog Number: 9802/5480
• Edition: 2013
• Language: English
• Page Count: 427
• File Format: PDF

Chapters Covered

• A04 – Others: Blade Dozer 2012mm Wide, Blade Dozer 2162mm Wide, Dozer Mount Patch Planer
• A02 – Buckets: Bucket Standard, Bucket Grading
• A03 – Attachments: Quick Hitch Mechanical, Kerbgrab Manual 180kg SWL
• B05 – Refurbishments: Transfers Labels & Handbooks, Safety and Warning Labels English, Safety and Warning Labels Belgian, Tool Kit, Oils Greases & Paint 8052, Fire Extinguisher
• B04 – Backhoe: Boom, Boom Heavy Duty Option, Dipper Heavy Duty 1500mm, Dipper 1500mm, Dipper 1900mm, Link Bucket Assembly STD, Link Lifting Lug, Link USA Lifting Hook 2 Ton, Kingpost Heavy Duty Option
• B02 – Cab: Canopy and Mountings, Cab Assembly, Cab Assembly Yellow Option, Grille Fresh Air, Door Assembly China Build, Direct Glazing Replacement Material, Mirror Rear View External, Guard FOPS, Cab Assembly China Build, Window Side Opening, Seat Static PVC, Seat Static Fabric, Seatbase, Seatbase China Build, Re-Circ Slider China Build, Floormat China Build, Guard FOGS Option, LH Mirror Kit Dual Mirror Cab Only
• B01 – Bodywork/Frame: Mainframe and Counterweights, Tank Hydraulic GA, Floor Plate Assembly, Seals China Build Anti Re-Circ Kit, Bulkhead & Covers Soundproofing, Guard Chaff, Lock Side Cover, Hinge Side Cover, Hinge Rear Cover, Bulkheads Side Rear & Fuel Tank Support, Covers Engine 234/29062, Engine Cover Stiffening Strut, Cover Side Assembly 234/13800, Cover Side Cover Yellow, Cover Side Cover Grey
• C01 – Electrics Main Machine: Harness Locations, Main Electrics Deutsch Connectors, Pod Control L/H Assembly, Control Pod Cover L/H, Working Lights Boom, Fuses and Relays, Fuses Primary
• C03 – Electrics Cab: Air Conditioning China Build, Condensor China Build, Receiver Drier China Build, Floor Plate China Build, Panel Rear Aircon China Build, Cab Heater, Heater Unit Details, Motor Wiper, Reservoir Screenwash, Radio Cassette Installation, Immobiliser/Tracker Baumaco Option, Travel Alarm Kit, Switches Service Kit
• C02 – Electrics Engine: Battery, Battery Assembly, Electrical Equipment, Motor Starter, Alternator 55AMP, Alternator 65AMP, Alternator Mountings
• D02 – Controls Engine: Control Hand Throttle Standard, Control Throttle
• D01 – Controls Machine: Pedals Tracks 8060 Standard Optional 8052, Track Levers & Swing Pedal, Track Levers and Pedals China, Cover Pedal Box, Pedal Box Assembly, Pedal Box Assembly China Build, Controls Track Isolation Option, Controls Rod Assembly Track Isolation Option, Lever Dozer, Slew Lock, Slew Lock China Build, Auxiliary Controls
• E02 – Pump/Motor & Pump Drive: Pump Main Hydraulic, Pump Main Assembly, Pump Coupling, Motor Slew Assembly, Motor Track, Motor Track Assembly
• E04 – Rams: Ram Swing, Ram Dozer, Ram Boom, Ram Boom HBCV Option 8052, Ram Dipper HBCV Option 8052, Ram Dipper, Ram Bucket
• E01 – Hose & Pipework: Circuit SAE Controls Option, Circuit ISO Controls Option, Hoses at Valve Block Stage 1, Circuit Dual Controls Option, Pilot Hose Dual Control Assy, Pilot Hose SAE Assembly, Pilot Hose ISO Assembly, Hydraulics Dig End, Circuit Auxiliary Pipes & Hoses, Circuit Auxiliary Single Acting, Circuit Slew & Swing, Circuit Excavator Pipes & Hoses
• E03 – Valves & Hydraulic Filters: Valve Assembly 9 Spool, Plate Valve Mounting, Valve Maintenance, Valve & Adapters Pressure Maintaining 35 Bar Relief, Coupling Rotary, Filter Hydraulic, Boom HBCV Option Fittings, Boom & Dipper HBCV Option Fittings, Accumulator, Valve Track Motor, Joystick and Adaptors L/H, Joystick and Adaptors R/H, Valve Inlet Section, Valve Aux Section, Valve Boom Section, Valve Bucket Section, Valve Dipper Section, Valve Dozer Section, Valve Slew Section, Valve Swing Section, Valve R/H Track Section, Valve L/H Track Section, Valve Outlet Section, Valve Tie Rods 9 Spool
• F04 – Slew/Track Gearboxes: Gearbox Slew, Gearbox Track Assembly, Gearbox Components Track
• J01 – Track, Gear/Undercarriage: Undercarriage, Undercarriage Assembly 805 15.01.07, Roller Track Bottom, Idler Wheel & Recoil Unit, Track Assemblies
• M06 – System Fuel: Pump Fuel Injection & Shut-Off Solenoid HP Build, Injectors Fuel & Injection Pipes HP Build, Fuel System, Filter Fuel, Pump Fuel Lift, Filter Fuel Sediment
• M01 – Engine Block & Sub-Assemblies: Engine Complete 2400RPM HP Build, Block Assembly HP Build, Crankshaft Bearings Pistons & Con-Rods HP Build, Fans Pulleys & Fan Belt HP Build, Fans Pulleys & Fan Belt 65AMP Alternator, Fans Pulleys & Fan Belt Standard, Fans Pulleys & Fan Belt Hot Climate Non-EU, Timing Case Camshaft & Gears HP Build, Timing Levers Arms & Springs HP Build, Flywheel & Housing HP Build, Engine Mountings
• M08 – Gasket Sets: Gasket Sets HP Build
• M04 – System Cooling: Pump Water HP Build, Thermostat Housing Inlet & Outlet HP Build, Radiator Fittings & Mountings, Radiator & Hoses, Cooling Pack, Radiator/Oil Cooler Anti-Recirculation Seals, Radiator/Oil Cooler Anti-Recirculation Seals Hot Climate, Fan Guard
• M05 – System Lubrication: Sump Oil HP Build, Pump Oil & Relief Valve HP Build, Filter Oil HP Build
• M02 – Cylinder Head & Sub-Assemblies: Cylinder Head HP Build, Rocker Assembly Push Rods & Tappets HP Build, Rocker Cover HP Build, Lifting Plates Engine HP Build
• M03 – Induction & Exhaust Systems: Manifold Induction HP Build, Manifold Exhaust, Filter Air, Exhaust System
• P04 – Cooling System: Radiator & Hoses Cooling Pack Side By Side

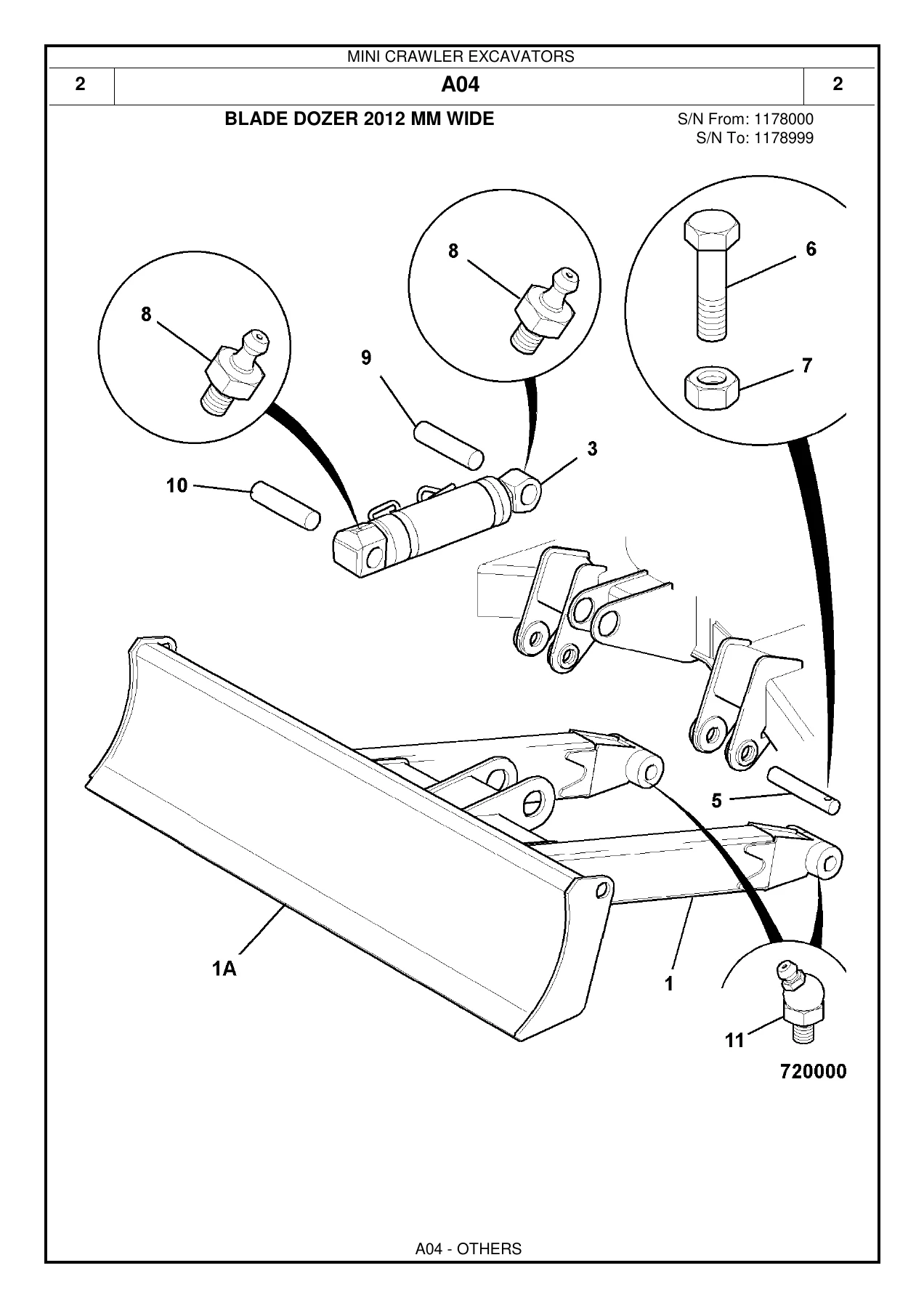

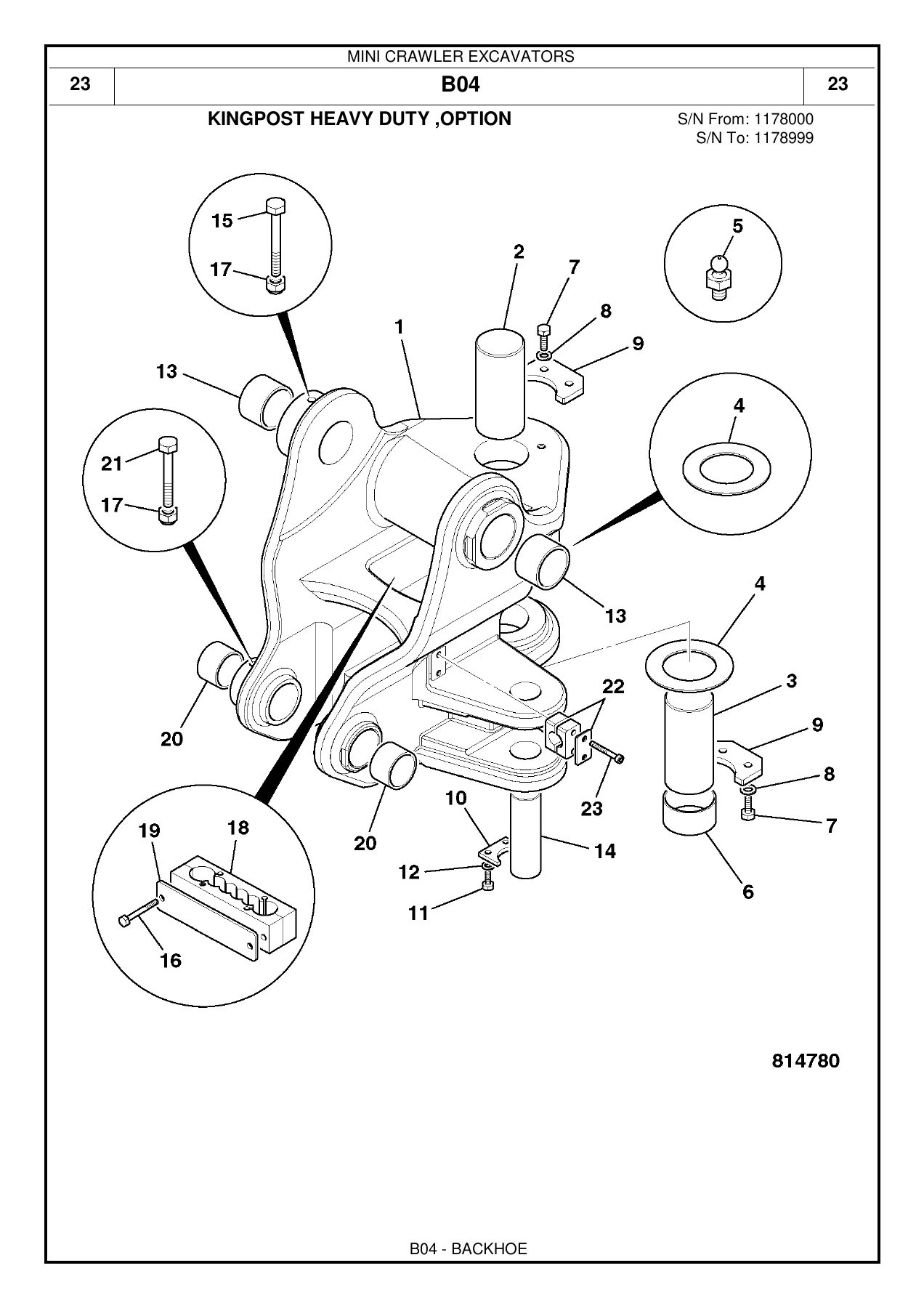

Across its 427 pages, this JCB 8052 spare parts catalogue delivers a complete illustrated breakdown of the machine. Each group opens with an exploded-view drawing where every component is item-numbered, followed by a table listing the item number, JCB part number, part name, quantity required and any remarks such as serial number breaks or option-specific fitment. This structure lets you visually locate a part on the drawing and then jump straight to its part number without guesswork.

The catalogue covers the full scope of the 8052: from the dozer blade and quick hitch attachments through the backhoe boom, dipper and bucket linkage; from the cab, canopy and seating through the bodywork, side covers and engine covers; from the main machine harness, control pods, fuses and relays through the cab electrics, air conditioning, heater and wiper systems; from the hydraulic pump and slew/track motors through the complete valve block, rotary coupling, hose circuits and rams; from the undercarriage, track rollers, idler wheels and recoil units through the steel and rubber track assemblies; and from the fuel system and engine block through the cylinder head, cooling system, lubrication system, induction and exhaust.

Because the catalogue is organised by system and sub-assembly, it is equally useful whether you are maintaining a single machine or running a fleet. You can order parts with confidence, cross-reference between drawing and table, and verify fitment against the serial range 1178000 to 1178999. The 2013 edition reflects the production configuration of this serial band, including China-build variants, hot-climate options and territory-specific labels where applicable.

This JCB 8052 parts catalogue is a working document. The exploded views are detailed enough to identify individual bearings, seals, pins, bushes, shims, fasteners and adapters. The part tables include quantities so you know exactly how many of each item is required for a given assembly. Remarks columns flag serial number cut-offs, option-specific parts and alternative part numbers where they exist. That level of detail reduces ordering errors and helps you plan rebuilds, overhauls and routine replacement with the correct components.

Whether you are a workshop technician, a parts manager, an owner-operator or a collector running a JCB 8052 Mini Excavator, having the correct parts catalogue is the difference between ordering the right part and ordering the wrong one. The JCB 8052 spare parts catalogue 9802/5480 puts the complete illustrated parts breakdown at your fingertips in a single PDF.
