JCB ADT 722 Articulated Dump Truck Service Manual 9803/7170

Description

JCB ADT 722 Articulated Dump Truck Service Manual – Document 9803/7170

The JCB ADT 722 Articulated Dump Truck Service Manual is the full workshop-level repair and maintenance reference for the 722 ADT, covering machines from Series No. 0833000 onwards. Document number 9803/7170 is structured across ten sectional divisions, giving technicians a single reference for engine, transmission, hydraulics, steering, suspension, electrics, body and framework work. Each section opens with technical data, then proceeds through removal, dismantling, assembly and replacement procedures illustrated with exploded views and torque settings.

File Details

• Manual Type: Service / Workshop Manual
• Brand: JCB
• Model: ADT 722 Articulated Dump Truck
• Document Number: 9803/7170-04 / 9803/7170-05
• Serial Coverage: 0833000 Onwards (includes to-833199 and from-833200 variants)
• Language: English
• Format: PDF
• Page Count: 500+ pages

Chapters Covered

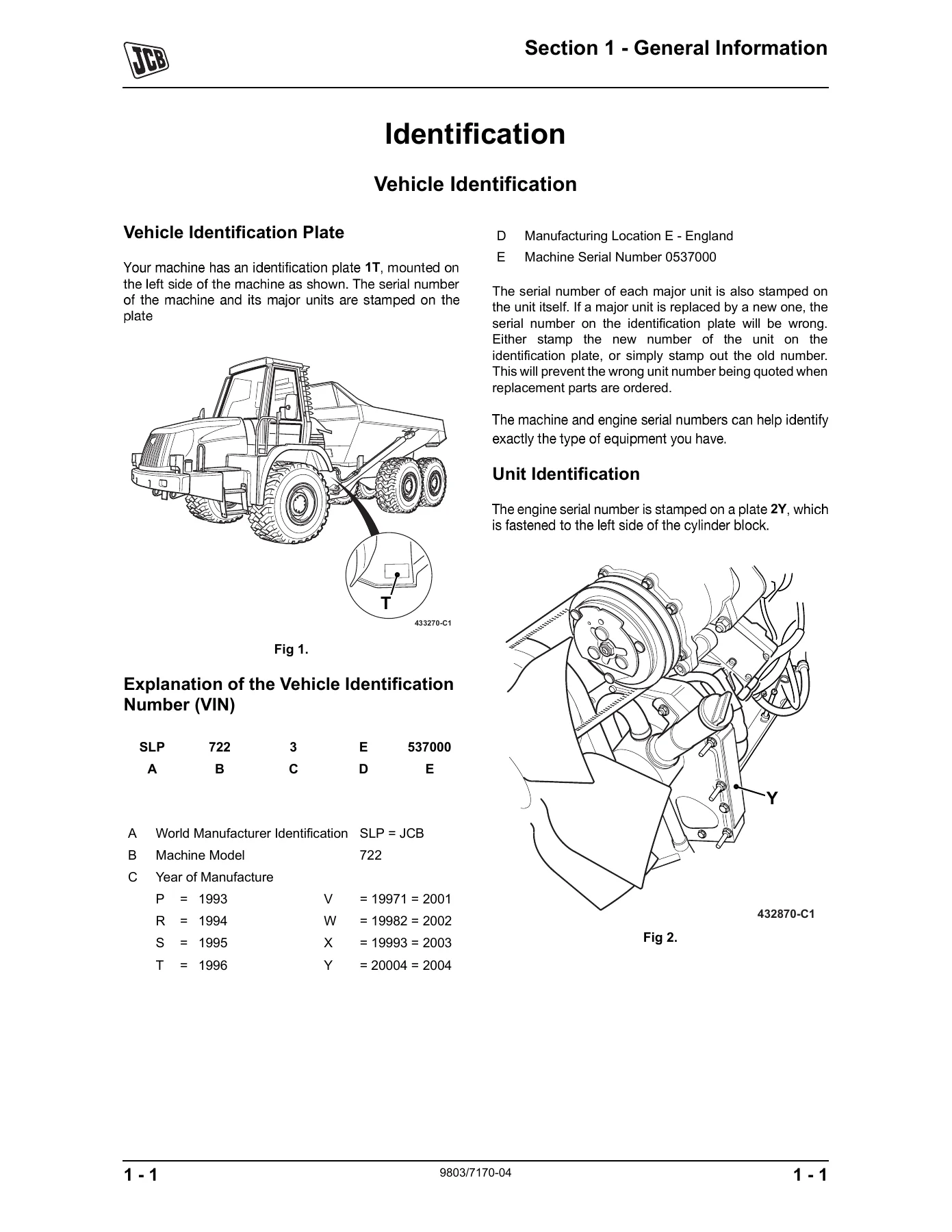

• Section 1 – General Information: Vehicle identification plate, VIN explanation, unit identification, torque settings (UNF, metric grade 8.8, 10.9, 12.9, rivet nut, internal hex cap screws), service tools by section, sealing and retaining compounds, towing preparation, hydraulic hose connection and hydraulic contamination.
• Section 2 – Care and Safety: Safety check list, general safety, operating safety, maintenance safety, safety decals.
• Section 3 – Routine Maintenance: Service schedules, health and safety, battery and isolator, engine oil and filter, engine air filter, cab ventilation filters, engine cooling system, drive belt, air conditioning belt, fuel system (both machine variants), transmission, front/intermediate/rear axles, hydraulic system, tyres and wheels, windscreen washer, ROPS/FOPS inspection, articulation and oscillation locks, tipper body safety support, engine cover, greasing, propshaft centre bearing, parking brake.

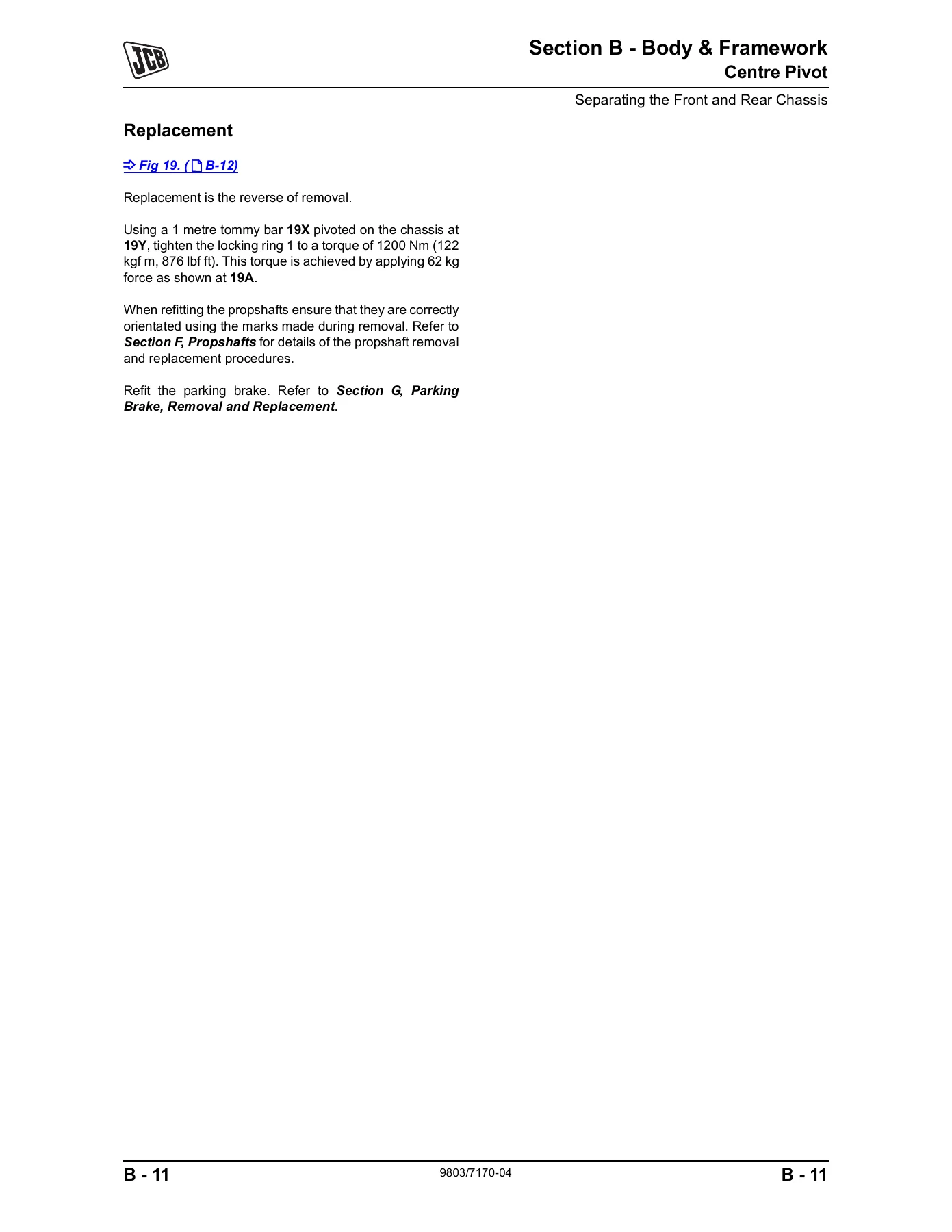

• Section B – Body and Framework: Rivet nuts, direct glazing, ROPS/FOPS structure, centre pivot separation and centre casting, tipper body removal and replacement.
• Section C – Electrics: Technical data, fuse and relay locations, wiring harnesses, alternator, starter motor, display panel, error codes (engine, transmission, body and suspension), fault finding and circuit diagrams for both machine variants.
• Section E – Hydraulics: Technical data, hydraulic pumps, main control manifold block, tipping control valve, circuit descriptions, hydraulic schematic symbols, schematics, fault finding (body lift, parking brake, brake charging, steering), pressure testing, hydraulic pump removal and replacement, manifold block dismantle and assemble, tipping control valve, differential locks, hydraulic rams removal, dismantling and assembly, JCB ram sealing procedure.
• Section F – Transmission: Technical data, axles, hub and driveshaft, limited slip differentials, intermediate axle interaxle differential with differential lock, intermediate axle without inter axle lock, WG 210 powershift transmission dismantling and assembly, hydraulic control unit, propshafts.
• Section H – Hydraulic Steering: Technical data, steering system description and operation, emergency steering, steering unit removal and replacement, steering control unit disassembly and assembly, emergency steering pump, steering rams.
• Section K – Engine: General engine data for both machine variants, charge air cooler description, removal and replacement.
• Section S – Suspension: Technical data, front suspension description, hose and pipework layouts, circuit diagrams, Hydac and Vansco system deactivation/activation/calibration, hydraulic suspension cylinders, control arms, panhard rods, bump stops, suspension accumulators, rear suspension rubber blocks, panhard rods, A-frames, rocking beam and bushes.

Altogether this is the full dealer-level service documentation for the ADT 722 – not a slim owner’s booklet. It handles everything from basic fluid checks and grease point locations right through to clutch pack overhaul inside the WG 210 powershift transmission, differential rebuilds with crown wheel and pinion adjustment, hydraulic manifold block disassembly and the front Hydac/Vansco suspension calibration routines. The inclusion of error code tables and fault finding sections means a technician can diagnose electronic faults as well as mechanical ones, and the towing, articulation lock and isolation procedures make the safety-critical groundwork part of the same reference.

IMAGES PREVIEW

What This Manual Enables You to Do

With the JCB ADT 722 service manual to hand, a workshop or owner-mechanic can carry out scheduled servicing, major component removal, complete rebuilds, torque-controlled reassembly and fault diagnosis without guessing at figures. The routine maintenance schedules give hour-based intervals and calendar equivalents. The torque setting tables cover UNF grade S, metric grades 8.8, 10.9 and 12.9, plus rivet nut and internal hex cap screws, so fasteners are tightened to the correct value whether they are zinc-plated or Dacromet. The electrical section provides error code lists for the engine ECU, transmission TCU and body/suspension systems, narrowing a fault down before a single connector is disturbed.

Repairing a 722 without the correct specifications risks stripped threads, incorrect bearing preload, wrong shim thickness in the crown wheel and pinion and, in the case of the Hydac suspension, permanent loss of calibration values. Having the exact document that matches the machine avoids all of that – the shim calculation procedures, backlash values, rolling resistance checks and torque figures are all present and specific to the ADT 722.

Delivery

The manual is delivered as an instant PDF download after payment – no shipping, no waiting for a physical book. It can be viewed on any device, printed for the workshop bench, and carried on a laptop or tablet when working on the machine. Keep it with the tool kit and the correct procedure is always within reach.
