Description
JLG E450A E450AJ M450AJ Illustrated Parts Manual 3121715 Rev Q PDF
The JLG E450A E450AJ M450AJ Illustrated Parts Manual 3121715 Rev Q PDF is a detailed parts reference covering the E450A, E450AJ and M450AJ. The manual combines illustrated assembly breakdowns with item numbers, part numbers, quantities, descriptions and revision information so components can be traced from a machine assembly to the corresponding parts listing. Coverage is separated by machine system and, where applicable, by model, specification and serial-number range.
This is an illustrated parts manual rather than a service-procedure manual. Its primary purpose is parts identification, assembly breakdown reference, configuration matching and locating the correct component information during maintenance or repair planning. Numerous figures distinguish changes by serial number and machine specification, which is especially useful when an assembly changed during production.
File Details
- Manual type: Illustrated Parts Manual
- Brand: JLG
- Models: E450A, E450AJ, M450AJ
- Document number: 3121715
- Revision: Rev Q
- Date: October 3, 2020
- Language: English
- Pages: 636
- File format: PDF
Model and Serial Number Coverage
The JLG 3121715 Rev Q parts manual identifies machine applicability throughout the figures, allowing the reader to follow the breakdown that corresponds to the actual model and production range. The cover specifies E450A, E450AJ and M450AJ coverage for SN 0300208529 to SN 0300272287 and SN B300001429 to SN B300005763, excluding SN B300005567. Individual figures narrow this further whenever different components or installations apply to particular serial ranges.
That serial-specific organization appears throughout major assemblies. Steering, frame-mounted and turntable-mounted valves, boom assemblies, cylinders, platform controls, beacon lights and other systems are divided into the applicable production ranges. The manual also distinguishes configurations such as UL and non-UL specifications and regional arrangements where the parts differ.
How the Illustrated Parts Information Is Organized
Each system is divided into numbered figures and corresponding parts lists. Illustrated pages show the relationship and location of components, while the associated list provides item number, part number, quantity, description and revision information. Cross-references direct the reader to separate breakdowns for assemblies such as cylinders, drive motors, hydraulic valves and electrical harnesses.
The manual also identifies parts that are not serviced separately, parts that have been superseded or replaced, and kits containing grouped components. This makes the JLG E450A E450AJ M450AJ Illustrated Parts Manual 3121715 Rev Q PDF useful when comparing a complete assembly against individually replaceable components. A dedicated part number index at the back provides another route for locating a known part number within the manual.
Chapters Covered
- Section 1 – Frame
- Steering installations and hub-spindle assemblies
- Drive installations, drive hub and drive motor assemblies
- Electrical plate assemblies for UL and non-UL specifications
- Tire and wheel assemblies including pneumatic, non-marking, foam-filled and solid configurations
- Motor/pump/tank installations and hydraulic tank assemblies
- Frame-mounted valve and brake/steer valve assemblies
- Battery boxes, battery chargers, inverter and voltage guard installations
- Frame cover installations
- Section 2 – Turntable
- Turntable-mounted valve installations
- Main control, releveling and jib valve assemblies
- Motion alarm and drive orientation installations
- Turntable bearing, swing drive, swing motor and swing bearing assemblies
- Fuel tank and battery installation for M450AJ
- Ground control box installations and electrical assemblies
- Strobe and beacon light installations
- Hood installations
- Section 3 – Engine
- Kubota motor/generator installation for M450AJ
- Kubota motor/generator assemblies by serial range
- Kubota motor/generator component breakdowns
- Section 4 – Boom
- Boom and cylinder installations by model, serial range and LSS configuration
- Main boom assemblies
- Jib installations
- Rotator assemblies
- Platform support installations without LSS, with 4 cell LSS and with 1 cell LSS
- Cables, clamps and boom limit switches
- Section 5 – Platform
- 4FT/1.22M, 5FT/1.52M and 6FT/1.83M platform assemblies
- Side gate, drop bar and fall arrest platform configurations
- Platform console and footswitch installations
- Platform console assemblies for different LSS, SkyGuard and specification combinations
- Drive/steer and lift/swing controller assemblies
- Jib switch, footswitch, motor controls and tray assemblies
- Soft Touch, SkyEye, SkyGuard and Skyline installations
- Cross rail and pipe rack installations
- Section 6 – Cylinder
- Level or platform slave cylinders
- Jib lift cylinders
- Lower, mid and upper lift cylinders
- Master and steer cylinders
- Telescope cylinders
- Counterbalance valve assembly
- Section 7 – Hydraulic
- Hydraulic diagrams for E450A
- Hydraulic diagrams for E450AJ by serial range
- Hydraulic diagrams for M450AJ by serial range
- Hydraulic diagram list
- Section 8 – Electrical
- Electrical diagram list
- AC plug, socket and receptacle installations
- Battery cable kits and breaker box kits
- Boom cables and boom limit switch harnesses
- Chassis-to-turntable, generator, ground control, inverter and valve harnesses
- LSS, platform console, SkyEye, SkyGuard and Skyline harnesses
- Steer/brake, traction and turntable harnesses
- 110V and 220V lower and upper boom harness assemblies
- Section 9 – Decal
- ANSI, ANSI Export and UL decal installations
- Australian, CE and China specification decal installations
- Chinese/English, French/English, Japanese and Korean arrangements
- Spanish/English and Spanish/Portuguese arrangements
- Decal installation options
- Section 10 – Recommended Service Parts Stock
- Recommended service parts stock reference
- Section 11 – Special Options
- Special options parts information
- Part Number Index
- Part number lookup section beginning near the end of the manual
Taken together, these sections provide a machine-wide illustrated parts reference rather than a narrow catalog for one subsystem. A technician can move from the chassis and drive assemblies through the turntable, boom, platform and cylinders, then into hydraulic and electrical references, while keeping model and serial applicability visible. The M450AJ-specific Kubota motor/generator section adds a dedicated breakdown of that installation and its components.
Detailed Assembly and Configuration Reference
The depth of the parts breakdown is particularly useful for assemblies that contain many serviceable components. The frame section, for example, includes separate hub-spindle, drive hub and drive motor breakdowns rather than showing only complete units. Hydraulic valve assemblies identify individual cartridges, coils, seal kits and related components. The turntable section breaks down the swing motor and swing bearing, while the boom section follows main boom, jib and rotator assemblies and directs the reader to cylinder breakdowns where required.
Platform coverage is similarly configuration-specific. The manual separates platform sizes and entry arrangements and includes dedicated figures for platform consoles with different LSS and SkyGuard combinations. Electrical coverage extends beyond a simple diagram list to individual cable and harness assemblies used through the chassis, boom, platform and control systems.
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the “JLG E450A E450AJ M450AJ Illustrated Parts Manual 3121715 Rev Q PDF” are as follows:
+SECTION 1 – FRAMEp. 15
FIGURE 1-1. STEERING INSTALLATION (SN 0300208529 through 0300244781, SN B300001429 through B300005763)p. 16
FIGURE 1-2. STEERING INSTALLATION (SN 0300244782 through 0300272287)p. 18
FIGURE 1-3. HUB – SPINDLE ASSEMBLY – RHp. 20
FIGURE 1-4. HUB – SPINDLE ASSEMBLY – LHp. 22

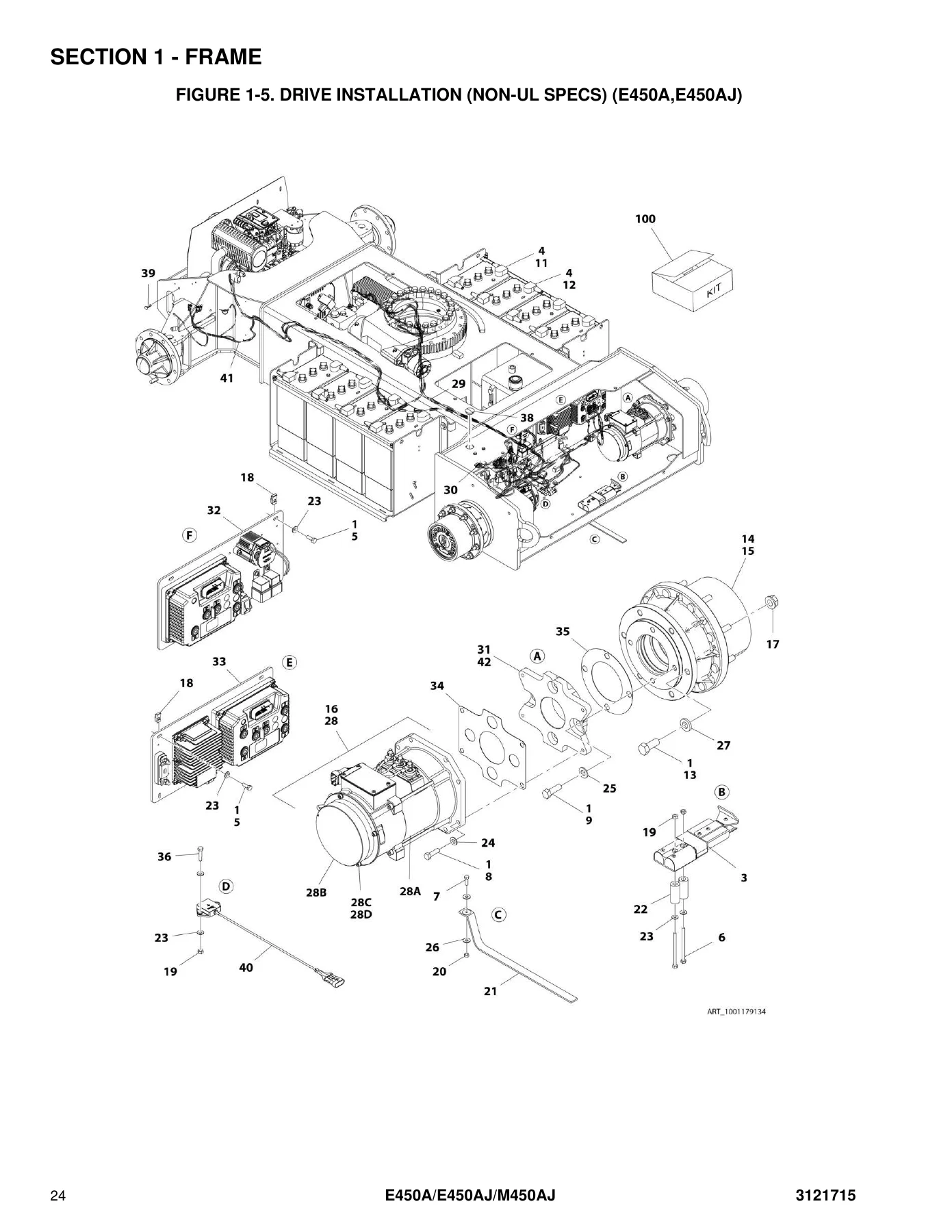

FIGURE 1-5. DRIVE INSTALLATION (NON-UL SPECS) (E450A,E450AJ)p. 24
FIGURE 1-6. DRIVE INSTALLATION (UL SPECS) (E450A,E450AJ)p. 28
FIGURE 1-7. DRIVE INSTALLATION (NON-UL SPECS) (M450AJ)p. 32
FIGURE 1-8. DRIVE HUB ASSEMBLYp. 36
FIGURE 1-9. DRIVE MOTOR ASSEMBLYp. 40
FIGURE 1-10. ELECTRICAL PLATE ASSEMBLY – LH (NON-UL SPECS)p. 42
FIGURE 1-11. ELECTRICAL PLATE ASSEMBLY – LH (UL SPECS)p. 44
FIGURE 1-12. ELECTRICAL PLATE ASSEMBLY – RH (NON-UL SPECS)p. 46
FIGURE 1-13. ELECTRICAL PLATE ASSEMBLY – RH (UL SPECS)p. 48
FIGURE 1-14. TIRE/WHEEL – IN240/55-17.5 PNEUMATICp. 50
FIGURE 1-15. TIRE/WHEEL – IN240/55-17.5 PNEUMATIC NON MARKINGp. 52
FIGURE 1-16. TIRE/WHEEL – IN240/55-17.5 PNEUMATIC NON MARKING WITH TIRE SEALANTp. 54
FIGURE 1-17. TIRE/WHEEL – IN240/55 – 17.5 FOAM FILLEDp. 56
FIGURE 1-18. TIRE/WHEEL – IN240/55-17.5 FOAM FILLED NON MARKINGp. 58
FIGURE 1-19. TIRE/WHEEL – 26 X 7 X 20 – SOLID NON MARKINGp. 60
FIGURE 1-20. MOTOR/PUMP/TANK INSTALLATION (NON-UL SPECS) (E450A,E450AJ)p. 62
FIGURE 1-21. MOTOR/PUMP/TANK INSTALLATION (UL SPECS) (E450A,E450AJ)p. 64
FIGURE 1-22. MOTOR/PUMP/TANK INSTALLATION (M450AJ)p. 66
FIGURE 1-23. MOTOR/PUMP ASSEMBLYp. 68
FIGURE 1-24. HYDRAULIC TANK ASSEMBLY (E450A,E450AJ)p. 70
FIGURE 1-25. HYDRAULIC TANK ASSEMBLY (M450AJ)p. 72
FIGURE 1-26. VALVE INSTALLATION – FRAME MOUNTED (E450A)p. 74
FIGURE 1-27. VALVE INSTALLATION – FRAME MOUNTED (E450AJ) (SN 0300208529 through 0300233451, SN B300001429 through B300002532)p. 76
FIGURE 1-28. VALVE INSTALLATION – FRAME MOUNTED (E450AJ) (SN 0300233452 through 0300272287, SN B300002533 through B300005763)p. 78
FIGURE 1-29. VALVE INSTALLATION – FRAME MOUNTED (M450AJ) (SN 0300208529 through 0300233451)p. 80
FIGURE 1-30. VALVE INSTALLATION – FRAME MOUNTED (M450AJ) (SN 0300233452 through 0300272287)p. 82
FIGURE 1-31. BRAKE/STEER VALVE ASSEMBLYp. 84
FIGURE 1-32. BATTERY BOX INSTALLATION – STANDARD (ALL SPECS EXCEPT AUSTRALIAN, CE AND CHINA SPECS)p. 86
FIGURE 1-33. BATTERY BOX INSTALLATION – STANDARD (AUSTRALIAN, CE AND CHINA SPECS)p. 88
FIGURE 1-34. BATTERY BOX INSTALLATION – AGM BATTERIES (ALL SPECS EXCEPT AUSTRALIAN, CE AND CHINA SPECS)p. 90
FIGURE 1-35. BATTERY BOX INSTALLATION – AGM BATTERIES (AUSTRALIAN, CE AND CHINA SPECS)p. 92
FIGURE 1-36. BATTERY CHARGER INSTALLATION (ANSI, ANSI EXPORT, CSA, JAPANESE AND UL SPECS) (E450A,E450AJ)p. 94
FIGURE 1-37. BATTERY CHARGER INSTALLATION (AUSTRALIAN SPEC) (E450A,E450AJ)p. 96
FIGURE 1-38. BATTERY CHARGER INSTALLATION (ANSI EXPORT AND CE SPECS) (E450A,E450AJ)p. 98
FIGURE 1-39. BATTERY CHARGER INSTALLATION (ANSI EXPORT AND CHINA SPECS) (E450AJ)p. 100
FIGURE 1-40. BATTERY CHARGER INSTALLATION (ANSI, ANSI EXPORT, CSA AND JAPANESE SPECS) (M450AJ)p. 102
FIGURE 1-41. BATTERY CHARGER INSTALLATION (AUSTRALIAN SPEC) (M450AJ)p. 104
FIGURE 1-42. BATTERY CHARGER INSTALLATION (ANSI EXPORT AND CE SPECS) (M450AJ)p. 106
FIGURE 1-43. BATTERY CHARGER ASSEMBLYp. 108
FIGURE 1-44. INVERTER INSTALLATION (E450A,E450AJ)p. 110
FIGURE 1-45. VOLTAGE GUARD ASSEMBLY AND INSTALLATION (ANSI EXPORT AND CHINA SPECS)p. 112
FIGURE 1-46. FRAME COVER INSTALLATION (E450A,E450AJ)p. 114
FIGURE 1-47. FRAME COVER INSTALLATION (M450AJ)p. 116
+SECTION 2 – TURNTABLEp. 119
FIGURE 2-1. VALVE INSTALLATION- TURNTABLE MOUNTED (E450A)p. 120
FIGURE 2-2. VALVE INSTALLATION- TURNTABLE MOUNTED (E450AJ) (SN 0300208529 through 0300233451, SN B300001429 through B300002532)p. 122
FIGURE 2-3. VALVE INSTALLATION- TURNTABLE MOUNTED (E450AJ) (SN 0300233452 through 0300272287, SN B300002533 through B300005763)p. 124
FIGURE 2-4. VALVE INSTALLATION- TURNTABLE MOUNTED (M450AJ) (SN 0300208529 through 0300233451)p. 126
FIGURE 2-5. VALVE INSTALLATION- TURNTABLE MOUNTED (M450AJ) (SN 0300233452 through 0300272287)p. 128
FIGURE 2-6. MAIN CONTROL VALVE ASSEMBLYp. 130
FIGURE 2-7. RELEVELING VALVE ASSEMBLYp. 132
FIGURE 2-8. JIB VALVE ASSEMBLY (SN 0300208529 through 0300233452, SN B300001429 through B300002532)p. 134
FIGURE 2-9. JIB VALVE ASSEMBLY (SN 0300233452 through 0300272287, SN B300002533 through B300005763)p. 136
FIGURE 2-10. MOTION ALARM INSTALLATIONp. 138

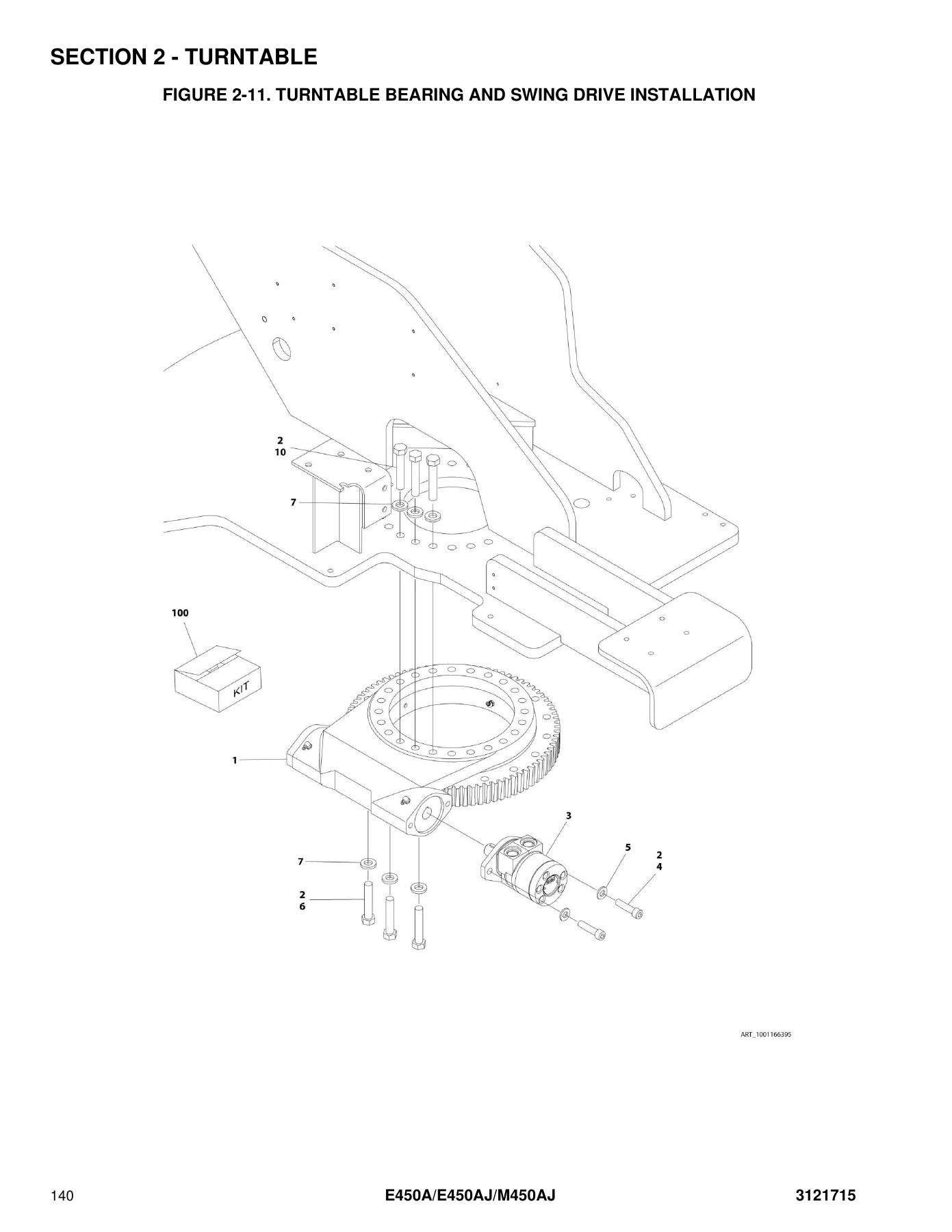

FIGURE 2-11. TURNTABLE BEARING AND SWING DRIVE INSTALLATIONp. 140
