John Deere 1270E Wheel Harvester Tier 2 Parts Catalog PC10730 (2011) – PDF Download

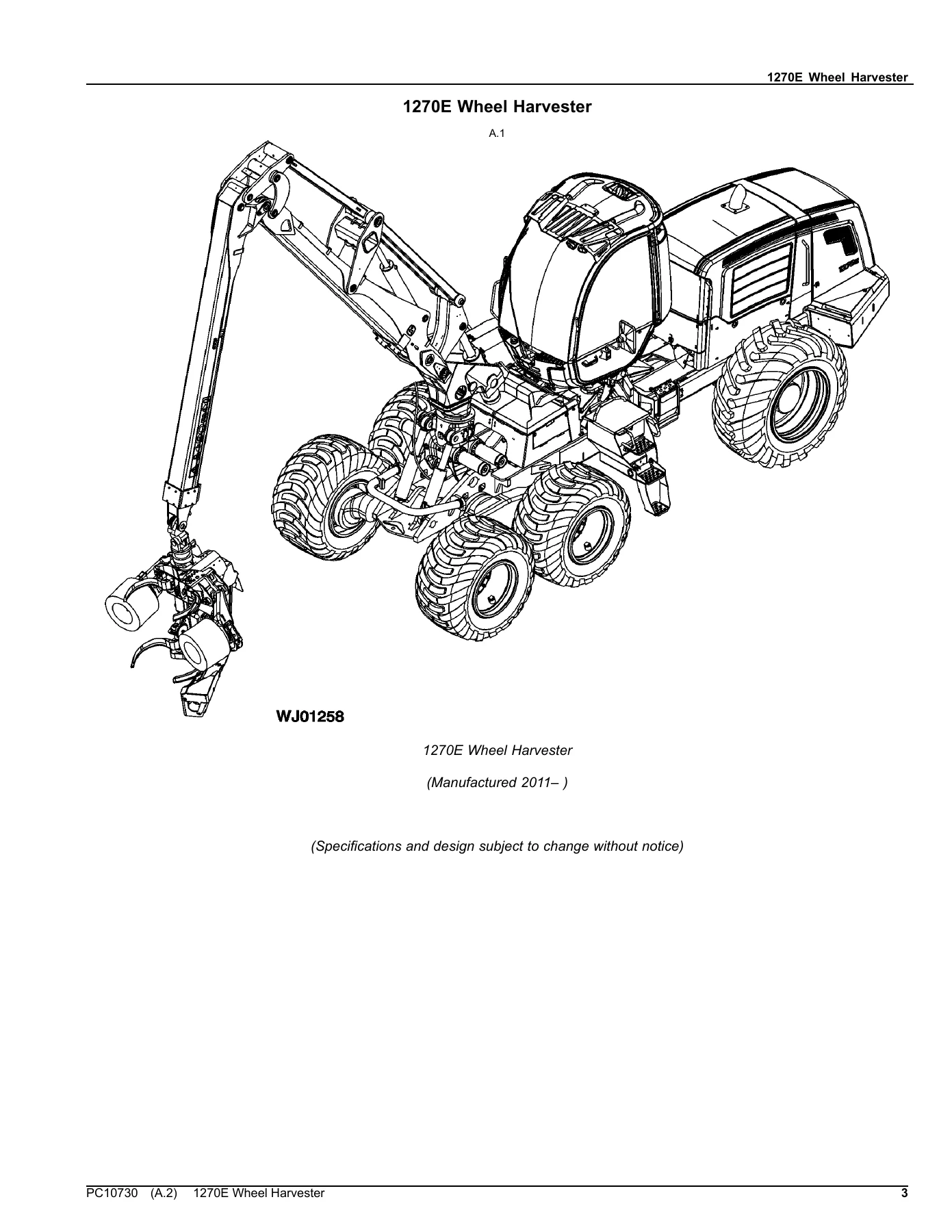

This is the John Deere 1270E Wheel Harvester Tier 2 Parts Catalog PC10730, a 696-page English parts catalog for the 1270E Wheel Harvester (001802-) fitted with Engine Stage II / Tier 2. It was issued by the Worldwide Construction and Forestry Division as PC10730 (Aug-11). Every system on the machine is broken into illustrated views with matching parts lists, so you can pin down the exact part number, quantity and fitment note for the component in front of you. It arrives as an instant PDF download.

File Details

• Manual type: Parts Catalog
• Brand: John Deere
• Model: 1270E Wheel Harvester (001802-), Engine Stage II / Tier 2, manufactured 2011 onward
• Publication number: PC10730 (Aug-11)
• Issued by: Worldwide Construction and Forestry Division
• Copyright: 2011 Deere & Company, Moline, Illinois
• Language: English
• Pages: 696
• File format: PDF, instant download

Chapters Covered in the 1270E Wheel Harvester Parts Catalog

• 01 Wheels & Tires & Tracks – 0110 Powered Wheels, Tires & Fastenings (p. 26)
• 02 Axles, Differentials & Suspension Systems – 0201 Drive Axle Hsg & Support (Inc. Final Drives) (p. 28); 0210 Differential Or Bevel Drive (p. 38); 0225 Input Drive Shafts & U-joints (p. 42); 0242 Axle Mounting Parts (p. 44); 0252 Steering Clutches, Brakes & Controls (p. 46)
• 03 Transmission – 0342 Trans. Mounting Parts (p. 50); 0350 Gears, Shafts & Power Shift Clutches (p. 52); 0360 Transmission Hydraulics (p. 62)
• 100 Engine, Sectional Pictorial Index (pp. 65-141) – rocker arm cover; crankshaft pulley and damper; flywheel housing and flywheel; fuel injection pump; intake manifold; oil pan; water pump; thermostat cover and thermostat; idler pulley and support; fan belt; coolant heater plug; exhaust manifold; ventilating system; starting motor; fuel filter; thermostat housing; oil dipstick tube; air intake; cylinder block; crankshaft and bearings; connecting rods and pistons; rocker arm, shaft and push rod; cylinder head; engine oil pump; auxiliary drive; water pump inlet; engine oil cooler and oil filter; alternator mounting; turbocharger; air conditioning compressor; timing gear cover; air compressor mounting plug; electronic control unit; EGR plug; lift straps; complete block assembly
• 05 Engine Auxiliary System – 0505 Cold Weather Starting Aids (p. 142); 0510 Engine Cooling Systems (p. 152); 0515 Engine Speed Controls (p. 170); 0520 Intake System (p. 172); 0530 External Exhaust Systems (p. 174); 0540 Engine Mounting (p. 176); 0560 External Fuel Supply Systems (p. 182)
• 07 Traction (Engine) And Disconnect Clutch – 0752 Clutch Elements (p. 190)
• 09 Steering System – 0960 Power Steering Hydraulic System (p. 192); 0965 Steering Cylinders (p. 198)
• 10 Service Brakes – 1060 Service Brakes Hydraulics (p. 200); 1062 Service Brake Valve (p. 210); 1064 Reservoir & Accumulator (p. 216)
• 13 Miscellaneous Vehicle – 1312 Equipment Assembly (p. 218); 1320 Vehicle Finish & Trim (p. 238)
• 16 Vehicle Electrical Systems – 1671 Batteries, Support & Cables (p. 254); 1673 Vehicle Lighting System (p. 258); 1674 Wiring Harness & Switches (p. 284); 1675 System Controls (p. 338); 1678 Sensors (p. 348)
• 17 Frame Chassis Or Supporting Structure – 1740 Frame Installation (p. 358)
• 18 Operator’s Station – 1810 Operator Enclosure (p. 376); 1812 Operator Enclosure (p. 406); 1821 Seat And Seat Belts (p. 410); 1822 Steps & Handholds (p. 446); 1830 Heating & Air Conditioning (p. 454)
• 19 Sheet Metal & Styling – 1910 Hood Or Engine Enclosure (p. 460)
• 20 Safety, Convenience & Miscellaneous – 2001 Radio (p. 466); 2002 Mirror (p. 470); 2003 Fire Extinguisher (p. 472); 2004 Warning Devices Including Horn & Reverse Alarm (p. 480); 2005 Toolbox (p. 482); 2007 Sun Visor (p. 484); 2008 Reflectors & SMV Sign (p. 486)
• 21 Vehicle Main Hydraulic System – 2160 Vehicle Hydraulics (p. 490); 2161 Hydraulic Pumps & Drives (p. 498); 2162 Hydraulic Selective Control & Load Holding Valves (p. 502); 2163 Hydraulic Lines & Hoses (p. 522); 2164 Hydraulic Reservoir, Filter & Cooler (p. 528); 2167 Hydraulic Motors (p. 534)
• 37 Arch Or Boom Or Cranes – 3740 Arch Or Boom Frames (p. 536); 3741 Main Frame Or Mast (p. 546); 3743 Moveable Frame Or Boom (p. 562); 3760 Hydraulic System (p. 566); 3762 Control & Load Holding Valves (p. 574); 3763 Lines, Hoses & Fittings (p. 594); 3765 Hydraulic Cylinders (p. 620)
• 38 Grapple – 3840 Frame, Grapple Support (p. 634); 3860 Hydraulic System (p. 640)
• 43 Swing, Rotation Or Pivoting System – 4315 Controls (p. 652); 4343 Swing Frame (p. 656); 4360 Hydraulics (p. 658); 4365 Cylinders (p. 664)
• Reference indexes – Alphabetical Index (from p. 13); Numerical Index (from p. 667)

Taken as a whole, this 1270E Wheel Harvester parts catalog gives a technician or parts buyer a complete map of the machine. Each illustration page is paired with a parts list showing the key number, part number, part name, quantity, serial number range and remarks. That makes it as useful for tracing a single seal kit or hose as it is for identifying a whole service assembly.

Machine, Serial Number and Engine Identification

The opening pages of this John Deere 1270E parts catalog show where the machine serial number sits. They also explain how to read the Product Identification Number, which breaks down into place of manufacture, machine model, machine series, control and security code, year code, engine emissions regulation standard and serial number. A further page describes the machine plate fields: complete model number, product serial number and year code. The engine serial plate page explains the 13-character engine serial number for the 6081 (8.1 liter) and 6090 (9.0 liter) six-cylinder engines, including the emission-level letter (G for Tier 2 / Stage II), aspiration type and application codes. This matters because the catalog uses serial-number notation to show which machines each part fits. A few assemblies split at a serial break: brake valve hydraulics change between serial -1653 and 1654-, and the central lubrication value-improvement arrangement applies up to serial -1679.

Engine Section: Tier 2 Components and Remanufactured References

The engine chapter of the 1270E Wheel Harvester Tier 2 parts catalog is a sectional pictorial index of the six-cylinder engine, with one illustration per assembly. Where a remanufactured counterpart exists, the parts list says so. Examples include:

• Complete Block Assembly RE531096, with Reman SE501746
• Cylinder Head RE530370, with Reman SE501747
• Turbocharger RE531288, with Reman SE502374
• Fuel Injection Pump RE546126 (also order R518254), with Reman SE501922
• Water Pump RE530194 (replaces NLA RE523828), with Reman SE501228
• Starter Motor Kit RE501150, with Reman SE501406

Substitution and availability notes such as Sub For, NLA and NSEP appear throughout, so you can see when a number has been replaced or is not sold separately.

Axles, Transmission, Brakes and Steering

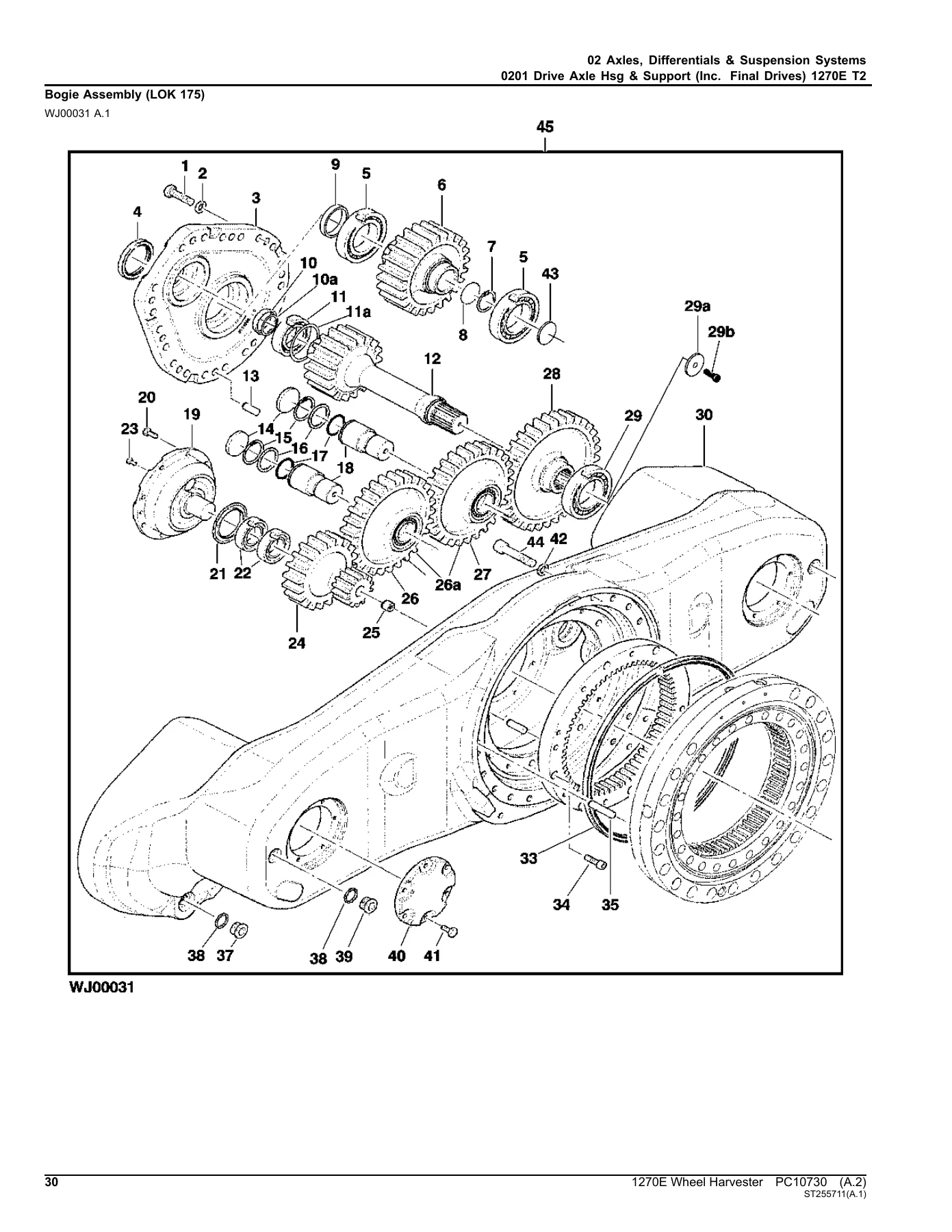

Driveline coverage goes down to the internals. The LOK 160 rear axle and the LOK 175 front axle with bogie assembly are shown with housings, planetary gears, hubs, differentials, brake cylinders and shim kits. The LOK 185 transmission is broken out into housing, gears and shafts, transfer case output shaft and the speed select shifting cylinder. Hydrostatic drive hoses, universal drive shafts with their support bearing, the middle joint with its universal driveshaft, and axle mounting parts complete the driveline. On the braking side you get front and rear axle brake hoses, the brake valve with spool valve and seal kits, hydraulic accumulators, the brake pedal and reservoir, and the frame brake. Steering is covered by the steering valve, the steering cylinders with repair kit, and the lubrication points.

Boom, Rotator and Hydraulic System Coverage

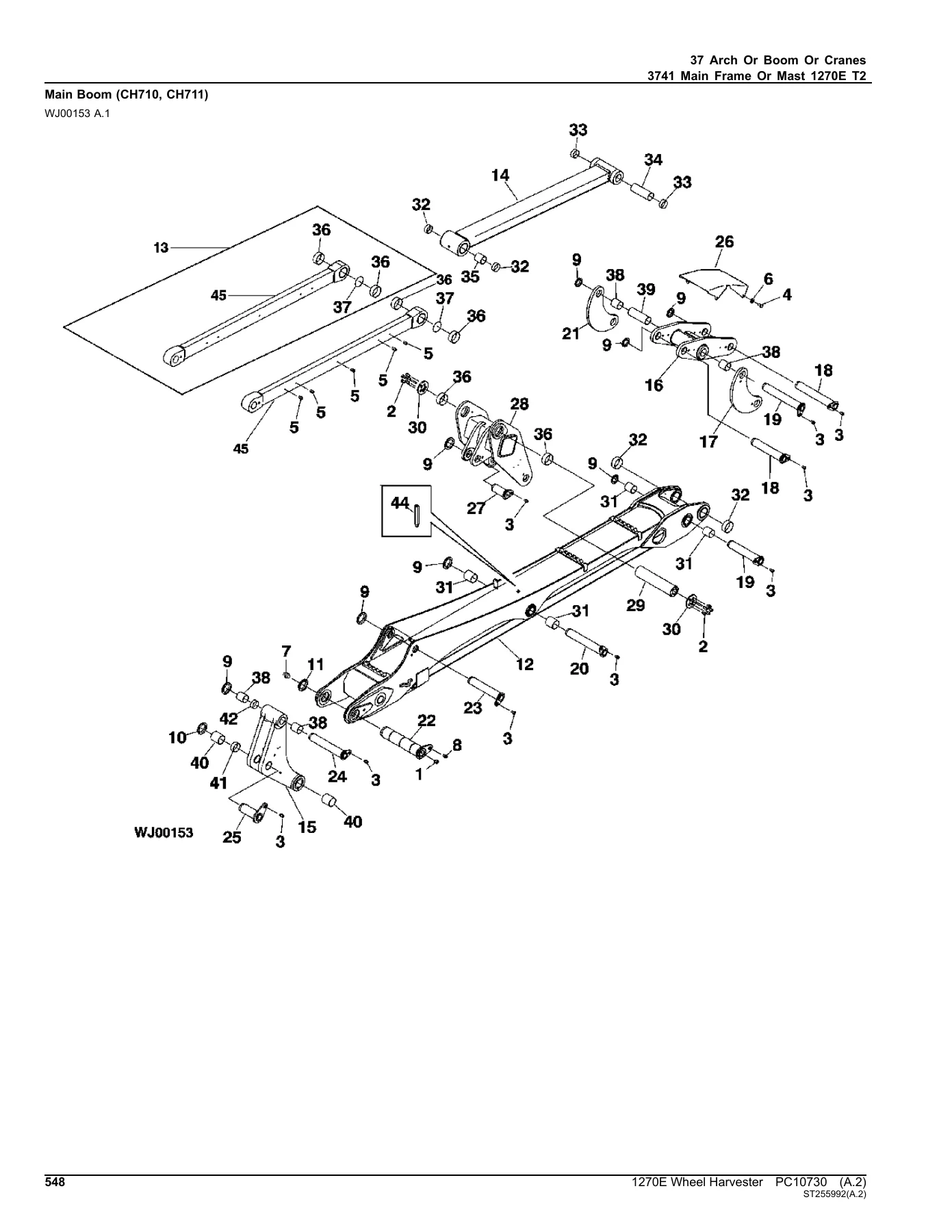

For a forestry harvester the crane end matters as much as the chassis, and this catalog treats it accordingly. It covers the boom base, boom pillar, tilt cylinders with their shields and guards, and the CH710, CH711 and CH786 main, outer and extension booms. It also covers boom oil lines and hoses, and the boom control valve with separate sections for slew, main boom, extension boom, outer boom, tilt, rotator and steering. Boom, slew, tilt, outer boom and extension cylinders are all broken out. Rotators shown include the Indexator AV 17S, H132 and H172 and the Sampo-Hydraulics BBR 15 HD. The catalog also lists dual-swing links with brake for the S-100/45C, MPB 2-100/45 and MPB 2-2 Indexator variants, plus hose mounting arrangements for Indexator, Black Bruin and direct hosing for H414 and H480C. Main machine hydraulics are each illustrated with fittings and seal kits: drive pump, work pump, main valve block, LS block, auxiliary functions valve, thermostatic control valve, hydraulic fan valve, hydraulic reservoir with filters, oil cooler lines, bypass oil filtration and the hydrostatic drive motor. The automatic central lubrication system is covered from the carrier and divider blocks to the service kit.

Cab, Electrical Systems and Options

Operator-station coverage includes both the fixed cabin and the levelling cabin, with levelling cylinders, cab rotation motor, frame brake, gyroscope and levelling harnesses. It also shows the cab door with central lock and actuators, windows, secondary exit, wipers, washer reservoir, upholstery, headliner, mirrors, grille guards and sun visors. Seating spans the Grammer basic and comfort seats and the Be-Ge Airvent seats, and the heating and air conditioning unit is broken down into its components and hoses. The electrical chapters hold the battery and main switch, fuse boxes and circuit boards, and the main, engine, ECU, boom, cab, door, joystick and CAN cable harnesses. They also cover the left and right joystick assemblies, xenon and halogen work lights, boom lights, and signal light kits for Sweden-Norway, Germany and Finland. Sensors include boom levelling, tilt, slew, end damping and middle joint. Then come the on-board computer with console and display, GPS receiver kit, GPRS modem, reverse camera and the Calliper measuring device. Optional and regional equipment such as the single and two-tank urea system, engine pre-heater with GSM control, fire suppression system and English and French safety decals is also included.

Reading the Catalog: Notes, Abbreviations and Indexes

The front matter explains that dimensions are given in SI metric and that bolts marked HS SAE 8 (10.9 for metric) are the high-strength fasteners. It also explains how serial-number ranges are shown, that arrows on illustrations point to the front of the machine with right-hand and left-hand determined facing forward travel, and that a box around parts with a key number marks a service assembly. A remarks and abbreviations table decodes entries such as Assy, AR, NLA, NSEP, Repl. and Sub. The alphabetical index (from page 13) and numerical index (from page 667) let you jump straight to the right page from either a part name or a part number. Please note that this is a parts catalog rather than a repair or service manual: it identifies parts, quantities and assemblies but does not give step-by-step repair or adjustment procedures. Part numbers were correct at the time of publication, and the catalog itself advises verifying part numbers through your dealer before ordering.

Why Choose the John Deere 1270E Wheel Harvester Tier 2 Parts Catalog PC10730

With this 1270E Wheel Harvester parts catalog open on your screen, you can look up a worn hose, seal kit, cylinder repair kit, bearing or complete assembly by name or by number, see how it fits into the machine, and order the right item first time instead of guessing from an old part or a photo. It supports parts lookups for routine servicing, rebuilds and breakdown repairs across axles, engine, hydraulics, boom and cab. It also helps owners, workshops and fleet buyers put together accurate parts orders. Working from the part numbers, quantities and serial-number notes in PC10730 helps you avoid wrong-part orders and unnecessary downtime.

Delivery is instant: complete your order, download the PDF and start looking parts up straight away, with no shipping and no waiting. The file opens on any computer, tablet or phone, and you can print any illustration or parts list page you need for the workshop bench.
