John Deere 6165J Tractor Illustrated Parts Catalog PC8505P 2015 PDF Download

Description

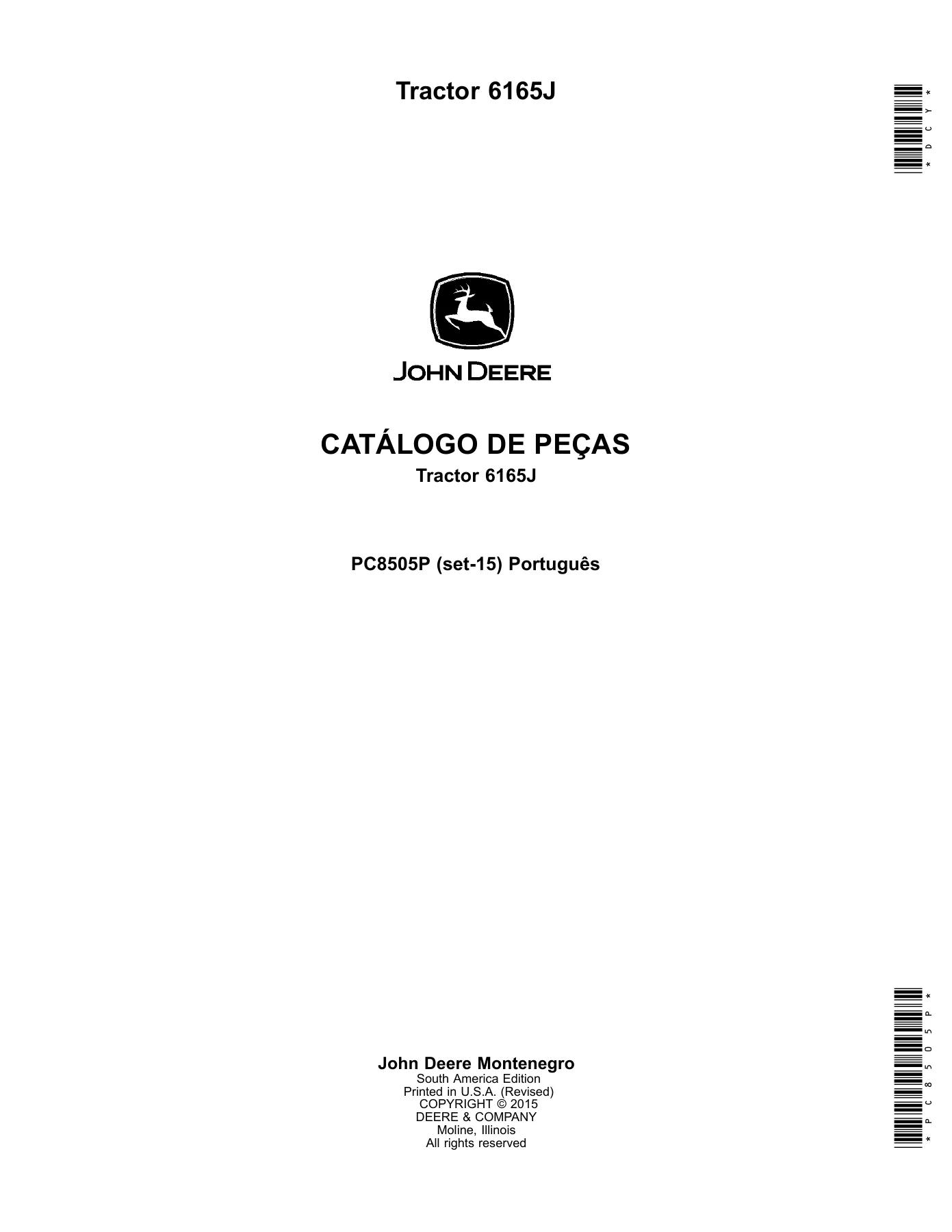

John Deere 6165J Tractor Parts Catalog PC8505P

The John Deere 6165J Tractor Parts Catalog PC8505P is the full illustrated component reference for the 6165J agricultural tractor, released by John Deere for the Montenegro South America edition with a September 2015 revision date. Every major assembly on the machine is broken down into exploded views carrying itemised part numbers, so a dealer counter, workshop or owner can identify the exact component, seal, gasket, fastener or sub-assembly needed for a repair or rebuild. The catalog covers the 6068HBM02 engine, PowrQuad transmission, heavy-duty 3M and Dana front axles, hydraulic system, electrical harnesses, operator station and every accessory fitted to the 6165J, and the text is printed in Portuguese, English and Spanish.

File Details

• Manual type: Illustrated Parts Catalog (IPC)
• Brand: John Deere
• Model: 6165J Tractor
• Publication number: PC8505P
• Edition / date: set-15 (September 2015), Revised
• Market edition: John Deere Montenegro South America Edition
• Language: Portuguese / English / Spanish
• File format: PDF
• Page count: 760

Chapters Covered in the 6165J Parts Catalog

• 20 – Motor 6068HBM02 — valve cover, oil filler neck, crankshaft pulley with damper, flywheel housing, flywheel, fuel injection pump and solenoid, air intake, oil pan, water pump pulley, thermostat cover and thermostat, exhaust manifold, ventilating system, starter motor, fuel filter, front plate, fuel transfer pump, thermostat housing, engine oil dipstick, timing gear cover, cylinder block, crankshaft and main bearings, connecting rods and pistons, rocker arm/shaft/tappet/push rod, oil pump, cylinder head, water pump inlet, oil cooler, turbocharger, temperature switch, sensors, crankshaft pulley with torsional damper, no-AC mounting, oil pressure switch, belt tensioner, oil filter, lift strap, engine gasket kit, piston liner kit, replacement engine, short block assembly

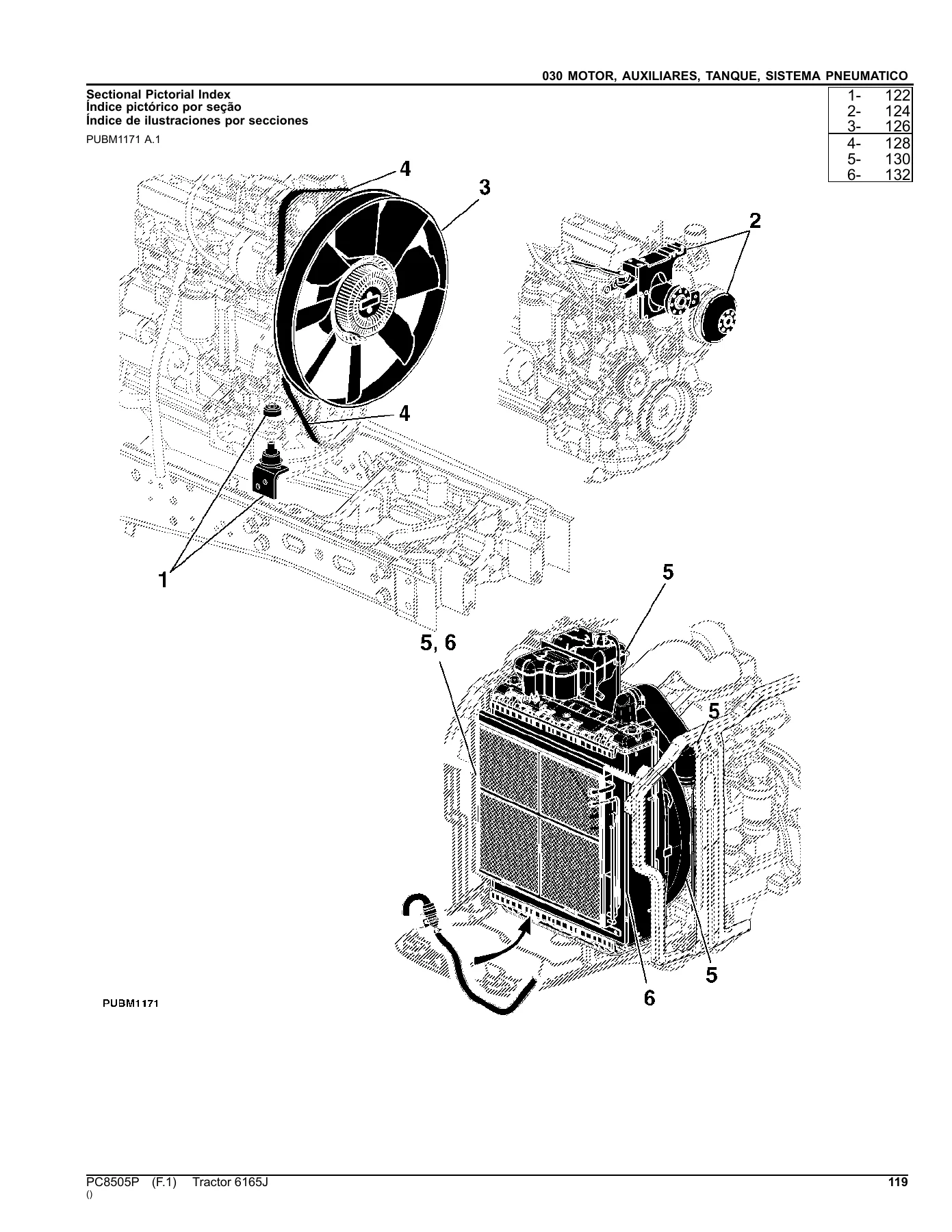

• 030 – Motor, Auxiliares, Tanque, Sistema Pneumático — radiator, intercooler, fan and fan drive, air cleaner, fuel tank and fuel lines, muffler and exhaust, compressed-air system
• 040 – Componentes Elétricos — battery and cables, alternator and attaching parts, starting motor, fuse box and symbols, fuses/diodes/relays, engine, cab and transmission wiring harnesses, connector and terminal kits, BCU, SBBC control unit, GreenStar display, GPS receiver and harness
• 055 – Transmissão PowrQuad — flywheel cover, universal-joint shaft and torsion damper, traction clutch and housing, planetary brake, reverse brake housing, direct drive clutch, transmission output shaft, sun gears, input planetary assembly, transmission oil pump, front cover and valves, housings, sending units and pressure switches, transmission oil filter, mounting parts
• 056 – Sistema de Transmissão — range transmission housing and drive shaft, differential drive shaft, parking lock, shifter shafts and range shifter levers, MFWD clutch housing, MFWD multi-disc clutch, differential case and fittings, differential assembly, differential lock and MFWD oil lines, oil filler neck, suction line, rear axle, rear PTO housing, PTO output shaft, PTO countershaft, PTO clutch assembly, PTO bearing support, PTO modulating valve, PTO guard, breather
• 060 – Direção e Freios — steering wheel and attaching parts, steering column, hydrostatic steering unit, control block priority 1, hydrostatic steering oil lines, brake pedal and brake switch, brake valve, brake oil lines, brake disk, trailer air brake cab control, air compressor assembly, gasket kit for air compressor, compressed air tank and pressure regulating valve, control lines and control valves for trailer air brake, quick couplers
• 070 – Bombas Hidráulicas, Eixo Oscilante e VCS — charge pump for 45 cm³ hydraulic pump, charge pump connecting parts, hydraulic oil filters, hydraulic pump 45 cm³, hydraulic oil reservoir and oil lines, rockshaft, plugs for rockshaft support, rockshaft position sensor, lift cylinder and lift cylinder lines, load control shaft and draft sensor, draft links and quick-tach hook type links, draft link assembly ball type, lift links, centre link bracket, centre link hook and ball type centre link, centre link holder, cables, adjustable stabiliser bar, control blocks priority 2 and 3, inlet valve priority 1, rockshaft control valve with stepper motor, attaching parts for selective control valves, mechanically operated selective control valves 100 and 300 series, hydraulic quick couplers
• 080 – Chassi, Eixo Dianteiro, Capô, Acessórios — MFWD axle (Dana Brazil), axle bridges, front wheel drive axle and drive flange, multiple disc self-lock differential, double jointed shaft, MFWD knuckle housing, planetary drive, steering cylinder assembly, suspension, MFWD anti-wrap guard, FWD universal jointed shaft, main frame and mounting parts, identification plate mountings, hood support, hood and side panels, hood and radiator grille, trademark labels, main frame basic weight, additional front weights, front wheels MFWD and welded, steel disk rear wheels, mounting parts for rear wheel, cast rear wheels, agro forestry wheels, wheel weights, valve for tubeless tyres, drawbar, front fenders 480 mm and 540 mm, toolbox and brackets, plastic plugs and tie bands, accessory parts, safety decals
• 081 – Eixo (Serviço Intensivo 3M) — RH and LH axle housings, steering cylinder and tie rods, MFWD pivot, MFWD hub carrier and planetary drive heavy duty, steering arm and knuckle, input yoke and bearings, differential, MFWD universal-joint shaft
• 82 – Eixo (Dana Itália) — axle bridges, drive flange and bevel gear, multiple disk self-lock differential, double jointed shaft, knuckle housing, planetary drive, steering cylinder assembly, suspension
• 092 – Estação do Operador — cab, cab frame, cab suspension, security cover, control support, trim components, rear fender upholstery, upper upholstery, post upholstery, floor plates and floor mats, side covers, rear fender, handles, steps, headliner and roof trim, outer roof without hatch, rear window, tiltable side windows, door handle and lock, right-hand door, doors, windshield, bulkhead
• 093 – Controls, Acessórios e Ar Condicionado — dash and cowl, electrical instruments, FWD switch, air brake gauge, differential lock switch, clutch operating parts and Bowden cable, accelerator pedal with electronic speed control, foot throttle, control console for cab and open operator station, windscreen washer system, front windshield wiper, radio console, outside and inside mirrors, sun visor, operator’s manual holder, rockshaft remote control, heater unit and heater hoses, cover for heater unit, air cleaner, dome light and air channels, condensed water drain, heater and air conditioning lines, receiver dryer and pressure switch, compressor, air conditioning lines
• 094 – Cabos e Assento — shift lever support, Bowden cable retainer assembly, gear shift Bowden cable, gear shift components, Bowden cables for range shift, range shifting, mechanical speed control, selective control valve control linkage, console for shiftable rear PTO, upholstery parts without rockshaft control, rockshaft control and locking lever for SCV, rockshaft control, PTO switches, seat for OOS, seat assembly for cab, seat belt warning label, repair kits for comfort seats

Read as a whole, the PC8505P catalog gives a complete map of the 6165J. Instead of hunting for a part number in a general listing, you open the chapter for the system you are working on and the exploded diagram shows every component in its fitted position with a reference number that leads straight to the part number, description, quantity and any applicable engine or serial number note. Wear items such as seals, O-rings, gaskets, bearings, clutch plates and brake disks are broken out individually, which is exactly what a rebuild or a preventive maintenance order needs. Assemblies that are only sold complete are shown boxed, and where a component has been superseded the catalog lists the current number and the substitute relationship.

How the Catalog Is Organised

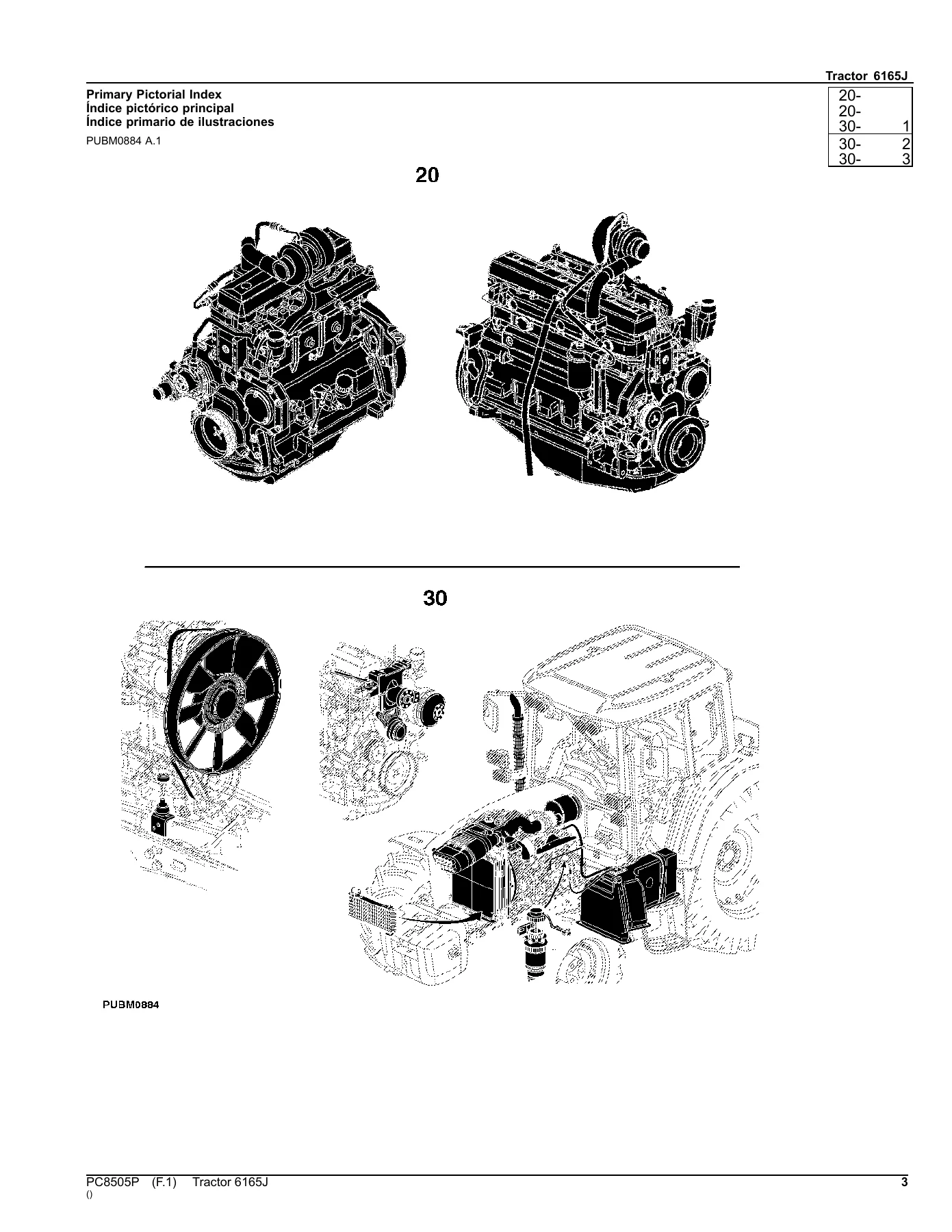

The document follows the John Deere parts catalog convention. Each chapter opens with a pictorial index that shows the major groups inside that system, followed by individual illustration pages. Every illustration carries a numbered key that maps to a table listing the item number, part number, description in Portuguese, English and Spanish, quantity and notes. Notes flag engine serial number breaks, transmission variants, axle manufacturer differences (Dana Brazil, Dana Italy and the heavy-duty 3M axle) and assemblies that are supplied only as a complete unit or only as individual parts.

Tractor and Component Identification

Before ordering, the catalog expects you to confirm the machine identity. The product identification number is stamped on the right-hand side of the main frame and follows the 17-character format beginning with 1BM for John Deere Montenegro. Digit five of that number is the production year code and digit six is the transmission type code, and the catalog prints both decode tables. Engine identification follows a 13-character serial number on the engine plate: two letters for the build plant (CD for Saran, France; PE for Torreon, Mexico; JX for Rosario, Argentina; UG for Teda, China), one digit for cylinder count, three digits for displacement in litres, one letter for emission level, then a six-digit build sequence, with a separate nine-character engine type code and a part number block below. The MFWD serial number plate sits on the right-hand rear surface of the front axle housing, and the transmission serial number follows a component format that identifies the manufacturer, transmission type, tractor model, hitch fitment and six-digit serial. Using these numbers alongside the illustration notes prevents ordering a part that fits a different build.

What the John Deere 6165J Parts Catalog PC8505P Lets You Do

With the PC8505P catalog open you can build a complete parts order for an engine overhaul, a PowrQuad transmission repair, a front axle rebuild on either the 3M heavy-duty or Dana axle, a hydraulic pump or rockshaft service, a brake job, an electrical fault traced back to the correct harness connector, or a cab and air conditioning repair. Every part is backed by the number John Deere itself publishes, which removes the guesswork that leads to wrong gaskets, mismatched clutch disks or seals that do not fit the serial break. For a workshop, that is the difference between a machine back in the field the same day and a second order arriving a week late. For an owner doing their own maintenance, it is the confidence that the filter, belt, sensor or fastener in your hand is the one the factory drawing specifies.

Delivery is instant. The John Deere 6165J Tractor Parts Catalog PC8505P arrives as a PDF download immediately after checkout, with no shipping and no waiting on a printed binder. Open it on a laptop in the workshop, a tablet next to the machine, or a phone at the parts counter, zoom into any exploded view, and print the pages you want to carry with you. Keep it on file as a permanent reference for as long as you own or service the 6165J.
