John Deere 4239 OEM Engine Parts Catalog PC3153 – 4239D 4239T 4239A Diesel Parts Manual PDF

Description

John Deere 4239 OEM Engine Parts Catalog PC3153

The complete OEM parts catalog for John Deere 4239 diesel engines built at the Saran plant in France. This PC3153 catalog covers the 4239D naturally aspirated, 4239T turbocharged and 4239A turbocharged-aftercooled variants, with every part number cross-referenced to the option code plate on the engine’s rocker arm cover. Revised October 1990.

File Details

• Manual type: OEM Parts Catalog
• Brand: John Deere
• Model series: 4239 (4-cylinder, 239 cu in)
• Covered engines: 4239D, 4239T, 4239A
• Basic engine codes: 1250F, 1255F (4239D); 1260F, 1265F (4239T); 1360F, 1365F (4239A)
• Document number: PC3153
• Edition: Revised (Oct-90)
• Publisher: Deere Power Systems Group
• Language: English
• Page count: 473
• File format: PDF

Chapters Covered

• General Information
• Engine (Base)
• Engine (Lubrication)
• Engine (Cooling)
• Intake and Exhaust
• Cooling System
• Fuel System
• Fuel Injection Pump (Components)
• Clutch and Clutch Housing
• Engine Accessories
• Electrical System

Engine (Base)

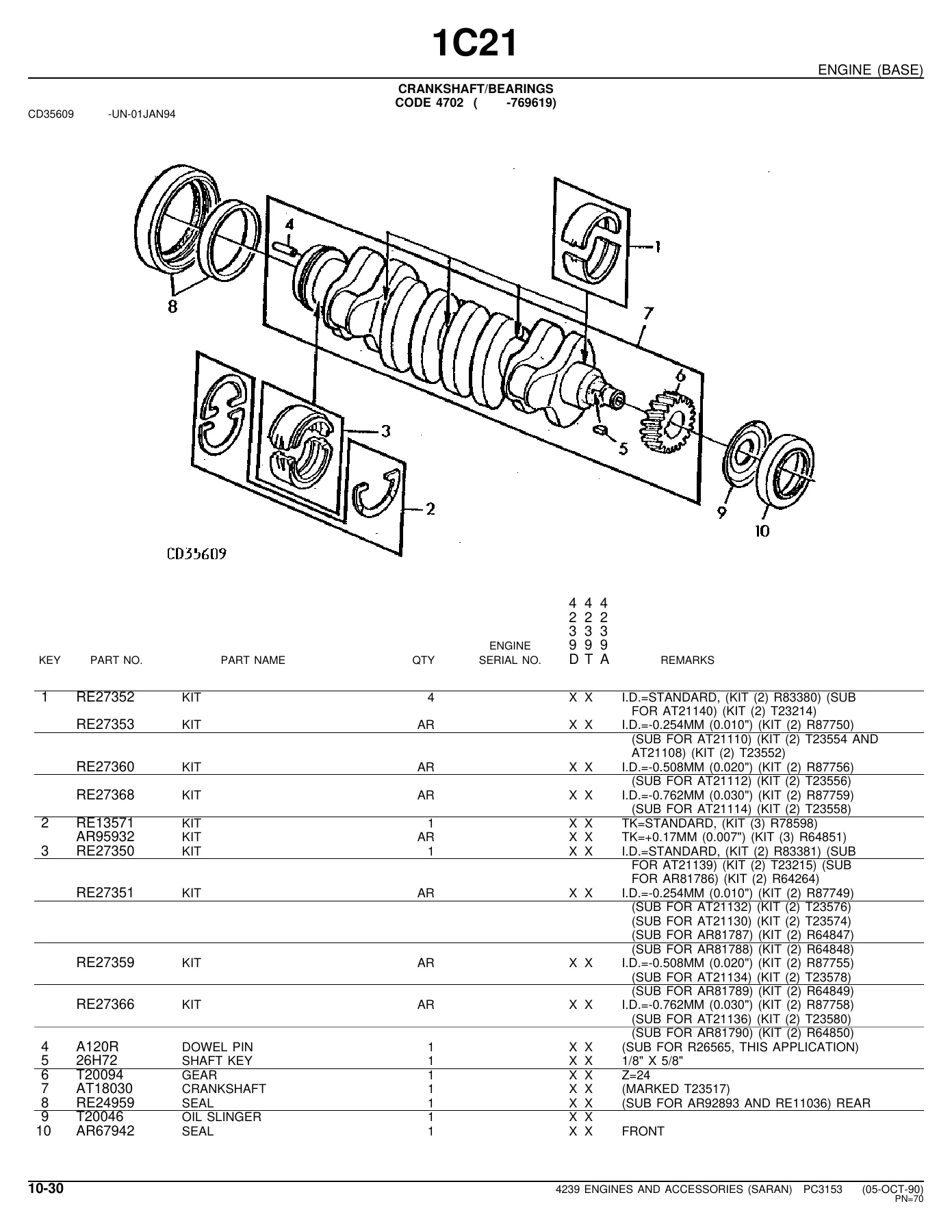

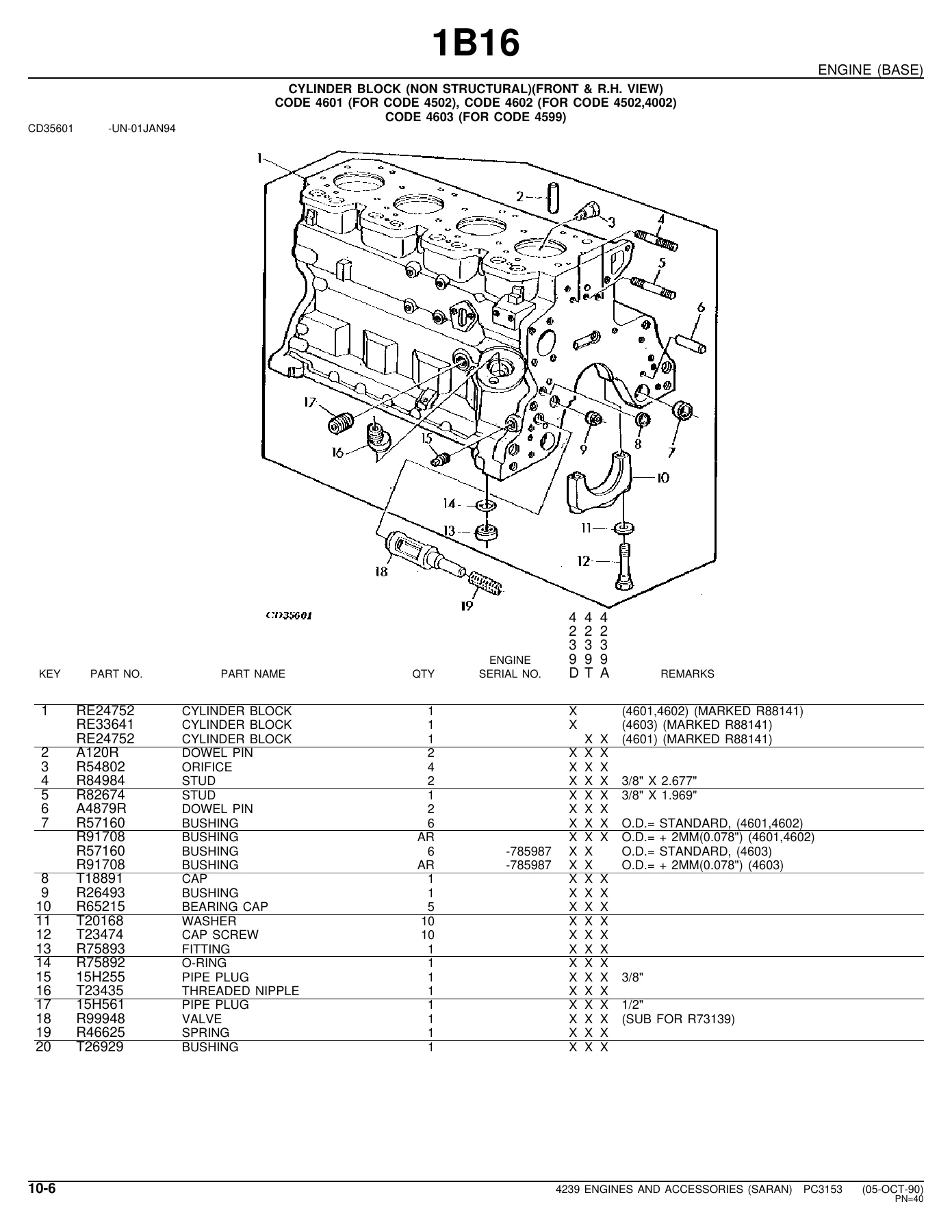

The largest section of PC3153. Exploded views and part numbers for non-structural and structural cylinder blocks (codes 4601, 4602, 4603, 4607, 4609), the short block assemblies, cylinder head and valve train, camshaft, crankshaft and bearings, connecting rods and pistons, flywheel housings, flywheels and ring gears, front plates, timing gear covers, vent tubes and rocker arm covers. Includes undersized bearing kits, piston-liner kits, and the bushing and cap screw part numbers needed for a full rebuild.

Engine (Lubrication)

Dipstick and guide assemblies across all four option codes (4001, 4002, 4005, 4006, 4010), the standard and high-flow oil pumps, oil pan options (sheet metal codes 1901, 1902, 1903; aluminium codes 1904, 1908, 1932), oil filters, filler necks and the replacement outlet tube kit for early pumps.

Engine (Cooling)

Thermostat covers and housings across codes 2101, 2102, 2109, 3901, 3906 and 3909. Water pump options including codes 2004, 2005, 2008, 2021, 2022, 2023 and 2026, with impellers, bearings, seals and conversion kits. Oil cooler options 5904 through 5907 covering 6, 8 and 10-plate coolers, plus the 10-plate conversion kit for early Behr and Modine units.

Intake and Exhaust

Air intake options (codes 1701, 1702, 1703, 1707, 1709, 1713, 1718) for both naturally aspirated and turbocharged configurations. The aftercooler assembly for code 1707 with air duct, adapter, suction hoses and bracket. Turbocharger section for codes 6501 and 6506 including the T04B and TA3401 models, oil lines, adapters and mounting hardware. Exhaust manifolds for codes 2801, 2802, 2803, 2819 and 2822.

Cooling System

Fan belts across lengths from 1257 mm to 1498 mm, blower and suction fans in 412 mm, 420 mm, 457 mm and 533 mm sizes, fan hubs and spacers, radiators with mounting kits and guards, fan shrouds, radiator hoses and the engine coolant heater kits (code 2601, 2602).

Fuel System and Fuel Injection Pump

Fuel filters for the JDB, DM4, DB2, Roto-Diesel and CAV/Lucas pumps, fuel transfer pumps from Sofabex, Corona and Stanadyne, injection lines for every pump code, and the fuel injection nozzle assemblies. The internal components section covers hydraulic heads and rotors, drive shafts and housings, governors and linkages, advance devices, transfer pumps, cover assemblies and gasket kits for the Stanadyne JDB, Roto-Diesel and CAV-Lucas DPA2 and Stanadyne DM4 pumps.

Clutch and Clutch Housing

The PTO clutch and housing section for codes 5801 and 5802 (10-inch Rockford clutches in both in-line and side-loading configurations), plus the accessory side gear drive options 4408, 4409, 4410, 4411, 5205, 5210, 5211 with gears, covers, bearings, and the hydraulic pump drive kit (9701).

Engine Accessories

Lubricants and cooling fluids, engine mounts and stands (codes 5502, 5503, 5504, 5510, 5511), shackle options, water temperature and oil pressure senders (codes 6602, 7602), air cleaners and prescreeners, the air restriction indicator (7501), and the muffler assemblies (6101) with exhaust cap and mounting hardware.

Electrical System

Starting motors across every option code 3001 through 3020, from the Delco-Remy 12V-2.5kW to the John Deere 24V-11HP and Robert Bosch units. Alternators from Motorola, Valeo and Delco-Remy in 12V and 24V configurations from 30A to 80A. Instrument panels (12V and 24V), tachometers, wiring harnesses, fuses, relays, key switches, alternator brackets (codes 6202, 6206, 6210, 6212) and the wire lead repair kit with individual connector part numbers.

How the Option Code System Works

Every 4239 engine carries a decal on the rocker arm cover listing its option codes. PC3153 is built around those codes: each major component group is listed with the option codes that apply, and the parts list notes which codes each part fits. Before ordering, read the option code decal on your engine and match it to the codes in the catalog. This is how you avoid the common mistake of ordering a water pump, flywheel housing or alternator bracket that physically bolts on but does not match the belt line or starter position of your specific engine.

Engine Serial Number Identification

The catalog includes the full breakdown of the engine serial number plate format so you can decode your engine before ordering. The plate reads CD 4 239 D/T/A followed by the six-digit serial number, the engine user code and the version code. CD designates Saran manufacture, 4 is the cylinder count, 239 is the cubic inch displacement, and D, T or A identifies the aspiration: naturally aspirated, turbocharged without aftercooler, or turbocharged and aftercooled.

Why This PC3153 Catalog Matters

The 4239 is a long-lived industrial and agricultural engine that has been built in dozens of configurations over the years. John Deere used multiple suppliers for injection pumps, alternators, starters and cooling components across the production run, and the physical differences between them are real. This catalog is the only reliable way to know which part number matches the engine in front of you – not the one in the parts diagram from a different serial range.

Get the Complete 4239 Parts Catalog Instantly

Whether you are rebuilding a short block, replacing a failed water pump, chasing an electrical fault in the charging system or simply verifying a part number before calling your dealer, this PC3153 catalog gives you the exact part numbers, exploded views and option code references to do the job once. The PDF is delivered instantly after payment – no shipping, no waiting for a disc, no dealer trip. Open it on any phone, tablet or computer at the machine, print the pages you need for the workshop, and keep the full catalog on file for every future job on this engine.

IMAGES PREVIEW
