John Deere 724J Loader Parts Catalog PC9155 (Jan 2007) PDF Download

Description

John Deere 724J Loader Parts Catalog PC9155 — The Complete Parts Reference for the 724J Wheel Loader

This is the full John Deere 724J Loader Parts Catalog PC9155, published January 2007 (Jan-07) in English. It covers the 724J Loader manufactured from 2002 onward, giving you the factory part numbers, exploded assembly drawings, and serial number breakpoints needed to identify, order, and replace components across the entire machine — engine, transmission, axles, hydraulics, loader, cab, and electrical system.

Every figure, every key number, and every part number in this catalog is listed exactly as John Deere published it, so you can take the correct number straight to your dealer and avoid guessing, wrong-fit parts, or returns.

File Details

• Manual type: Parts Catalog
• Brand / Manufacturer: John Deere
• Model: 724J Loader
• Document number: PC9155
• Publication date: January 2007 (Jan-07)
• Language: English
• Page count: 713 pages
• File format: PDF
• Machine coverage: 724J Loader, manufactured 2002 onward

What This 724J Loader Parts Catalog Covers

The PC9155 catalog is organized by machine system, with a full alphabetical index, a numerical part number index at the back, and exploded illustrations for every assembly. The main groupings are:

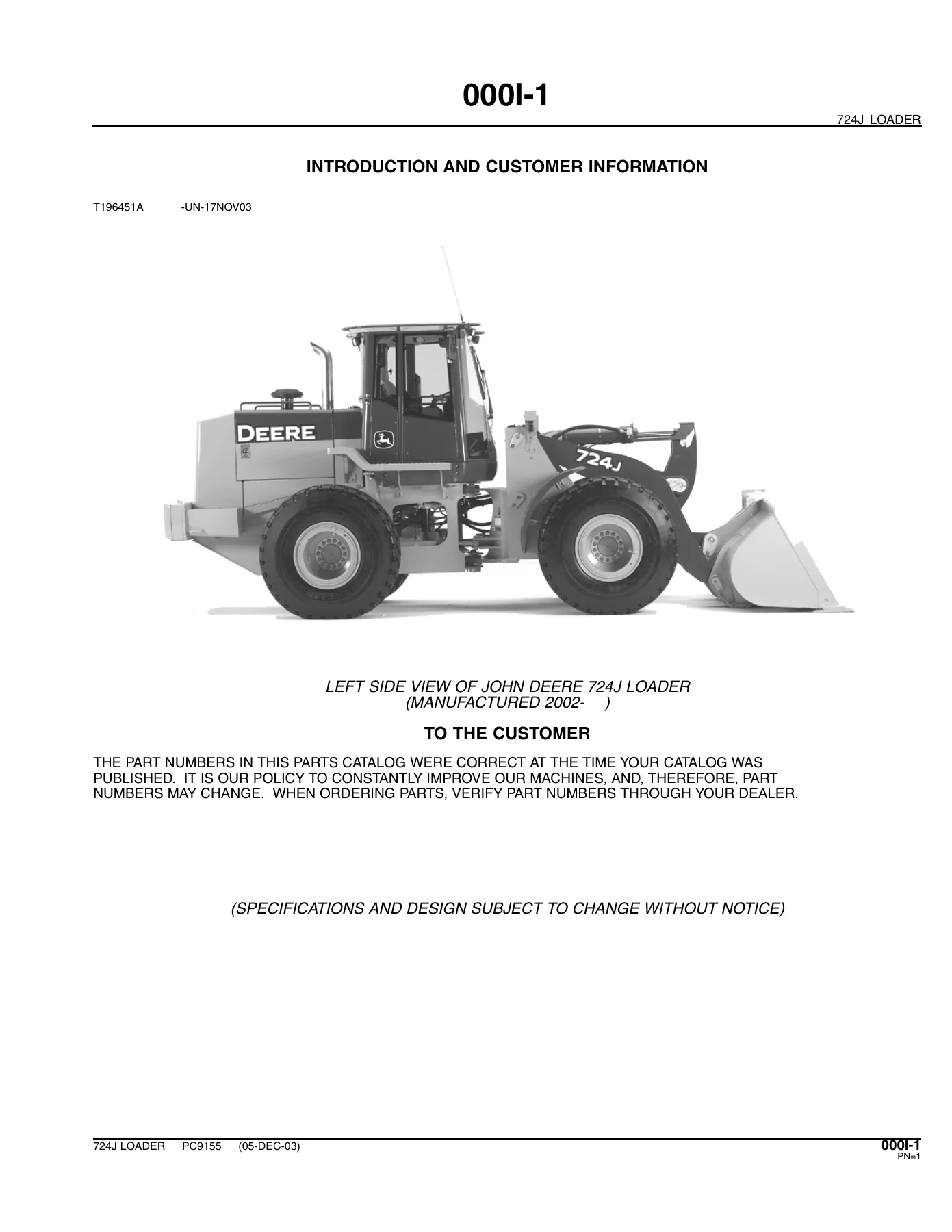

• Introduction and customer information, serial number location, product identification number, bar coded engine serial number plate, and serial number listing conventions
• Powered wheels, tires and fastenings — three-piece, five-piece and one-piece logger rims, wheel rings, valve stems, wheel spacers
• Axles, differentials and suspension systems — drive axle housing and support, front and rear spiral bevel input pinion and ring gear sets, differential cases (standard, limited slip, 4-pinion hydraulically actuated, differential lock), final drives, axle input disconnect, axle breathers, differential lock lines, axle cooling plumbing and axle oil recirculation pump and motor
• Transmission — input drive shafts and U-joints, transmission mounting supports, gears, shafts and power shift clutches (1st through 3rd gear, high-range and low-range forward, reverse), gearshift system and control valve, torque converter, converter relief and minimum pressure valves, input shaft, transmission internal and external oil lines, gearbox housing, transmission pump and cover, output shaft, PTO, speed sensor, converter housing and input drive, drive damper and cover
• Engine — crankshaft oil seal and housing, crankshaft and main bearings, camshaft and valve actuating means, timing gear cover and front oil seal, piston / connecting rods / cylinder liner, cylinder head, valves and exhaust valve brake, lift straps, exhaust manifold, fuel injection pump / fuel lines / engine controller, intake manifold, turbocharger and oil lines, water pump, water manifold and thermostat, engine oil cooler and bypass tubes, fuel filters and lines, starting motor and fastenings, crankshaft dampers and pulley, flywheel / housing and fastenings, engine gasket kits
• Engine auxiliary system — engine coolant heater, engine air heater, ether starting aid, radiator / radiator hoses / oil cooler / fan shroud, axle cooler, fan blade / fan hub / support, engine speed controls, air cleaner / pre-cleaner / filters and hoses, muffler and exhaust pipe, engine mounting supports, fuel tank and fuel tank hoses, fuel fill strainer, fan drive hydraulic pump and motor, engine fan drive hydraulic hoses, reverse fan drive kits and solenoid valve
• Steering system — emergency and secondary steering, power steering hydraulic system, steering cylinder fittings and lubrication hoses, steering wheel / column and linkage, lower steering column, steering column covers, steering valve and fittings, steering valve seal kit, steering cylinder hydraulic hoses, steering cylinder
• Service brakes — front and rear dual brake assembly, brake valve / pedals and linkage, brake valve hydraulic hoses and hydraulics, brake accumulator
• Parking brakes — driveline bearing and parking brake, park brake solenoid valve, park brake solenoid valve hydraulic lines
• Miscellaneous vehicle — license plate bracket and light, decals and trademarks (English, French and Spanish), lift hooks, Torq-Gard Supreme and Plus-50 engine oil, O-ring kit, coolant conditioner and engine lubricants, flat face O-ring seal kit, dust cap with cover kit, engine cooling fluid, environmental drain kit
• Vehicle electrical systems — batteries / battery cables and battery clamps, battery disconnect switch and cable, alternator / mounting brackets / belt and belt tensioner (55 A, 80 A, harsh environment 100 A), alternator rear covers, front lights and brackets, dome light and door light switch, stop / turn and tail light, front and rear work lamp, rocker switches and plug assembly, pin disconnect harness, engine coolant temperature sender and oil pressure sensor, cab wiring harness, converter / harness and power plug (24 V to 12 V), door-activated domelight switch, main wiring harness, front dash module wiring harness, HVAC wiring, spin control wiring harness and transducer, fuses / relays and circuit breakers, vehicle electrical center (VEC), programming kit, chassis computer unit, transmission control unit, monitor display unit
• Frame, chassis or supporting structure — engine frame, engine frame steering cushions, transmission bottom guard and front bottom guard, bottom fuel tank guard, cylinder-fitting rock guards, counterweight
• Operator’s station — coat hook, cab mounts (front and rear), cab left side console cover, front and rear window washer and hoses, headliner and domelight, cab, cab door, cab glass, operator station front pedestal, cab trim and seat base, roof, cab floor mat, rear windshield wiper, front windshield wiper, right side console (two-lever, single-lever and 590068- configurations), wiper mounting brackets and wiper switches, left hand cover (cab), hold open latches (LH and RH doors), cab rear cover, wrist-arm rest (two-lever and 590068- configurations), replacement seat belt, seat and seat suspension, lumbar adjuster and control knob, seat slide and control lever, mechanical seat suspension kits, seat suspension (air), operator access platform and steps, handrails, engine compartment step, HVAC module and components, air conditioning compressor / bracket / hoses / drive belt, compressor manifold and repair kits, compressor shaft seal repair kit, compressor hardware kit, air conditioner condenser / receiver-dryer and hoses, heating and air conditioning outlet ducts, cab monitor console, heater hoses and fittings
• Sheet metal and styling — hood, engine side shields, transmission shields, battery covers, grille and grille housing, rear fenders and fender supports, front fenders and fender supports (including full coverage and gray versions), full coverage rear fenders (spring pin and latch versions)
• Safety, convenience and miscellaneous — radio / radio speakers and antenna, outside mirror, inside rear view mirror, fire extinguisher and bracket, horn, back-up alarm, ash tray, sun visor, slow moving vehicle emblem
• Vehicle main hydraulic system — hydraulic pump (steering and loader), steering and loader hydraulic pump control valves, hydraulic pump repair kits, hydraulic oil reservoir, hydraulic oil pressure regulator valve fittings and components, main hydraulic lines
• Loader — bucket auxiliary cutting edge, loader buckets / bucket pins / cutting edges, loader bucket (JAGZ) and cutting edge, loader bucket teeth and shanks, waste handler bucket, loader frames, boom cylinder lock, loader boom and linkage pin, waste handler loader boom and linkage pin, loader linkage and pins, loader control valve (two-, three- and four-spool), inlet valve section with relief valve, boom / bucket / auxiliary valve sections, auxiliary valve section and components, outlet section and components, fifth function valve section, two / three / four spool control valve plumbing, two lever controller, two lever pilot controller components, two lever controller with auxiliary, two lever pilot controller with dual auxiliary, dual and single auxiliary controller components, single lever controller, single lever pilot controller components, joystick pilot controller components, joystick FNR conversion kit, pilot plumbing from controller to control valve, ride control valve / accumulator and hydraulic hoses, ride control valve, quick coupler pin disconnect kits, pin and axle disconnect valve and hoses, pin disconnect valve components, bucket and boom cylinders and repair kits, replacement bucket cylinder, replacement boom cylinder, loader bucket and boom cylinder pins and fittings, return-to-dig actuator and sensor, loader boom kickout / return to carry sensor
• Miscellaneous function mechanical drive — auxiliary drive housing and oil line

How the Catalog Is Organized

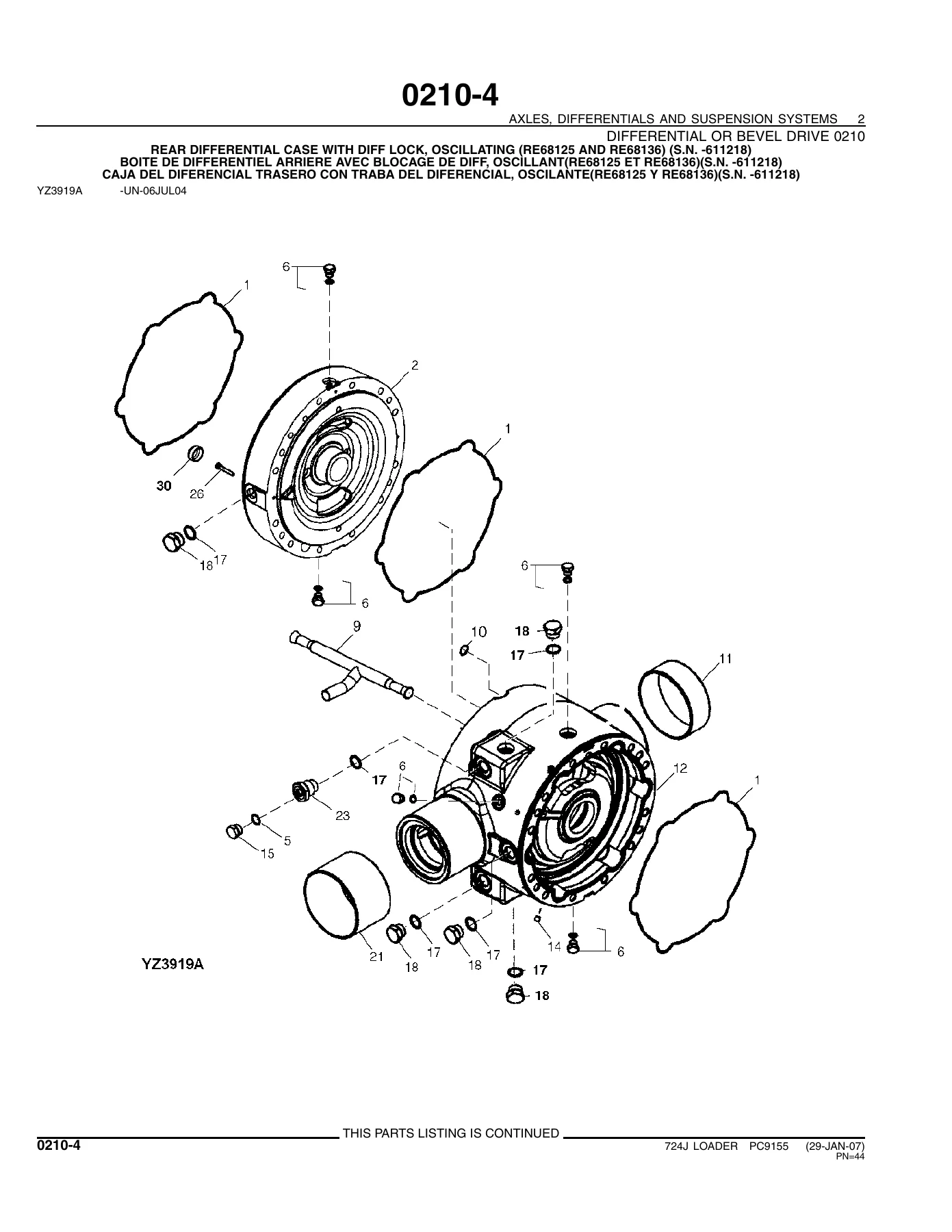

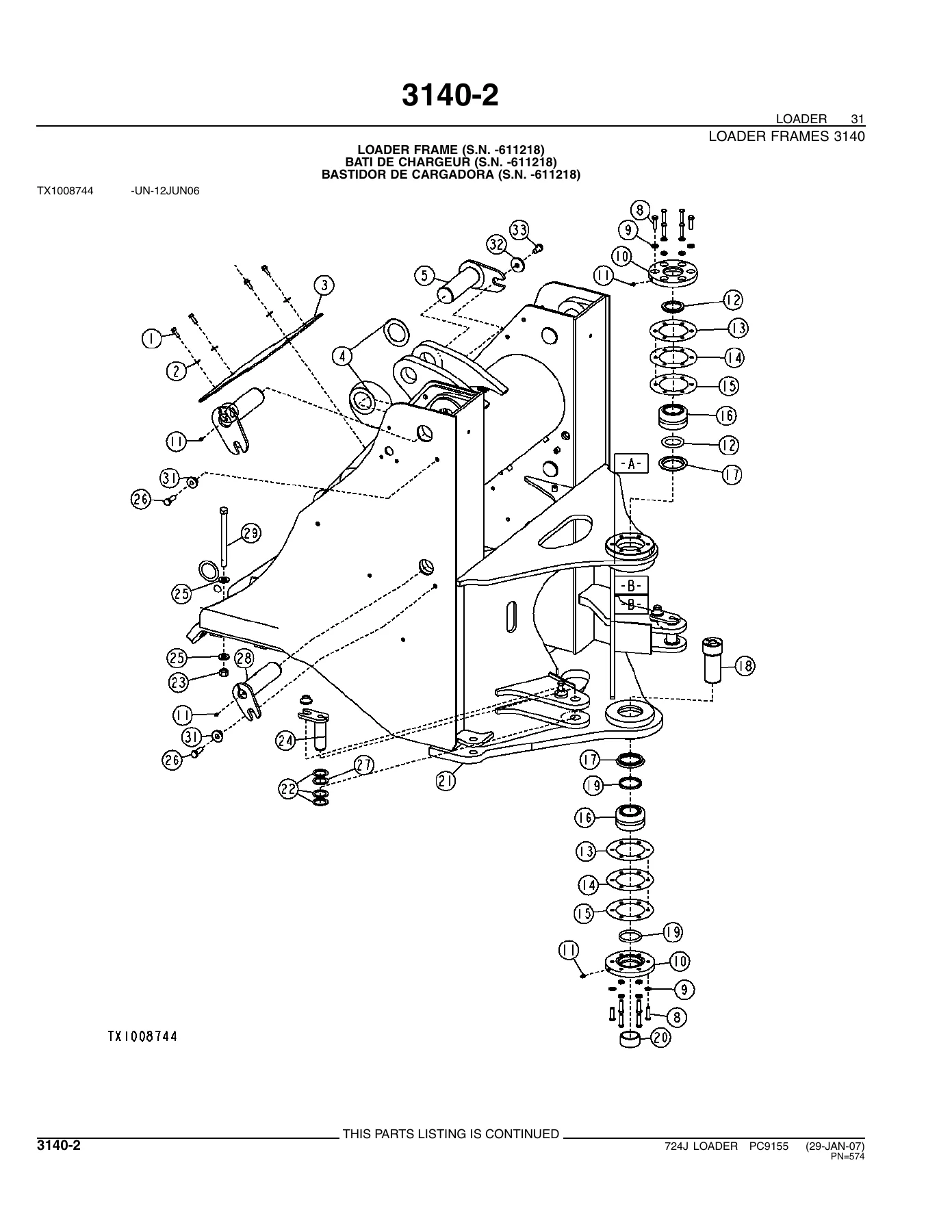

Each figure is an exploded view with numbered callouts, and each callout corresponds to a row in the parts table on the facing page. The table gives the key number, part number, part name, quantity, the applicable axle or engine serial number where relevant, and any remarks such as “sub for” or “use with”. That structure is what makes PC9155 useful for more than just looking up a number — you can see how a component breaks down, what it attaches to, and which fasteners, seals and O-rings go with it.

Serial number breaks are called out throughout the catalog. The 724J uses a product identification number in the format DW724JX123456 — DW for John Deere Davenport Works, 724J for the model, X for the standard loader configuration, and the final digits for the loader serial number. Other prefixes identify non-standard configurations. Engine serial numbers follow the two-line bar coded plate format (for example 6081HDW09 for the 8.1 L air-to-air engine). Sections marked with serial ranges such as -590067, 590068-, -611218 and 611219- make it clear which parts belong to which build, so you order the version that actually fits your machine.

Who This John Deere 724J Parts Catalog Is For

Anyone who maintains, repairs, or restores a 724J Loader will get value out of this catalog. Owners who do their own maintenance use it to look up filters, seals, wear parts, and fasteners. Independent shops use it to quote and order parts without relying on a dealer to identify them. Fleet managers use it to build accurate parts lists and stock the right spares. Rebuilders use the exploded views to confirm assembly order and identify every shim, snap ring and O-ring before a teardown. And because the catalog covers serial number breaks, it works whether your 724J is an early build or a late one.

The catalog also documents the optional and conversion configurations — joystick versus two-lever controllers, single versus dual auxiliary hydraulics, ride control, reverse fan drive, quick coupler pin disconnect, waste handler and high lift loader arrangements, and more. That means you can look up parts for the exact machine you own, not just the base model.

Why a Proper Parts Catalog Matters

Part numbers change. John Deere updates components, supersedes old numbers, and issues kits that replace individual pieces. Ordering from a guess, or from a photo, leads to the wrong part, downtime, and return shipping. PC9155 shows the part number as published, plus the remarks that tell you when a part has been replaced by a newer number or when it must be ordered together with something else. That alone saves more than the cost of the download on the first correct order.
