John Deere Plantadeiras Série 1100 & 1113 Parts Catalog – PC11562P

Description

John Deere Plantadeiras Série 1100 & 1113 Parts Catalog – PC11562P

The John Deere Plantadeiras Série 1100 & 1113 Parts Catalog (document PC11562P, February 2014) is the illustrated parts book for the John Deere Série 1100 family of planters, including the 1113. Each assembly is broken down into exploded-view illustrations with individual part numbers, descriptions, quantities and serial-number range notes, so a dealer, workshop or owner can identify and order the exact component for the machine in front of them. The document is the revised Brazil/South America edition printed in Portuguese, with English and Spanish translation tables and section headers included at the front of the book.

File Details

• Manual type: Illustrated Parts Catalog (Catálogo de Peças)
• Brand: John Deere
• Series: Plantadeiras Série 1100
• Models referenced: 1113, 1111, 1109, 1107
• Document number: PC11562P
• Edition / date: February 2014 (fev-14), revised
• Publisher: John Deere Brasil, South America Edition, Litho in Brazil
• Language: Portuguese, with English and Spanish headings and abbreviation tables
• Pages: 260
• Format: PDF

Chapters Covered

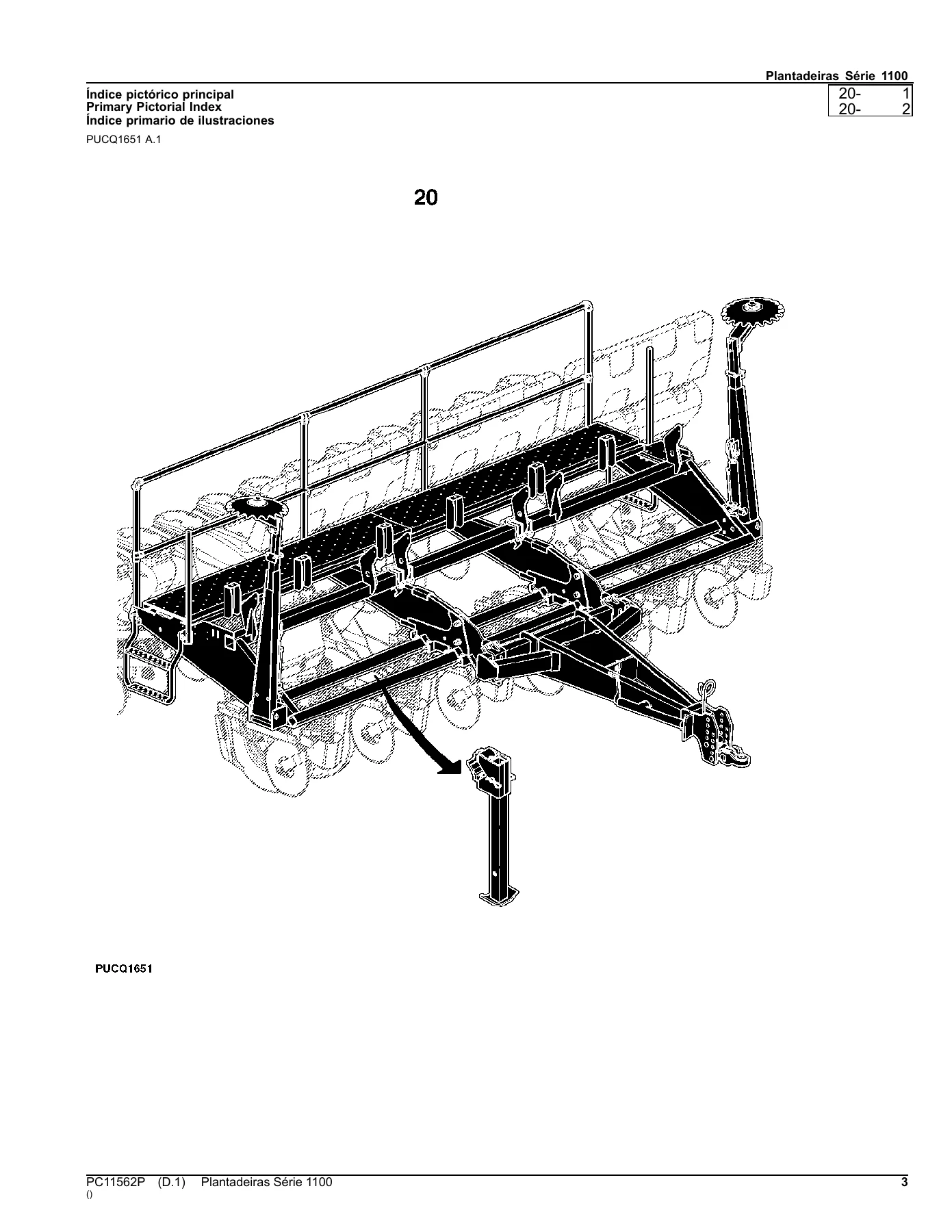

• 020 – Estrutura e Marcador (Structure and Marker): handrails, platforms, ladders, main frame beams, hitches, row supports, row marker arms and marker hydraulic cylinders

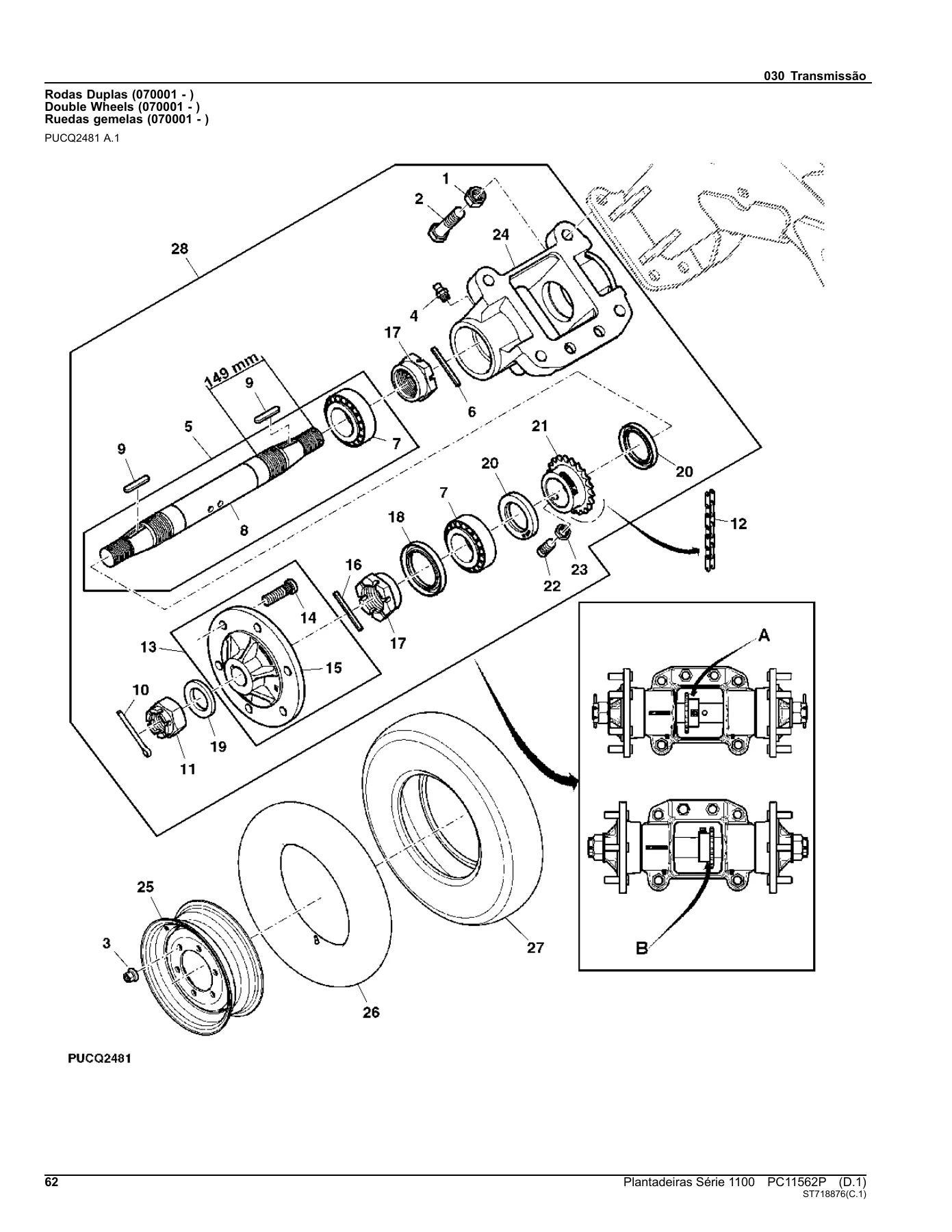

• 030 – Transmissão (Transmission): single and double-wheel transmissions, transmission boxes, chain drives, sprockets, tighteners, wheel and axle assemblies, tires and rims
• 040 – Unidade do Fertilizante (Fertilizer Unit): fertilizer box installation, hoppers, distributor, fertilizer axle drive, chisel fertilizer openers, hoses and supports
• 050 – Plantadeira (Planter / Seed Line): seed line body, seed hoppers, Vacumeter seed meters, seed disks, scrapers, gauge wheels, closing wheels, seed transmission and transmission shafts
• 070 – Sistema Hidráulico (Hydraulic System): basic hydraulic system, lift hoses, row-marker circuits, valves, lift cylinders, vacuum blower assembly, hydraulic motor, vacuum lines and air ducts
• 080 – Acessórios (Accessories): labels, seed row extension kit, 50-percent row shut-down kits, seed distributor disks and separate service parts

Across these six sections the parts catalog resolves the planter into a complete, orderly breakdown: row unit frames and row supports, seed hoppers and mini-hoppers, Vacumeter seed meters and seed plates, seed conductors and scrapers, closing wheel and gauge wheel assemblies, marker arms and marker tubes, fertilizer hoppers and chisel openers, transmission housings with their gear and chain sets, and the full hydraulic circuit including hoses, valves, cylinders, the vacuum blower and the seed plate turbine. Section-wide serial-number range markers (such as -060005, 070001-, -080000, 080001-, -090478, 090479-, -090569, 090570-, -XXXXXX and XXXXXX-) are printed next to the affected items so the correct part can be matched to the specific build of the planter.

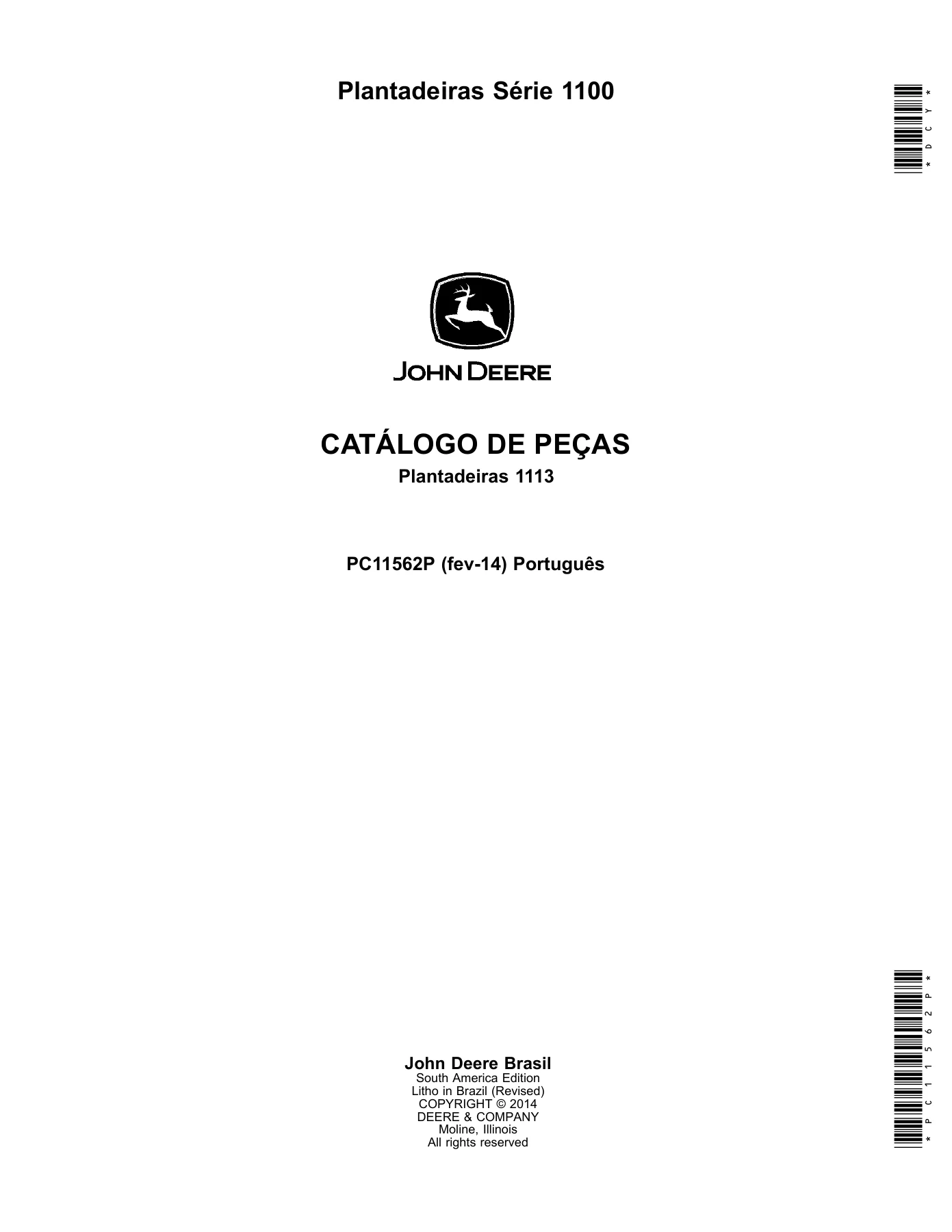

The catalog opens with a short customer note, SI metric measurement statement, bolt and cap-screw strength identification (classes 10.9, 12.9 and 14.9 are flagged), serial number listing conventions, illustration and box-enclosure keying rules, product orientation notes and a John Deere Remanufactured Components explanation – all useful reference material when a part number has to be confirmed before ordering.

What This Parts Catalog Lets You Do

Armed with the John Deere Plantadeiras Série 1100 & 1113 Parts Catalog PC11562P, a technician can pin down the exact part number for almost any bolt-on component on the planter – from a single row-unit closing wheel arm to a complete transmission box or the hydraulic lift cylinder – without guesswork. Exploded views show how the pieces sit relative to each other, which is essential when a repair is being assembled on the bench or the field, and the quantity column tells you how many of each fastener or spacer is required for a full rebuild. The serial-number range notes prevent ordering an updated version of a part for an older machine, or a superseded item that was never fitted to a late build.

Common jobs covered by this catalog include rebuilding a seed row (Vacumeter meter, seed disk, seed tube, scraper and closing wheel), replacing a worn gauge wheel or closing wheel assembly, overhauling a transmission box or replacing its drive chain and sprockets, swapping out a hydraulic lift cylinder, rebuilding a row marker hydraulic cylinder, replacing the fertilizer distributor or fertilizer axle drive, and servicing the vacuum blower or seed-plate turbine. Because every one of those assemblies is illustrated with its own numbered parts list, the same catalog also acts as an assembly reference if a row unit is being stripped down for cleaning or winter storage.

Anyone running a John Deere 1113 planter (or any other Série 1100 machine referenced in the book) needs the correct part numbers on hand before a downtime event. Ordering the wrong bearing, sprocket or seed plate costs a working day in the middle of a planting window; this catalog removes that risk by showing exactly what went into the machine as built. It is equally useful in a dealership parts counter, an independent workshop, or a farm office where the same planter has to be kept running through several seasons.
