Jungheinrich DFG TFG 540 545 550 Forklift Operating Instructions Manual 51167690

Description

Jungheinrich DFG TFG 540 545 550 Forklift Operating Instructions Manual

This is the complete operating instructions manual for the Jungheinrich DFG 540, DFG 545, DFG 550, TFG 540, TFG 545 and TFG 550 four-wheel IC motor sit-down forklift trucks. Published under document number 51167690, edition 08.12, this 171-page PDF covers daily operation, safety procedures, maintenance schedules, technical specifications and troubleshooting for both the diesel-powered DFG series and the LPG-powered TFG series.

File Details

• Manual Type: Operating Instructions
• Brand: Jungheinrich
• Models Covered: DFG 540, DFG 545, DFG 550, TFG 540, TFG 545, TFG 550
• Document Number: 51167690
• Edition: 08.12
• Language: English
• Page Count: 171 pages
• File Format: PDF

Chapters Covered

• A – Correct Use and Application: General information, correct application, approved application conditions, proprietor responsibilities, adding attachments and accessories

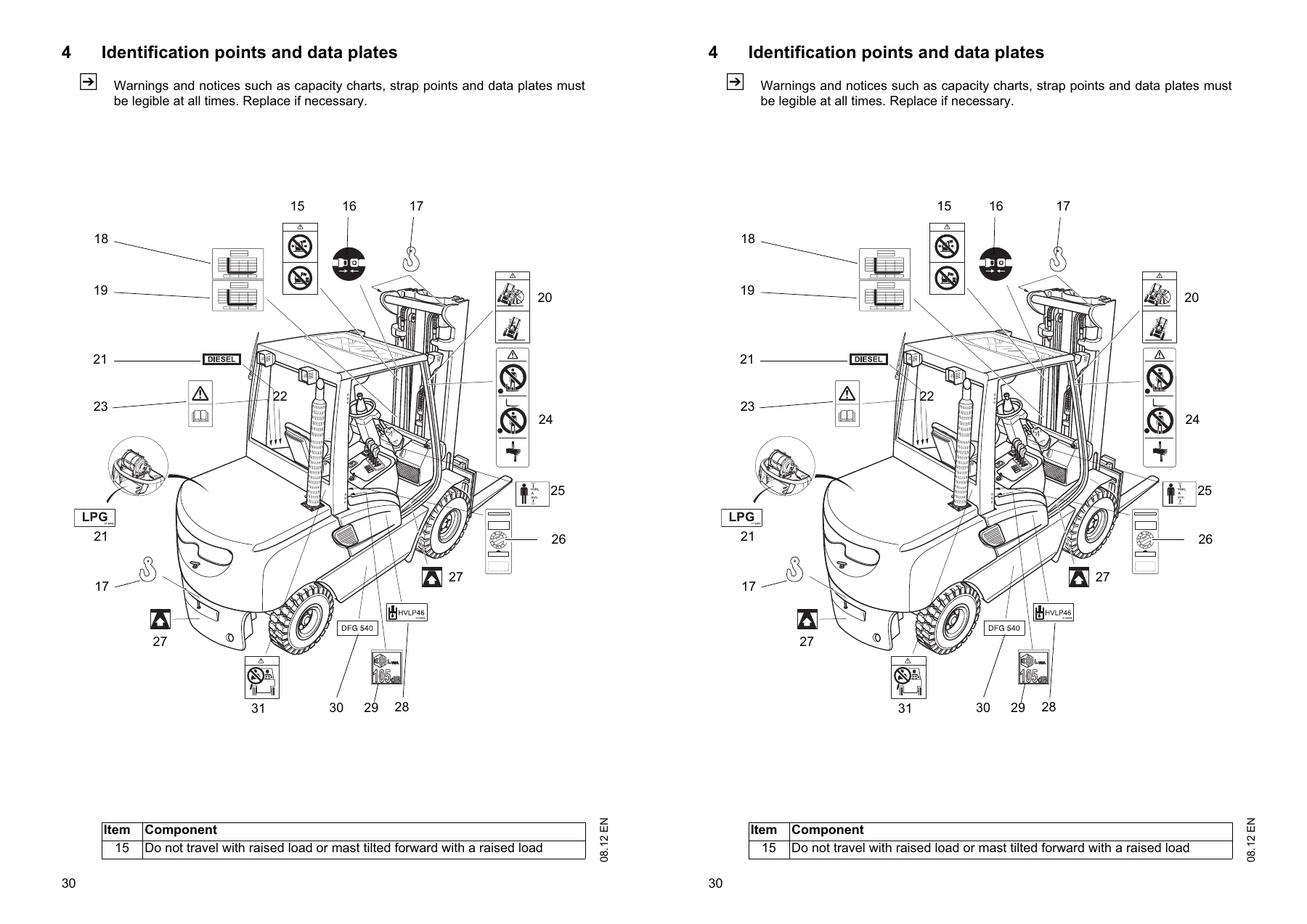

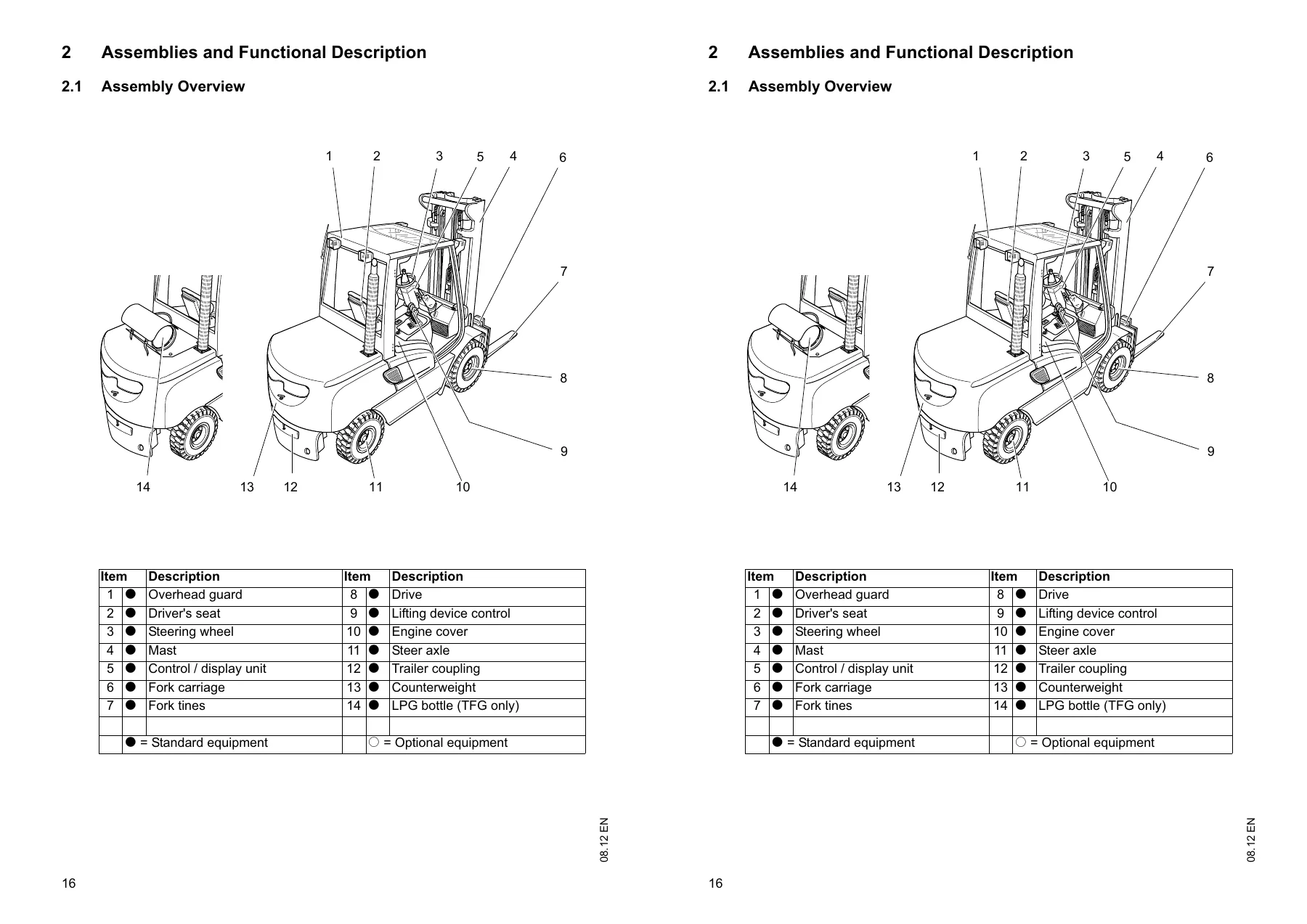

• B – Truck Description: Application, truck models and rated capacity, assemblies and functional description, technical specifications, performance data, dimensions, weights, mast versions, tyre type, engine data, EN norms, conditions of use, electrical requirements, identification points and data plates, stability
• C – Transport and Commissioning: Transport, truck laden, centre of gravity, lifting the truck by crane, loading with another industrial truck, securing the truck during transport, using the truck for the first time
• D – Fuel and Energy Sources: Safety regulations for handling diesel fuel and LPG, LPG system relief valve, adding diesel, LPG containers, LPG bottles, liquid gas tank, fuel level indicator
• E – Operation: Safety regulations, displays and controls, display unit, instrument panel switches, travel direction switch/gear selector, preparing the truck for operation, entry and exit, reduced headroom trucks, setting up the operator position, seat belt, industrial truck operation, parking, emergency disconnect, travel, steering, brakes, adjusting forks, replacing forks, lifting/transporting/depositing loads, operating the lift mechanism and integrated attachments, SOLO-PILOT operation, fitting additional attachments, towing trailers, optional equipment, troubleshooting
• F – Industrial Truck Maintenance: Operational safety and environmental protection, maintenance safety regulations, servicing and inspection, maintenance checklist, lubricants and lubrication schedule, maintenance and repairs, engine cover, wheel attachments, hydraulic system, engine maintenance, electrical fuses, starter battery, exhaust system, seat belt maintenance, transmission, brake, restoring the truck to service, decommissioning, safety tests, disposal, human vibration measurement, HUSS FS-MK Series Diesel Particle Filter operating instructions

The Jungheinrich DFG TFG 540 545 550 operating instructions manual goes far beyond a basic startup guide. It provides the complete technical foundation for operating and maintaining these 4.0 to 5.0 tonne capacity forklifts. The document opens with detailed safety regulations, then walks through the truck’s assemblies, functional descriptions and full technical specifications including performance data, dimensions, weights and mast versions. Engine data is provided separately for the DFG diesel engines and the TFG LPG engines, with fuel consumption figures, rated speeds and outputs. The manual also includes comprehensive stability information, tyre types and pressures, and electrical requirements.

Daily Operation and Control Layout

The operation chapter is the heart of this manual. It details every display and control on the dashboard, including the display unit with its graphical indicators, instrument panel switches and the travel direction switch/gear selector. Step-by-step procedures guide the operator through pre-operation checks, entry and exit, seat adjustment, steering column adjustment, seat belt use and mirror adjustment. The travel, steering and braking sections explain the hydrostatic steering, the dual brake pedal system with crawl speed and service brake functions, and the parking brake operation. Load handling procedures cover fork adjustment, lifting, transporting and depositing loads with correct mast tilt and fork spread. The SOLO-PILOT control system for lift, tilt, sideshift and fork adjustment is explained in detail with directional diagrams.

Maintenance and Service Information

The maintenance chapter provides a structured maintenance checklist with intervals defined as W (every 50 service hours), A (every 500 service hours), B (every 1000 service hours) and C (every 2000 service hours). Systems covered in the checklist include the chassis and superstructure, drive, brake system, wheels, steering, mast, hydraulic system, engine, coolant, exhaust, air filter and LPG system. Detailed procedures walk through checking the hydraulic oil level, adding hydraulic oil, replacing the hydraulic oil filter and ventilation/discharge filter. Engine maintenance covers both DFG diesel and TFG LPG engines, with oil level checks, oil and filter replacement, V-belt inspection, coolant checks, air filter cartridge replacement and spark plug servicing for LPG models. The electrical fuse layout is documented with ratings and circuit assignments for the basic truck, cab, lighting and options.

LPG and Diesel Fuel Systems

For TFG models, the manual provides dedicated LPG container instructions covering LPG bottle replacement, operating with two LPG bottles, the twin bottle system and refillable liquid gas tanks. Safety regulations for handling LPG are covered in detail, including the LPG system relief valve, leak checking with foam-forming agents, and the correct procedure for switching off the gas supply. For DFG diesel models, the fuelling procedure, fuel specifications (DIN EN 590 with cetane rating above 51) and fuel system maintenance are documented, including fuel filter replacement.

Your Complete Operating Reference

IMAGES PREVIEW

Whether you are an operator running a DFG 540 on a daily shift, a fleet supervisor responsible for TFG 550 maintenance scheduling, or a technician servicing the hydraulic or LPG systems, this Jungheinrich operating instructions manual gives you the correct procedures and specifications directly from the manufacturer. The document enables you to perform daily checks, weekly maintenance, scheduled servicing and troubleshooting with confidence. It covers capacities, torque values, tyre pressures, fluid specifications and adjustment procedures that keep these forklifts safe and productive. Delivered as an instant PDF download, the manual is available immediately after purchase and can be viewed on any device or printed for use in the workshop or operator station. No shipping, no waiting.
