Jungheinrich EFG 425k GE120-600DZ Spare Parts Catalogue – PDF Download

Description

File Details

• Document type: Spare Parts Catalogue
• Brand: Jungheinrich
• Model: EFG 425k GE120-600DZ
• Serial no.: FN445641
• Build year (Bj): 2012
• Date: 31.10.2012
• Language: English
• Pages: 295
• File format: PDF

Assembly Groups Covered

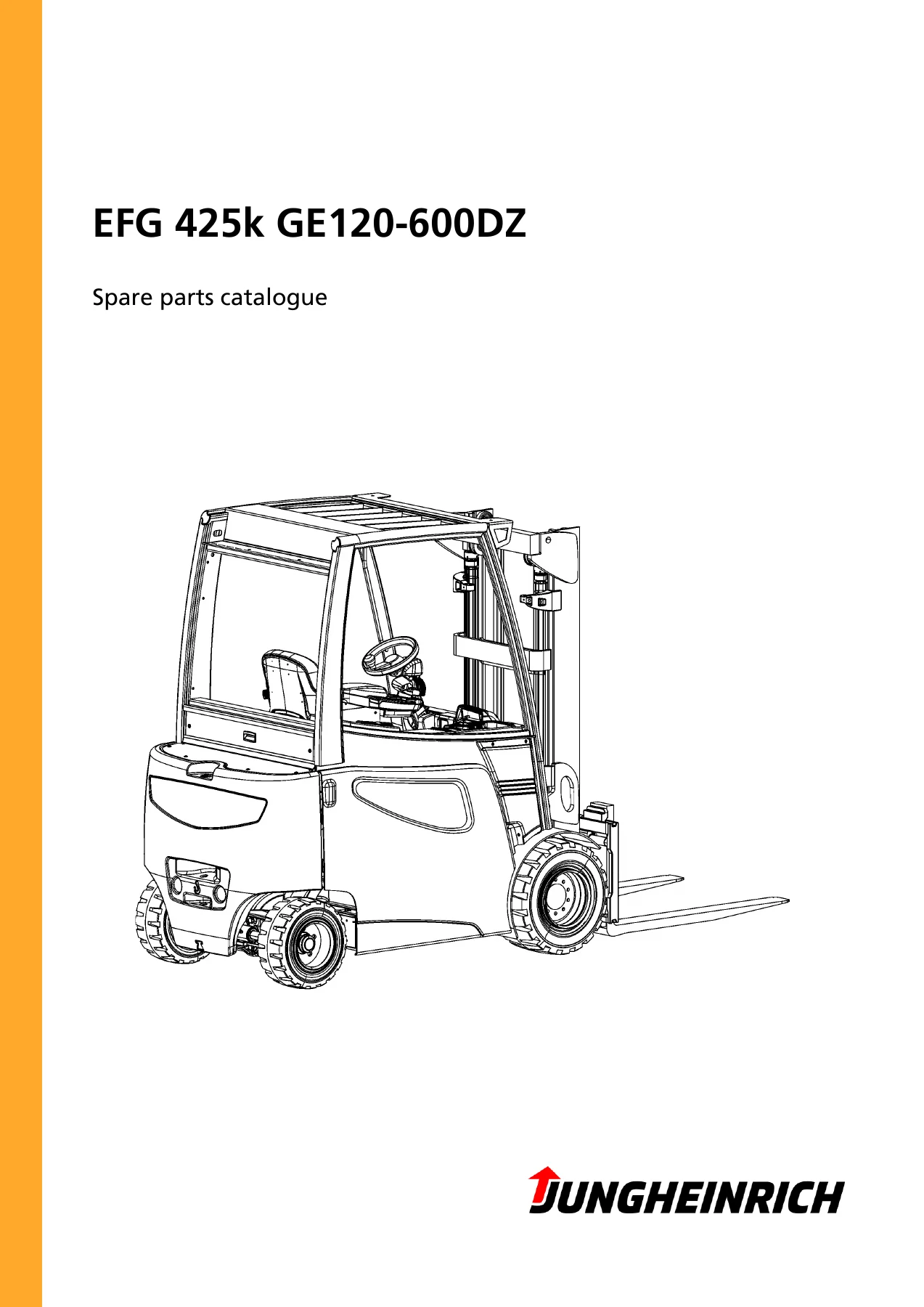

The Jungheinrich EFG 425k GE120-600DZ Spare Parts Catalogue PDF Download is organised into master sheets followed by dedicated assembly-group sections. Each group opens with a section divider, then presents exploded-view diagrams paired with itemised part lists showing item position, quantity, order number, and description. The catalogue covers the following assembly groups:

• Frame and superstructure (A) — Frame (560Ah width, RAL1028), counterweight (950 kg), battery door, floor plate, cabin mounting parts, overhead guard (standard and Kom1 ASW variant), roof plane, front window, doors (PVC standard), rear tarpaulin, arm rests (MSG65/75/Ergo310 and MP/SP variants), driver seat (MSG65), utility box, mirrors, labels, windscreen washer reservoir, lamp brackets, fixed frame parts, coverings (FSD standard)

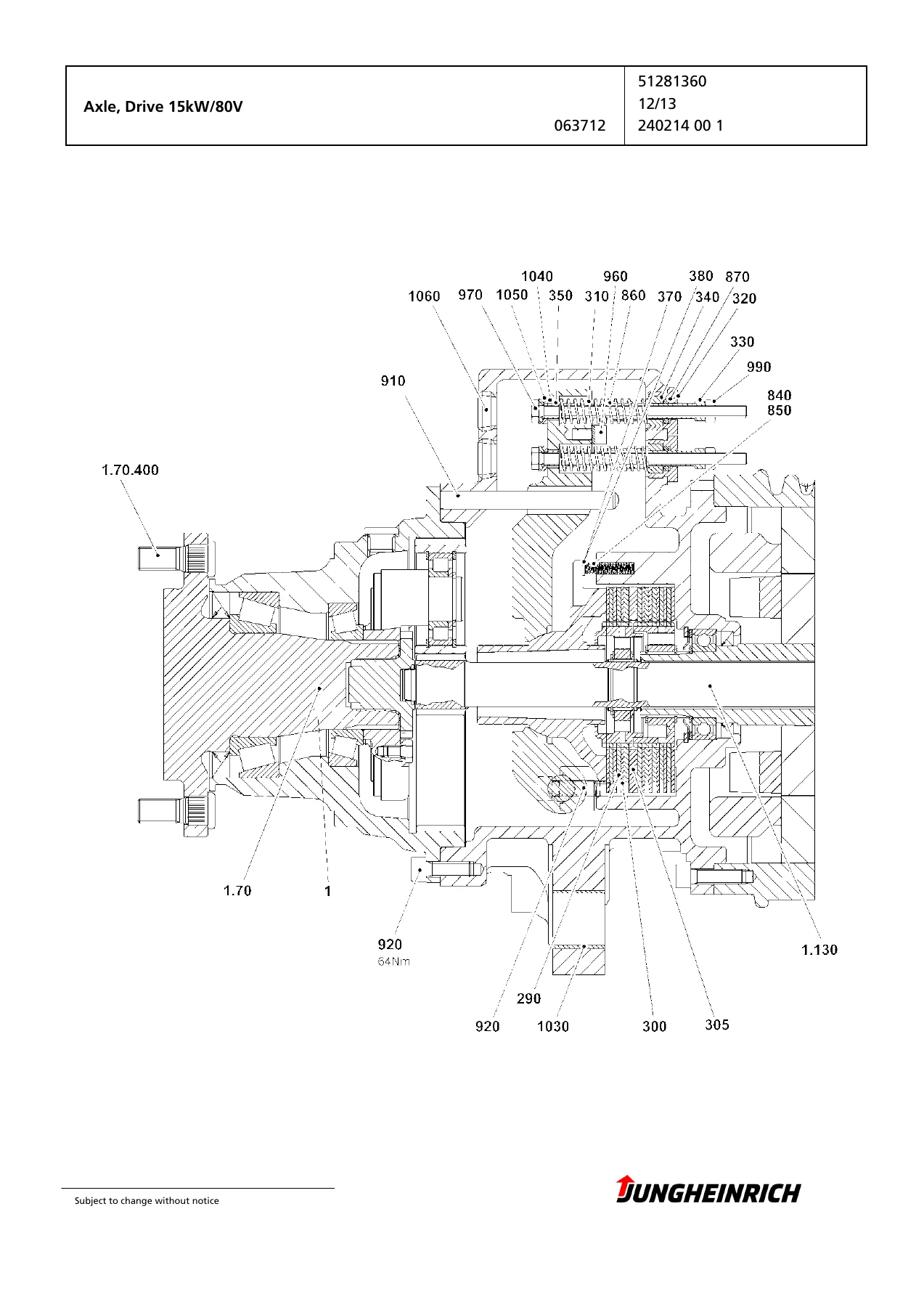

• Electric drive unit (B) — Drive axle (15 kW/80V, part no. 51281360) including brake-side and drive-side repair kits, wheel hub repair kits, wheel studs, brake disc inner and outer lamellae, springs, seals, vent valves, bonding/sealing agents; Drive traction assembly (kpl./80V, part no. 51281504) including rpm sensor, initiator assembly
• Brake (D) — Brake pedal (part no. 51184618), brake pedal complete assembly (kpl.), parking brake (kpl. mech, part no. 51187208)
• Wheels / Axles (E) — Front wheels (SE 23×9-10, part no. 51186807), rear wheels (18×7-8, part no. 51127577)
• Steering system (F) — Steering axle (KP740 with sensor, part no. 51187151), steering column (kpl., part no. 51254730), hydraulic steering unit (part no. 51255541), steering assembly (part no. 51255542), stub axle/steering knuckle (2.5–3.5t, part no. 52039711), steering mounting parts (part no. 51079234), steer cylinder (DW 77, part no. 51036058)
• Hoist frame / Load lifting device (G) — Mast DZ (h1=2680; 2AIS; ZH1, part no. 51183757), fixed parts mast intermediate (part no. 51173273), fixed parts mast inner (part no. 52035791), fixed parts mast outer (part no. 51178293), roller holders (parts nos. 51193683, 51228975), mast connecting elements (parts nos. 51173280, 51225969), hose connections (DZ/ZH1), lift cylinder D75 (part no. 51182517), lift cylinders D50 x2 (part no. 51182530)
• Attachment / Load carriage (G1) — Sideshift carriage (DZ/2.5/2A/B=1120/6R, part no. 51179343), forks (2A/120x40x1200, part no. 04749848), FEM locking device (part no. 50020821), load part fixed parts (part no. 51207308)
• Tilt cylinders (H) — Tilt cylinders x2 (6.0°/5.5°, part no. 51180093)

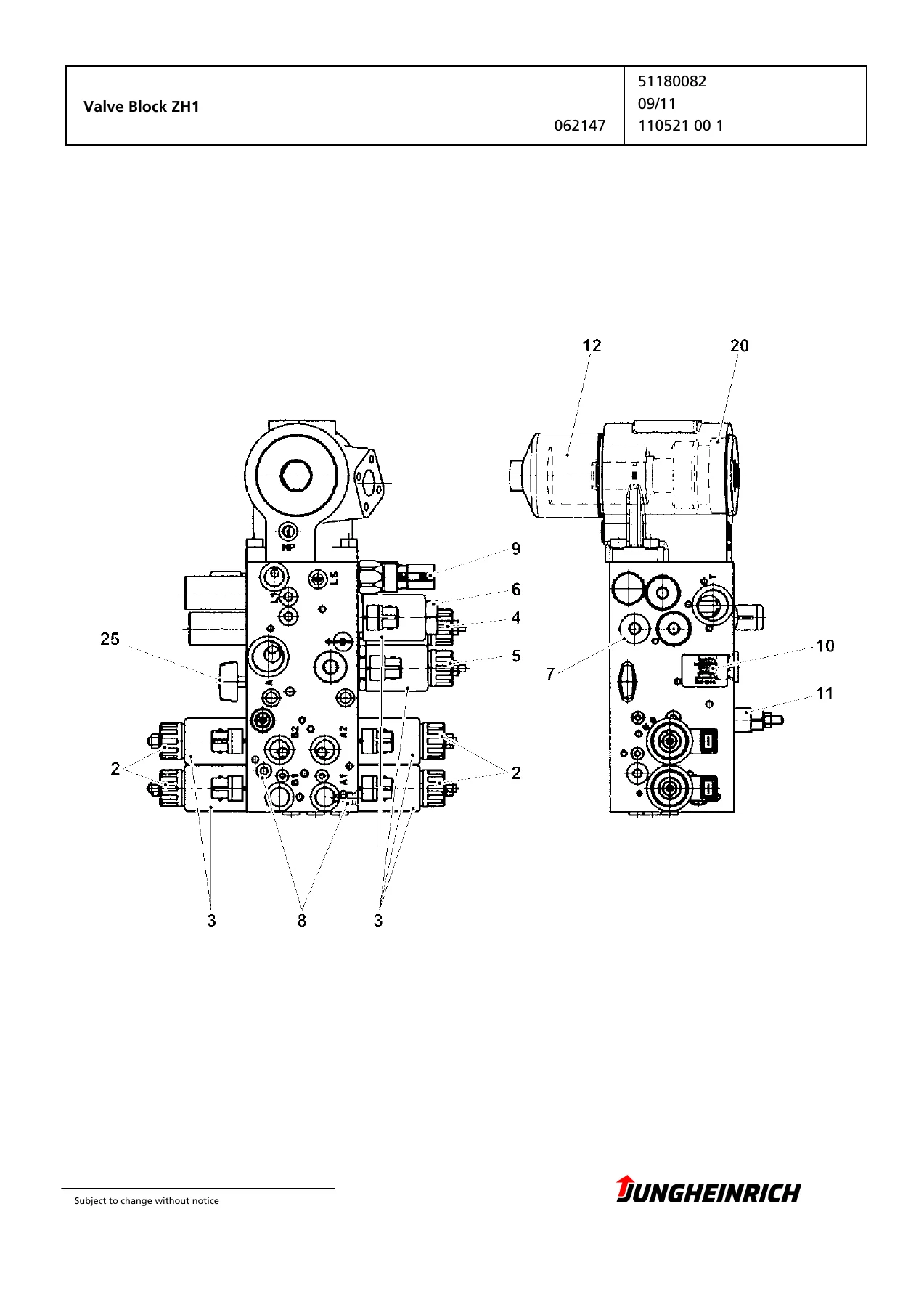

• Hydraulic system (I) — Valve block ZH1 (part no. 51180082) with proportional valves, throttle valves, directional valve, check valves, pressure switch (4 bar), filter strainer, pressure limiting valve, filter set; valve block ZH1/kpl. (part no. 51186801); hydraulic tank 28l (part no. 51181493); pump motor (80V/22kW AC, part no. 51255655); pump unit (part no. 51282401); hydraulic pipes (560Ah and ZH1 variants); hydraulic hoses
• Electric system (J) — Truck control unit (part no. 51183428), Multipilot ZH1/STD/FRR (parts nos. 51112569, 51112888), display unit (part no. 51212051), SCR efficiency unit (part no. 51165622), key switch 702 (parts nos. 26906860, 51183334), distributor board FSD (part no. 51183724), electrical system BR4 (part no. 51183444), cable truck 320A LV SB (80V), fuse 425A/80V, flashing beacon (12–80V), working lights (S5/S6), warning system (part no. 51212061), warning light cable kit FSD, shunting plug FSD rear, cable kits front ASW, seat switch electrical system, wiper motor
• Battery / Charger (K) — Battery exchange trolley (560Ah 4-roller, part no. 51173062), battery exchange trolley (560Ah, part no. 51257478), battery trolley locking (part no. 51268705)
• Software (L) — Multipilot software (part no. 51188479), display software (part no. 51222559), lifting software (part no. 51270640), driving software (part no. 51270643), master software (part no. 51270647), and additional software modules
• Lubes and Fluids (S1) — Temperature range -5/+40°C (part no. 51225395)

As a whole, this Jungheinrich EFG 425k GE120-600DZ spare parts catalogue gives any technician or parts manager a precise, part-number-level view of every serviceable assembly on this specific machine configuration. The master sheets at the front cross-reference each assembly group by its register letter, allowing quick navigation to the relevant exploded-view section. Part numbers are Jungheinrich order numbers suitable for direct procurement reference.

IMAGES PREVIEW

What This Catalogue Enables

Whether you are sourcing replacement parts after a breakdown, planning a scheduled overhaul, or rebuilding a specific assembly such as the 15 kW drive axle or the ZH1 sideshift hydraulic circuit, this Jungheinrich EFG 425k GE120-600DZ Spare Parts Catalogue PDF gives you the exact order numbers and component relationships you need. Ordering the wrong part on a machine of this specification wastes time and risks extending downtime — working from the correct catalogue for serial number FN445641 eliminates that guesswork entirely.

The sideshift carriage (DZ/2.5/2A/B=1120/6R), triple-double lift mast (h1=2680), 80V/22kW pump motor, and proportional hydraulic valve block are among the higher-cost assemblies where correct part identification is critical. This EFG 425k spare parts catalogue PDF covers all of them down to individual seals, springs, and fasteners.

Download is instant upon payment — no shipping, no wait. The PDF opens on any device and can be printed in full or section by section for bench use.
