JVM ATDPS JV-30DE Automatic Tablet Dispensing & Packaging System Service Manual – PDF

Description

JVM ATDPS JV-30DE Automatic Tablet Dispensing & Packaging System Service Manual

This is the complete service manual for the JV-30DE, the desk type machine in the JVM ATDPS (Automatic Tablet Dispensing and Packaging System) range. It is written for the people who keep these units running – service technicians, biomedical engineering teams and pharmacy maintenance staff – and it works at every level from the front panel outward: mechanical assembly, wiring, board-level test points, software configuration and error-code interpretation. Every procedure, measurement and configuration value in the document is tied to the 30-canister JV-30DE cabinet, so nothing has to be adapted from a larger or smaller model.

The ATDPS JV-30DE combines a canister-based tablet dispensing upper section, an STS (Special Tablet System) manual-fill tray and conveyor, an optional Auto Canister module, and a lower main frame that prints, seals, cuts and discharges the finished unit-dose packets. This service manual treats all of those systems as separate, individually diagnosable assemblies, which is what makes it usable in the field: when a packet comes out wrong, the document lets you trace the fault back through the last hopper, the heater rollers, the triangle plate, the bisector, the printer or the paper let-off without guesswork.

File Details

• Manual type: Service Manual
• Brand: JVM
• Model: JV-30DE (ATDPS desk type)

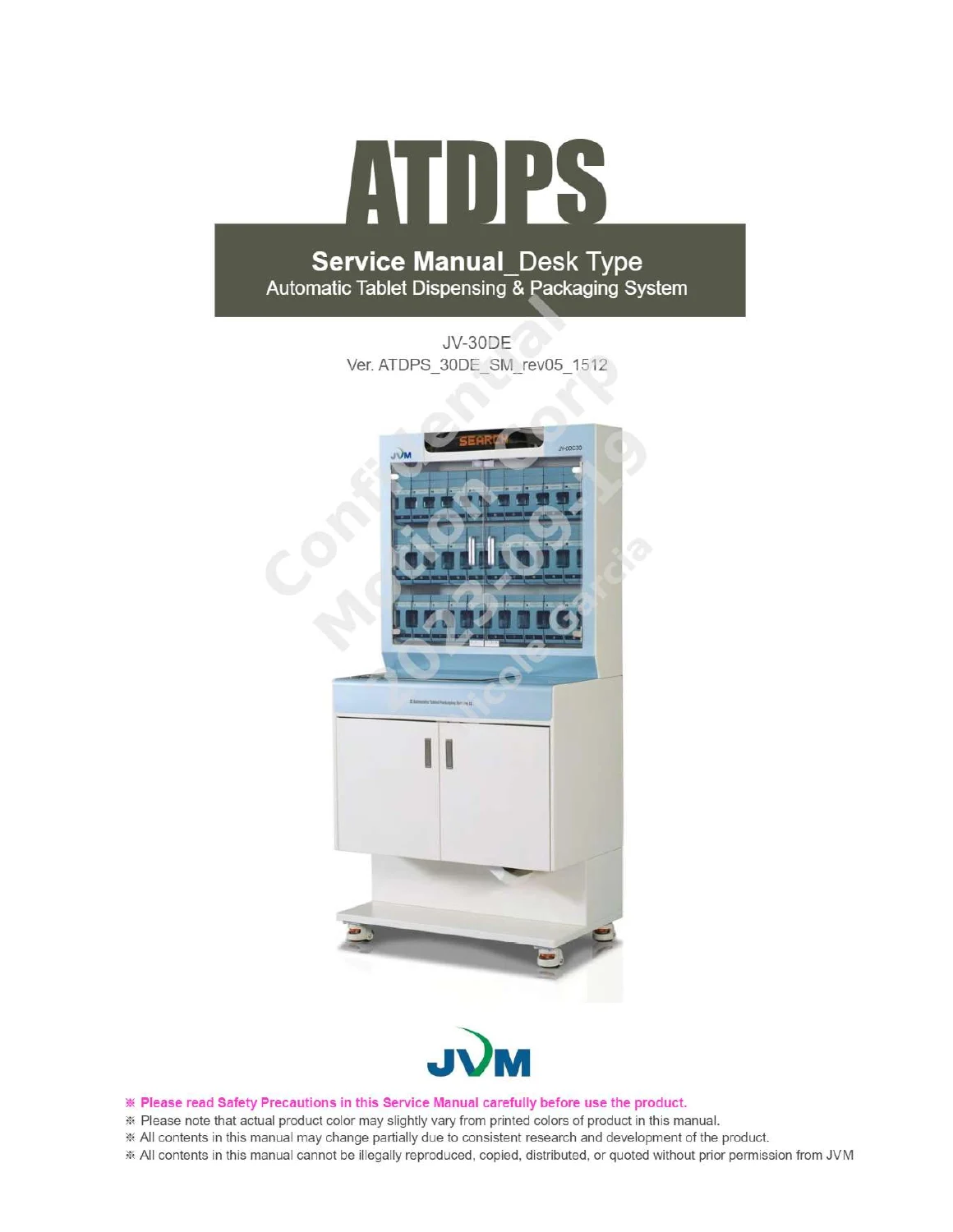

• Document title: ATDPS Service Manual – Desk Type Automatic Tablet Dispensing & Packaging System
• Revision: ATDPS_30DE_SM_rev05_1512
• Language: English
• File format: PDF
• Pages: 293

Chapters Covered

• Precautions – precaution marks, electric shock and high temperature warnings, service precautions

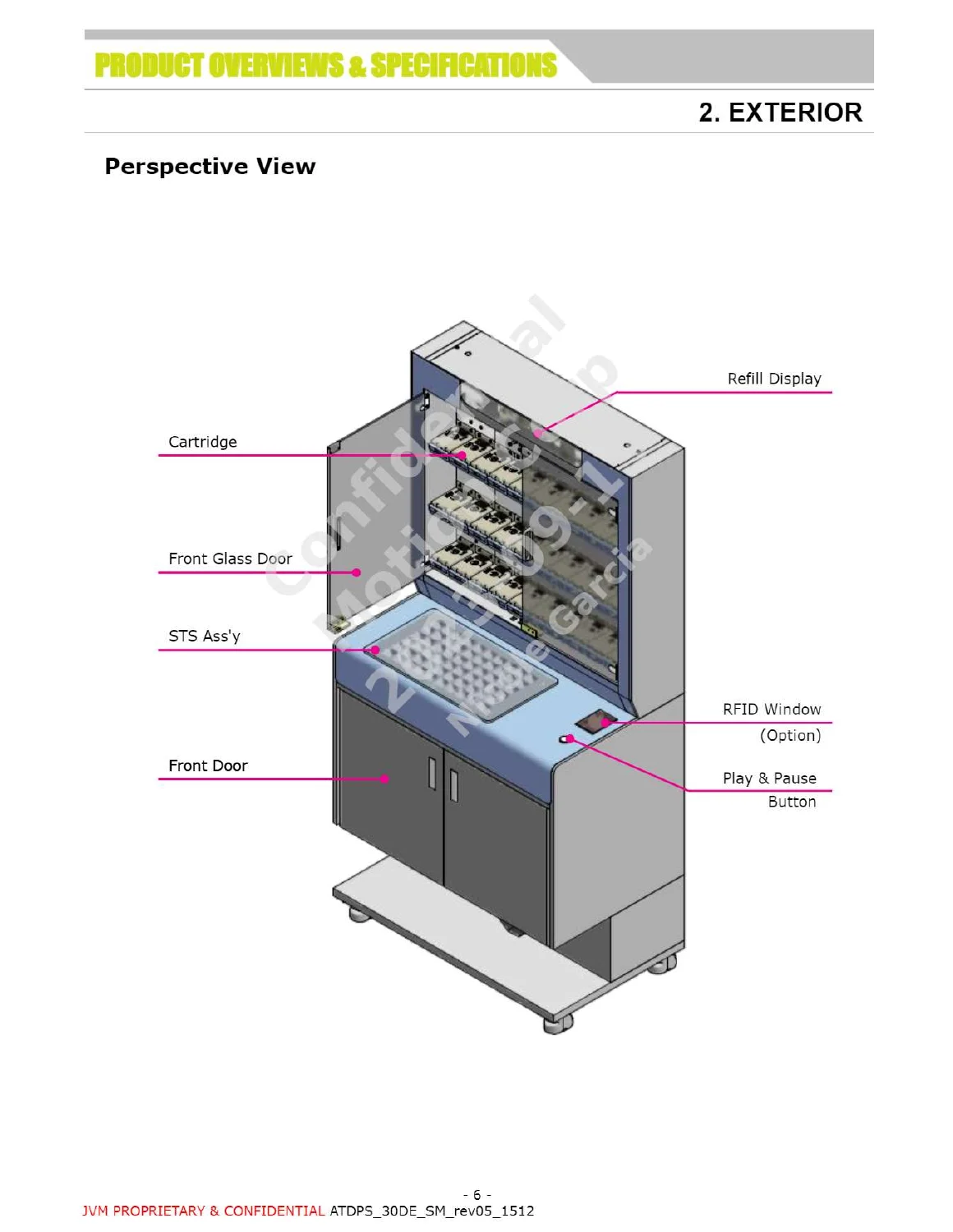

• Exterior – front view, rear perspective view, labelled part callouts

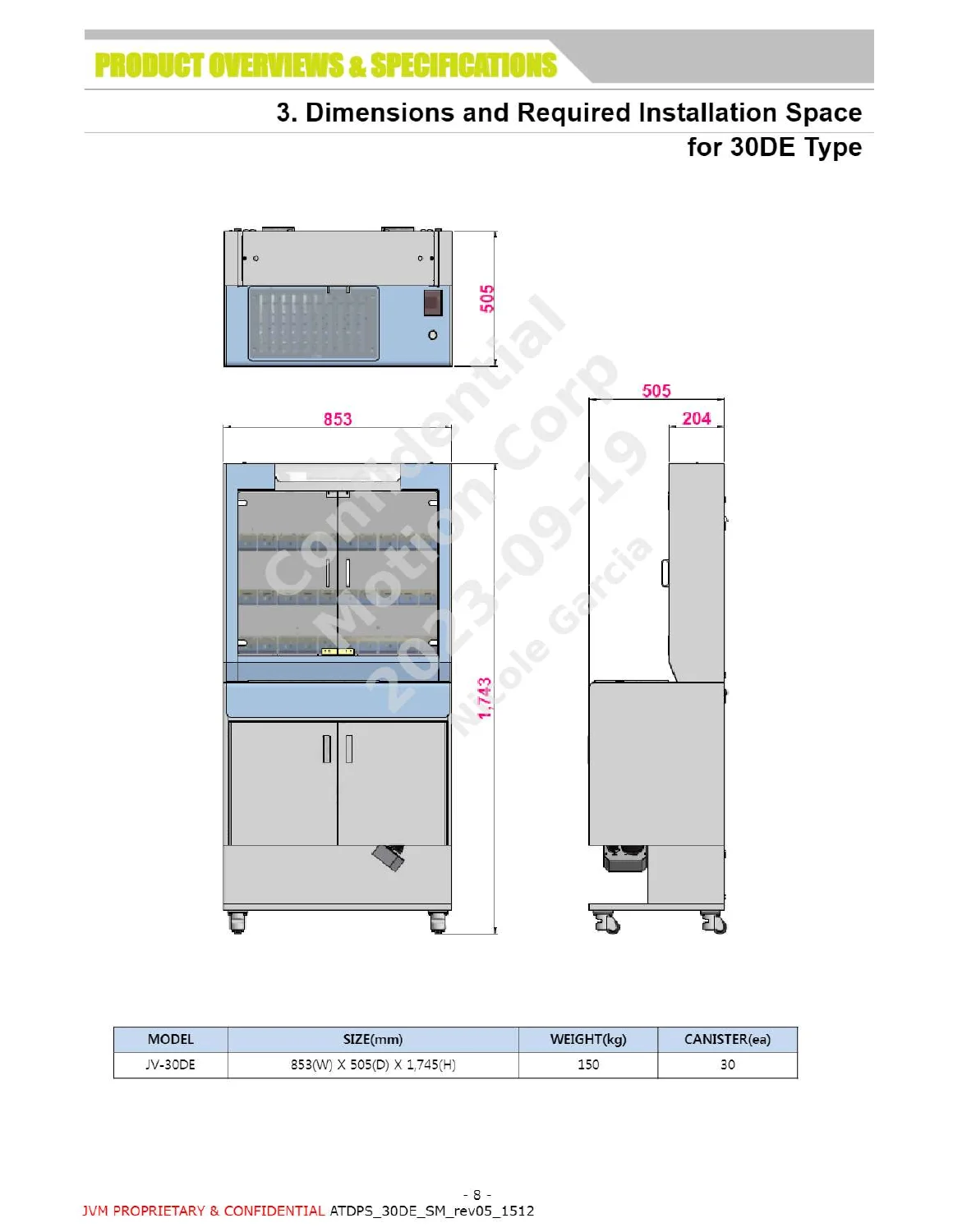

• Dimensions and Required Installation Space, canister volume
• Configuration Graphic of ATDPS
• Unit Specifications – Upper Part: Upper Frame Assembly, Cartridge Assembly
• Unit Specifications – STS Part: STS Case Assembly, STS Conveyor Assembly, Auto Canister Assembly
• Unit Specifications – Lower Part: Main Box Assembly, Main Frame Assembly, Let-Off Assembly, Tension Control Assembly, Guide Roller Assembly, Paper Sensor Assembly, Bisector Assembly, Printer Assembly, Triangle Plate Assembly, Last Hopper Assembly, Heater Assembly, Main Motor Assembly, Paper Cutting Assembly, Sponge Cone Assembly, Paper Attach Assembly
• Installation and Power Connection – contents of product and accessories, part list, tools, manuals, extension tube, packing roll and ribbon set, STS assist tray and ACRS-II writer options, server network diagram, recommended PC specifications
• Installing Lower Part and combining Upper and Lower Parts
• Connect PC – canister, RFID, location, positioner, printer and DIO port assignments
• Main Power Requirements – input ratings, ground connection, ATDPS power on and off sequence
• Operation and Setup – PC setup, disabling Hyper Threading Technology, changing multi-core to single-core, ATDPS-2002 program and DIO board installation, Visual Studio 2008 Redistributable Package, multi serial board setup, POSITIONER0606DS setup, checking program setup
• Executing ATDPS and customizing OPTION-1, OPTION-2 and OPTION-3
• DB Server Set – SQL connection setting and test
• Auto Canister level settings and Auto Canister settings dialog
• Positioner Control – ANGLE tab, DELAY tab, DEFAULT tab, motor speed, shutter delay, sky-stick delay
• Checking Program – tab setting values across Cassette, DRUM, STS Frame, Main Frame, SLIDE / BOX and Config Setup
• Status Notification Messages – ATDPS 2002 error code list
• Regular Inspections – part-by-part inspection points and intervals
• Key Component Inspections – Canister, Cartridge, Multi EEPROM Writer, ACRS-II Writer, LET-OFF Assembly, Bisector Assembly, Printer Assembly, Triangle Plate Assembly, Last Hopper Assembly, Heater Assembly, Paper Cutting Assembly, Sponge Cone Assembly, Control Box Assembly, STS Part, Auto Canister, Door Lock Device Assembly
• Test Point – Main Frame Part, Lower Frame Part, Upper Frame Part boards
• Troubleshooting – ribbon slip, ribbon snapped during printing, unequal bisection, misaligned printing, wrong tablets mixed into packets, missing tablets, sensor errors, main power off error, heater temperature control error, Auto Canister faults
• Spare Part List, Harness list and Diagram sections

Read as a whole, the manual gives a technician a full working picture of the JV-30DE. The early chapters establish the machine layout and the function of each assembly, so you know what a part is supposed to do before you test it. The installation and power chapters set the baseline – the JV-30DE measures 853 mm wide by 505 mm deep by 1,745 mm high and weighs 150 kg with 30 canisters, and the manual specifies a minimum 20 cm gap behind the unit for ventilation plus a properly grounded supply rated AC 240 V / 50 Hz / 3 A on CE builds or AC 120 V / 60 Hz / 4 A on UL builds. The setup chapters then walk through the industrial PC configuration that the dispensing software depends on, including disabling Hyper Threading, reducing a multi-core processor to a single core through the boot configuration, installing the ATDPS-2002 program and DIO board drivers, the serial port board, the positioner software and the checking program.

Component-Level Service

The inspection chapters are where most day-to-day work happens. Each major assembly gets its own section with check points, adjustment methods and replacement steps. The Canister section covers Division Block replacement, snap ring and space washer adjustment, guide block and division brush selection, and how to check that the block rotates freely without dragging. The Cartridge section covers sensor holder inspection, cleaning of the IR emitter and photo TR lens, disassembly of the cartridge panel box, motor and board, and the two classic fault cases – the Clean Up Canister warning and the Canister Not Response message – with the exact recovery sequence.

The Multi EEPROM Writer and ACRS-II Writer chapters are effectively standalone operating guides. They document writing cartridge numbers, sensor delay, tablet size and brightness values, refill time, baud rate, test fill, test position, auto fill and auto position routines, plus the communication result codes you will see – REFILL, SENSOR, DRUG, SUCCESS and CARTRIDGE ERR – and what each one actually means about the tablet path.

On the mechanical side, the LET-OFF chapter explains how the tension lever and volume circuit hold constant paper tension and gives the coupling release and 60 to 70 ohm adjustment procedure. The Bisector chapter shows which hex bolts to turn when the packet fold is off-centre. The Printer chapter covers paper and ribbon path setting, print position correction through the positioner, print head contact adjustment against the rubber roller, and the DIP switch settings on the printer board for PC type, heater size, motor type, ribbon-empty detection and head control. The Triangle Plate chapter covers both the left-right location of the plate and the angle adjustment bolt that brings the packet trim into the 3.5 to 4.5 mm range, plus sky-stick positioning at 10 to 12 mm past the triangle plate tip. The Heater chapter includes temperature controller behaviour, PT100 sensor resistance checks at approximately 110 ohms at room temperature, heater bar resistance checks at 60 to 70 ohms on 110 V or 275 to 305 ohms on 240 V, main origin setting for the heater roller stop angle, and the cleaning routine with the heater brush. The Paper Cutting chapter covers scissor stopping angle, cutting line tolerance of plus or minus 1.5 mm, and what to check when the scissor motor will not run or will not stop.

Board-Level Test Points

For anyone doing electronics-level repair, the Test Point chapters are the core of the book. The Main Frame Part section documents the Adhesive Timer and Conveyor Controller Board, the Positioner Board, the Micro-Stepping Shutter Motor Driver Board, the Micro-Stepping Sky-stick Motor Driver Board, the Digital Tension Board and the Printer Board, connector by connector, with pin names, signal direction, expected voltage levels, LED references and operating periods. The Lower Frame Part section does the same for the Main I/O Board, the RS485 Interface Board and the STS DC Motor Drive Board. The Upper Frame Part section covers the ACRS-II DB Maker Board with its DIP switch model settings, the Refill Display Board, the ACRS-II Cartridge Board, the ACRS Cartridge Board and the Normal Cartridge Board. This is the level of detail that turns a fault from a mystery into a measurement.

Diagnostics and Error Codes

The status notification chapter lists the ATDPS 2002 error codes with the reason behind each one – packing of empty, preheating, main frame separation, conveyor stop and paper jam, ribbon empty, print head open, emergency switch on, bottom door open, upper left and right door open, slide rack released, print power off, print busy, main power off, STS first gate sensor check, STS opener sensors, main motor sensor, print start sensor, cutting position sensor, cutting motor origin sensor, safety lock key on, and the various 9999-series sensor precision and communication errors. Paired with the troubleshooting chapter, which addresses ribbon slip, ribbon breakage during printing, unequal bisection, misaligned printing, wrong tablets mixed into a packet, missing tablets, sensor errors, main power off faults, heater temperature control faults and Auto Canister problems, you get both the symptom path and the code path to the same fault.

Get the JV-30DE Back Into Service

With this ATDPS JV-30DE service manual on hand you can install and level the machine, configure the industrial PC and dispensing software, set every option in OPTION-1, OPTION-2 and OPTION-3, calibrate the positioner, run the full checking program, inspect and rebuild canisters and cartridges, program EEPROM and ACRS-II chips, adjust paper tension, bisection, heater angle, sky-stick, last hopper shutter and cutter, interpret every error code the system can raise, and work down to individual board connectors when a fault goes deeper than a mechanical adjustment. Correct procedures and the correct values matter here: a heater angle that is off by a few degrees folds packets badly, a shutter delay set by guesswork mixes tablets between packets, and a mis-set main origin pushes tablets into the wrong packet. Working from the manufacturer figures removes that trial and error and protects both the machine and the medication it dispenses.

IMAGES PREVIEW

Delivery is instant. The JVM ATDPS JV-30DE service manual is supplied as a PDF download immediately after payment, with no shipping and no waiting. Open it on a laptop, desktop, tablet or phone in the pharmacy or workshop, print the pages you need for the job in front of you, and keep the rest as a searchable reference for the next service visit.
