Kalmar DCF 80-100 Empty Container Handler Maintenance Manual

This is the complete maintenance manual for the Kalmar DCF 80-100 empty container handler rated at 8-10 tonnes. Publication number UDCF03.03GB, issued by Cargotec Sweden AB. It is the manual that service personnel, fleet workshops and independent technicians use to keep these heavy container handlers running safely and to schedule. Every preventive maintenance procedure, function description, lubrication chart, fluid specification and technical value in this PDF comes directly from the original document.

File Details

• Manual type: Maintenance Manual (in original)
• Brand: Kalmar / Cargotec
• Model: DCF 80-100 (DCF80 and DCF90 capacity classes)
• Machine type: Empty container handler, 8-10 tonnes
• Publication number: UDCF03.03GB
• Language: English
• File format: PDF
• Page count: 366 pages

Chapters Covered

The manual is organised into lettered sections and numbered function groups so any topic can be located quickly during service work.

• A Foreword – purpose, conditions, reading instructions, machine card, documentation
• B Safety – service position, depressurising hydraulics, oils, fuel, clothing, working under the machine, lifting, vibrations, noise, solvents, fire and explosion risks, pressure systems, coolant, refrigerant, springs, electrical system, tyres and rims, welding, spare parts, non-ionised radiation, environment
• C Preventive maintenance – 50h check, service schedule, washing, 500h lubrication, 1000h lubrication, checking for cracks
• 0 Complete machine – machine description, component overview

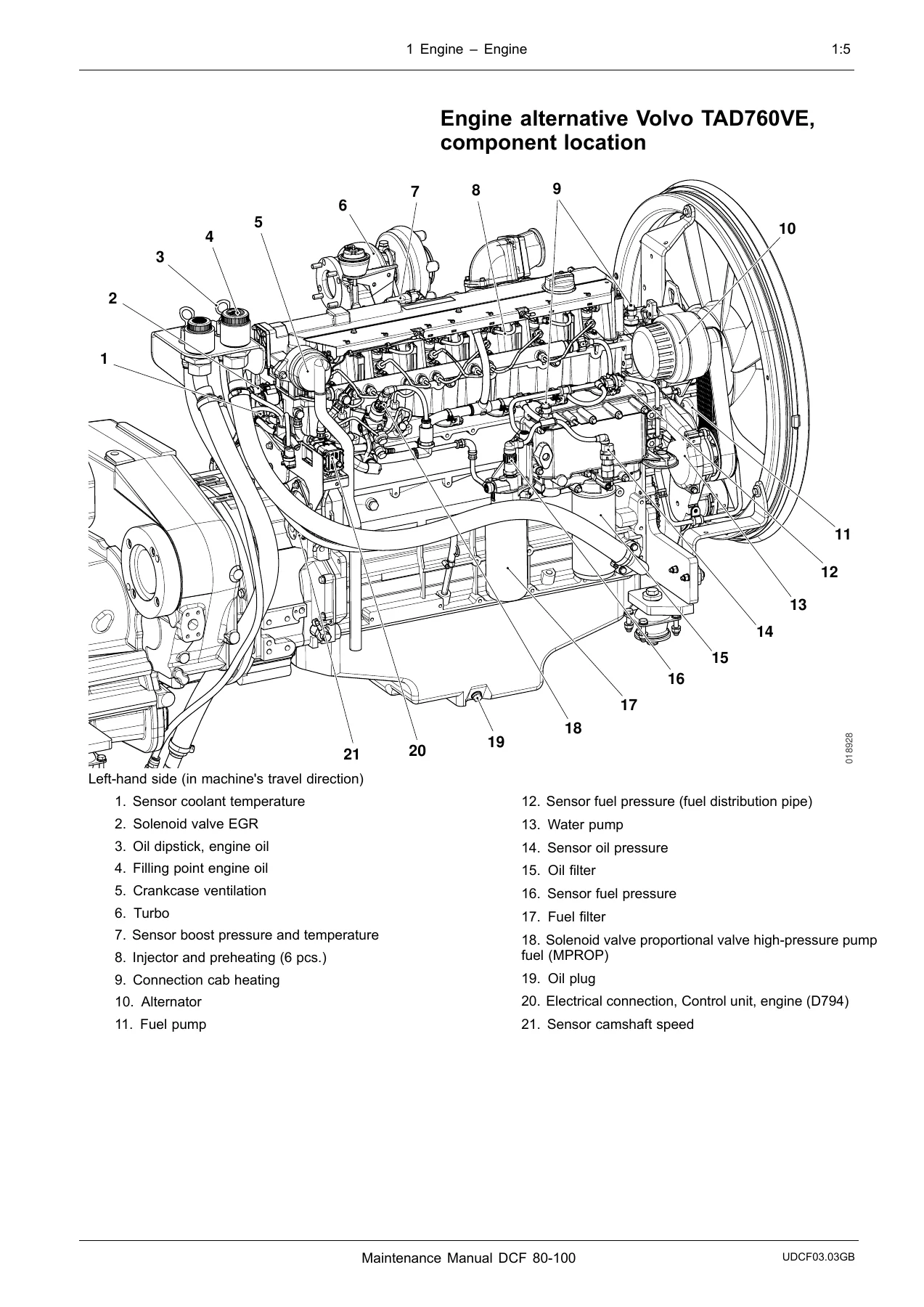

• 1 Engine – fuel system, fuel tank, fuel prefilter, fuel filter, valve mechanism, crank mechanism, air cleaning system, exhaust system, intercooler, radiator and expansion tank, cooling fan, coolant, lubrication system, control system engine, ignition/heating, start/stop
• 2 Transmission – torque converter/clutch, mechanical transmission, lubrication system, cooling system, control system transmission
• 3 Driveline/Axle – propeller shaft, drive axle
• 4 Brakes – brake pedal, power-assisted brake system, oil pump brake system, accumulator, wheel brake, parking brake system, parking brake unit, temperature control and oil brake system, oil filter brake system
• 5 Steering – power assisted system, link arm, sensor steering wheel angle
• 6 Suspension – steering axle cradle, wheel spindle, wheel hub, tyres and rims

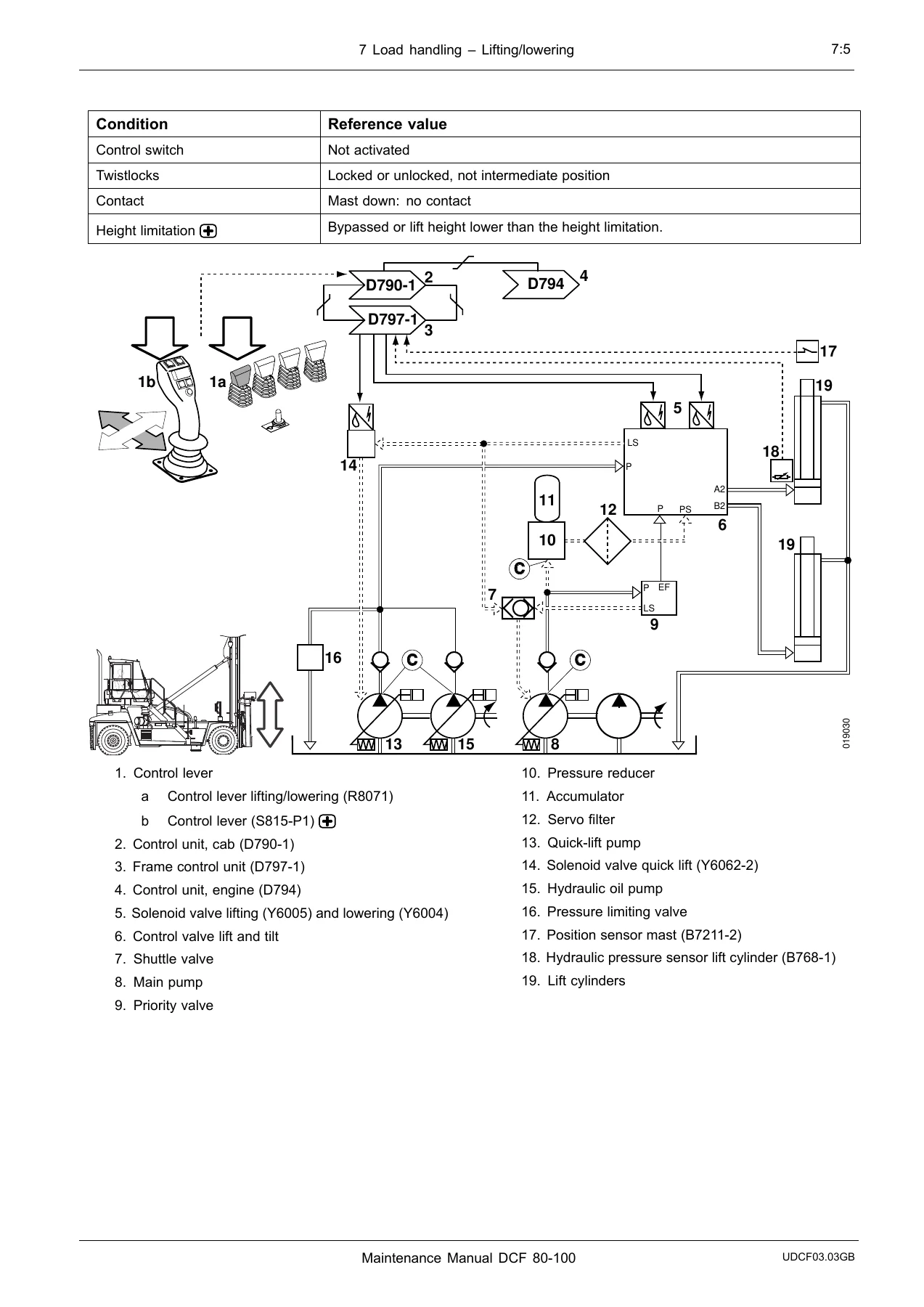

• 7 Load handling – lifting/lowering, servo filter, sensor hydraulic pressure lift cylinder, mast, mast position sensor, trolley, side shift, spreading, spreader beam, tilt, levelling, load carrier, twistlocks, lifting hook, container counter, speed reduction
• 8 Control system – monitoring, bypass, speed limitation, service indicator, error codes, diagnostics (CAN/POWER, LIGHTS, CAB, CLIMATE, HYD, ENGINE, TRANSM, ELSERV, ATTACH, OLS, EXTRA), settings
• 9 Frame, body, cab and accessories – controls and instruments, safety and emergency equipment, seats, heating, ventilation and air conditioning, fresh air filter, condenser, moisture filter, wiper/washer, lighting, signalling, glass/windows/mirrors, cab structure and suspension, cab interior, frame, body structure, central lubrication, paint/coatings
• 10 Common hydraulics – safety valves, tanks and accumulators, pumps, axial piston pump with variable displacement, hoses/pipes/valves, temperature control and hydraulic oil, breather filter, hydraulic oil filter, hydraulic oil, fine filter
• 11 Common electrics – electrical protection, fuses, batteries, start battery, alternator, distribution of electricity, electronic box, control units, communication, CAN bus, RMI
• D Error codes (reference to Workshop manual)
• E Diagrams (reference to Workshop manual)
• F Technical data – data, volumes, lifting capacity and dimensions, oils and lubricants, tightening torques, conversion tables
• G Terminology and index

This Kalmar DCF 80-100 maintenance manual is written for the two engine alternatives available in the DCF 80-100 series: the Volvo TAD760VE and the Cummins QSB6.7. Where procedures differ between engines, the manual splits the instructions so the technician follows the right steps for the machine in front of them. That includes separate fuel prefilter draining, fuel filter changing, coolant changing, oil and oil filter changing, drive belt service, valve clearance adjustment, vibration damper checking and fan hub checking procedures.

What This Manual Covers In Practice

The preventive maintenance section is the backbone of this document. It lays out the 50-hour first-service check on a new machine, the recurring 500-hour service, the 1000-hour service and the 2000-hour service, with a full check-and-service log page to record completed work. Every object and action is listed with its service intervals and a cross-reference to the relevant function group. That includes engine bolted joints and mountings, fuel prefilter draining, air filter cartridges, drive belt tension, coolant level, engine oil and filter changes, transmission leakage and oil level, propeller shaft and drive axle mounting checks, brake system leakage and accumulator function, parking brake function, tyre and wheel nut checks, mast and slide plate checks, lifting chain checking and adjusting, chain tension spreader adjustment, control system error code checks, hydraulic oil level and filter changes, battery checks and more.

The lubrication chapter gives two complete lubrication rounds – one at 500 hours and one at 1000 hours – with illustrated overviews of every grease point. Wheel hubs, wheel spindles, link arms, brake pedals, door hinges and cover lids, mast wheels, chain wheels, mast chains, slide plates, tilt cylinders, universal joints, trolley mast wheels, locking cylinders, contact pins, spreading cylinders, side shift cylinders and electric connectors are all covered with the correct grease type stated. Machines fitted with the optional central lubrication system are flagged, and the manual explains how to check that the distribution blocks are actually reaching every point and how to react when grease is forced out of the safety valve.

The crack inspection chapter is important for anyone maintaining lifting equipment. It sets out the magnetic particle method and the penetrating fluid method for checking welds and structural components, with crack check points on the steering axle mounts, tilt cylinder mounts, mast, frame beam to back piece, drive axle mount, mast mount, side lift attachment, trolley, lift cylinder bracket, twistlocks and lifting hooks. It also states the inspection intervals and makes clear that any machine showing cracks must be taken out of service and referred to Cargotec Support.

Under the load handling group, the manual explains lifting/lowering, side shift, spreading, tilt, levelling, twistlock locking and the alternative lifting hook and lock lug system. It gives checking and adjusting procedures for mast suspension, mast bearings, slide plates in the mast and trolley, spreader beam slide plates, lifting chains, tilt cylinders, twistlocks, lifting hooks, lock lugs, inductive sensors, contact pins and indicator lights. Wear limits and adjustment clearances are quoted where the manual states them.

The control system chapter covers the on-board electronic architecture, including control unit locations, diagnostics menus, error code display, service indicator resetting and the settings menus used for initiation and calibration. There is a specific procedure for transmission calibration via the DRIVE-TRAIN menu, including the conditions that must be met before calibration will start.

Technical data at the back of the manual brings together machine weights and dimensions, engine power and torque figures, transmission type, drive axle type, brake and steering system data, wheel and tyre data, cab data, lamp ratings and socket types, fluid volumes for engine oil, coolant, transmission oil, drive axle differential and hub reduction, hydraulic oil and refrigerant, plus recommended oils and lubricants for each system and climate. Tightening torques for standard metric, UNC and ORFS connections are included as well.

Who This Kalmar DCF 80-100 Manual Is For

This PDF suits workshop technicians, fleet maintenance planners, port and terminal service crews and owner-operators who want the correct scheduled maintenance procedures and adjustment values in front of them. It is a maintenance manual rather than a full workshop manual, so it focuses on preventive maintenance, function descriptions, checking and adjusting, and the technical data required to carry that work out. For in-depth repair procedures the manual points the reader to the Workshop manual under the same function groups, which is a useful thing to know before buying.

Why The Correct Procedures And Specifications Matter

An empty container handler lifts loads at height with a mast, trolley and attachment system, so structural welds, chains, twistlocks, lifting hooks and brake accumulators are safety-critical. The intervals, wear limits and adjustment values in this manual are what keep those components inside their safe working envelope. Getting the wrong coolant type, the wrong oil grade or the wrong wheel nut torque on a machine of this size leads to expensive failures. Following the published schedule and using the values quoted here is the difference between planned maintenance and unplanned downtime.
