Kalmar DCT80-90 Empty Container Handler Maintenance Manual PDF Download

Description

Kalmar DCT80-90 Empty Container Handler Maintenance Manual – Full PDF

This is the complete Kalmar DCT80-90 maintenance manual for the 8-9 tonne empty container handler, issued under document number UDCT01.02GB. All 328 pages are supplied as a single PDF: preventive maintenance intervals, lubrication schedules, adjustment values, diagnostic menus, wiring and hydraulic reference, pressure plates, torque tables and the full technical data chapter. It is the working document for Kalmar service technicians, port and terminal workshops and fleet maintenance planners who need the correct procedure and the correct value on the first attempt.

File Details

• Manual type: Maintenance Manual
• Brand: Kalmar / Cargotec
• Model: DCT 80-90 (DCT80 and DCT90)
• Machine: Empty container handler, 8-9 tonnes
• Document number: UDCT01.02GB
• Language: English
• Page count: 328
• File format: PDF

Chapters Covered

• A Foreword
• B Safety
• C Preventive maintenance
• 0 Complete machine
• 1 Engine
• 2 Transmission
• 3 Driveline/Axle
• 4 Brakes
• 5 Steering
• 6 Suspension
• 7 Load handling
• 8 Control system
• 9 Frame, body, cab and accessories
• 10 Common hydraulics
• 11 Common electrics
• D Error codes
• E Diagrams
• F Technical data
• G Terminology and index

Section A – Foreword

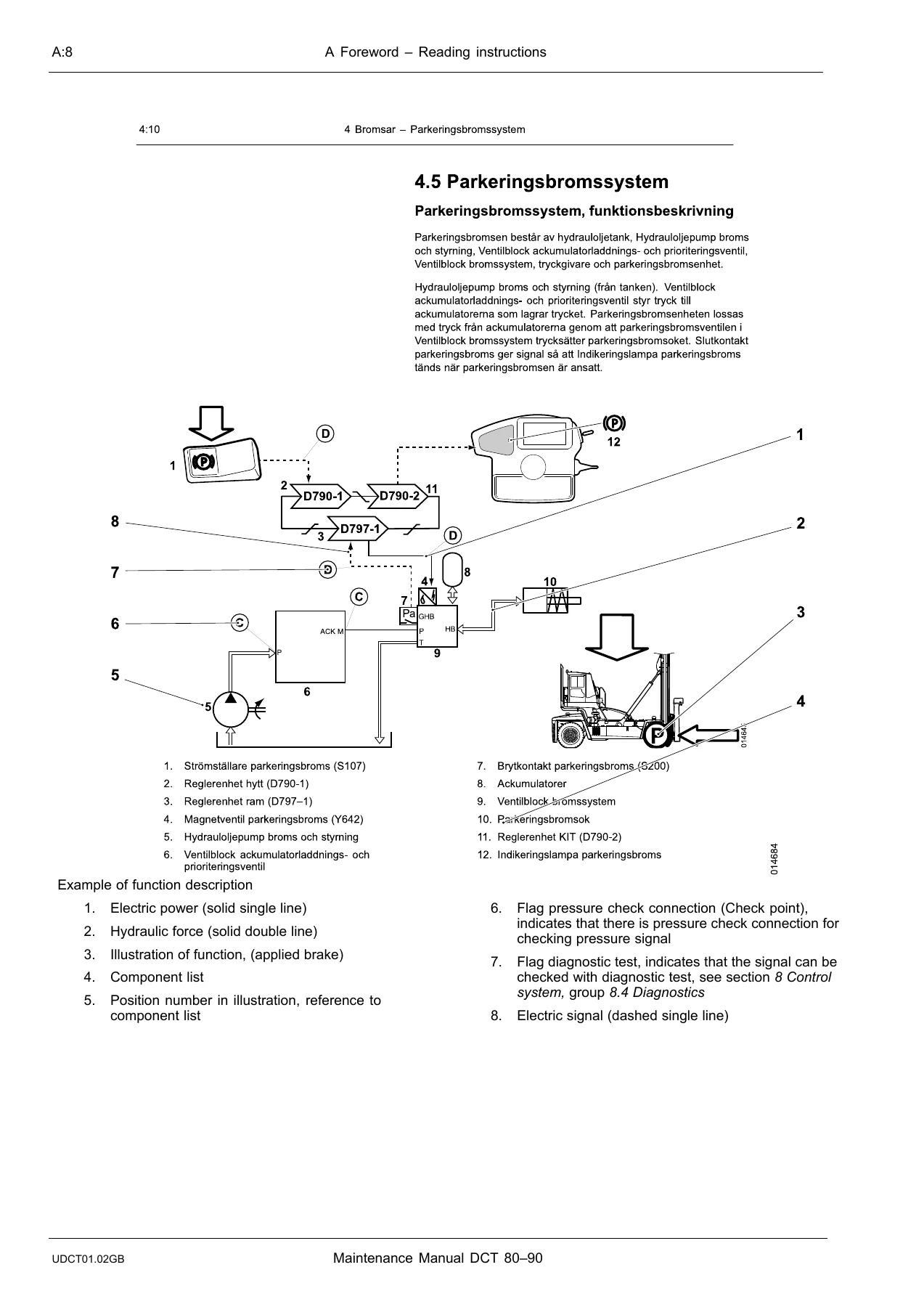

Introduces the manual’s layout: the function-group structure (groups 0-12 plus lettered sections A-G), the meaning of the DANGER, WARNING, CAUTION and NOTE panels, and the rules for product alternatives and optional equipment. Explains how the machine card maps to the spare parts catalogue and workshop manual, and how to order supplementary documentation.

Section B – Safety

The full safety chapter for the DCT 80-90. Covers service position, depressurising the hydraulic and brake systems, relieving the attachment circuit, and the specific hazards around oils, fuel under high pressure, coolant, refrigerant, air pollution, tensioned springs, electric motors, rotating components, tyres and rims, lifting equipment and non-ionised radiation. Also includes procedures for working under the machine, coordinating several mechanics on the same machine, and the environmental rules for waste oils, fluids and refrigerant.

Section C – Preventive Maintenance

Defines the 50-hour check for new machines and the full service schedule from 250-hour to 10,000-hour intervals. Includes the check-and-service log, the 500-hour lubrication chart with every grease point mapped across the mast, steering axle, wheel hubs, link arms, brake pedals, hinges and tilt cylinders, the 1,000-hour lubrication chart for universal joints, trolley, locking cylinders, contact pins and spreading cylinders, plus the crack-inspection procedure using magnetic particle and penetrating fluid methods with the full list of high-stress check points on the frame, mast, trolley and attachment.

Section 0 – Complete Machine

Overview of the Kalmar DCT 80-90 empty container handler: engine, transmission, drive axle, steering axle, frame, cab, mast, side lift attachment and the layout of the major systems, including a description of the load-handling functions (lifting/lowering, tilt, side shift, spreading, twistlock locking).

Section 1 – Engine

Covers both engine alternatives fitted to the DCT 80-90: the Yuchai YC6A240-30 and the Cummins QSB6.7. Includes the fuel system with fuel tank cleaning, prefilter draining and replacement, and fuel filter service for each engine; fuel-system bleeding procedures; valve clearance checking and adjustment on the Cummins QSB6.7 including tolerances and the cylinder-by-cylinder sequence; vibration damper inspection; air cleaner service and safety cartridge replacement; turbo check; exhaust system and intercooler inspection; charge-air pipe checks; radiator cleaning; drive belt inspection, tensioning and replacement for both engines; drive belt tensioner and fan hub checks on the Cummins; coolant level, quality testing and full coolant change procedures for each engine; and engine oil and oil filter service with the correct drain plug torque.

Section 2 – Transmission

Service information for the Dana HR32000 transmission: torque converter and clutch system description, breather filter cleaning, mechanical transmission description with forward/reverse clutch control, transmission lubrication circuit and oil cooler, transmission oil and oil filter change, suction strainer cleaning, and oil level checking with the correct operating temperature and dipstick procedure. Includes the transmission control system overview and the Limp-Home and Shut-Down protective modes.

Section 3 – Driveline/Axle

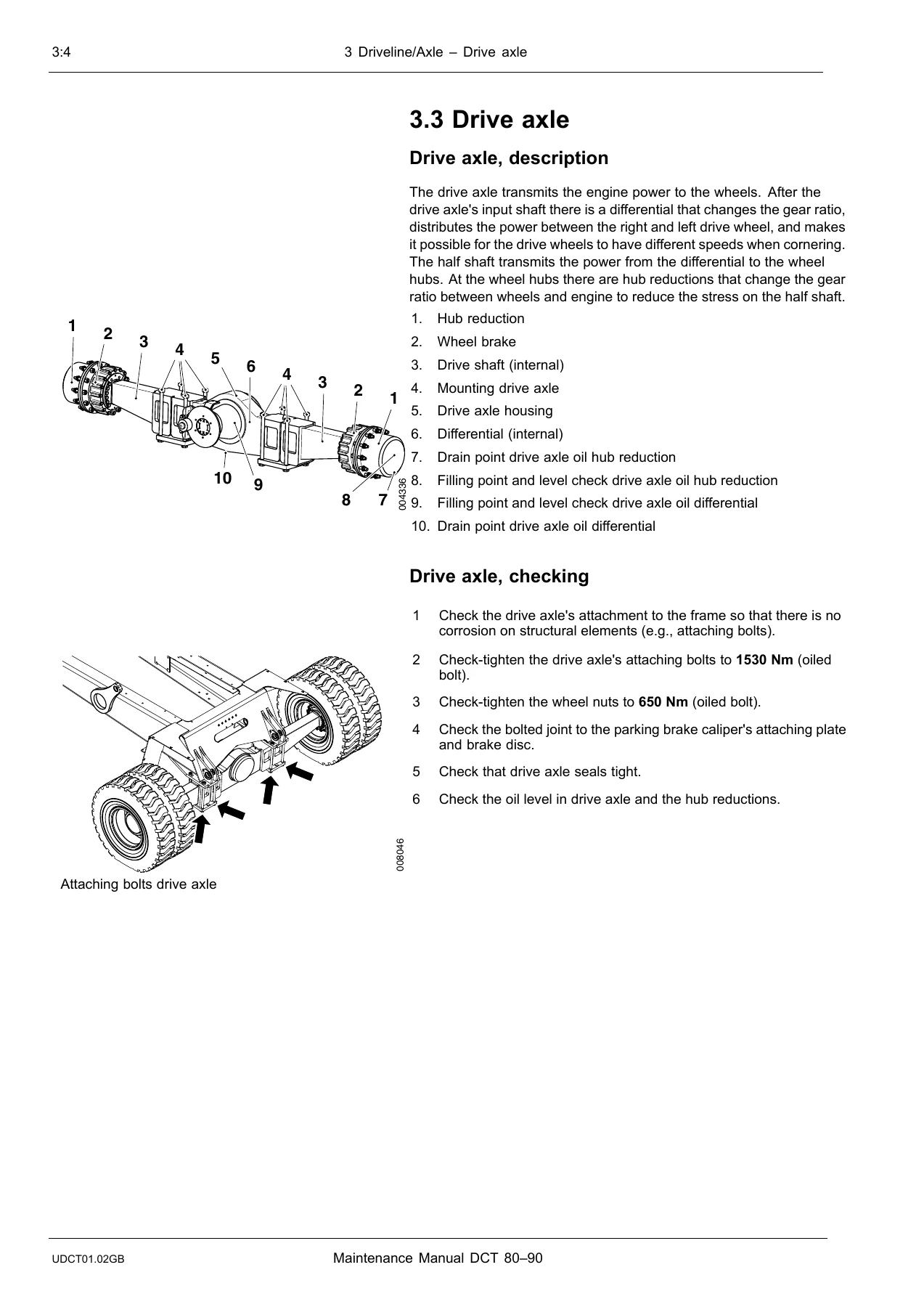

Propeller shaft inspection including universal joint clearance and the 1,000-hour greasing schedule, and the drive axle chapter covering the Kessler D81 and D91 axles: axle attachment checks, wheel nut torque, hub reduction and differential oil changes, breather cleaning, and the drain, level and filler plug locations on both the hubs and the differential.

Section 4 – Brakes

The power-assisted brake system and parking brake system, with function descriptions and component locations. Includes brake pedal clearance adjustment and greasing, accumulator charging pressure check with the pressure gauge procedure, accumulator holding test (minimum number of brake applications before the low-pressure warning), wheel brake bleeding procedure including the minimum bleed volume, and parking brake unit adjustment with the 0.5 plus or minus 0.1 mm pad-to-disc clearance specification and parking brake pad replacement.

Section 5 – Steering

Power-assisted steering system description and component locations, with the steering valve, priority valve, steering cylinder and link arm arrangement. Includes link arm guide bearing, axle and locking bolt inspection.

Section 6 – Suspension

Steering axle cradle bushing check (maximum 3 mm movement), wheel spindle bearing check (maximum 0.25 mm), wheel hub bearing adjustment with the torque-and-rotate procedure, and the complete tyres and rims chapter: safety rules, tyre pressure specification, wheel removal and fitting for both drive axle and steering axle, tyre inflation procedure, rim inspection for wear and cracks with the 0.5 mm wear limit, and the magnetic particle plus penetrating fluid crack test.

Section 7 – Load Handling

The largest chapter in the manual. Covers lifting/lowering with the mast, lift cylinders and chain system; mast suspension checks; slide plate inspection and adjustment; lifting chain elongation check and equalisation; position sensor mast check; trolley slide plates; side shift; spreading 20′-40′ with the 30-foot stop option and automatic spreading; spreader beam slide plate clearance; tilt function and tilt cylinder inspection; mechanical levelling; the load carrier with twistlocks, contact pins, sensor adjustment and the crack-check schedule for lift pins; the container counter; and speed reduction with load.

Section 8 – Control System

Monitoring functions, bypass, speed limitation and the service indicator reset. Full error-code structure with STOP, WARNING and INFORMATION levels. Diagnostic menus for CAN/POWER, LIGHTS, CAB, CLIMATE, HYD, ENGINE (both engine alternatives), TRANSM, ELECTRIC SERVO, ATTACH, OLS and EXTRA. Settings and calibration overview for initiations and calibrations.

Section 9 – Frame, Body, Cab and Accessories

Controls and instruments with the full operating menu and event menu map, safety and emergency equipment, seat alternatives (Hao Bang, BE-GE 9200 and BE-GE 9200 air suspension), the EHC heating and ventilation unit and ECC air conditioning including the complete air-conditioning performance test and refrigerant charging procedure, fresh air filter, condenser cleaning, moisture filter check and replacement, wiper/washer system, lighting system, signalling system, glass, roof window inspection, cab structure and suspension checks, frame, body structure, central lubrication system checks and fault finding, and paint repair guidance.

Section 10 – Common Hydraulics

Safety valves and accumulator locations, the hydraulic oil pumps (load handling and brakes/steering) with pressure check procedures against the machine’s pressure plate, tank and accumulator service, breather filter replacement, hydraulic oil filter and fine filter changes, hydraulic oil level check and full oil change procedure, and the temperature control, cleaning and cooling circuit description.

Section 11 – Common Electrics

Electrical protection with main fuse and circuit fuse charts for the cab and frame distribution boxes, fuse replacement, battery inspection and battery cable checks, alternator location, electrical distribution description with start-up and shutdown sequences, battery voltage (30), ignition voltage (15) and emergency stop switch voltage (15E), voltage converter, electrical distribution box component location, control unit positions with indicator lamp interpretation, and CAN bus, redundant CAN bus and CAN bus drivetrain descriptions.

Sections D, E and G – Error Codes, Diagrams and Terminology

Section D points to the error-code information held in the workshop manual and operator’s manual. Section E points to the wiring and hydraulic diagrams held in the workshop manual. Section G gives the terminology and abbreviations used throughout the documentation, plus an alphabetical index to every heading.

Section F – Technical Data

Machine weights and dimensions, engine data for both alternatives, transmission, axle, brake, steering and wheel specifications, cab sound and vibration data, bulb and socket charts, all fluid volumes and recommended oil and lubricant grades with a temperature-versus-viscosity chart, recommended tightening torques for metric and UNC threads across grades 8.8, 10.9 and 12.9, air-conditioning coupling torques, ORFS connection torques, goods coupling torques, SI conversion tables and unit conversion tables for length, area, volume, weight and pressure.

Why This Kalmar DCT80-90 Manual Belongs in the Workshop

This is not a generic forklift handbook. It is the maintenance documentation written around the DCT 80-90 chassis, its two engine alternatives and its specific mast, trolley and side lift attachment – which means every torque value, every grease point, every diagnostic menu entry and every service interval applies directly to the machine in front of you. Whether you are performing the 50-hour check on a new machine, tracking the 250-hour through 10,000-hour service schedule, adjusting lift chains, setting twistlock sensor gaps, chasing a transmission fault code or charging the air conditioning after a moisture filter change, the procedure and the specification are in one place.

Getting a preventive maintenance interval wrong on a container handler is expensive: chain wear, mast slide plate damage, brake accumulator failure and sensor misalignment all escalate into major repairs if the early warning signs are missed. This manual gives you the check points, the wear limits and the adjustment values that keep the machine within specification and keep the terminal moving.

IMAGES PREVIEW

Delivered as an instant PDF download – no shipping, no waiting, no physical binder to lose. Open it on a laptop, tablet or phone in the cab or in the workshop, print the pages you need for the job and keep the rest of the manual intact. Buy once, use it for the life of the machine.
