Kalmar Ottawa 4×2 Terminal Tractor Spare Parts Catalogue 333684 PDF

Description

Kalmar Ottawa 4×2 Terminal Tractor Spare Parts Catalogue 333684

This is the illustrated spare parts catalogue for the Kalmar Ottawa 4×2 terminal tractor, published under document number 333684 and catalogue reference ESC340W. It is the reference used when a component on the machine has to be identified, matched to a part number and ordered. Every group is presented as an exploded or plane view drawing with reference callouts, followed by the corresponding text page that lists the reference number, part number, description, quantity and any dimensional or standard notes attached to that part.

Because the catalogue is built around drawings rather than prose, it is fast to work with: find the assembly, read the callout number off the illustration, then look up the same reference on the facing text page. The document also carries a full index list at the back that maps every part number to its section, page, assembly and quantity, which is the quickest route when a part number is already known and only its location has to be confirmed.

File Details

• Manual type: Spare parts catalogue (illustrated parts list)
• Brand: Kalmar / Ottawa (Cargotec)
• Machine: Ottawa 4×2 terminal tractor (OT4x2)
• Document number: 333684
• Catalogue reference: ESC340W
• Language: English
• Page count: 432 pages
• File format: PDF
• Publication date shown in document: 17.12.2013

Chapters Covered

The catalogue is split into the standard machine groups, each with its own sub-sections and page numbering:

• 00 – Complete machine
• 01 – Engine: 1.0 Engine, 1.2 Fuel system, 1.6 Air intake and exhaust outlet, 1.7 Cooling system
• 02 – Transmission: 2.3 Mechanical transmission, 2.7 Cooling system
• 03 – Driveline/axle: 3.2 Drive shaft, 3.3 Drive axle (front axle FA1235, rear axle RA1293)
• 04 – Brakes: 4.3 Service brake system
• 05 – Steering: 5.2 Power assisted system
• 06 – Suspension: 6.2 Suspension, 6.3 Tyres and rims
• 07 – Load handling: 7.9 Load carrying (fifth wheel and cylinder)
• 09 – Frame, body, cab and accessories: 9.1 Controls and instruments, 9.2 Safety and emergency equipment, 9.3 Seat, 9.4 Heating, ventilation and air conditioning, 9.5 Wiper/washer system, 9.6 Lighting system, 9.9 Glass/windows/mirrors, 9.10 Cab structure and suspension, 9.11 Cab interior, 9.12 Frame
• 10 – Common hydraulics: 10.3 Tanks and accumulators, 10.4 Pumps, 10.5 Hoses, pipes and valves
• 11 – Common electrics: 11.5 Distribution of electricity
• 12 – Common pneumatics: 12.2 Tanks and accumulators, 12.4 Hoses, pipes and valves
• C – Filter kit
• Index list (part number to section/page lookup)

What makes this particular catalogue useful is the level of granularity inside those groups. The engine group does not stop at the bare engine – it breaks out the engine brackets and mounts, the fuel pipes and fuel tank, the air cleaner and intake piping, the muffler and exhaust pipe, the cooling system with its radiator mountings, reservoir, fan, inter cooler and charge air cooler piping, and then the engine itself with its sensors, dipstick, wiring harness and adapters listed individually. The axle group goes all the way down to knuckles, king pins, tie rod ends, camshafts, brake shoes, slack adjusters, wheel hubs, bearing cones and cups, planetary gear sets and sun gears. The cab group covers the dashboard and instrument panels, accelerator pedal, speedometer, gear selector, controller handle, horn, reverse alarm, the full sticker set, seat, air conditioning compressor and condenser, heater and blower assemblies, wiper motor and reservoir, working lights, headlights, windscreen and side windows, mirrors, doors, insulation, cabin fastening and the cab tilt system with its pump and cylinder mountings.

How to Use the Part Numbers in This Catalogue

Each text page repeats the same column layout so that the information can be read straight off the page while standing at the machine. The reference number column ties the line back to a callout on the drawing. The part number column is what actually gets ordered. The description names the component, the quantity tells you how many of that part sit in the assembly – critical when a fastener, washer or seal is being replaced in multiples – and the notes column carries the standard, thread size, length, grade or material where the document shows one. Examples spread through the catalogue include ISO4017 screws in M12x40, M16x30 and M16x70, ISO7040 nylon-insert nuts in M12 and M16, DIN125 17 mm washers, 1/2-13 and 3/8-16 UNC hardware, grade 8 bolts, hardened F436 washers, JIC and O-ring adapters, and nylon air brake tubing in fractional sizes.

Where an assembly is sold complete rather than as individual components, the catalogue marks it. Two conventions are used in the document: an assembly sold as a spare part, and an assembly that is not sold as a spare part. Recognising that distinction before ordering avoids the situation where individual internals are requested for something that only ships as a complete unit.

What This Kalmar Ottawa 4×2 Parts Catalogue Enables

A terminal tractor works hard and gets repaired in place. This catalogue supports that reality. It lets a workshop:

• Identify a failed component from an exploded drawing rather than from memory
• Order the exact part number for a Kalmar Ottawa 4×2 built under serial 333684
• Confirm how many fasteners, seals or shims belong in an assembly before it is reassembled
• Check the standard, thread pitch and grade of hardware when a fastener has to be replaced
• Distinguish between parts sold individually and assemblies only available complete
• Cross-check a part number already in hand against its section, page and assembly using the index list
• Work through the engine, transmission, drive axle, brake, steering, suspension, fifth wheel, hydraulic, electrical and pneumatic groups from the same document

Getting the part number right the first time matters more on a terminal tractor than on many machines. These units are often the bottleneck in a yard – a wrong seal, a wrong bearing cone or a bolt of the wrong grade can mean a second order, a second wait and a second lift. Working from the illustrated group pages and the index list removes most of that guesswork, because the drawing shows exactly where the part sits and the text page shows exactly what to ask for.

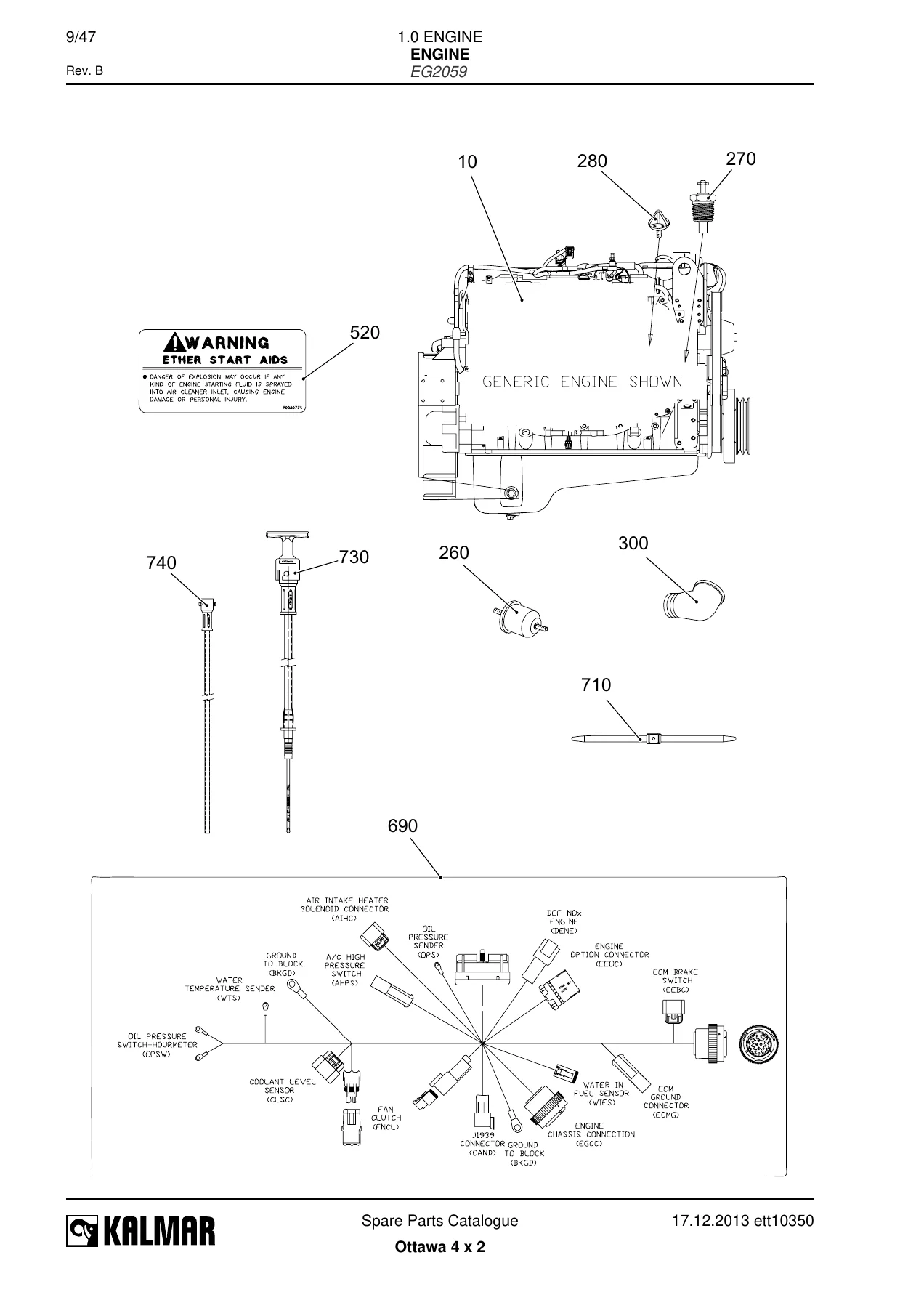

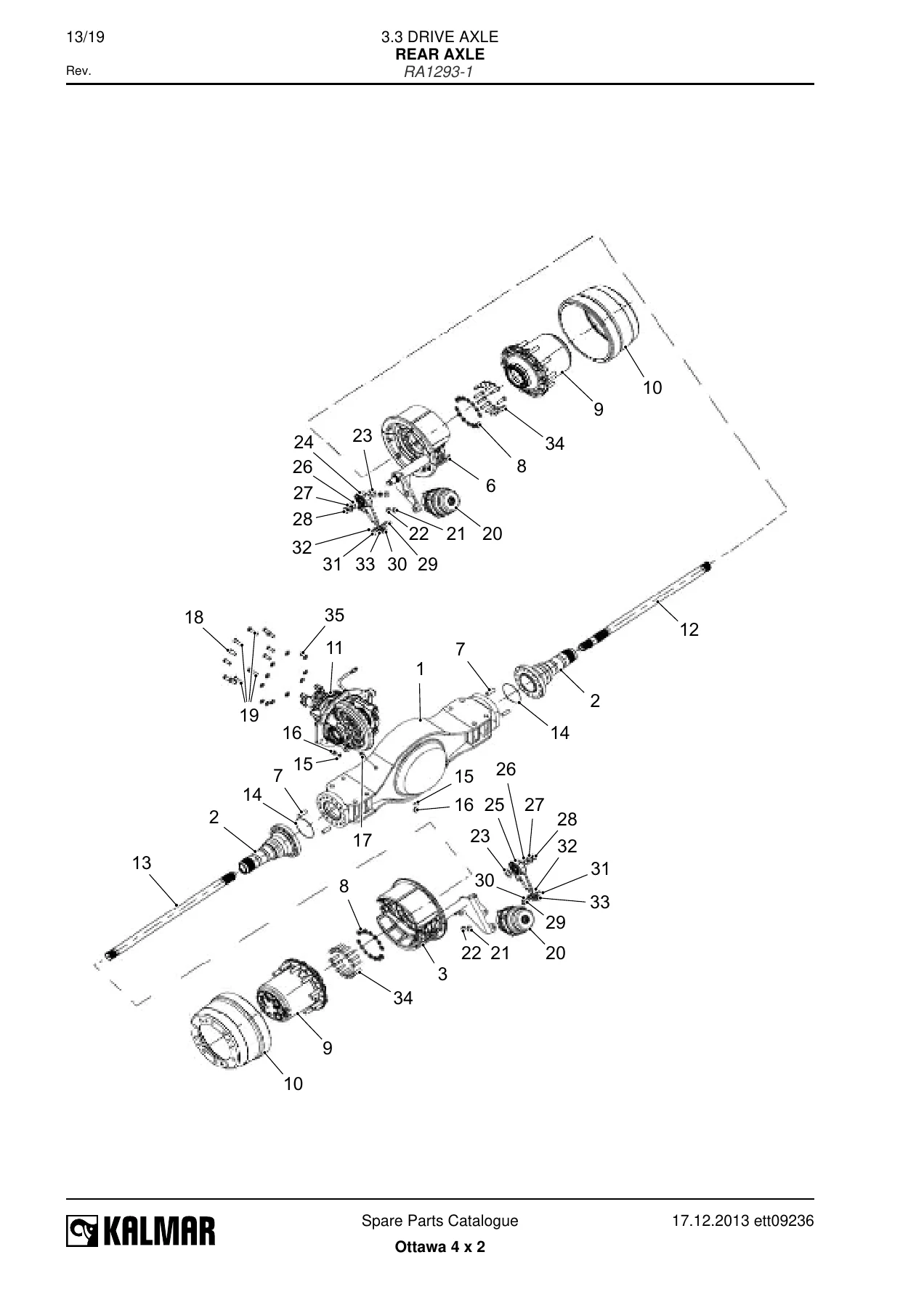

IMAGES PREVIEW

Kalmar Ottawa 4×2 Spare Parts Catalogue 333684 – Instant PDF Delivery

This Kalmar Ottawa 4×2 terminal tractor spare parts catalogue is supplied as a PDF and is available immediately after purchase – there is no physical shipment and nothing to wait for in the post. Open it on a laptop in the workshop office, on a tablet at the machine, or print the specific group pages and take them to the job. Because every group is self-contained, printing the axle pages or the cab pages on their own is entirely practical. The full 432-page document stays searchable on screen, so when a part number is already known the index list gets you to the right section quickly. Whether the job is a routine filter change, a brake overhaul, a fifth wheel repair or tracking down an obscure bracket, having the illustrated Kalmar Ottawa 4×2 parts catalogue on hand turns a parts enquiry into a straight lookup.
