Kawasaki 1400GTR ABS Concours 14 ABS Motorcycle Service Manual PDF

Description

Kawasaki 1400GTR ABS Concours 14 ABS Motorcycle Service Manual PDF

The Kawasaki 1400GTR ABS Concours 14 ABS Motorcycle Service Manual PDF is a detailed workshop reference for Kawasaki’s 1400GTR ABS / CONCOURS 14 ABS motorcycle. The pages in this file cover model identification and technical specifications, scheduled maintenance, tightening torques, service limits, fluid and adjustment data, special tools, and an extensive Fuel System (DFI) section with troubleshooting charts, component diagrams, ECU checks, fuel-pressure testing and injector service information.

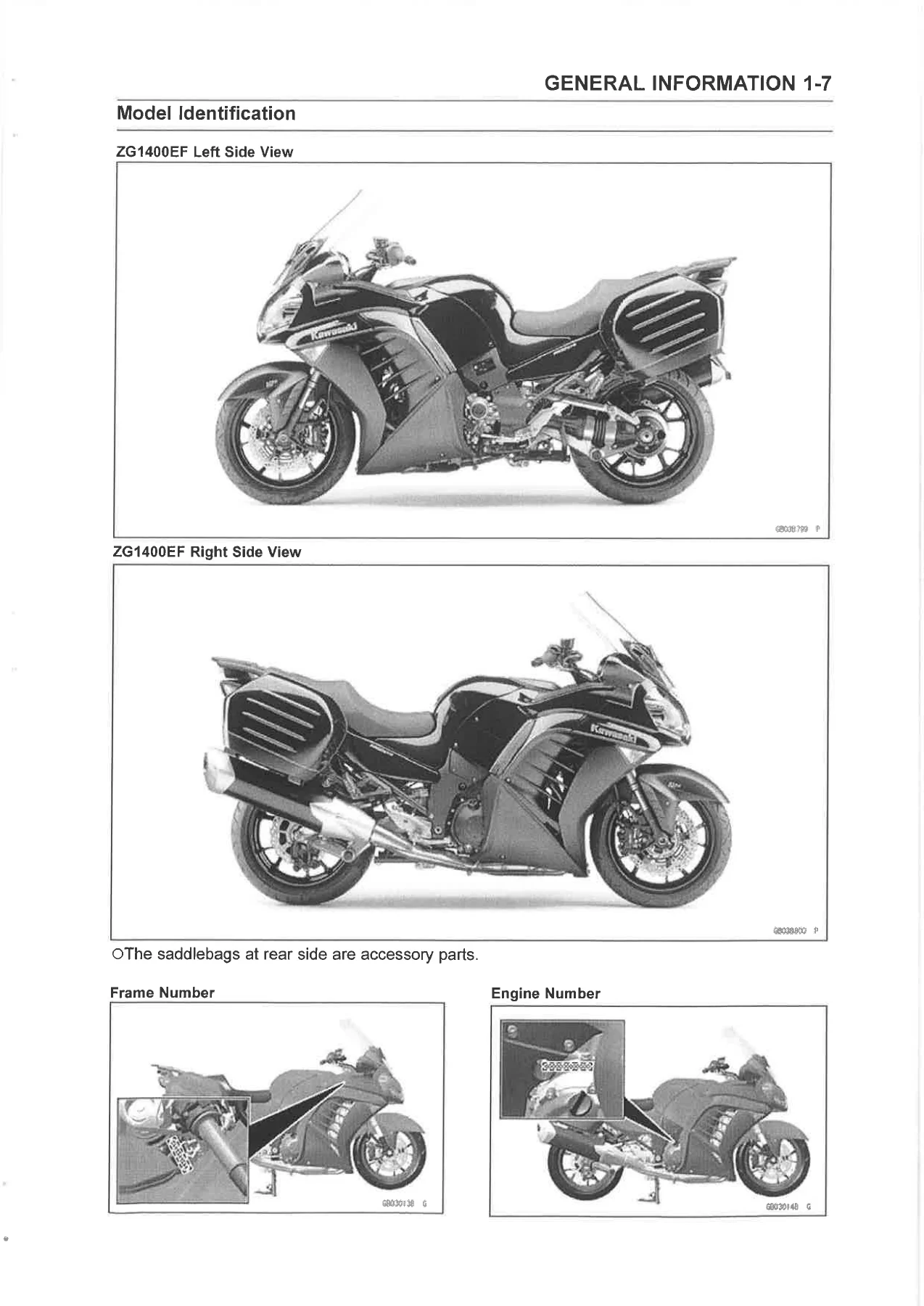

The manual identifies the machine as ZG1400EF – EH in its general specifications and illustrates the ZG1400EF from both sides together with frame-number and engine-number locations. The specification pages provide dimensional, engine, transmission, final-drive, chassis, wheel, tire and electrical data, while the maintenance section gives the inspection and replacement procedures needed to keep the motorcycle within the stated service standards.

File Details

• Manual type: Motorcycle Service Manual
• Brand: Kawasaki
• Models: 1400GTR ABS / CONCOURS 14 ABS
• Model identification: ZG1400EF – EH
• Edition: Third Edition (0)
• Date: June 16, 2016
• Language: English
• Page count: 846 pages
• File format: PDF

Technical Information Included

The opening technical data makes this Kawasaki 1400GTR ABS Concours 14 ABS service manual useful as more than a maintenance checklist. General specifications include overall dimensions, wheelbase, road clearance, seat height, curb mass, fuel-tank capacity, engine configuration, bore and stroke, displacement, compression ratio, maximum power and torque, fuel-system type, starting and ignition systems, firing order, valve timing, lubrication system, oil capacity, primary reduction, six-speed transmission ratios, shaft final drive, steering geometry, tire sizes, suspension travel, brake arrangement, battery information and alternator output.

The engine is identified as a liquid-cooled, 4-stroke, DOHC, 4-cylinder unit with a displacement of 1 352 cm3. The specification pages also show a 6-speed constant-mesh transmission, shaft drive, telescopic upside-down front fork, swingarm rear suspension and the applicable tire and electrical information. These figures are paired with service data later in the maintenance chapter, allowing inspections and adjustments to be compared against the manual’s stated standards and service limits.

Periodic Maintenance and Service Data

A substantial portion of this 1400GTR ABS / Concours 14 ABS motorcycle service manual is devoted to periodic maintenance. The maintenance chart organizes inspection, adjustment, lubrication and replacement tasks for the fuel system, cooling system, engine top end, clutch, engine lubrication, wheels and tires, final drive, brakes, suspension, steering, electrical system and chassis.

Multiple pages of tightening-torque information cover major fasteners throughout the motorcycle, including the fuel system, cooling system, engine top end, clutch, lubrication system, engine installation, crankshaft and transmission, wheels and tires, final drive, brakes, suspension, steering, frame and electrical equipment. The service specification tables also provide reference values for throttle free play, idle speed, coolant, valve clearance, clutch fluid, engine oil, tire tread depth and pressures, final gear case oil, brake fluid, brake-pad thickness and spark plugs.

Maintenance procedures are illustrated with photographs and diagrams. They include air-cleaner replacement, idle-speed inspection and adjustment, throttle-control inspection, engine-vacuum synchronization, fuel-hose checks, coolant inspection and replacement, valve-clearance inspection and adjustment, air-suction inspection, clutch-fluid inspection and replacement, engine-oil and filter service, tire and wheel inspection, final-drive oil checks and replacement, brake-fluid and hose service, brake master-cylinder and caliper work, brake-pad inspection, suspension inspection, steering adjustment, electrical checks and spark-plug replacement.

Chapters Covered

• General Information
  • Before Servicing
  • Model Identification
  • General Specifications
  • Unit Conversion Table
• Periodic Maintenance
  • Periodic Maintenance Chart
  • Torque and Locking Agent
  • Specifications
  • Special Tools and Sealant
  • Periodic Maintenance Procedure
• Fuel System (DFI)
  • Exploded Views
  • DFI System and component identification
  • DFI Specifications
  • Special Tools and Sealant
  • DFI Servicing Precautions
  • Troubleshooting the DFI System
  • DFI System Troubleshooting Guide
  • Warning / Immobilizer Indicator inspection
  • ECU identification, removal, installation and power-supply inspection
  • CAN Communication Line inspection
  • DFI Power Source
  • Fuel Line and fuel-pressure inspection
  • Fuel Flow Rate inspection
  • Fuel Pump removal, installation and electrical checks
  • Fuel Pump Screen and Fuel Filter cleaning / replacement
  • Fuel Injectors removal, resistance, power-supply and leakage inspection
  • Throttle Grip and Cables
  • Throttle Body Assembly

These sections provide a technician with a connected path from basic identification and service specifications through routine maintenance and into detailed electronic fuel-injection troubleshooting. The DFI chapter is particularly extensive, combining system diagrams, ECU connector information, component locations, diagnostic flow charts, symptom-based troubleshooting, circuit diagrams and hands-on test procedures.

DFI Diagnosis and Fuel-System Repair

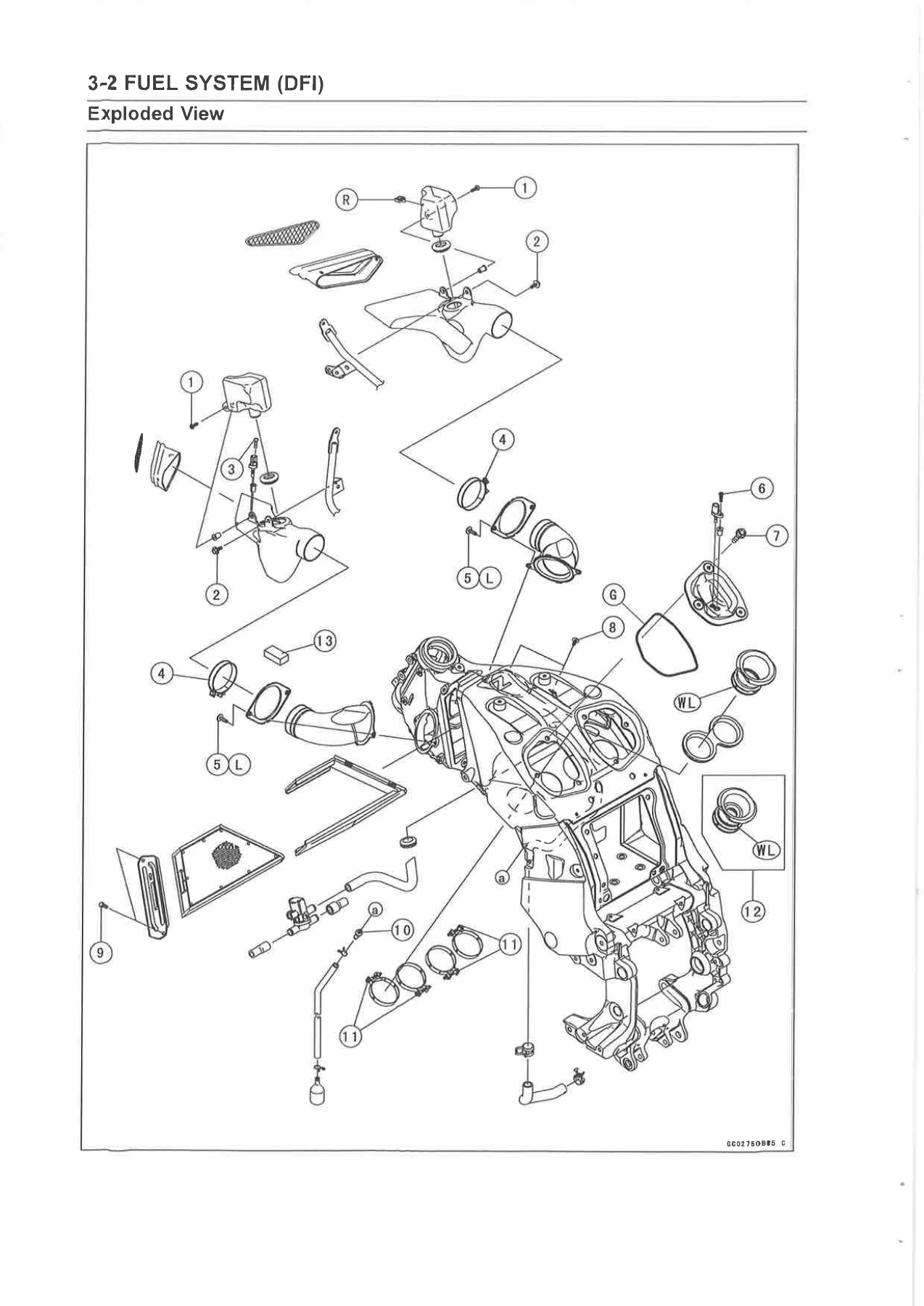

The Fuel System (DFI) chapter includes exploded component drawings and electrical diagrams showing how the ECU, sensors, injectors, fuel pump, relays and related systems are connected. It identifies sensors and actuators throughout the motorcycle, gives ECU terminal assignments, shows component locations and provides servicing precautions for electronic fuel-injection work.

Diagnostic coverage includes warning-indicator behavior, self-diagnosis guidance and troubleshooting for conditions such as an engine that will not turn over or start, poor running at low speed, poor acceleration, stumbling, surging, backfiring, poor high-speed performance, knocking, overheating and excessive exhaust smoke. The guide directs the technician toward checks involving fuel pressure, injectors, ignition components, throttle-body synchronization, air-pressure and temperature sensors, crankshaft and camshaft sensors, oxygen sensors, ECU circuits and related wiring.

Fuel-system procedures include fuel-pressure measurement, fuel-flow testing, fuel-pump removal and operating-voltage checks, fuel-filter replacement, injector resistance tests, injector power-source voltage inspection and injector leakage testing. Diagrams and photographs support the written procedures, helping identify connectors, terminals, hoses and assembly points before components are removed or tested.

Important PDF Scope

The quick-reference page printed in the manual lists later service-manual chapters such as Cooling System, Engine Top End, Clutch, Engine Lubrication System, Engine Removal/Installation, Crankshaft/Transmission, Wheels/Tires, Final Drive, Brakes, Suspension, Steering, Frame, Electrical System, Self-Diagnosis System and Appendix. However, this particular 846-page PDF file itself runs from the introductory material through the Periodic Maintenance chapter and into the Fuel System (DFI) chapter, ending at the beginning of the Throttle Body Assembly procedure. Buyers should therefore use the contents actually present in this PDF as the scope of this download.

Service the 1400GTR ABS / Concours 14 ABS with the Correct Procedures and Specifications

The Kawasaki 1400GTR ABS Concours 14 ABS Motorcycle Service Manual PDF gives owners and technicians detailed information for scheduled servicing, inspections, adjustments, torque-controlled assembly work, fluid changes, brake and clutch maintenance, valve-clearance work, wheel and steering checks, and especially DFI fuel-system diagnosis and repair. Using the published specifications, service limits, diagrams and step-by-step procedures helps reduce guesswork when checking or servicing the motorcycle.

IMAGES PREVIEW

Your manual is supplied as an instant PDF download after purchase. There is no physical book and no shipping delay. Save the file to a computer, tablet or phone for workshop reference, and print the pages you want when carrying out maintenance, inspection or diagnostic work.
