Kawasaki 80ZIV Wheel Loader Cummins 6CT8.3 Engine Shop Manual – PDF

Description

Kawasaki 80ZIV Wheel Loader(Disassembly &Reassembly Service Standards)Cummins 6CT8.3 Engine Shop Manual -PDF DOWNLOAD

FILE DETAILS:

Kawasaki 80ZIV Wheel Loader(Disassembly &Reassembly Service Standards) Cummins 6CT8.3 Engine Shop Manual -PDF DOWNLOAD

PN AAA-S80C2U14-959

Language : English
Pages : 340
Downloadable : Yes
File Type : PDF

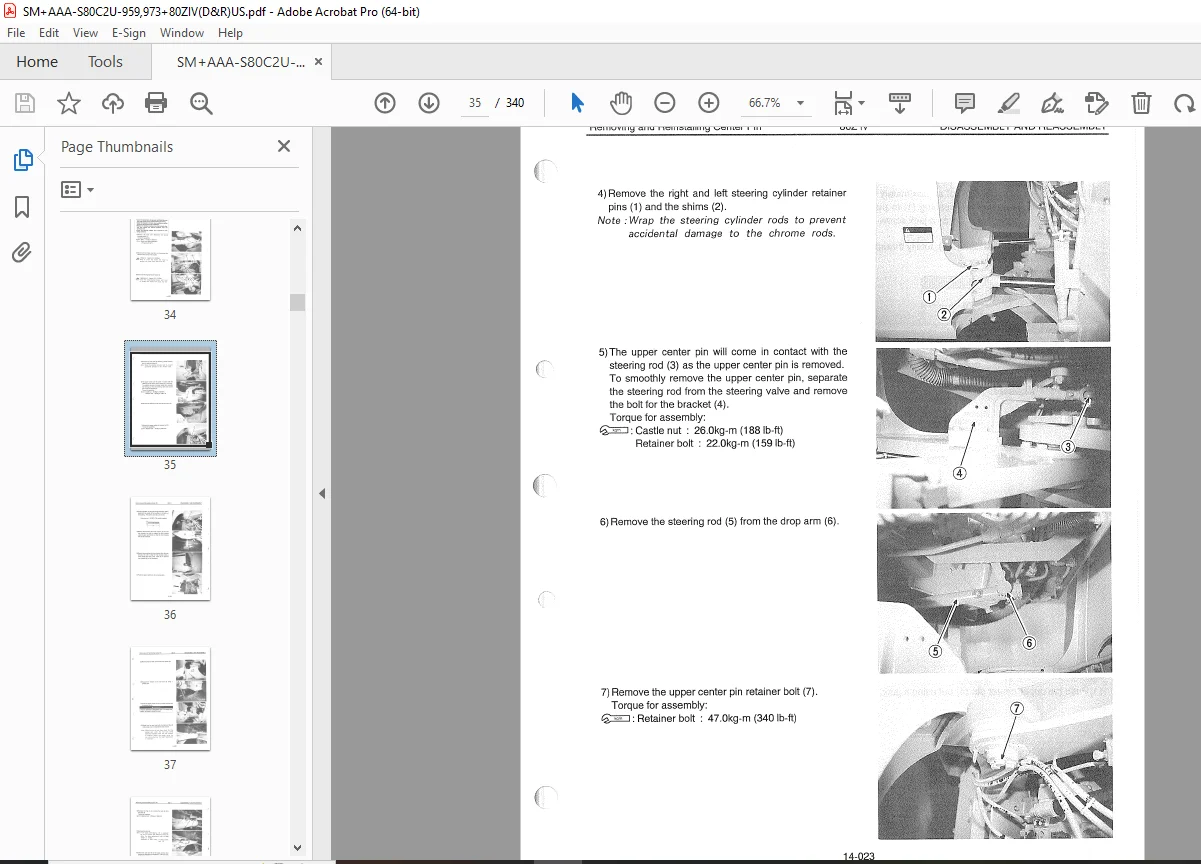

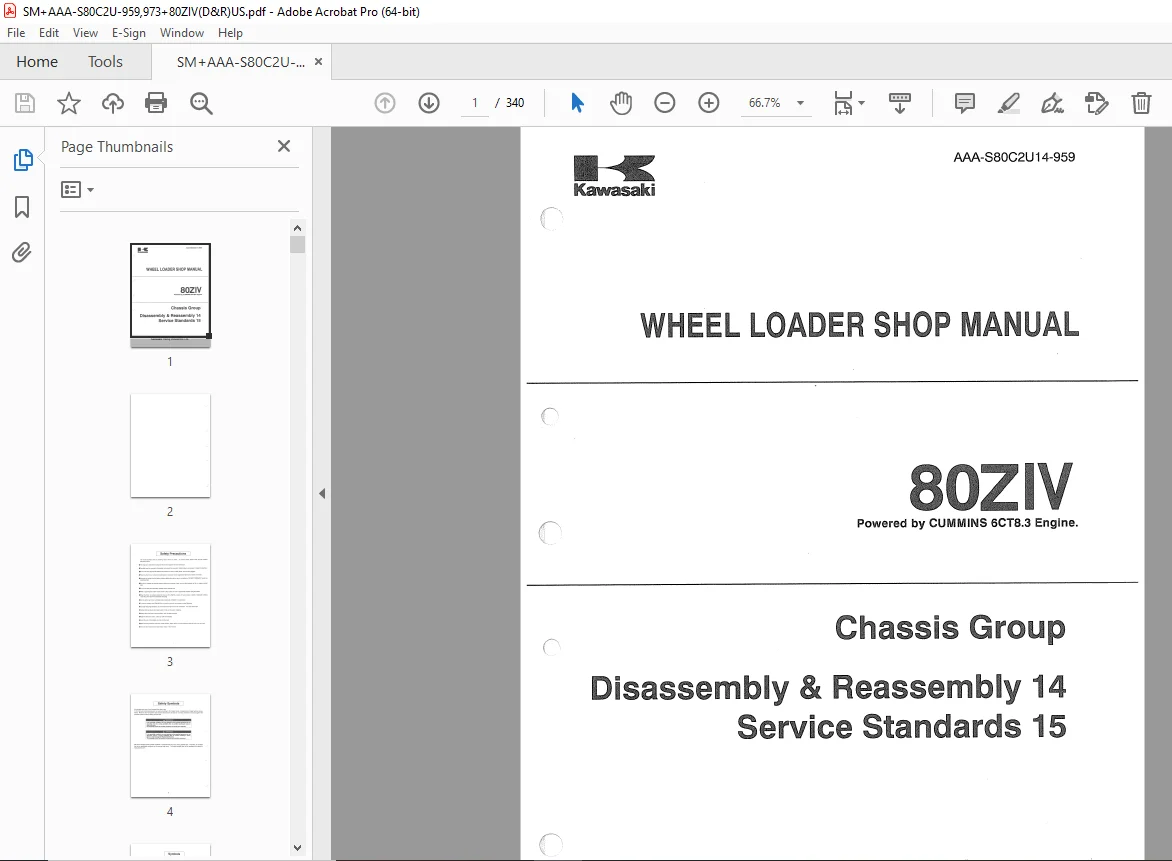

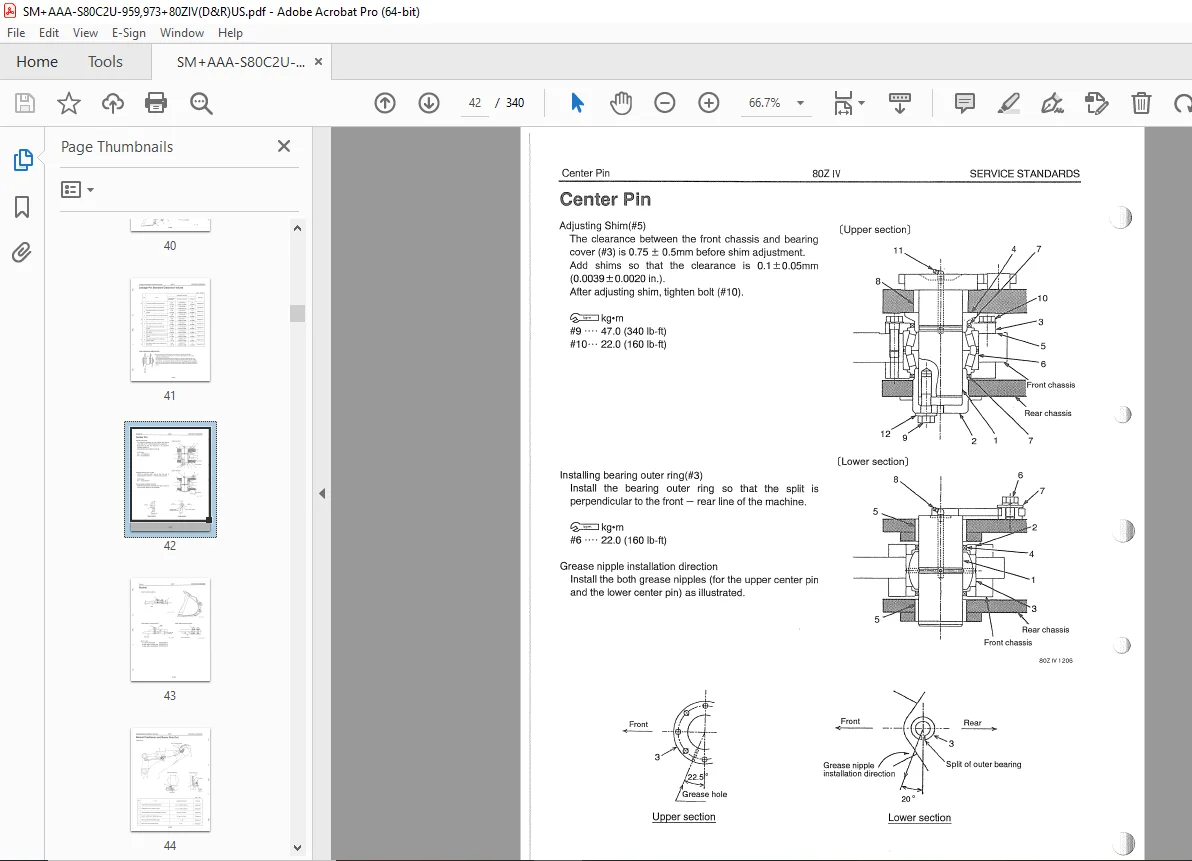

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kawasaki 80ZIV Wheel Loader(Disassembly &Reassembly Service Standards) Cummins 6CT8.3 Engine Shop Manual -PDF DOWNLOAD

PN AAA-S80C2U14-959

DISASSEMBLY AND REASSEMBLY
Removing and Reinstalling Deck
Removing and Reinstalling Fuel Tank
14-003
Removing and Reinstalling Hydraulic Tank
14-004
Removing and Reinstalling Engine Room
14-005
Removing and Reinstalling Cab
14-00
Removing and Reinstalling Cab and Floor Board
14-011
Removing and Reinstalling Boom
Removing and Reinstalling Bushing
Center Pin
Removing and Reinstalling Center Pin
Pilot Valve
SERVICE STANDARDS
45

DESCRIPTION:

Kawasaki 80ZIV Wheel Loader(Disassembly &Reassembly Service Standards) Cummins 6CT8.3 Engine Shop Manual -PDF DOWNLOAD

PN AAA-S80C2U14-959

Safety Precautions:
The most important point in providing repair service is safety. To ensure safety, observe the general cautions described below.
This manual is intended for properly trained and equipped service technicians.
●Carefully read this manual to thoroughly understand the operation method before you operate or repair the machine.
Be sure to wear appropriate clothes and protectors, such as safety boots, hard hat and goggles.
●Place the machine on a level and solid ground, and place chocks against the wheels to prevent movement.
●Remove the cable from the battery before starting the service work, and attach a “DO NOT OPERATE!” tag to the steering wheel.
Be sure to release the internal pressure before you remove a pipe, such as the hydraulic oil, air, or engine coolant pipe.
Be sure to apply the articulation stopper before starting work.
●While supporting the bottom of the chassis using a jack, be sure to support the chassis using the blocks.
When the boom or bucket is raised or when a unit is lifted by a crane, be sure to place a stand or adequate cribbing under the unit to prevent unexpected dropping.
●Do not start to work in an enclosed area if adequate ventilation is not provided.
To remove a heavy unit (20kg (40 lbs) or more), be sure to use a crane or other lifting tool.
Just after stopping operation, be careful not to directly touch a hot component. You may get burned.
Contact tire manufacturer’s local dealer for tire servicing and changing.
Always store the tools in good condition, and use them properly.
Keep the work area clean. Clean up spills immediately.
Avoid the use of flammable solvents and cleaners.
●When working outdoors keep work areas, ladders, steps, decks and work platforms clear of snow, ice, and mud.
Use safe work platforms to reach higher areas of the machine.

G.B 18/02/25
