Kawasaki 90ZV Wheel Loader Parts Catalogue 93313-00124 – PDF Parts Manual

Description

Kawasaki 90ZV Wheel Loader Parts Catalogue 93313-00124

The complete Kawasaki 90ZV wheel loader parts catalogue, document number 93313-00124, dated December 2006. This is the illustrated parts reference for the 90ZV covering chassis and electrical system, power system, torque converter and transmission, axle and differential, brake system, control system, loading hydraulics, bucket and accessories, cab, and the full range of factory options. Each assembly group is presented as an exploded illustration with a corresponding parts list showing symbol, part number, part name, unit quantity, applicable serial range, and remarks. This Kawasaki 90ZV parts catalogue is the reference for identifying and ordering the correct components across the covered chassis numbers.

File Details

• Manual type: Parts Catalogue
• Brand: Kawasaki
• Model: 90ZV Wheel Loader
• Document number: 93313-00124
• Edition: December 2006
• Language: English
• Page count: 720
• File format: PDF

Chapters Covered

• Chassis and Electrical System
• Power System
• Torque Converter and Transmission System
• Axle and Differential
• Brake System
• Control System
• Loading Hydraulic System
• Bucket, Accessories, Etc.
• Cab
• 90ZV Option
• Option — Hot Slag Spec.

Chassis and Electrical System

The largest section of the 90ZV parts catalogue, covering the structural and electrical assemblies. Front chassis group with lift arm, pin mount, and center pin; rear chassis group; fuel and oil tanks; floor board, seat stand, control box mount and covers; operation stand; deck and fender groups; steps and handrails; screen board and engine room mounts; radiator guard; rear grille; wind shield; cab cover mounts; seat group and suspension; grease piping for the front chassis; gauge group; electrical parts mounts; front and rear lamp mounts; battery mount; instrument panel and switch mount; and the complete electrical wiring for the front chassis, rear chassis, and floor board. Exploded views and part lists for every bracket, panel, latch, hinge, seal, and wiring run.

Power System

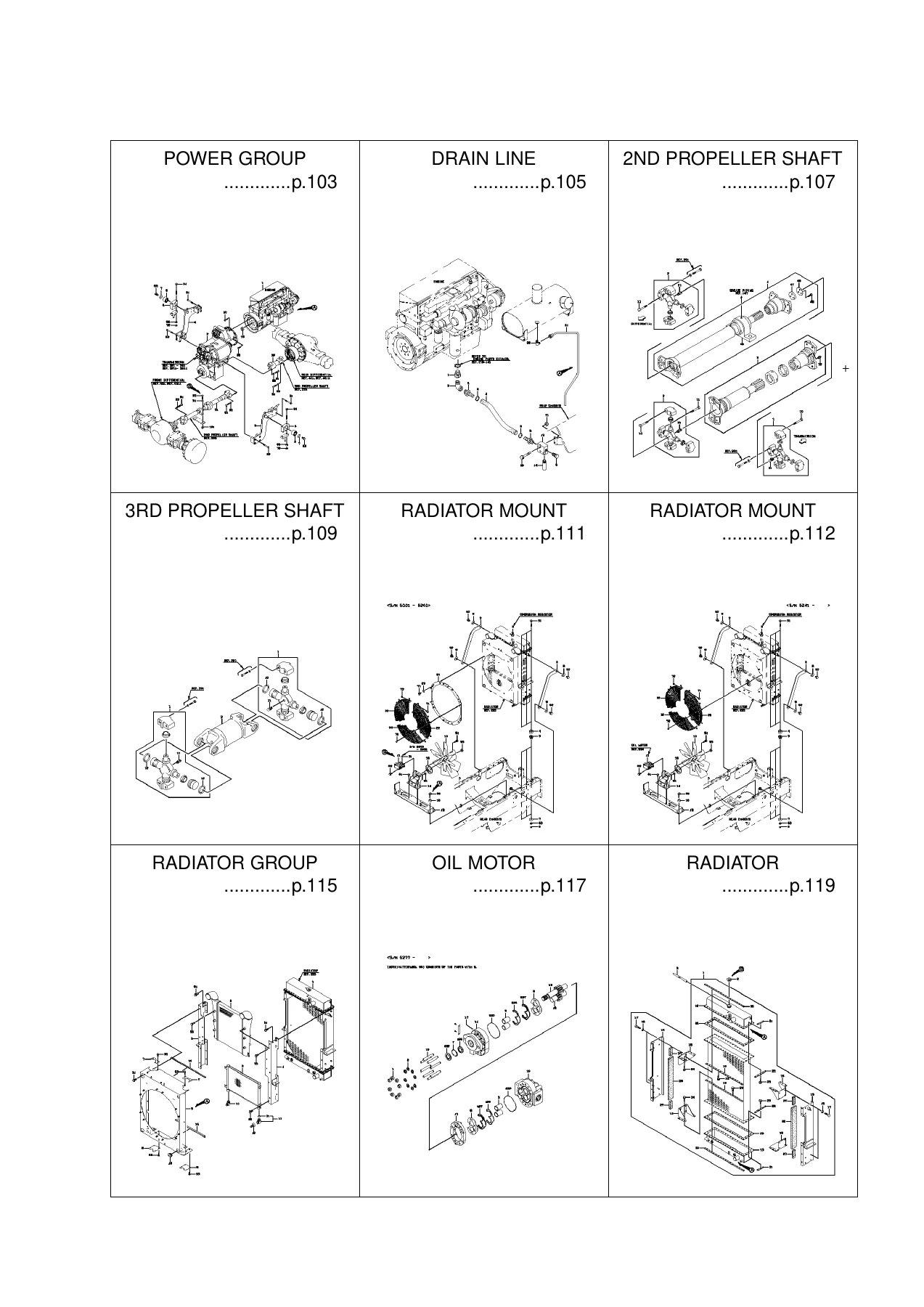

Power group, drain line, 2nd and 3rd propeller shafts, radiator mount and radiator group, oil motor, radiator assembly, water line, air cooler line, air cleaner group, exhaust group, and fuel line. Illustrated breakdowns of the cooling package, propeller shaft assemblies, air intake and exhaust routing, and all associated hoses, clamps, and mounting hardware for the 90ZV.

Torque Converter and Transmission System

Transmission hydraulic line, torque converter assembly and gear shaft with oil pump, transmission assembly, transmission case group, and the clutch packs: forward and 3rd clutch, 4th clutch, reverse and 2nd clutch, and 1st clutch. Output shaft group, transmission control valve, and the complete repair kit listings. Each clutch is shown in exploded view with friction and separation discs, pistons, rings, bearings, and snap rings called out by part number and serial applicability.

Axle and Differential

Front axle group, rear axle group, axle support groups, front differential, rear differential, and tire and disc wheel group. Detailed exploded illustrations of the axle housing, hub, planetary gears, internal gear hub, brake discs and pistons, differential housing, spiral bevel gear sets, spider gears, and bearing and seal arrangements. Includes both the standard and later serial variants with their respective part numbers.

Brake System

Brake lines for the floor board, rear chassis, axle, and accumulator; air breather mount; parking brake group; brake valve group; valve unit; brake valve assemblies; unloader valve; and the parking brake oil cylinder. Exploded views of the brake valve assemblies with springs, retainers, seals, pistons, and pedal linkages, plus the brake line routing for both chassis and axle circuits.

Control System

Steering wheel mount, shift lever group, tilt case group, valve control group, fuel control group, steering cylinder group, steering valve, orbitrol assembly, steering cylinder, bucket positioner group, and kickout group. Includes the steering column and universal joint assembly, pilot valve and lever assemblies, and the bucket positioner and kickout proximity switch mounts with their associated brackets and hardware.

Loading Hydraulic System

Loading hydraulic lines for the front chassis, rear chassis (suction and pump), steering cylinder, center pin, and oil cooler; hydraulic line for the fan motor; pilot hydraulic lines for the front chassis, rear chassis, and control box; oil pump; accumulator; control valve; pilot valve; stop valve; fan motor valve; lift cylinder; tilt cylinder; and fitting mount. Every hose, pipe, flange, O-ring, adapter, and fitting is listed with part number and quantity. The lift and tilt cylinder assemblies are broken down to individual components including pistons, rods, seals, bushings, and wear rings.

Bucket, Accessories, and Maintenance

Bucket for general purpose, bucket for light materials, marking group, cap mount, lock group, and repair and maintenance parts. Includes bucket assembly part numbers, cutting edges, side edges, wear plates, and replacement teeth where applicable, plus the lubrication and maintenance products listed for the 90ZV.

Cab

Cab mount, cab assembly, door group, front wiper and window washer group, electrical parts group, electrical wiring for the cab, mirror group, rear wiper and window washer group, cab accessories mount, cover group, air duct group for the floor board, damper assembly, air conditioner mount, air conditioner cover group, air conditioner line for the rear chassis, condenser and cover mount, compressor mount, air conditioner unit, blower assembly, and condenser. The cab section covers both the standard cab and the air-conditioned variant, with exploded views of the door hardware, glass, sash, latches, wiper linkages, heater and air conditioning ducting, and all interior trim.

Options and Special Specifications

The option section covers additional weight mounts, front large fenders, mirror groups, guard mounts, high lift arm specification including lift arm, tilt cylinders, hydraulic line and electrical wiring, grease piping, reversing fan components including fan motor hydraulic line, fan motor valve, motor mount, fan mount, cable mount, and brake line, dust-proof radiator group and radiator, limited slip differential mount for front and rear, three-way piping for front chassis hydraulic line, front pilot hydraulic line, pilot hydraulic line, hydraulic line, control valve, pilot valve, sequence valve, and the hydraulic single lever control group and pilot hydraulic line. A further section covers the hot slag specification with front chassis group, fuel tank, oil tank, floor board, step and handrail, rear grille, cover mount, grease piping, front lamp mount, electrical wiring for front chassis, rear chassis, and floor board, switch mount for emergency engine stop, power group, 3rd propeller shaft, water line, air cleaner group, fuel line, hydraulic line and components for the reversing fan, brake lines, transmission hydraulic line, output shaft group, front axle group, rear differential, parking brake release system, bucket positioner group, loading and pilot hydraulic lines, mirror group, window glass mount, cab accessories mount, and cab option parts.

Why This Parts Catalogue Matters

Ordering the wrong part for a wheel loader is expensive in both time and money. The Kawasaki 90ZV parts catalogue removes guesswork by tying every component to an exploded illustration and a specific part number, with serial applicability noted where the machine changed over production. Whether you are replacing a worn tilt cylinder seal, rebuilding a brake valve, tracing a hydraulic line, or sourcing a cab latch, the correct part number is here — matched to the chassis number of the machine. The 93313-00124 catalogue covers both the standard 90ZV and the option configurations, so it remains useful across the full range of machines built under this document.

Get the Complete 90ZV Parts Reference — Instant PDF
