Kioti Daedong CK25 CK27 CK30 CK35 Tractor Supplement Factory Service Repair Manual

FILE DETAILS:

Kioti Daedong CK25 CK27 CK30 CK35 Tractor Supplement Factory Service Repair Manual

LANGUAGE:ENGLISH
PAGES:491
DOWNLOADABLE:YES
FILE TYPE:PDF

KIOTI DAEDONG CK25 CK27 CK30 CK35 TRACTOR SUPPLEMENT FACTORY SERVICE REPAIR MANUAL:

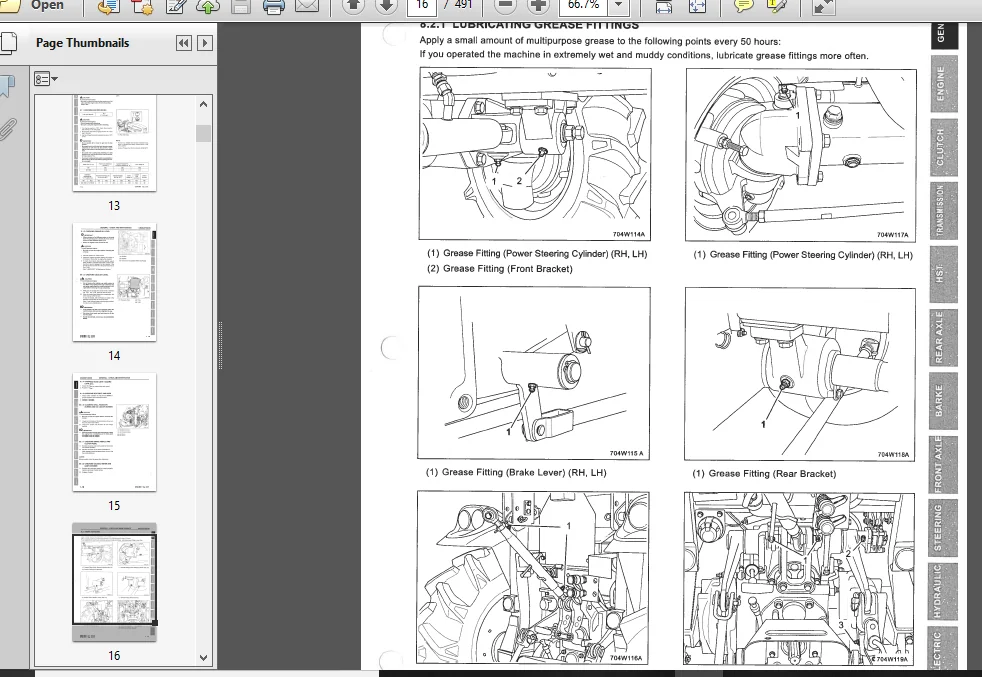

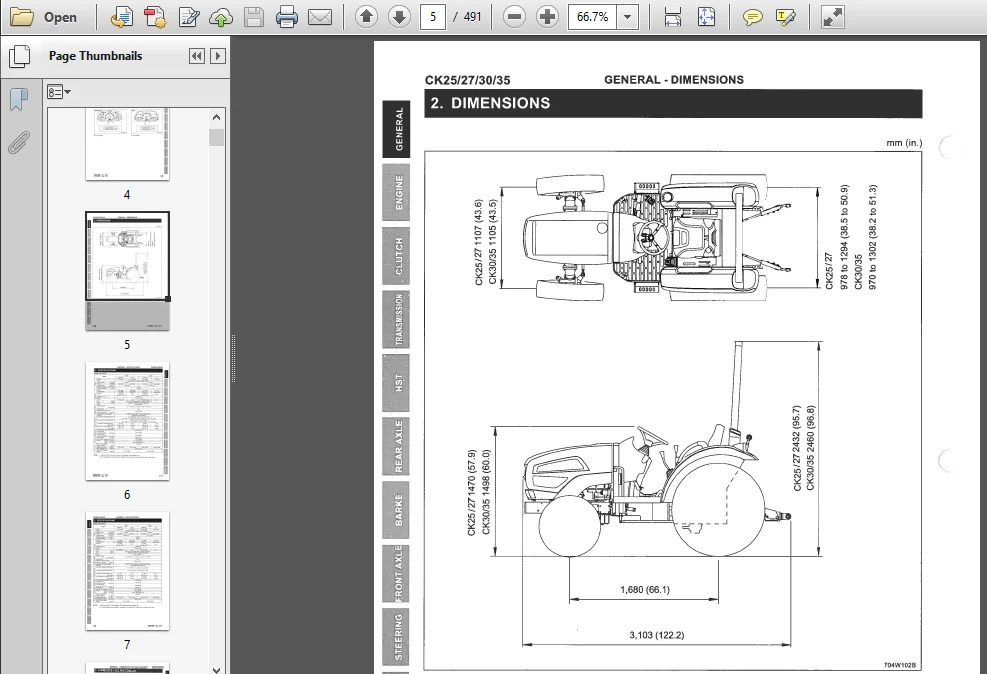

IMAGES PREVIEW OF THE MANUAL:

SAMPLE PAGE FROM THE MANUAL:

Kioti Daedong CK25 CK27 CK30 CK35 Tractor Supplement Factory Service Repair Manual

• The double-spool remote valve also contains a spring- loaded detent mechanism to provide a float position for loader operation. in float position, fluid is free to flow between piston and rod sides or the loader lift cylinder allowing the lift arms to float over uneven terrain.
• The double-spool remote control valve contains check valves located in the valve spool passages. The check valves function to hold the loader lift and bucket cylinders in a fixed position while the valve is being initially operated to prevent dropping the load.
• In operation, the check valve is retained on its seat by spring force plus the back side pressure of fluid contained in the loader cylinder. During initial spool movement, pump-pres- surized fluid fills the passage to the check valve, and the remaining pump fluid flows to the sump through the open center passage.
• With continued spool movement, the open center passage closes. Pump pressure increases on the force of the check valve, overcoming the backside pressure, and causes the check valve to open. Pump fluid flow then flows to the cylinder. This action prevents any backflow out of the cylinder and provides a smooth-lifting action of the loaden

TABLE OF CONTENTS:

Kioti Daedong CK25 CK27 CK30 CK35 Tractor Supplement Factory Service Repair Manual

A01 Supplement..........  1
	P01 Supplement......  1
	P02 Supplement...... 71
	P03 Supplement...... 72
A04 Safety..............114
A05 General.............126
A06 Engine..............161
	P06 Engine..........161
	P06-1 Engine........194
	P07 Engine..........195
A08 Clutch..............237
A09 Transmission........250
	P09 Transmission....250
	P10 Transmission....253
	P11 Transmission....254
	P12 Transmission....255
A13 HST.................302
	P13 HST.............302
	P14 HST.............304
	P15 HST.............305
A16 Rear Axle...........334
A17 Brake...............344
A18 Front Axle..........357
A19 Steering............379
A20 Hydraulic...........405
	P20 Hydraulic.......405
	P21 Hydraulic.......408
	P22 Hydraulic.......409
A23 Electric............454
	P23 Electric........454
	P24 Electric........455
	P25 Electric........456
	P26 Electric........457
A27 Index...............485

PLEASE NOTE:

⦁ This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
⦁ You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
⦁ Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
