Kioti CK25 CK30 Parts Manual – PDF

Description

Kioti CK25 CK30 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Kioti CK25 CK30 Parts Manual – PDF DOWNLOAD

Language : English
Pages : 552
Downloadable : Yes
File Type : PDF

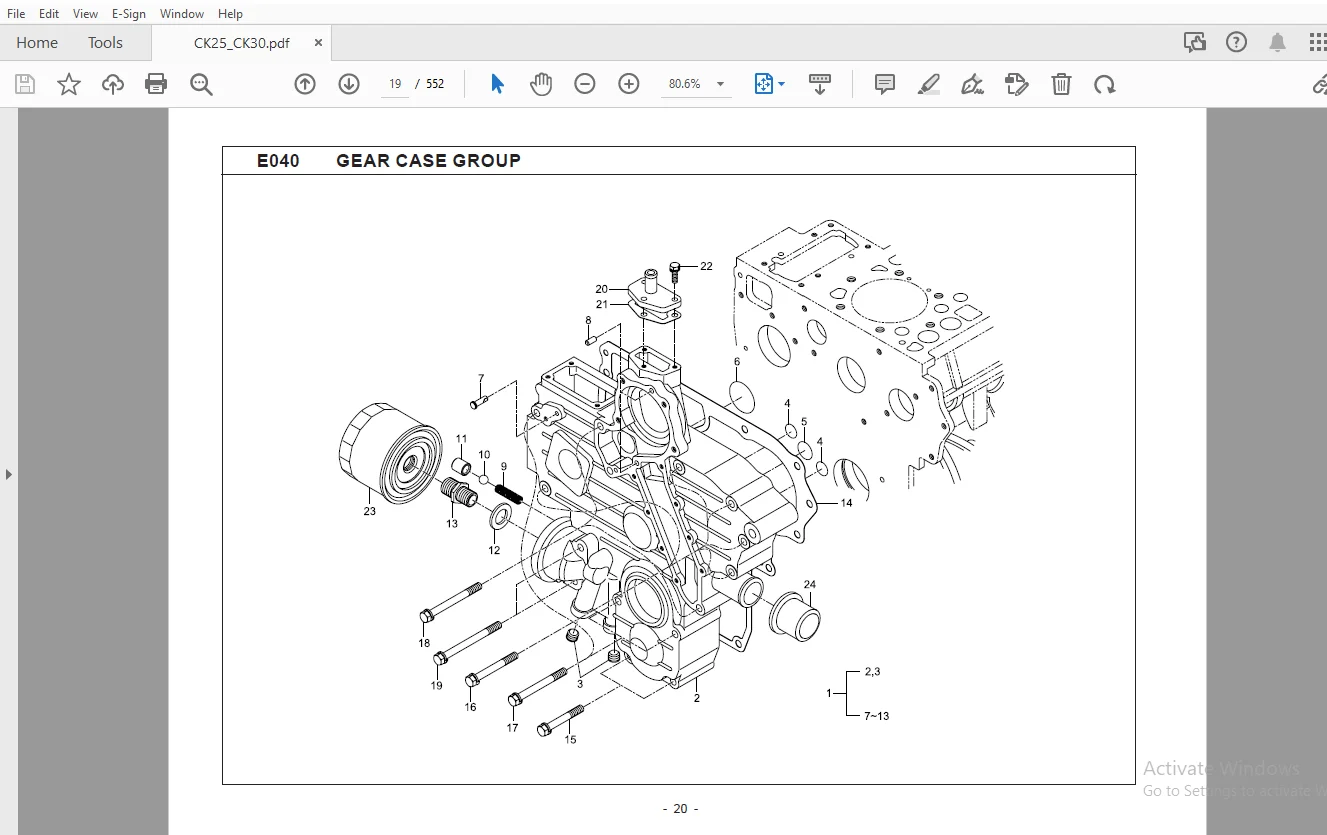

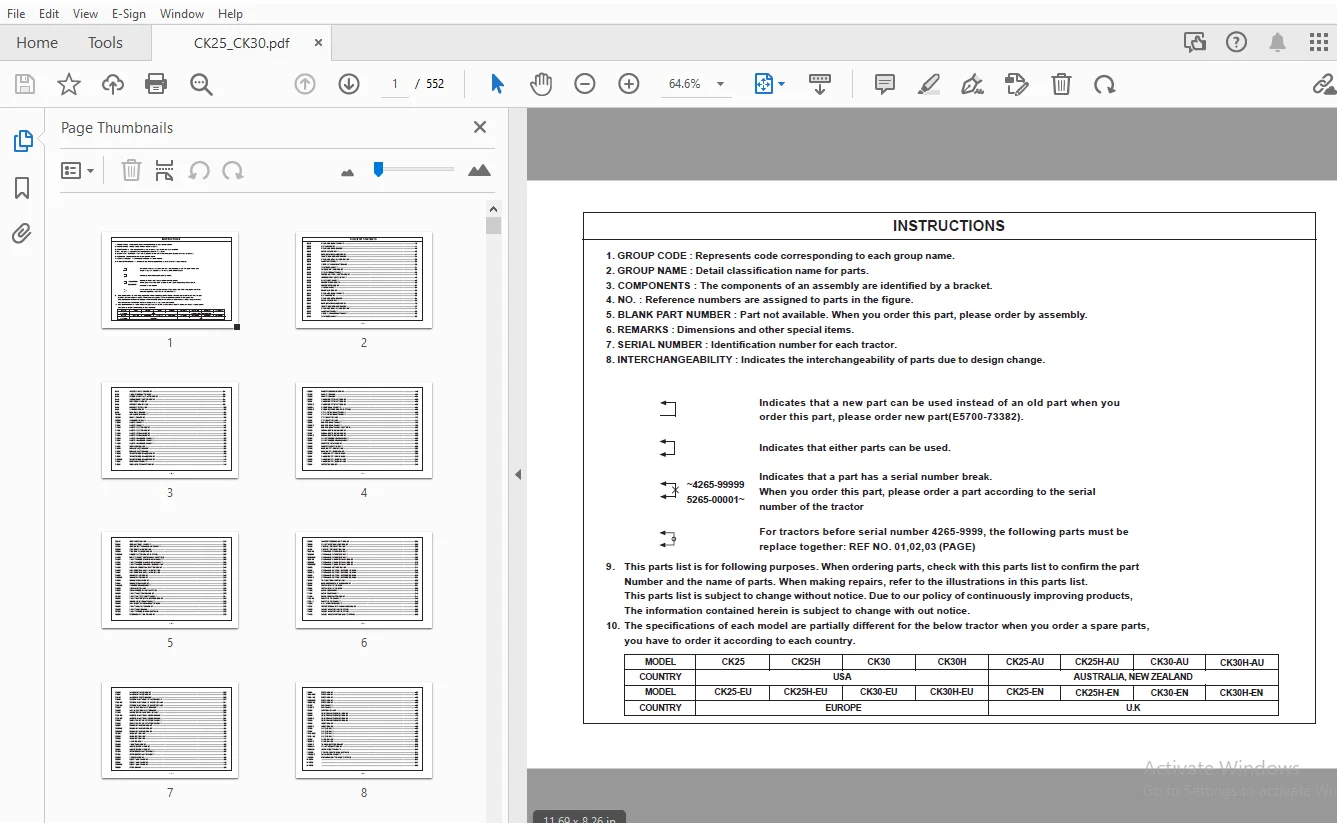

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kioti CK25 CK30 Parts Manual – PDF DOWNLOAD

E010 CYLINDER BLOCK GROUP 10
E020 OIL PAN GROUP 14
E030 CYLINDER HEAD GROUP 16
E040 GEAR CASE GROUP 18
E050 MAIN BEARING CASE GROUP 22
E060 VALVE, ROCKER ARM GROUP 24
E070 CYLINDER HEAD COVER GROUP 26
E080 CAMSHAFT GROUP 28
E090 PISTON CRANKSHAFT GROUP 30
E100 FLYWHEEL GROUP 34
E110 NOZZLE HOLDER GROUP 36
E120 FUEL CAMSHAFT GROUP 38
E130 SPEED CONTROL LEVER GROUP 42
E140 ENGINE STOP LEVER GROUP 46
E150 GOVERNOR GROUP 48
E160 WATER PUMP GROUP 50
E170 WATER PIPE GROUP 52
E180 DYNAMO GROUP 54
E190 MANIFOLD GROUP 56
E015 CYLINDER BLOCK GROUP 58
E025 OIL PAN GROUP 62
E035 CYLINDER HEAD GROUP 64
E045 GEAR CASE GROUP 66
E055 MAIN BEARING CASE GROUP 70
E065 VALVE, ROCKER ARM GROUP 72
E075 CYLINDER HEAD COVER GROUP 74
E085 CAMSHAFT GROUP 76
E095 PISTON, CRANKSHAFT GROUP 78
E105 FLYWHEEL GROUP 82
E115 NOZZLE, HOLDER GROUP 84
E125 FUEL, CAMSHAFT GROUP 86
E135 SPEED CONTROL PLATE GROUP 90
E145 ENGINE STOP LEVER GROUP 94
E155 GOVERNOR GROUP 96
E165 WATER PUMP GROUP 98
E175 WATER PIPE GROUP 100
E185 DYNAMO GROUP 102
E195 MANIFOLD GROUP 104
T010M AIRCLEANER GROUP 106
T020M MUFFLER GROUP 108
T030M RADIATOR GROUP 110
T100M CLUTCH GROUP 114
T100H CLUTCH GROUP 116
T110M CLUTCH LEVER GROUP 118
T110H CLUTCH LEVER GROUP 120
T120M CLUTCH PEDAL GROUP 122
T120H CLUTCH PEDAL GROUP 124
T130M CLUTCH HOUSING 1 GROUP 126
T130H CLUTCH HOUSING 1 GROUP 128
T140M CLUTCH HOUSING 2 GROUP 130
T150H HST CASE GROUP 132
T160M MIDDLE CASE GROUP 134
T160H MIDDLE CASE GROUP 136
T170M TRANSMISSION CASE GROUP 138
T170H TRANSMISSION CASE GROUP 140
T170ME TRANSMISSION CASE GROUP 142
T180H MAIN SHAFT GROUP 144
T190H HST OUTPUT SHAFT GROUP 146
T200M SHUTTLE SYSTEM GROUP 148
T210M SHAFT 1 GROUP 152
T220M SHAFT 2 GROUP 154
T230M RANGE SHIFT SHAFT GROUP 158
T230H RANGE SHIFT SHAFT GROUP 160
T230ME RANGE SHIFT SHAFT GROUP 162
T235MA CREEP SHAFT GROUP 164
T235MB CREEP SYSTEM GROUP (OPTION) 166
T240M PTO DRIVING SHAFT GROUP 168
T240H PTO DRIVING SHAFT GROUP 170
T250M PTO SHAFT GROUP 172
T250H PTO SHAFT GROUP 174
T260M MID PTO SHAFT GROUP 176
T260ME MID PTO SHAFT GROUP 178
T260B MID PTO SHAFT GROUP (OPTION) 182
T270M SPIRAL BEVEL GEAR GROUP 186
T270H SPIRAL BEVEL GEAR GROUP 188
T270ME SPIRAL BEVEL GEAR GROUP 190
T280M FRONT WHEEL DRIVING GROUP 192
T280H FRONT WHEEL DRIVING GROUP 194
T290M SHUTTLE FORK GROUP 196
T300M SHUTTLE LEVER GROUP 198
T310M MAIN SHIFT FORK GROUP 202
T320M MAIN SHIFT LEVER GROUP 206
T330M RANGE SHIFT FORK GROUP 208
T330H RANGE SHIFT FORK GROUP 210
T340M RANGE SHIFT LEVER GROUP 212
T340H RANGE SHIFT LEVER GROUP 214
T350H HST ASS’Y GROUP 216
T351H HST PARTS GROUP 218
T360H HST CONTROL 1 GROUP 224
T370H HST INNER HYDRAULIC LINE GROUP 226
T380M PTO SHIFT FORK GROUP 228
T390M PTO SHIFT LEVER GROUP 230
T400ME CREEP LEVER GROUP (OPTION) 232
T410M MID PTO SHIFT LEVER GROUP (OPTION) 234
T420M FRONT WHEEL DRIVING FORK GROUP 236
T420H FRONT WHEEL DRIVING FORK GROUP 238
T430M FRONT WHEEL DRIVING LEVER GROUP 240
T440M REAR DIFFERENTIAL SYSTEM GROUP 242
T450M DIFFERENTIAL LOCK FORK GROUP 244
T450H DIFFERENTIAL LOCK FORK GROUP 246
T460M BRAKE CASE GROUP 248
T460ME BRAKE CASE GROUP 252
T470M BRAKE PEDAL GROUP 256
T470H BRAKE PEDAL GROUP 260
T475ME PARKING BRAKE GROUP 264
T480M REAR AXLE GROUP 266
T490M REAR WHEEL GROUP (OPTION) 268
T500M FRONT AXLE FRAME GROUP 270
T510M FRONT AXLE SUPPORT GROUP 274
T520M FRONT DIFFERENTIAL SYSTEM GROUP 276
T530M BEVEL PINION SHAFT GROUP 278
T540M DIFFERENTIAL GEAR SHAFT GROUP 280
T550M FRONT AXLE CASE GROUP 282
T560M FRONT AXLE GROUP 286
T570M FRONT WHEEL GROUP (OPTION) 288
T580M STEERING CYLINDER GROUP 290
T590M POWER STEERING UNIT GROUP 294
T600M FRONT AXLE BRACKET GROUP 296
T610M PROPELLER SHAFT GROUP 298
T610H PROPELLER SHAFT GROUP 300
T620-1M HYDRAULIC CYLINDER GROUP 302
T620-2M HYDRAULIC CYLINDER GROUP 304
T620-2ME HYDRAULIC CYLINDER GROUP 306
T630-1M HYDRAULIC CYLINDER BODY GROUP 308
T630-2M HYDRAULIC CYLINDER BODY GROUP 310
T630-2ME HYDRAULIC CYLINDER BODY GROUP 312
T640M HYDRAULIC LIFT ARM GROUP 314
T650M HYDRAULIC CONTROL SYSTEM 1 GROUP 316
T650ME HYDRAULIC CONTROL SYSTEM 1 GROUP 318
T660M HYDRAULIC CONTROL SYSTEM 2 GROUP 320
T660ME HYDRAULIC CONTROL SYSTEM 3 GROUP 324
T670M TOP LINK BRACKET GROUP 328
T680M MAIN DISTRIBUTOR VALVE GROUP 330
T690H HST CONTROL 2 GROUP 334
T700H HST CONTROL 3 GROUP 338
T710M GEAR PUMP GROUP 340
T710H GEAR PUMP GROUP 342
T711M GEAR PUMP PARTS GROUP 344
T720-1M SUCTION PIPE GROUP 346
T720-1H SUCTION PIPE GROUP 348
T730M OIL FILLER PIPE GROUP 350
T735H HST EXTERNAL HYDRAULIC LINE GROUP 352
T740M RELIEF VALVE GROUP (OPTION) 356
T740H RELIEF VALVE GROUP (OPTION) 358
T741M RELIEF VALVE PARTS GROUP (OPTION) 360
T750M JOYSTICK VALVE GROUP 362
T750H JOYSTICK VALVE GROUP 366
T751M JOYSTICK PARTS GROUP 370
T760M EXTERNAL HYDRAULIC VALVE GROUP 372
T760-1M EXTERNAL HYDRAULIC VALVE 1 GROUP 374
T760-2M EXTERNAL HYDRAULIC VALVE 2 GROUP 378
T765M DOUBLE ACTING VALVE GROUP 382
T766M DOUBLE ACTING VALVE GROUP 386
T770M DOWN SPEED CONTROL GROUP 390
T780-1M POSITION CONTROL LEVER GROUP 392
T780-2M POSITION CONTROL LEVER GROUP 394
T790M THREE POINT LINK SYSTEM 1 GROUP 396
T795M THREE POINT LINK SYSTEM 2 GROUP 400
T800M SWING DRAWBAR GROUP 402
T800ME SWING DRAWBAR GROUP 404
T805ME SWING DRAWBAR GROUP 406
T810M BONNET 1 GROUP 408
T820M BONNET 2 GROUP 410
T830M BONNET 3 GROUP 414
T840M FRAME GROUP 416
T850M FUEL TANK GROUP 422
T860M ACCELERATOR GROUP 426
T860H ACCELERATOR GROUP 430
T870M INSTRUMENT COVER GROUP 432
T870H INSTRUMENT COVER GROUP 434
T880M FENDER GROUP 436
T890M SEAT FLOOR GROUP 438
T890H SEAT FLOOR GROUP 442
T890ME SEAT FLOOR GROUP 446
T900M STEP GROUP 450
T900H STEP GROUP 452
T900-1ME STEP GROUP 454
T900-1HE STEP GROUP 456
T900-2ME STEP GROUP 458
T900-2HE STEP GROUP 460
T910M SEAT GROUP 462
T910ME SEAT GROUP 464
T920M BATTERY GROUP 466
T930M ELECTRICAL SYSTEM 1 GROUP 468
T940M ELECTRICAL SYSTEM 2 GROUP 470
T940ME ELECTRICAL SYSTEM 2 GROUP 472
T950M ELECTRICAL SYSTEM 3 GROUP 474
T960M LIGHT GROUP 478
T960ME LIGHT GROUP 482
T970M LABEL GROUP 486
T970H LABEL GROUP 490
T970-1ME LABEL GROUP 494
T970-1HE LABEL GROUP 498
T980M ROPS GROUP 502
T980ME ROPS GROUP 506
T990ME TOWING SYSTEM GROUP 508
T1000-1A FRONT WEIGHT GROUP 510
T1000-2A REAR WEIGHT GROUP 512
T1020M 7 PIN SOCKET GROUP (OPTION) 514
T1030ME BACK MIRROR GROUP 516
T1050M WORKING LIGHT GROUP (OPTION) 518
INDEX1 521
INDEX2 547
INDEX3 553
