Kioti MEC2210 Parts Manual – PDF

Description

Kioti MEC2210 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Kioti MEC2210 Parts Manual – PDF DOWNLOAD

Language : English
Pages : 158
Downloadable : Yes
File Type : PDF

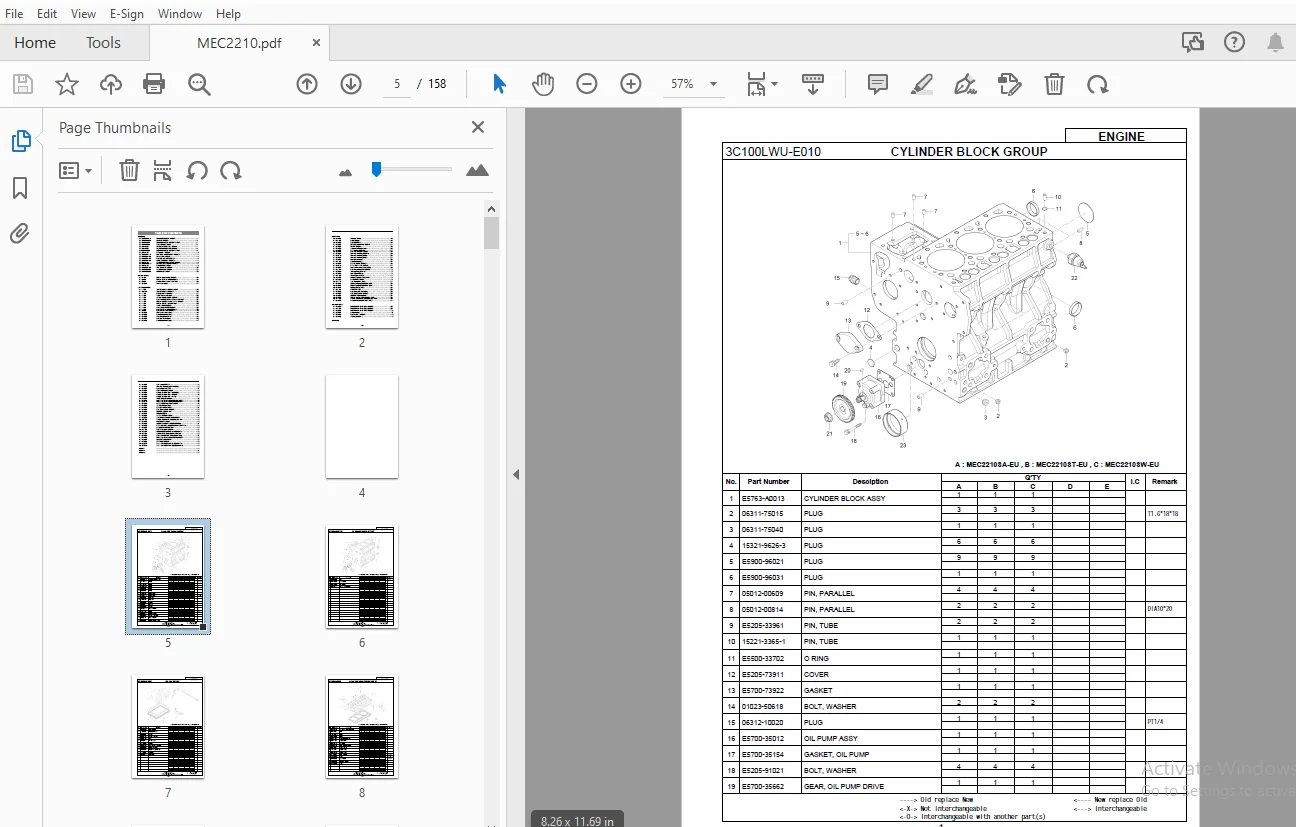

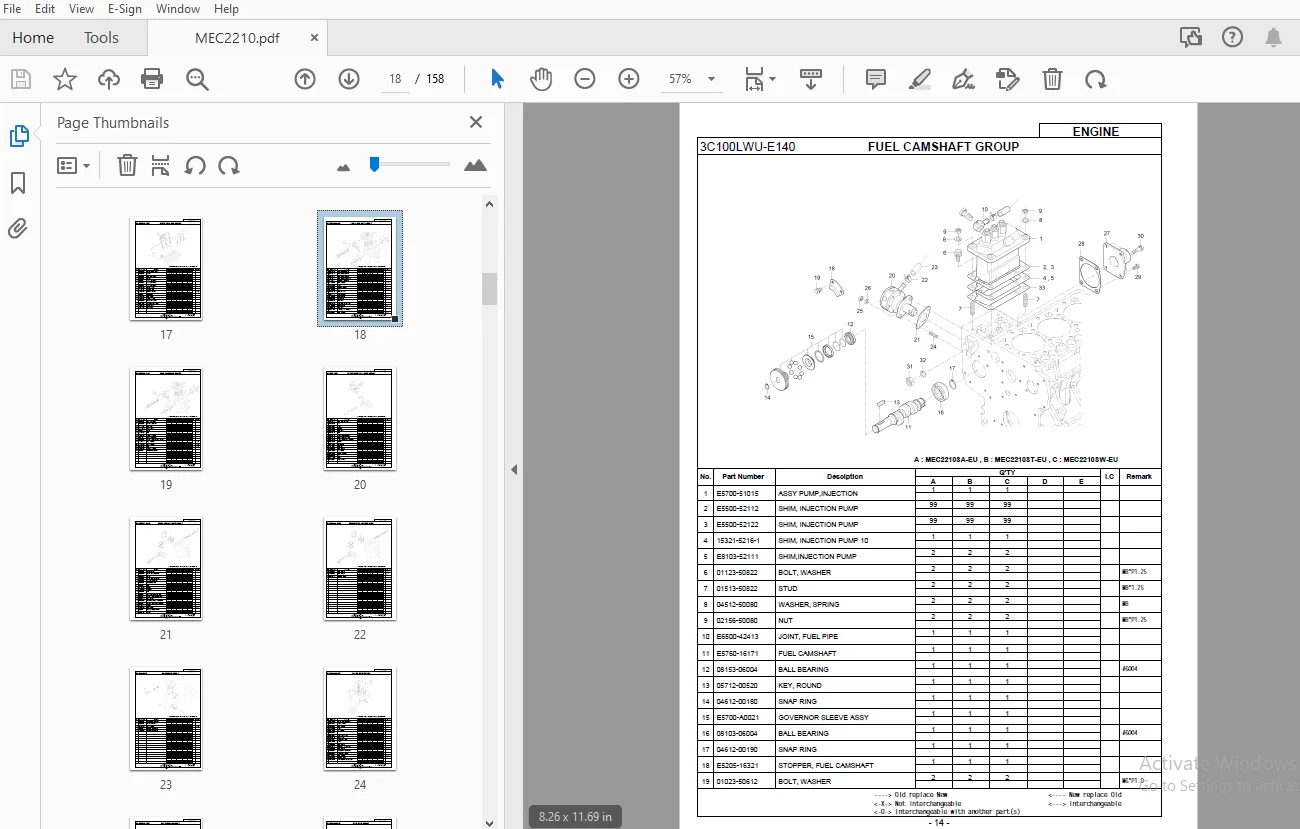

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kioti MEC2210 Parts Manual – PDF DOWNLOAD

ENGINE]
3C100LWU-E010 CYLINDER BLOCK GROUP 1
3C100LWU-E020 OIL PAN GROUP 3
3C100LW-E030 CYLINDER HEAD COVER GROUP 4
3C100LW-E040 GEAR CASE GROUP 5
3C100A-E050 MAIN BEARING CASE GROUP 7
3C100A-E080 VALVE ROCKER ARM GROUP 8
3C093LW-E090 CYLINDER HEAD COVER GROUP 9
3C100A-E100 CAMSHAFT GROUP 10
3C100LWU-E110 PISTON & CRANKSHAFT GROUP 11
3C100LWU-E120 FLYWHEEL GROUP 12
3C100LWU-E130 NOZZLE HOLDER GROUP 13
3C100LWU-E140 FUEL CAMSHAFT GROUP 14
3C100A-E150 SPEED CONTROL LEVER GROUP 16
3C100LW-C-E160 ENGINE STOP LEVER GROUP 17
3C100A-E170 GOVERNOR GROUP 19
3C100LWU-E190 WATER HOSE GROUP 20
3C100LWU-E200 ALTERNATOR GROUP 21
3C100LWU-E220 MANIFOLD GROUP 22
[FRONT AXLE]
U1-T210A FRONT AXLE CASE GROUP 23
U1-T220A FRONT DIFF SYSTEM GROUP 24
U1-T230A BEVEL PINION SHAFT GROUP 26
U1-U0550A Front Axle Group 27
[TRANSMISSION]
U1-T100A TRANSMISSION CASE GROUP 28
U1-U0100A TRANSMISSION GROUP 30
U1-T110A DRIVE SHAFT GROUP 31
U1-T120A SHIFT SHAFT GROUP 32
U1-T130A SPRIAL BEVEL GEAR GROUP 33
U1-T140A REAR WHEEL DRIVING SHAFT GROUP 34
U1-T150A FRONT WHEEL DRIVE SHAFT GROUP 35
U1-T160A FRONT DRIVE FORK GROUP 36
U1-T170A SHIFT FORK GROUP 37
U1-T180A REAR AXLE CASE GROUP 38
U1-T190A REAR DIFF SYSTEM GROUP 39
U1-T200A REAR DIFF FORK GROUP 42
U1-U0230A Front Axle Drive Group 43
U1-U0235A Rear Differential Group 44
U1-U0240A Rear Axle Drive Group 45
U1-U0245A Propeller Shaft Group 46
U1-U0300A Rear Differential Group 47
[CHASSIS]
U3-U0200A Structure Group 48
U1-U0210A Guard Group 49
U3-U0220A ROPS GROUP 50
U1-U0250A ENGINE MOUNTING GROUP 51
U1-U0260A LEVER GROUP 53
U1-U0270A Accelerator Pedal Group 56
U1-U0284A CVT Group, DC(STD) 57
U3-U0287A CLUTCH COVER GROUP 58
U1-U0290A Wheel & Tire Group(WORK) 59
U1-U0291A Wheel & Tire Group(Mud) 60
U1-U0292A Wheel & Tire Group(Turf) 61
U1-U0400A Front Break Group 62
U1-U0410A Rear Break Group 64
U1-U0420A BRAKE PEDAL GROUP 66
U1-U0431A PACKING BACKE GROUP 67
U1-U0500A Front Suspension Group(STD) 68
U1-U0510A Rear Suspension Group(STD) 70
U1-U0520A Steering Group(KIOTI) 73
U1-U0700A Fuel System Group 75
U1-U0710A Intake System Group 77
U3-U0720A Exhaust System Group(STD) 78
U1-U0730A RADIATOR GROUP 79
U3-U0811A Seat Group(With SUS) 81
U1-U0857A Label Group(MEC2200-SW-EU) 82
U3-U0857A Label Group(MEC2210-SW-EU) 84
U3-U0900A Molding Group(STD) 86
U1-U0910A HOOD GROUP 88
U1-U0922A Deck Group(STD-BLACK) 90
U1-U0980A OPTIONAL LAMP GROUP 92
U3-U0990A MIRROR GROUP(STD) 94
U3-U1020A FRONT HITCH GROUP(EEC)- STD 95
U3-U1110A SWING DRAWBAR GROUP(EEC)- STD 96
U1-U1680A NUMBER PLATE GROUP (STD) 97
[ELECTRICAL]
U1-U0600A ELECTRICAL SYSTEM 1 GROUP 98
U1-U0610A ELECTRICAL SYSTEM 2 GROUP 99
U1-U0620A ELECTRICAL SYSTEM 2 GROUP 100
U1-U0630A Battery Group 101
U1-U0640A HEAD LIGHT GROUP 102
U1-U0800A IP Group(KIOTI) 103
U1-U1000A Gas Spring GROUP 105
U1-U3290A Wheel & Tire Group(OPT-WORK) 106
U1-U3820A HEAD REST GROUP 107
U3-U3830A REAR SCREEN GROUP 108
U1-U3900A Hood(KIOTI OPTION – ORANGE) 109
U1-U3902A Hood(KIOTI OPTION – GREEN) 110
U1-U3903A Hood(KIOTI OPTION – BLUE) 111
U3-U3930A WIND SHIELD GROUP 112
U1-U3940A HYDRAULIC SYSTEM GROUP (1)-OPT 113
U1-U3941A HYDRAULIC SYSTEM GROUP (2)-OPT 118
U1-U3950A HAND THROTTLE GROUP-OPT 119
U1-U3960A SKID PLATE GROUP 120
U1-U3970A CANOPY GROUP-OPT 121
U1-U3980A OPTIONAL LAMP GROUP 122
U3-U3990A MIRROR GROUP-OPT 125
U1-U5030A WINCH GROUP 126
U1-U5050A SPARK ARREST ASSY 127
U1-U5080A SUSP DUST SHIELD GROUP-OPT 128
U3-U5110A SWING DRAWBAR GROUP(EEC)-OPT 129
U1-U5650A FOG LAMP GROUP 130
U1-U5660A WORKING LAMP GROUP(OPTION) 131
U1-U5670A PARKING LOCK BUZZER GROUP(OPTION) 132
U1-U5680A NUMBER PLATE GROUP 133
U3-U5710A BEACON LIGHT GROUP 134
U3-U5730A HIGH MOUNT BRAKE LAMP GROUP 135
U3-U5750A ALARM SYSTEM BACKUP, GROUP 136
U1-U5920A DECK EXTENSION GROUP(OPTION) 137
U1-U5940A HYDRAULIC SYSTEM GROUP (3)-OPT 138
U1-U5950A OIL COOLER GROUP 139
U1-U5960A SPRAYER GROUP 140
U3-U5972A SOFT CABIN(OPTION-BLACK-KIOTI) 142
U3-U5973A SOFT CABIN(OPTION-DESERT-KIOTI) 143
INDEX 1 144
INDEX 2 151
INDEX 3 153

S.S 08/24
