Kobelco SK115DZLC IV SK120LC IV Hydraulic Excavator Service Manual - PDF DOWNLOAD

Kobelco SK115DZLC IV SK120LC IV Hydraulic Excavator Service Manual - PDF DOWNLOAD - Image 2

Kobelco SK115DZLC IV SK120LC IV Hydraulic Excavator Service Manual – PDF DOWNLOAD

Name: Kobelco SK115DZLC IV SK120LC IV Hydraulic Excavator Service Manual - PDF DOWNLOAD
SKU: 143869
Availability: InStock
Rating: 5.00 (1 reviews)

5.00 out of 5

(1 customer review)

Original price was: $93.95.Current price is: $32.95.

Kobelco SK115DZLC IV SK120LC IV Hydraulic Excavator Service Manual – PDF DOWNLOAD

Applicable: SK115DZLC IV YWU1001~
SK120LC IV LPU1001~, YPU1001~
S5LPU0005E(PLM)

Category: Kobelco Tags: Kobelco, Kobelco SK115DZLC IV SK120LC IV Hydraulic Excavator Service Manual, Kobelco SK115DZLC IV SK120LC IV Hydraulic Excavator Service Manual - PDF DOWNLOAD Vendor: Fuel System Manuals

⚡

Instant PDF Download

Available immediately

💾

Save to Your Device

Download & keep forever

🛡️

Antivirus Scanned

100% virus-free

🌍

Trusted Worldwide

175,000+ customers

Description
Reviews (1)

Description

Kobelco SK115DZLC IV SK120LC IV Hydraulic Excavator Service Manual – PDF DOWNLOAD

DESCRIPTION:

Kobelco SK115DZLC IV SK120LC IV Hydraulic Excavator Service Manual – PDF DOWNLOAD

Applicable: SK115DZLC IV YWU1001~
SK120LC IV LPU1001~, YPU1001~
S5LPU0005E(PLM)

FOREWORD:

This is the shop manual for KOEELCO hydraulic excavator .Contained is the necessary technical data cementing the maintenance and repair of this model. Th is divided into the following four major sections: GENERAL, SYSTEM COMPONENTS and PROCEDURE.

When checking or repairing the machine we suggest that you refer to this manual carefully. We hope that reference to this manual will help to maintain it high level of working efficiency and reliability. For further details on maintenance and checks refer to the “OPERATORS MANUAL” which has been supplied with the machine.
Although all data was correct at the time of printing. due to continual design changes and improvements. some content: may not conform to the actual machine. Take special care to order parts only after confirming the validity of the parts number in the “PARTS MANUAL.”
If you notice any explanatory discrepancies. after consulting one of our representatives. please update your manual according to the latest data. However. in the event of any specification changes. we will issue revised edition.

SAFETY PRECAUTIONS :

The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component. Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the section ; SPECIFICATIONS.
The following is a list of basic precautions that must always be observed.

(1) Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine.

(2) Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.

(3) Disconnect the battery and hang a “Do Not Operate” tag in the Operators Compartment. Remove ignition keys.

(4) If possible, make all repairs with the machine parked on a firm level surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the Operators Compartment.

(5) Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly.

6) Relieve all pressure in air, oil or water systems before any lines, fittings or related items are disconnected or removed. Always make sure all raised components are blocked correctly and be alert for possible pressure when disconnecting any device from a system that utilizes pressure.

(7) Lower the bucket, dozer, or other attachments to the ground before performing any work on the machine. If this cannot be done, make sure the bucket, dozer, ripper or other attachment is blocked correctly to prevent it from dropping unexpectedly.

(8) Use steps and grab handles when mounting or dismounting a machine. Clean any mud or debris from steps, walkways or work platforms before using. Always face to the machine when using steps, ladders and walkways. When it is not possible to use the designed access system, provide ladders, scaffolds, or work platforms to perform safe repair operations.

(9) To avoid back injury, use a hoist when lifting components which weigh 20kg (45lbs) or more. Make sure all chains, hooks, slings, etc., are in good condition and are the correct capacity. Be sure hooks are positioned correctly. Lifting eyes are not to be side loaded during a lifting operation.

(10)To avoid burns, be alert for hot parts on machines which have just been stopped and hot fluids in lines, tubes and compartments.

TABLE OF CONTENTS:

Kobelco SK115DZLC IV SK120LC IV Hydraulic Excavator Service Manual – PDF DOWNLOAD

GENERAL
SPECIFICATION
OPERATION AND CONTROLS (Refer to Operators Manual)
LOCATION AND WEIGHT OF COMPONENTS
MAINTENANCE STANDARDS AND
TEST PROCEDURES
PREVENTIVE MAINTENANCE (Refer to Operators Manual)
WORKING STANDARDS
SYSTEMS
HYDRAULIC SYSTEM
SWING SYSTEM
TRAVEL SYSTEM
ATTACHMENTS
CONTROL SYSTEM
ELECTRICAL SYSTEM
TROUBLE SHOOTING
COMPONENTS
HYDRAUUC PUMP
CONTROL VALVE
OTHER VALVES
HYDRAULIC MOTOR
SWIVEL JOINT
HYDRAULIC CYLINDER
REDUCTION UNIT
ENGINE

KOBELCO SK115DZLC IV SK120LC IV HYDRAULIC EXCAVATOR SERVICE MANUAL – PDF DOWNLOAD:

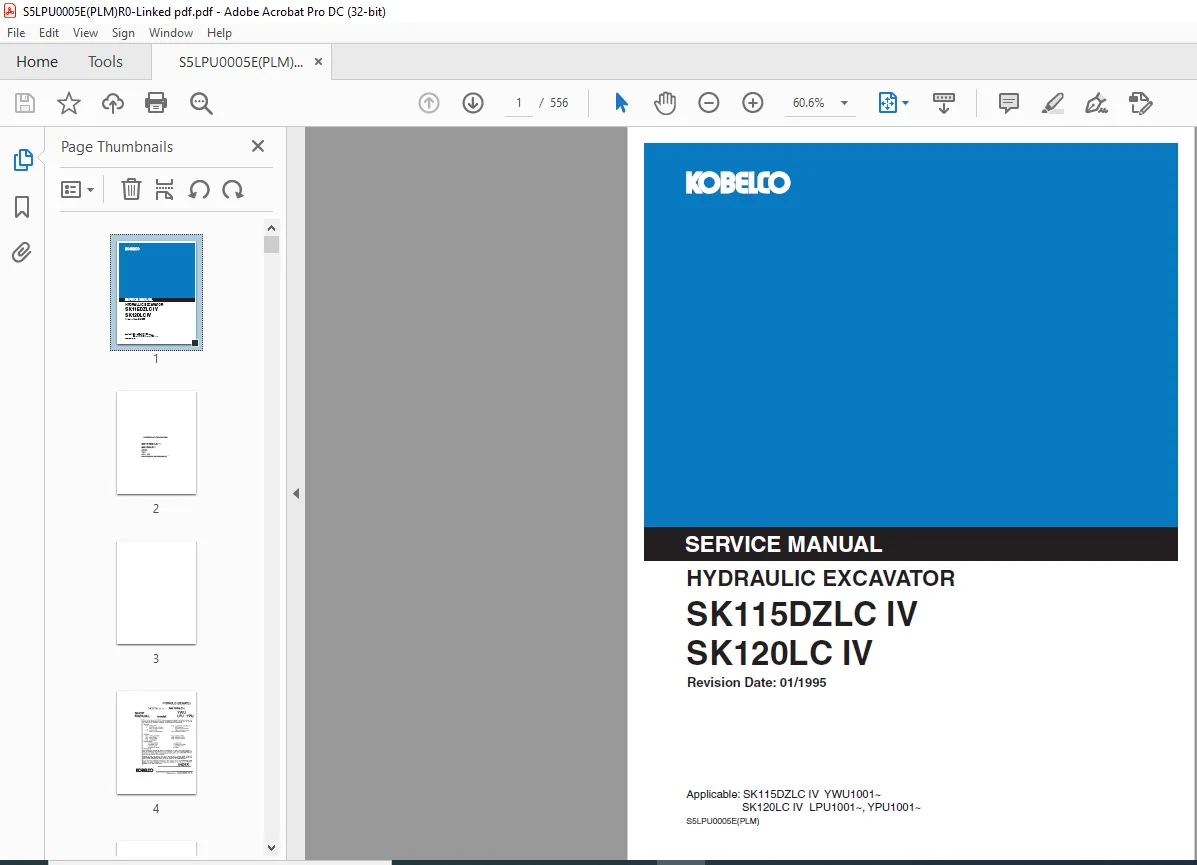

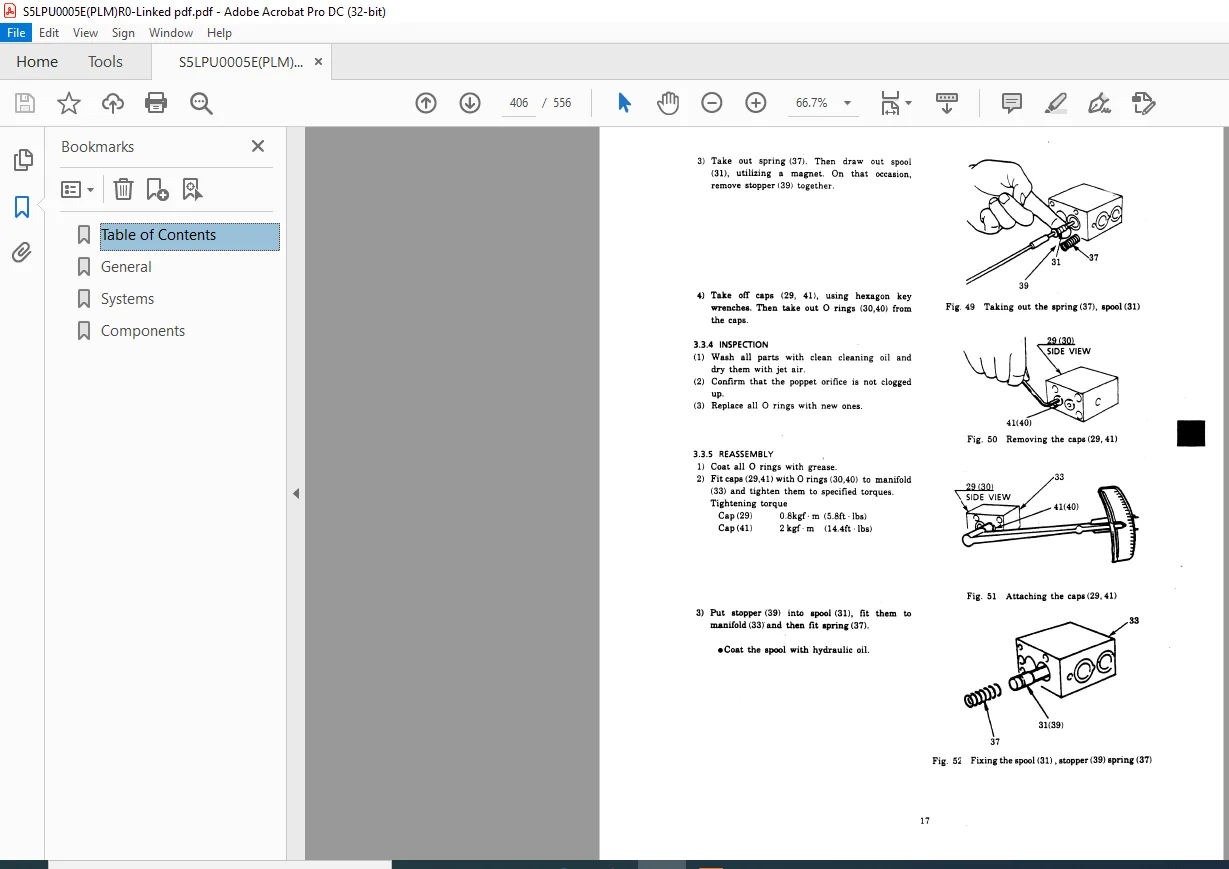

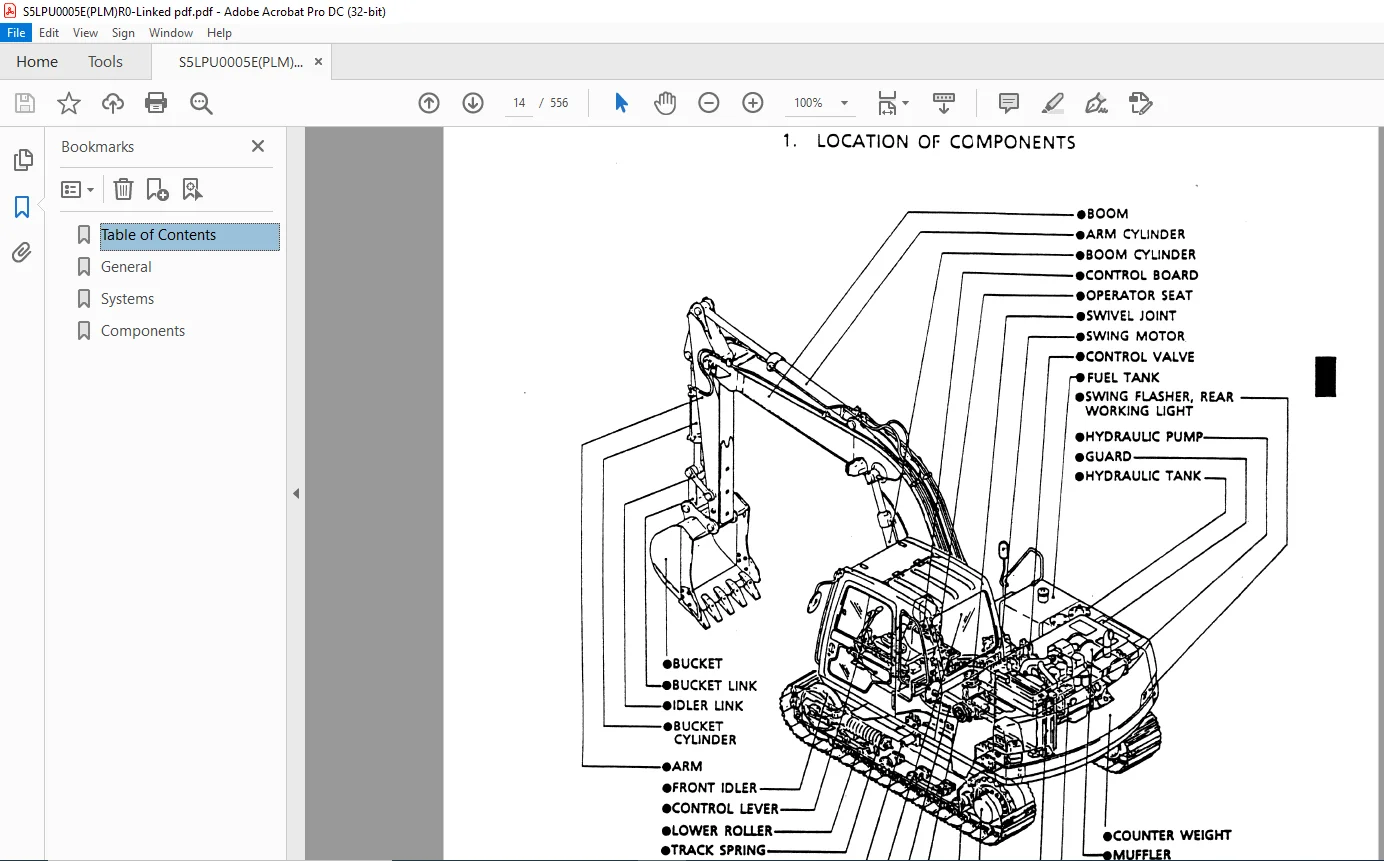

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

This is the SAME exact manual used by your dealers to fix your vehicle.
The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
Any queries / doubts regarding your purchase, please feel free to contact [email protected]
