Kobelco SK210LC-9 Hydraulic Excavator Shop Manual 2013 Full PDF Repair Guide

Description

Kobelco SK210LC-9 Shop Manual — Full Workshop Repair Guide

This is the complete Kobelco SK210LC-9 hydraulic excavator shop manual, published under document number S5YN0046E04. It is the same technical reference used by professional service technicians to diagnose, repair, disassemble, and overhaul the SK210LC-9 across North America and Europe. Every procedure is written for the machine as built, with tightening torques, clearances, service limits, and step-by-step disassembly and reassembly instructions.

Rather than a brief owner’s booklet, this is a full 1,610-page workshop reference. It walks through the machine system by system — hydraulics, electrical, mechatronics, air conditioning, travel, swing, attachments, and the HINO J05E-TJ diesel engine — and includes the maintenance standards and test procedures used to verify repairs before the machine goes back to work.

File Details

• Manual type: Shop / Workshop Manual
• Brand: Kobelco
• Model: SK210LC-9
• Document number: S5YN0046E04
• Edition / Revision: First edition June 2013; Revision October 2013
• Language: English
• Page count: 1,610
• File format: PDF
• Applicable regions: North America / Europe

Chapters Covered

The manual is organized into seven core chapters plus a full set of numbered technical chapters and appendices, giving one continuous workflow from specifications through to final repair verification.

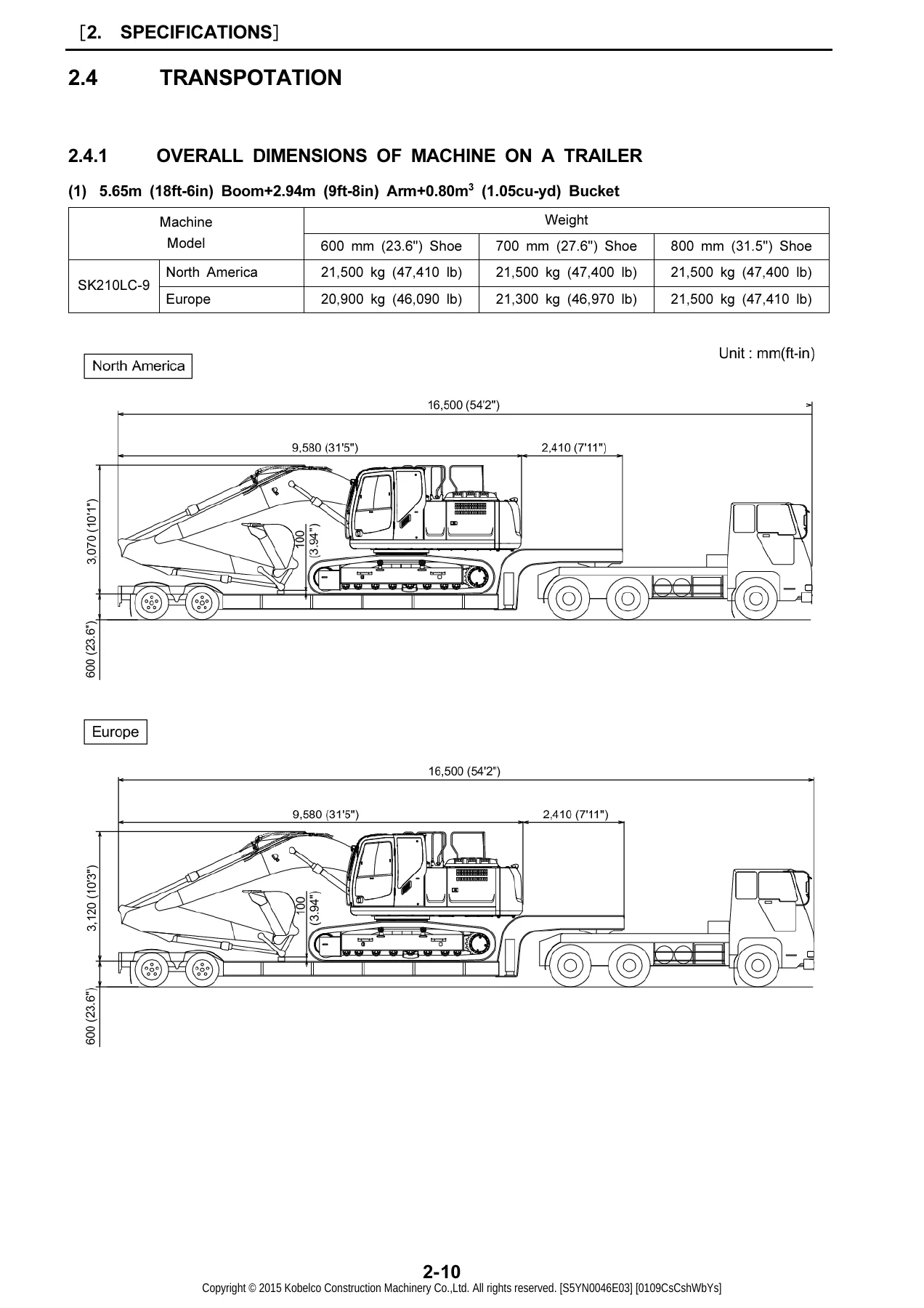

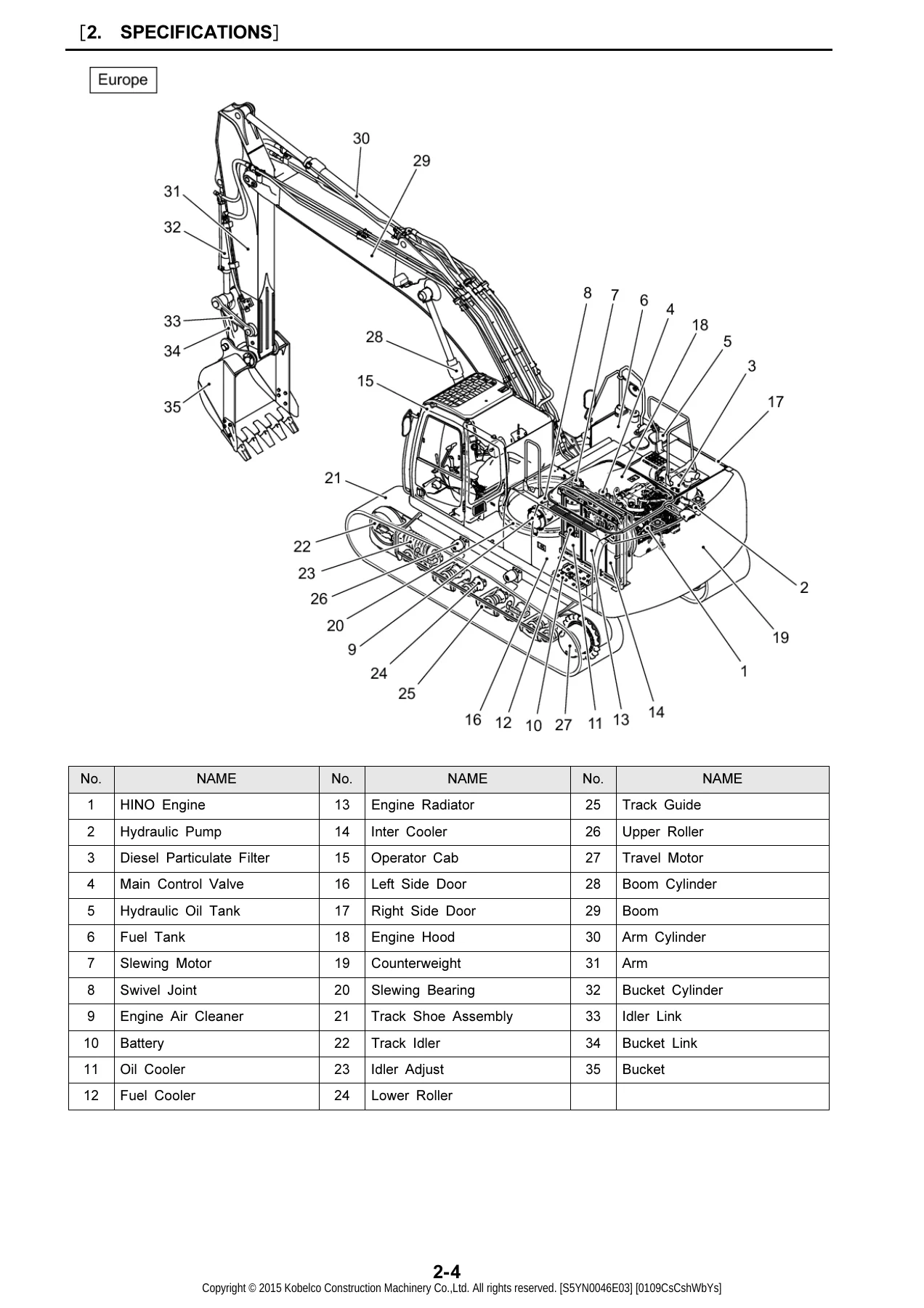

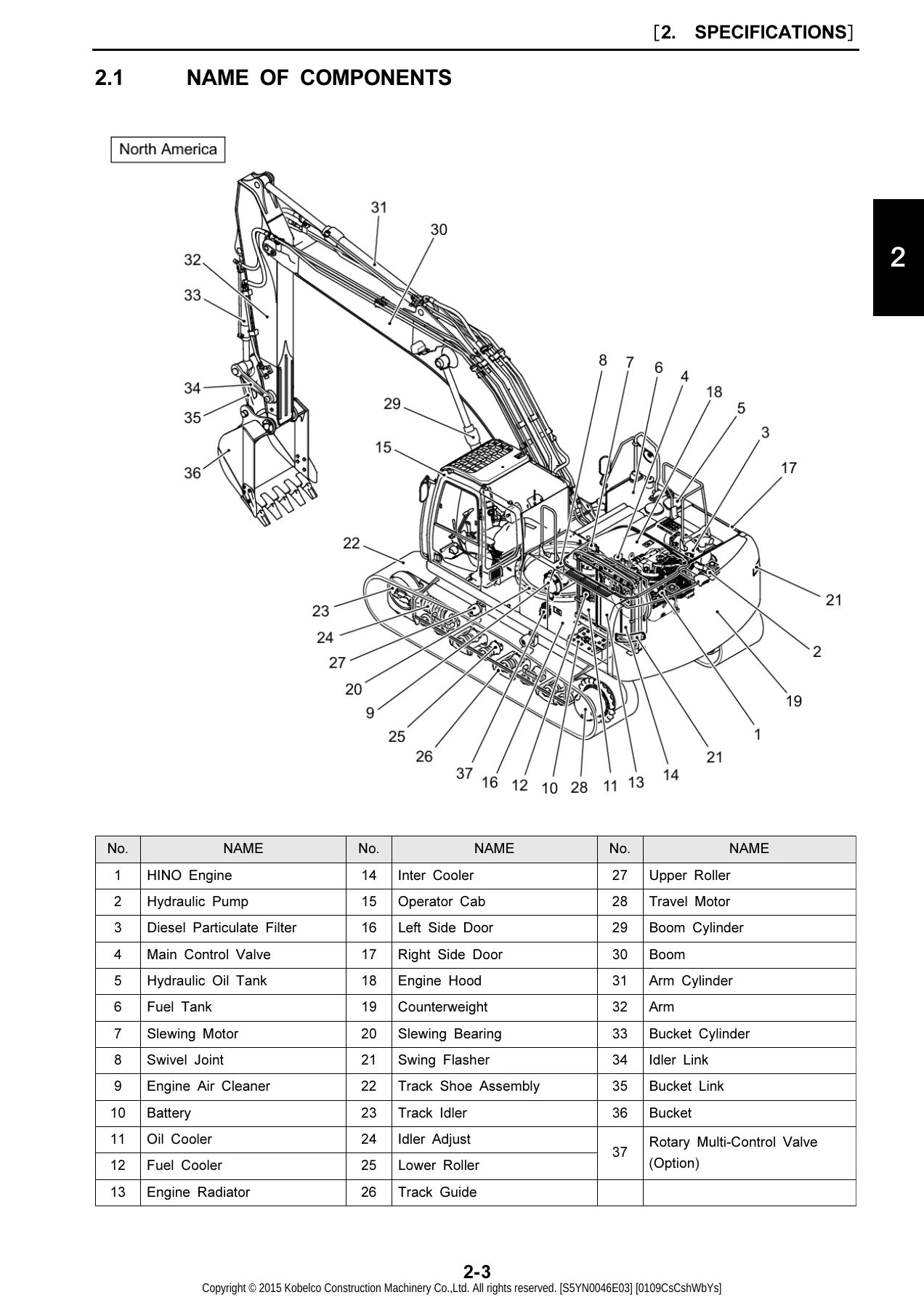

• 1. Specifications — Machine outline, general dimensions, component weights, transportation dimensions, specifications and performance, crawler and bucket types, attachment combinations, engine specifications and characteristic curve.
• 2. Maintenance — Standard maintenance time table, engine maintenance service standard time list.
• 3. System — Attachment dimensions (boom, arm, bucket), maintenance standards.
• 4. Disassembly — Explaining chapter of whole disassembly & assembly, tightening torque indication.
• 5. Troubleshooting — Troubleshooting by trouble, trouble diagnosis mode, troubleshooting by error codes.
• 6. Engine — HINO J05E-TJ workshop manual section covering general information, standard values, engine mounting/dismounting, fuel system, emission control, electrical, intake, engine mechanical, exhaust, cooling, lubrication, starting and charging, turbocharger, failure diagnosis, and engine diagnosis codes.
• 7. Procedure of Installing Options — Optional attachment installation supplements.
• 11. Tools — Tightening torques for capscrews and nuts, screw sizes, hose and fitting torques, plugs, special spanners, special tools, screw locking and sealing compounds, suction stopper, counterweight and upper frame lifting jigs, engine mounting pedestal, track spring set jig.
• 12. Standard Maintenance Time Table — Standard working time table for excavator maintenance, engine maintenance service standard time list.
• 13. Maintenance Standard and Test Procedure — Performance inspection standard table, measurement of engine speed and hydraulic pressure, travel and swing performance measurement, attachment operating performance, swing bearing, mechatronics controller adjustment, DPF handling and regeneration.
• 21. Mechatronics Controller — Summary of mechatronic control system (unload valve, positive & P-Q control, boom up conflux, arm in recirculation, arm-out conflux, bucket digging anti-cavitation, swing priority, travel straight, pressure release, N&B switch, option conflux), multi-display, self-diagnosis, service diagnosis, trouble history, maintenance schedule, and control equipment.
• 22. Hydraulic System — Hydraulic circuit schematics, color coding, neutral circuit, travel circuit, bucket circuit, boom circuit, swing circuit, arm circuit, combined circuit, pressure draining.
• 23. Electrical System — Electric circuit diagrams (North America and Europe), electrical equipment lists, and complete harness assemblies.
• 24. Components System — Hydraulic pump-regulator, control valve, pilot valves, swing motor unit, travel motor, swivel joint, cylinder, electrical equipment list and specifications.
• 25. Air-Conditioner System — Basic HVAC system, components, piping, function, disassembly and assembly, charging refrigerant, electric circuit, troubleshooting, self-diagnosis.
• 31–34. Disassembling & Assembling — Attachments, upper slewing structure, and travel system removal/installation and overhaul procedures.
• 46–47. Troubleshooting — Troubleshooting by error codes, troubleshooting by trouble.
• 51. Engine — Complete HINO J05E-TJ/J05E-TK engine workshop manual with diagnosis codes, DPR cleaner, cooling, lubrication, turbocharger, and starting/charging sections.

What ties this together is the manual’s inspection and measurement layer. The maintenance standards and test procedures chapter gives the reference values, repair values, and service limits for the parts that matter most, while the troubleshooting sections let you follow a fault from symptom to failed component using service diagnosis screens, error codes, and hydraulic pressure measurements. The result is a document that supports both planned maintenance and unexpected repairs, covering the machine from the undercarriage up through the attachment.

Machine Coverage

• SK210LC-9 — YQ13-10001~ (North America / Europe)

The manual applies to the SK210LC-9 as configured for North America and Europe. Attachments referenced include the 5.65 m boom, 2.94 m standard arm, 2.40 m short arm, and 3.50 m long arm, with bucket capacities from 0.51 m³ up to 0.93 m³.

Engine Coverage

• HINO J05E-TJ — water-cooled, 4-cycle, 4-cylinder direct injection diesel with intercooler turbocharger
• Bore × stroke: 112 mm × 130 mm
• Displacement: 5,123 cc
• Rated output: 124 kW (166 hp) at 2,000 min⁻¹ (ISO 14396)
• Maximum torque: 660 N·m (487 lbf-ft) at 1,600 min⁻¹

The engine chapter is a full workshop manual in its own right, with HINO-standard diagnosis codes, torque tables, component replacement procedures, and the DPR (Diesel Particulate active Reduction) system operation and regeneration.

Systems and Procedures You Can Work With

Because the manual spans the whole machine, it supports a wide range of jobs rather than a single repair. Some of what it enables:

• Reading and clearing mechatronics controller error codes and using service diagnosis displays.
• Measuring and adjusting main relief, overload relief, pilot relief, and two-stage relief valves on the control valve.
• Removing and installing the hydraulic pump, control valve, swing motor, travel motor, swivel joint, and cylinders.
• Disassembling and reassembling the hydraulic pump-regulator, control valve spools, swing motor and reduction unit, and travel motor.
• Tracing hydraulic circuits through the neutral, travel, bucket, boom, swing, arm, and combined circuits.
• Following electrical circuit diagrams for North America and Europe and working through harness assemblies.
• Overhauling the HINO J05E-TJ engine — cylinder head, cylinder block, timing gear, main moving parts, camshaft, valve system, cooling, lubrication, turbocharger, and starting/charging.
• Handling DPF regeneration, manual regeneration, and DPF inspection and cleaning intervals.
• Servicing the air-conditioning system — refrigerant charging, component replacement, and self-diagnosis.
• Removing and installing track link, upper roller, lower roller, front idler, sprocket, and swing bearing.
• Adjusting attachment pin and bushing clearances using the attachment dimension and maintenance standard tables.

Why Technicians and Owners Use This Manual

Hydraulic excavators are unforgiving when a repair is done to the wrong torque or clearance. A control valve spool that is over-tightened, a cylinder bushing fitted without checking the maintenance standard, or an improperly bled hydraulic circuit can cost far more than the time saved by guessing. This manual removes that guesswork. Every fastener torque, every service limit, and every adjustment reference is stated for the SK210LC-9 specifically.

It is also the fastest way to move from a fault code to a repair. The mechatronics controller section explains what each error code means, what the self-diagnosis display is showing, and how the corresponding system should behave — then the troubleshooting chapters walk through the checks in order. For intermittent faults, the trouble history and service diagnosis functions described in the manual give you a record to work from instead of starting from scratch each time.

How You Receive It

The manual is delivered as a PDF download, so there is nothing to wait for in the mail. After checkout you can open it on a laptop or tablet in the workshop, keep it on a phone for quick reference at the machine, or print the pages you need for a specific job. Because it is a single indexed PDF, searching for a torque value, a harness connector, or a specific procedure is far quicker than flipping through a paper binder — and you can keep it backed up so it is never out of reach when a repair is underway.

IMAGES PREVIEW
