Kobelco SK460-8 SK480LC-8 HS Engine Hydraulic Excavator Shop Manual PDF

Description

Kobelco SK460-8 SK480LC-8 HS Engine Hydraulic Excavator Shop Manual PDF

This Kobelco SK460-8 SK480LC-8 HS Engine Hydraulic Excavator Shop Manual PDF is a comprehensive technical reference for maintenance and repair of the SK460-8 and SK480LC-8 machines fitted with the HS Engine specification. The manual brings together machine specifications, service standards, hydraulic and electrical system information, component construction, removal and installation procedures, detailed disassembly and assembly work, diagnostic procedures, and HINO P11C-UU engine service information in one 1082-page document.

Coverage applies to SK460-8 machines from LS10-02001~ and SK480LC-8 machines from YS10-01501~. The material is particularly useful when work goes beyond routine maintenance and requires measured service limits, pressure checks, component overhaul instructions, wiring and hydraulic circuit references, fault isolation, or major engine repair procedures.

File Details

• Manual type: Shop Manual
• Brand: Kobelco
• Models: SK460-8, SK480LC-8
• Engine: HINO P11C-UU, HS Engine for Shovel
• Applicable serial numbers: SK460-8: LS10-02001~; SK480LC-8: YS10-01501~
• Language: English
• Pages: 1082
• File format: PDF
• Book code: S5LS0013E03

Machine and Engine Service Information

The opening specification material identifies the machine configuration and supplies dimensional, weight, performance, attachment, crawler, bucket, and engine data. The SK460-8 and SK480LC-8 are shown with the HINO P11C-UU, a water-cooled, four-cycle, six-cylinder direct-injection diesel with intercooler and turbocharger. The specification section records a displacement of 10.520 L, rated output of 243 kW (330 PS) at 1,850 min-1, and maximum torque of 1,400 N•m (1,033 lbf•ft) at 1,400 min-1.

Engine reference data goes further into bore and stroke, compression ratio, idle speeds, compression pressure, firing order, valve clearances, starting and charging equipment, cooling details, engine oil quantities, and characteristic curves. This makes the Kobelco SK460-8 SK480LC-8 shop manual useful not only for identifying machine specifications but also for checking measured values during diagnosis and repair.

Maintenance Standards, Testing and Adjustments

A substantial part of the manual is devoted to measurable maintenance standards rather than general descriptions. Boom, arm and bucket sections include dimensional drawings, pin and bushing clearances, standard dimensions, repairable levels and service limits. The tools section provides tightening torque references for fasteners, hydraulic hoses, fittings, joints, nuts and sleeves, together with special tools, lifting equipment and service fixtures.

The maintenance standard and test procedure material covers engine-speed measurement, hydraulic-pressure testing, relief-valve locations and adjustment, travel speed and deviation, travel parking brake performance, travel-motor drain rate, swing speed and braking performance, swing-motor drain rate, boom/arm/bucket cylinder operating times, cylinder oil tightness and swing-bearing wear checks. The manual also explains mechatro controller A and B adjustment procedures for engine and pump control after relevant components are replaced or repaired.

IMAGES PREVIEW

Chapters Covered

• Outline
  • General precautions for making repairs
  • Disassembly and assembly safety
  • Hydraulic and electrical equipment handling
  • Weld repair and international unit system
• Specifications

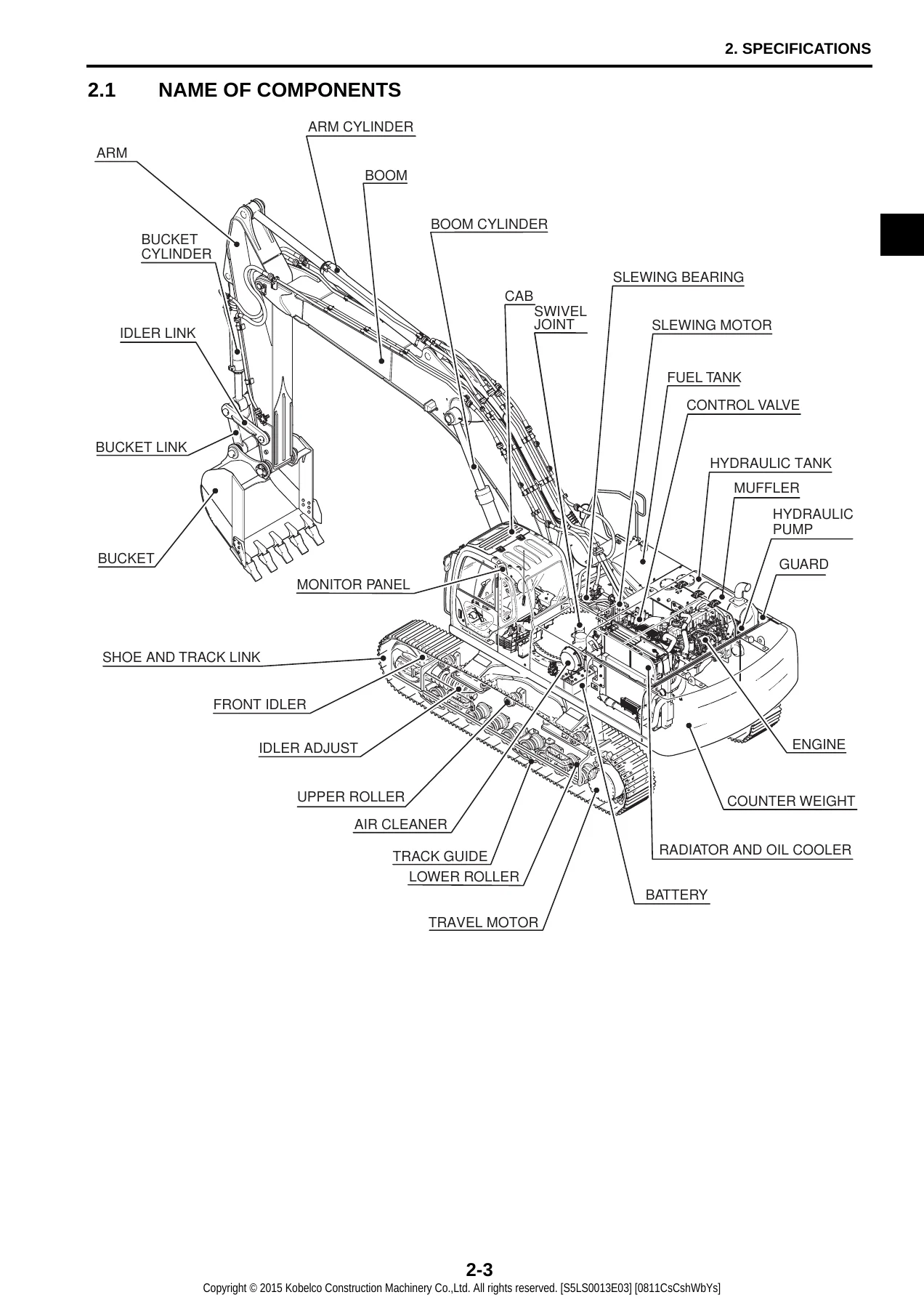

  • Machine components and general dimensions
  • Component weights and transportation dimensions
  • Performance, crawler, bucket and attachment combinations
  • HINO P11C-UU engine specifications and characteristic curve
• Attachment Dimensions
  • Boom dimensional drawings and maintenance standards
  • Arm dimensions, pin/bushing clearances and service limits
  • Bucket dimensional, lug and boss drawings
• Tools
  • Fastener, hose and fitting tightening torques
  • Special spanners and special tools
  • Screw locking and sealing compounds
  • Suction stopper, lifting jig and engine mounting pedestal
• Standard Maintenance Time Table
  • Excavator maintenance working times
  • Removal, installation, replacement and overhaul operations
  • Engine maintenance service standard times
• Maintenance Standard and Test Procedure
  • Performance inspection standards
  • Engine speed and hydraulic pressure measurement
  • Travel, swing, cylinder and swing-bearing tests
  • Mechatro controller adjustment and emergency operation

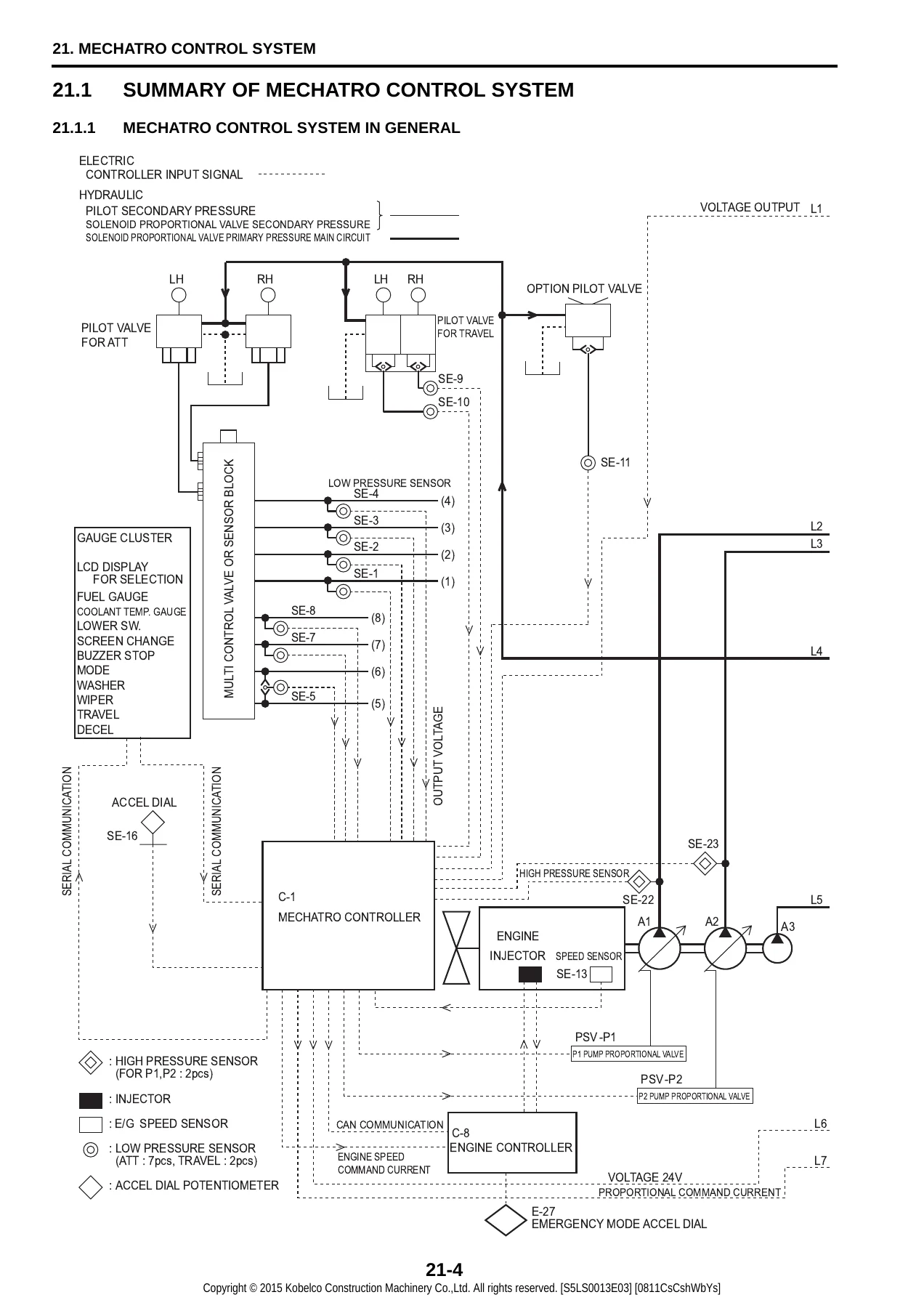

• Mechatro Control System
  • Positive control and P-Q control
  • Boom, arm and bucket conflux and anti-cavitation controls
  • Swing priority, travel straight and pressure-release control
  • Self diagnosis, service diagnosis and trouble history
• Hydraulic System
  • Hydraulic circuits and components
  • Neutral, travel, bucket, boom, swing and arm circuits
  • Combined-operation circuits
  • Pressure draining and releasing circuit
• Electric System
  • Electric circuit diagrams and equipment list
  • Instrument panel and controller installation
  • Upper, engine, cab and boom harnesses
  • Boom and upper light installation
• Components System
  • Hydraulic pump and regulator
  • Control and pilot valves
  • Swing motor, travel motor and swivel joint
  • Cylinders and electric equipment specifications
• Air-Conditioner System
  • HVAC construction, piping and cooling circuit
  • Unit disassembly and assembly
  • Refrigerant charging procedure
  • Wiring, troubleshooting and panel self diagnosis
• Disassembling and Assembling – Attachment
  • Bucket, arm and boom removal and installation
  • Hydraulic cylinder disassembly and assembly
• Disassembling and Assembling – Upper Structure
  • Cab, tanks, pump, radiator, engine and counterweight removal/installation
  • Control valves, pilot valves and swing motor service
  • Hydraulic pump/regulator and swivel-joint overhaul
• Disassembling and Assembling – Travel System
  • Crawler, rollers, front idler, sprocket and swing bearing
  • Travel motor removal, disassembly and assembly
  • Reduction unit and travel-motor maintenance standards
• Troubleshooting by Error Codes
  • On-site fault assessment and failure classification
  • Mechatro controller fuse diagnosis
  • Error-code based checks and corrective actions
• Troubleshooting by Trouble
  • Hydraulic-system symptom diagnosis
  • Electrical wiring checks and fault diagnosis
  • Engine-related troubleshooting
• Engine
  • HINO P11C-UU workshop information
  • Standard values and engine assembly/disassembly
  • Fuel, electrical, intake, mechanical, exhaust, cooling and lubrication systems
  • Starting and charging, turbocharger, engine-status diagnosis and diagnosis codes

Taken together, these chapters let a technician move from machine identification and basic specifications through inspection and measured testing, then into system diagnosis, component removal and detailed overhaul work. Hydraulic circuit diagrams can be used alongside pressure-test procedures and component information, while electrical diagrams, harness layouts, self-diagnosis functions and troubleshooting sections support systematic fault tracing. The disassembly chapters then provide the mechanical procedures needed once the defective system or component has been identified.

HINO P11C-UU Engine Workshop Section

The engine portion is a dedicated HINO diesel engine workshop manual for the P11C-UU, identified as an HS Engine for Shovel. It includes general service information, standard values, parts preparation, engine assembly/disassembly, fuel system, electrical system, intake, engine mechanical work, exhaust, cooling, lubrication, starting and charging, turbocharger service, failure diagnosis by engine status, and engine diagnosis codes. The engine section is identified with book code S5LS5113E03 and a July 2010 revision.

The engine documentation specifically notes that descriptions for the listed Emission Control and Air Compressors sections are not contained in that HINO workshop portion. Buyers needing the P11C-UU mechanical, fuel, electrical, cooling, lubrication, turbocharger and diagnostic material still receive extensive engine-specific service coverage within the larger excavator manual.

Disassembly and Component Overhaul Depth

This is not limited to component location diagrams. The upper-structure material covers removal and installation of major machine assemblies and continues into internal disassembly and assembly of the hydraulic pump and regulator, control valve, attachment and travel pilot valves, swing motor unit and swivel joint. The travel section includes crawler and roller work, front idler and adjuster procedures, sprocket and travel motor service, reduction-unit disassembly, reassembly and maintenance standards.

Attachment work includes bucket, arm and boom removal and installation plus hydraulic-cylinder service. Dimensional and maintenance-standard chapters provide the corresponding measurements, clearances and wear limits that are needed to decide whether parts can remain in service, require adjustment, or have reached replacement limits.

Fault Finding and System Diagnosis

The Kobelco SK460-8 SK480LC-8 HS Engine Hydraulic Excavator Shop Manual PDF provides two complementary troubleshooting paths. Error-code troubleshooting follows faults shown through the machine self-diagnosis functions, with checks for controller adjustment, sensors, proportional valves, electrical circuits and other monitored equipment. Troubleshooting by symptom addresses hydraulic, electrical and engine-related problems when the machine behavior itself is the starting point.

Hydraulic symptom coverage includes issues such as controls that do not function or operate slowly, engine stall under load, unwanted movement in neutral, poor fine control, weak or slow boom/arm/bucket functions, swing problems, travel weakness or deviation, travel speed-change faults and parking-brake problems. This diagnostic material can be cross-referenced with the hydraulic circuit, component and performance-test chapters to trace a problem before dismantling parts unnecessarily.

Get the Manual and Start the Repair

With specifications, service limits, tightening data, hydraulic and electrical circuits, test procedures, fault codes, troubleshooting trees, removal and installation instructions, component overhaul procedures and detailed HINO P11C-UU engine information, the Kobelco SK460-8 SK480LC-8 HS Engine Hydraulic Excavator Shop Manual PDF supports a wide range of inspection, diagnosis, adjustment and repair work on the covered machines. Correct procedures and specified measurements matter when servicing high-pressure hydraulic systems, major structural components, electronic controls and the engine, and this manual gives the reference data needed to approach those jobs methodically.

Purchase provides instant PDF delivery with no physical book and no shipping delay. Open the manual on a computer, tablet or phone, keep it available at the workshop or job site, and print the pages you need for the repair in progress.
