Kodak DryView 8700 / 8500 Laser Imager Service Manual PDF
Original price was: $95.00.$18.95Current price is: $18.95.
Official Kodak factory service manual for DryView 8700 & 8500 Laser Imagers. Covers installation, calibration, disassembly, diagnostics, theory of operation, troubleshooting, wiring diagrams, and illustrated parts breakdown. Essential for biomedical engineers, service technicians, and imaging departments.
Description
Kodak DryView 8700 / 8500 Laser Imager Service Manual PDF DOWNLOAD
Description

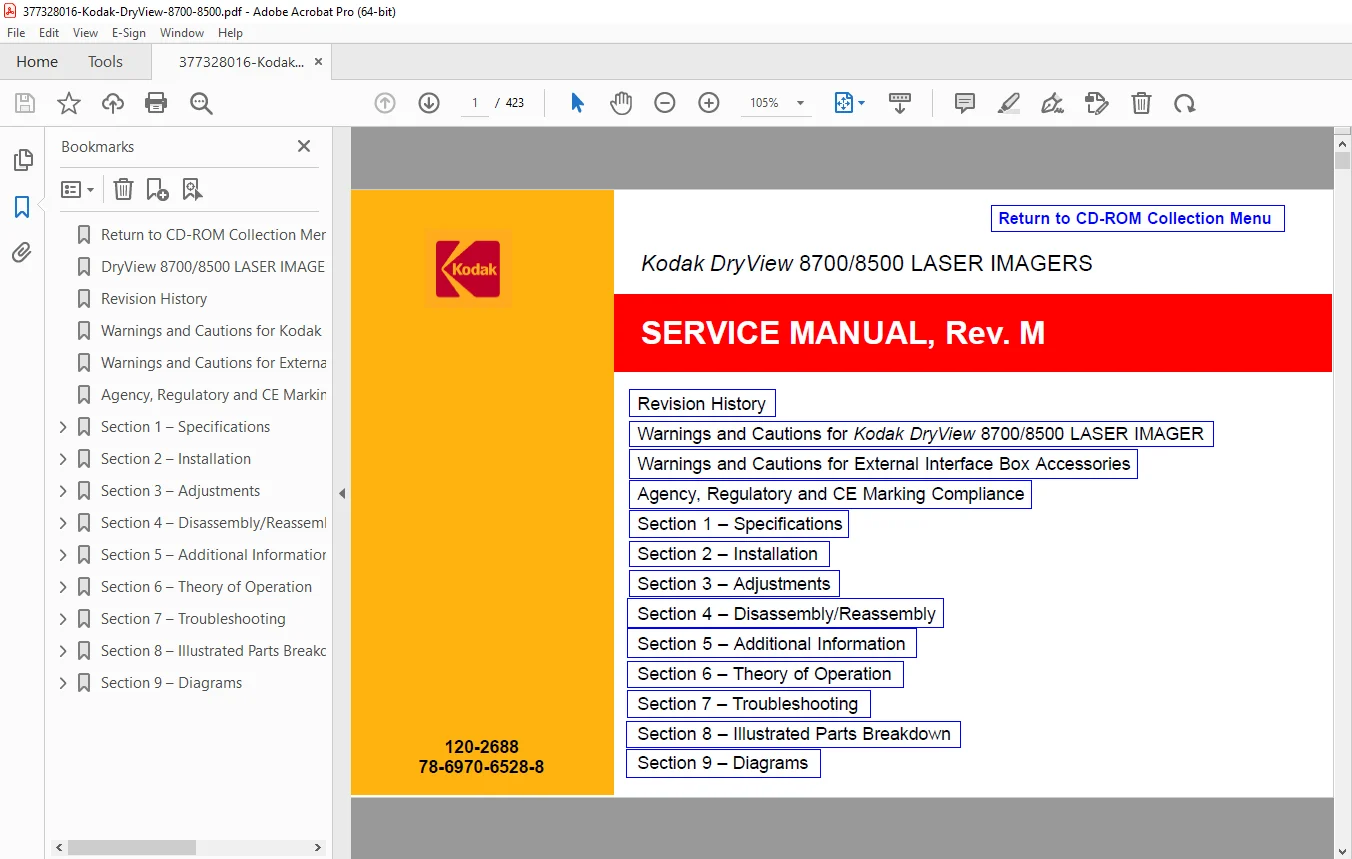

This is the genuine Kodak Service Manual (Rev. M) for the Kodak DryView 8700 and 8500 LASER IMAGERS—the exact technical documentation used by authorized Kodak service engineers.
Designed for hospital biomedical teams and professional field technicians, this manual delivers complete service-level guidance for:
Safe handling of high-voltage laser imaging equipment
Installation and site preparation
Electrical configuration (200 / 220 / 240 VAC)
Mechanical disassembly and reassembly
Image quality calibration and adjustment
Interface box setup (UKEIB, VEIB, EVEIB, DEIB, VIB)
Fiber optic, digital, and analog video integration
Advanced diagnostics and fault isolation
Internal theory of operation
Complete wiring and functional diagrams
Illustrated parts breakdown with assemblies
📑 Main Sections
Warnings & Cautions / Regulatory Compliance
Section 1 – Specifications
Dimensions, weight, power requirements
Environmental limits
Host control & keypad configuration
Section 2 – Installation
Unpacking & mechanical setup
Voltage configuration
Cable routing & interface box connections
System configuration using MPC
Section 3 – Adjustments
Image calibration
Video fine-tuning
Gain & black-level optimization
Section 4 – Disassembly / Reassembly
Covers, processor, transport system
Exposure module and internal assemblies
Section 5 – Additional Information
Section 6 – Theory of Operation
Laser imaging workflow
Signal processing architecture
Section 7 – Troubleshooting
Error diagnostics
Subsystem fault isolation

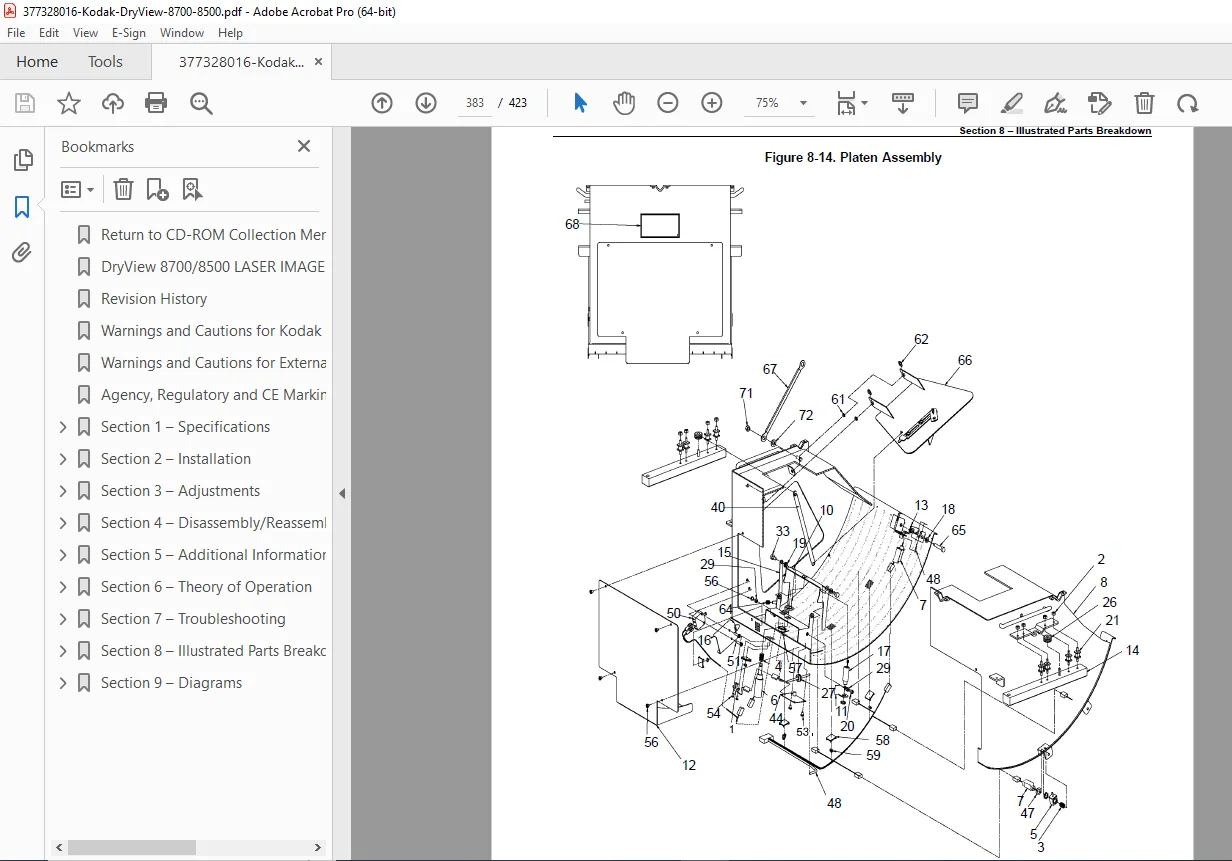

Section 8 – Illustrated Parts Breakdown
Exploded views
Replaceable assemblies
Section 9 – Diagrams
Electrical schematics
Functional block diagrams
Every procedure is written in factory service language with diagrams, cautions, LED references, jumper settings, and test workflows used in real installations.
📊 File Details
| Detail | Information |
|---|---|
| Manual Name | Kodak DryView 8700 / 8500 Laser Imager Service Manual |
| Models Covered | Kodak DryView 8700, Kodak DryView 8500 |
| Year / Revision | Rev. M (2001) |
| PDF Quality | High-resolution, searchable factory scan |
| Pages | 422 pages |
🚀 Why Buy This Manual?
This is not a user guide—it’s the true Kodak factory service manual. If you install, maintain, or repair DryView laser imagers, this PDF gives you instant access to every calibration step, wiring diagram, and troubleshooting flow used by Kodak engineers. Download now and service with absolute confidence.
