Komatsu 114E-3 Series Engine Shop Manual SEN00169-09 – SAA6D114E-3 Diesel PDF

Description

Komatsu 114E-3 Series Engine Shop Manual SEN00169-09

This is the complete Komatsu 114E-3 Series Engine Shop Manual (Form No. SEN00169-09) for the SAA6D114E-3 diesel engine. It is the same binder of service information a Komatsu workshop technician uses to service, diagnose, test, and overhaul the 114E-3 engine family found across Komatsu hydraulic excavators, wheel loaders, bulldozers, and motor graders. Rather than a one-page spec sheet, this is the full multi-section engine shop manual supplied as a single downloadable PDF.

File Details

• Manual type: Engine Shop Manual (Service / Workshop Manual)
• Brand: Komatsu
• Engine series: 114E-3
• Engine model: SAA6D114E-3
• Form number: SEN00169-09
• Language: English
• File format: PDF
• Publication date shown: 2009

Chapters Covered

• 00 Index and foreword – safety notice, how to read the manual, terms for maintenance standard, handling of electric equipment and hydraulic components, engine connectors, electric wire codes, push-pull coupler handling, standard tightening torque table, conversion table
• 01 Specification – general, specifications, general view, dimensions table, engine performance curves
• 10 Structure, function and maintenance standard – intake and exhaust system, turbocharger, lubricating oil system, cooling system, common rail fuel system, and maintenance standards for turbocharger, cylinder head, cylinder block, cylinder liner, crankshaft, piston and rings, connecting rod, vibration damper, timing gear, camshaft, valves and guides, rocker arms, flywheel and housing, oil pump
• 20 Standard value table – standard service values for testing, adjusting, and troubleshooting, plus run-in standard and performance test criteria
• 30 Testing and adjusting – air boost pressure, valve clearance, compression pressure, blow-by pressure, oil pressure, fuel pressure, residual pressure release, reduced cylinder mode, no-injection cranking, pressure limiter leakage, injector return rate, fuel circuit bleeding, fuel leakage test, controller high-voltage circuit handling, alternator belt replacement
• 40 Troubleshooting – general information, error and failure code table, electrical system (E-mode) troubleshooting for all CA-code faults, mechanical system (S-mode) troubleshooting charts covering poor starting, no-start, rough running, stalls, power loss, black smoke, oil consumption, coolant ingress, overheating, noise, and vibration
• 50 Disassembly and assembly – general information, coating materials list, special tools list, general disassembly of the engine, general assembly of the engine, and supply pump disassembly and assembly

The 114E-3 Series engine shop manual is organised so that each stage of engine work has its own reference: structure and function for understanding how each system is built, maintenance standards for judging wear, standard value tables for verifying results, testing and adjusting for calibrating the engine, a full E-mode and S-mode troubleshooting guide, and step-by-step disassembly and assembly for teardown and rebuild. Torque values, clearances, wear limits, and coating materials are spread across the relevant sections, matching how the procedures are actually performed in the workshop.

Covered Machines

• Hydraulic excavators: PC300-7E0, PC300LC-7E0, PC350-7E0, PC350LC-7E0, PC300-8, PC300LC-8, PC350-8, PC350LC-8
• Wheel loader: WA430-6
• Bulldozers: D65EX-15E0, D65PX-15E0, D65WX-15E0, D65EX-16, D65PX-16, D65WX-16
• Motor graders: GD655-3E0, GD675-3E0

What You Can Do With This Manual

Because it covers the full engine rather than just the fuel or cooling circuit, the Komatsu 114E-3 Series Engine Shop Manual supports a wide range of jobs on the SAA6D114E-3 diesel: measuring and adjusting valve clearance, testing compression and blow-by pressure, testing oil and fuel pressures at each pickup point, bleeding and leak-testing the common rail fuel circuit, running reduced-cylinder and no-injection cranking checks, diagnosing any of the electrical fault codes listed in the error and failure code table, following the mechanical S-mode charts for symptoms such as black smoke, low oil pressure, or overheating, and completing a full teardown and rebuild of the cylinder head, cylinder block, crankshaft, pistons, connecting rods, camshaft, timing gears, oil pump, and supply pump.

Buyer Notes

This is the multi-section engine shop manual for the 114E-3 family. It documents the SAA6D114E-3 engine itself, so machine-side chassis, hydraulic, and electrical system manuals for the individual excavator, loader, dozer, or grader models are separate publications. The engine-side procedures, torque values, and fault codes you need for engine service are all here.

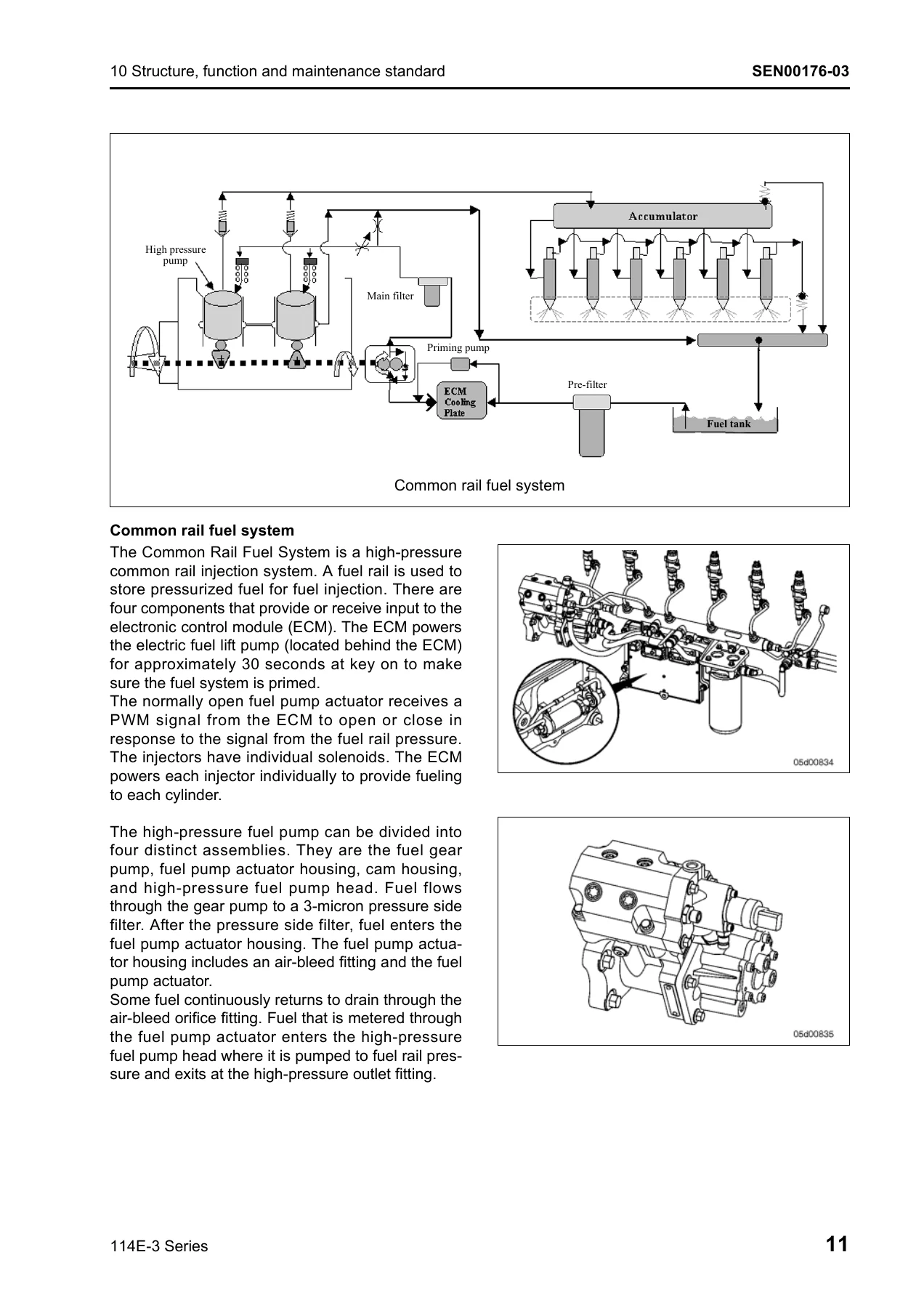

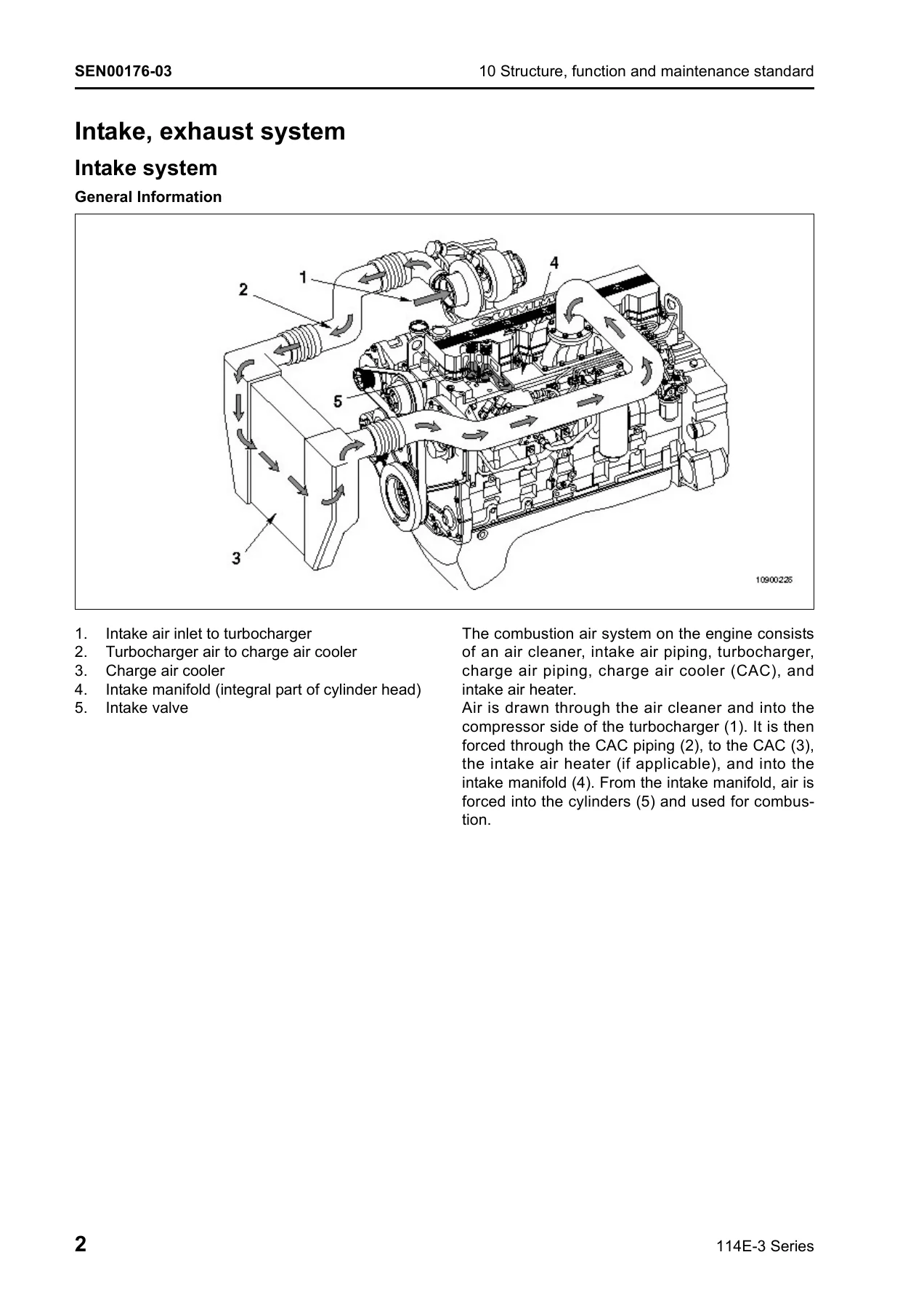

IMAGES PREVIEW

Instant Download, Print, and Use in the Workshop

The Komatsu 114E-3 Series Engine Shop Manual SEN00169-09 PDF is delivered immediately after checkout, with no shipping and no waiting for a physical binder to arrive. Open it on a laptop, tablet, or phone in the workshop, zoom into any specification table or exploded view, and print only the pages you need for the job in front of you. Having the correct torque sequences, clearances, and troubleshooting flow on hand for the SAA6D114E-3 engine is what turns a risky guess into a repeatable, by-the-book repair.
