Komatsu 12V140E-3 Series Engine Shop Manual – SEN00291-04

The Komatsu 12V140E-3 Series Engine Shop Manual (document SEN00291-04) is the complete service, repair and diagnostic reference for the SAA12V140E-3 engine — a 12-cylinder, water-cooled, direct-injection, 4-stroke diesel with a DENSO ECD-U2 electronically controlled common rail injection (CRI) system. This manual covers the engine as fitted to the Komatsu D475A-5E0 bulldozer, HD785-7 dump truck, PC2000-8 hydraulic excavator, WA800-3E0 and WA900-3E0 wheel loaders.

Across 468 pages, this shop manual gives you the same procedures, specifications and diagnostic logic used by Komatsu service technicians. It walks through every major system — air intake and exhaust, cylinder head and block, crankshaft and camshaft, lubrication, fuel (CRI), cooling, and electrical equipment — with detailed testing and adjusting procedures, standard service values, troubleshooting charts for both mechanical (S-mode) and electrical (E-mode) faults, and complete disassembly and assembly instructions with torque specifications.

File Details

• Manual type: Shop Manual (Service & Repair)
• Brand: Komatsu
• Engine model: SAA12V140E-3
• Language: English
• Page count: 468
• File format: PDF
• Document number: SEN00291-04
• Date: 2007

Chapters Covered

• 00 Index and foreword
• 01 Specification
• 10 Structure, function and maintenance standard (Parts 1 and 2)
• 20 Standard value table
• 30 Testing and adjusting
• 40 Troubleshooting
• 50 Disassembly and assembly

00 – Index and Foreword

Safety notices, how to read the shop manual, explanation of terms for maintenance standard, handling of electric equipment and hydraulic components, handling of connectors used for engines, how to read electric wire code, precautions when carrying out operations, method of disassembling and connecting push-pull type couplers, standard tightening torque tables and conversion tables.

01 – Specification

Engine specifications for each machine application — D475A-5E0, HD785-7, PC2000-8, WA800-3E0 and WA900-3E0 — including rated output, max torque, no-load speeds, dimensions, dry weight, lubricating oil and coolant capacities, alternator, starting motor, battery, turbocharger and governor details. Also includes general views, a weight table and engine performance curves.

10 – Structure, Function and Maintenance Standard

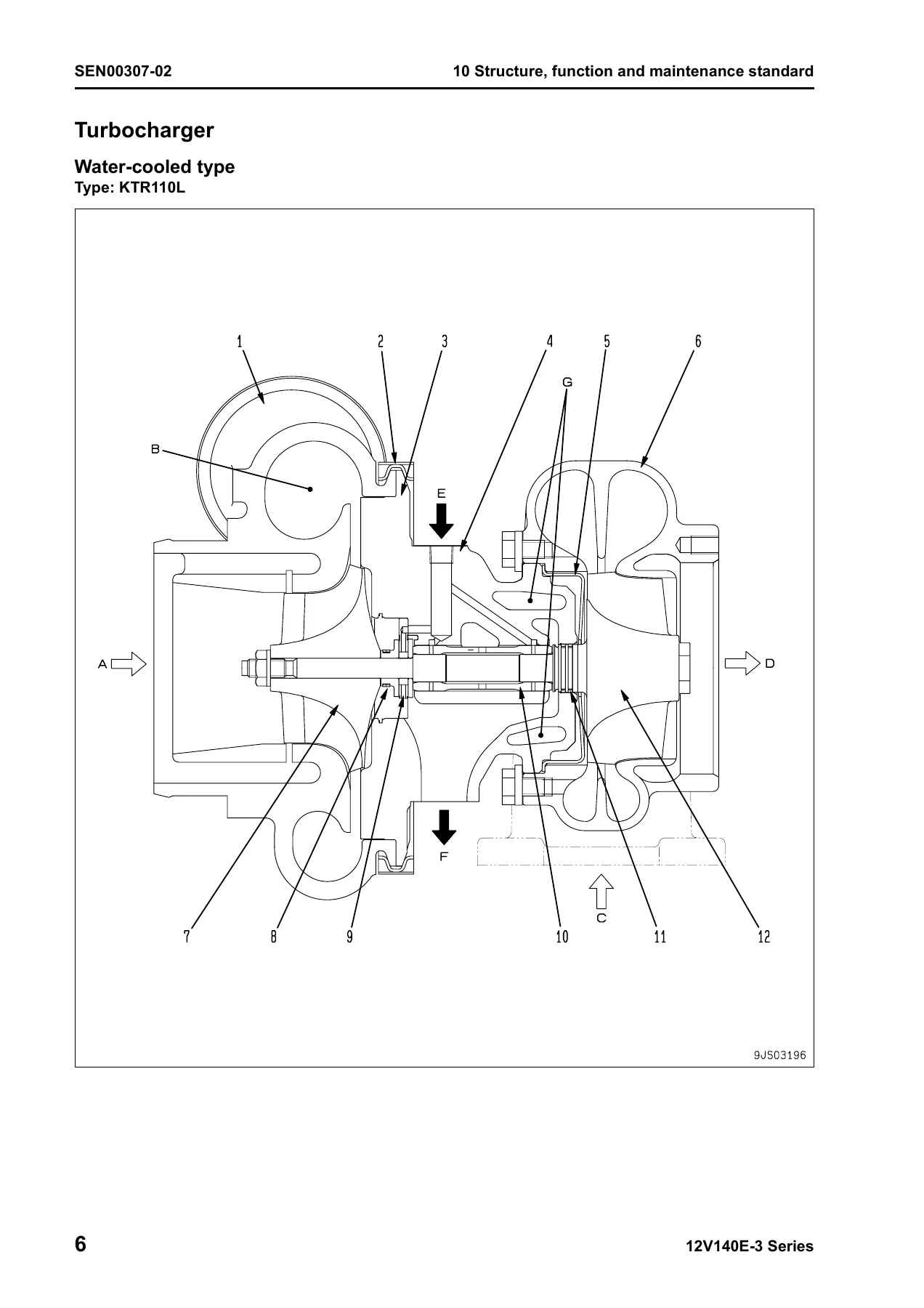

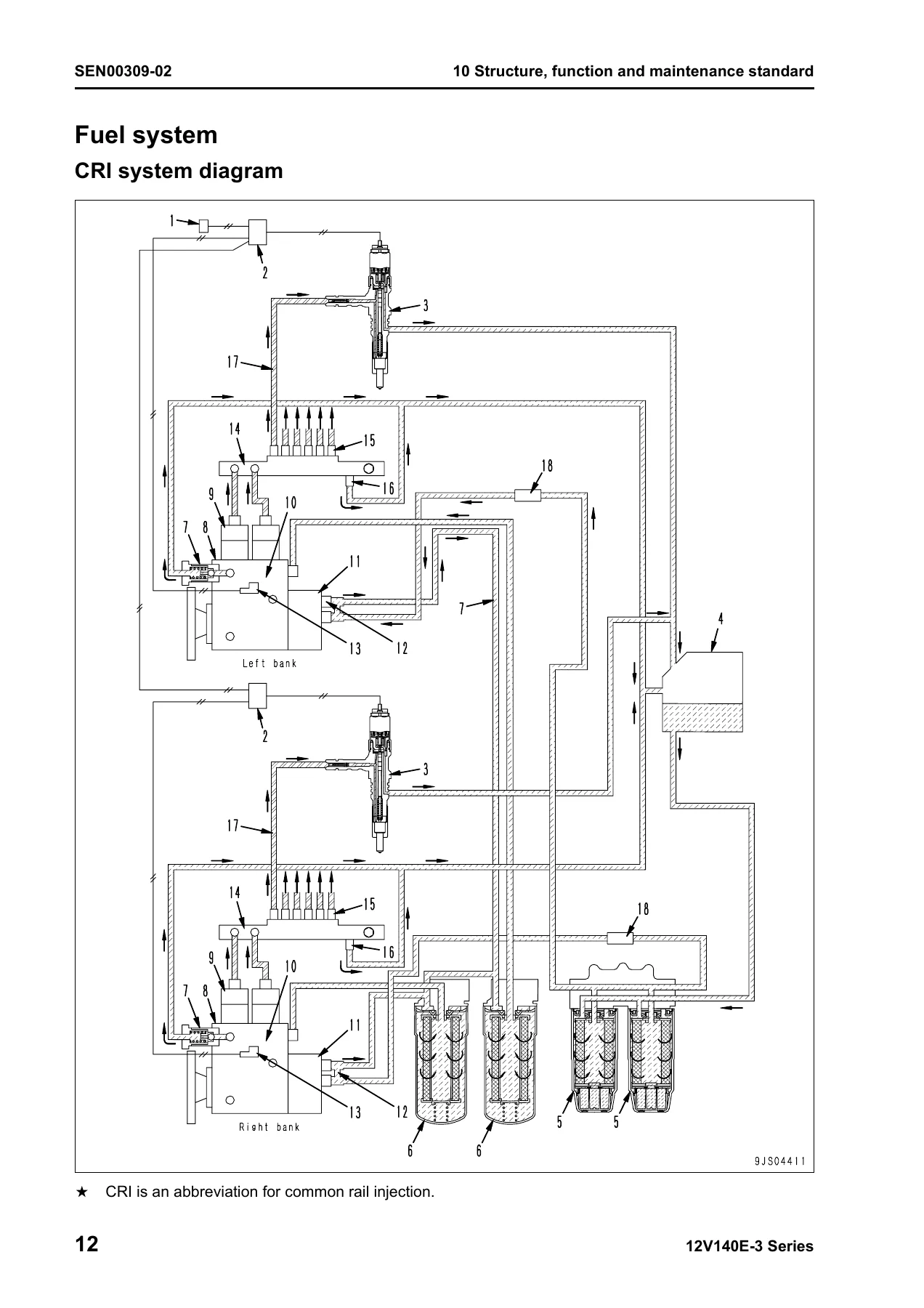

Part 1 covers the air intake and exhaust system (air cleaner, turbocharger, aftercooler, muffler), the engine unit (cylinder head, cylinder block, cylinder liner), main moving parts (crankshaft, camshaft, cam follower, push rod, piston, piston ring, piston pin, connecting rod), flywheel and flywheel housing, vibration damper, timing gear and the valve system (valve and valve guide, rocker arm and shaft, crosshead and guide). Part 2 covers the lubrication system (oil pump, oil cooler, oil filter, main relief valve, oil cooler bypass valve), the fuel system (CRI system diagram, outline of CRI, fuel piping, fuel filter, priming pump), the cooling system (water pump, thermostat, corrosion resistor, cooling fan drive) and electrical equipment (alternator, starting motor, starting aid, engine controller).

20 – Standard Value Table

Standard service value tables for testing, adjusting and troubleshooting, plus running-in standards and performance test standards. Includes valve clearance, compression pressure, blow-by pressure, oil pressure, air boost pressure, exhaust temperature, exhaust gas color and more — with standard values for new machines and service limit values.

30 – Testing and Adjusting

Step-by-step procedures for testing and adjusting the engine: boost pressure, exhaust temperature, valve clearance, compression pressure, blow-by pressure, oil pressure, fuel pressure, reduced cylinder mode operation, no-injection cranking, pressure limiter leakage, injector return rate, bleeding air from the fuel circuit, fuel system leak testing, speed sensor adjustment, alternator belt tension and handling controller high-voltage circuits. A full testing and adjusting tools list is included.

40 – Troubleshooting

This is the diagnostic heart of the manual. It includes general troubleshooting guidance, mechanical system troubleshooting (S-mode) covering 16 symptom-based charts — poor starting, engine won’t start, rough pickup, stalling, rough running, lack of power, black exhaust smoke, excessive oil consumption, contaminated oil, high fuel consumption, coolant in oil, low oil pressure, rising oil level, overheating, abnormal noise and vibration — and electrical system troubleshooting (E-mode) covering the full range of error codes (E-1 through E-97) for both LH and RH banks: ECM failures, speed sensor errors, pressure sensor errors, injector open/short errors, PCV errors, rail pressure errors and more. Each code entry includes possible causes, standard values and troubleshooting steps.

50 – Disassembly and Assembly

General information on disassembly and assembly (how to read the manual, coating materials list, special tools list), followed by the complete general disassembly of the engine (from removing the engine harness and starting motor through to removing the crankshaft and cylinder liners), general assembly of the engine, and removal and installation of the fuel supply pump unit. Includes replacement of front and rear oil seals on the engine mounted in the machine.

Engines and Machines Covered

This manual covers the SAA12V140E-3 engine — 12 cylinders, 140 mm bore × 165 mm stroke, 30.5 L displacement, firing order R1-L1-R5-L5-R3-L3-R6-L6-R2-L2-R4-L4. It is applicable to the following machines:

• Komatsu D475A-5E0 bulldozer — 671 kW (899 HP) / 2,000 rpm
• Komatsu HD785-7 dump truck — 895 kW (1,200 HP) / 1,900 rpm
• Komatsu PC2000-8 hydraulic excavator — 728 kW (976 HP) / 1,800 rpm
• Komatsu WA800-3E0 wheel loader — 636 kW (853 HP) / 2,000 rpm
• Komatsu WA900-3E0 wheel loader — 672 kW (900 HP) / 2,050 rpm

Why This Manual Matters

The 12V140E-3 is a common rail engine, and that changes everything about how you work on it. Where the earlier 12V140-1 used a mechanically governed jerk-type in-line injection pump, the 12V140E-3 uses high-pressure fuel injection at 118 MPa (1,200 kg/cm²) controlled by an engine controller. Injector timing, injection rate and rail pressure are all electronic. Without the correct diagnostic procedures and error code tables, you’re guessing. This manual takes the guesswork out.

With 468 pages covering everything from valve clearance adjustment (intake 0.35 ± 0.02 mm, exhaust 0.57 ± 0.02 mm) to cylinder head bolt tightening sequences (plastic-region turning: 137–157 Nm, then 284–294 Nm, then 90°), the manual gives you the exact numbers and procedures. Torque values, clearances, service limits, testing tools — it’s all here, organized the way Komatsu’s service network uses it.

IMAGES PREVIEW

Instant PDF Delivery

This is an instant digital download. After checkout you’ll receive the complete 468-page PDF immediately — no waiting, no shipping, no physical book to lose. Use it on any device: laptop in the workshop, tablet next to the machine, or print the pages you need for the job at hand. Search across the whole manual, jump to the section you need, and get to work.
