Komatsu 114E-3 Series SAA6D114E-3 Engine Shop Manual SEN00169-02 PDF Download

Description

The Komatsu 114E-3 Series Engine Shop Manual — Form No. SEN00169-02 — is the complete workshop reference for the SAA6D114E-3 diesel engine. This 309-page PDF is the June 2006 Komatsu America Corp. publication for the 114E-3 Series, and it covers every major engine system in the detail a working technician needs: the high-pressure common rail fuel system, variable geometry and wastegate turbochargers, the cylinder block, crankshaft, camshaft, valve train, and flywheel housing. Whether you are servicing a PC300-7 excavator, a WA430-6 wheel loader, or a D65EX-15 bulldozer, this Komatsu 114E-3 shop manual provides the specifications, tightening torques, maintenance standards, and disassembly/assembly sequences required to do the job correctly the first time.

File Details

• Manual Type: Engine Shop Manual
• Brand: Komatsu
• Series: 114E-3 Series
• Engine Model: SAA6D114E-3
• Form Number: SEN00169-02
• Publication Date: June 2006
• Publisher: Komatsu America Corp.
• Language: English
• Page Count: 309
• File Format: PDF

Chapters Covered

• 00 Index and foreword
• 01 Specification
• 10 Structure, function and maintenance standard
• 20 Standard value table
• 30 Testing and adjusting
• 40 Troubleshooting
• 50 Disassembly and assembly

01 Specification

Engine specifications, general views, dimensions tables, and performance curves for the SAA6D114E-3 across each applicable machine model. Flywheel horsepower, maximum torque, high and low idle speeds, minimum fuel consumption ratio, dry weight, lubricating oil refill capacity, coolant amount, alternator and starting motor ratings, battery configuration, and turbocharger model are listed per machine application. Engine performance curves for the PC300-7/PC350-7, WA430-6, and D65EX-15/D65PX-15/D65WX-15 applications are included.

10 Structure, Function and Maintenance Standard

Detailed cutaway explanations of the intake and exhaust system, variable geometry and wastegate turbochargers, lubricating oil system, cooling system, and the common rail fuel system. Maintenance standard data follows for the turbocharger, cylinder head, cylinder block, cylinder liner, crankshaft, piston and piston rings, connecting rod, vibration damper, timing gear, camshaft, valve and valve guide, rocker arm, shaft and tappet, flywheel and flywheel housing, and oil pump. Radial play, end play, strain limits, projection values, clearances, and tightening torques are given in millimeter and Nm units.

20 Standard Value Table

Standard value table for testing, adjusting, and troubleshooting, plus run-in standard and performance test criteria. Covers engine speed, intake resistance, intake pressure, exhaust pressure, exhaust temperature, exhaust gas color, valve clearance, compression pressure, blow-by pressure, oil pressure and temperature, oil consumption ratio, radiator pressure valve opening pressure, and fan speed for each applicable machine. Run-in standard and performance test criteria tables list order, running time, engine speed, dynamometer load, output, fuel consumption, coolant temperature, lubricating oil temperature, lubricating oil pressure, and exhaust temperature.

30 Testing and Adjusting

Testing and adjusting tools list, air boost pressure testing, valve clearance adjustment, compression pressure testing, blow-by pressure testing, and oil pressure testing. Fuel system handling procedures include releasing residual pressure, fuel pressure testing at multiple circuit points, reduced cylinder mode operation, no-injection cranking, pressure limiter leakage and injector return rate testing, bleeding air from the fuel circuit, and fuel system leakage testing. Also covers handling the controller high-voltage circuit.

40 Troubleshooting

General troubleshooting information, error and failure code tables, and two major diagnostic sections. The mechanical system (S-mode) section covers starting performance, engine does not start, engine does not pick up smoothly, engine stops during operations, engine does not rotate smoothly, engine lacks output, black exhaust smoke, excessive oil consumption, oil contamination, excessive fuel consumption, oil in coolant, oil pressure drop, oil level rise, overheating, abnormal noise, and excessive vibration. The electrical system (E-mode) section breaks down every INSITE and machine failure code — from engine controller internal failure and speed sensor errors to charge air pressure, throttle, coolant temperature, charge air temperature, injector, rail pressure, sensor supply voltage, lift pump, and intake air heater faults — with possible causes, standard values, and troubleshooting steps.

50 Disassembly and Assembly

General information on disassembly and assembly, coating materials list, and special tools list, followed by full step-by-step procedures. Disassembly covers preparation, mounting to the repair stand, and removal of the starting motor, turbocharger, oil cooler, coolant connectors, thermostat, intake air heater, fuel high-pressure pipes, common rail, low-pressure hoses, fuel filter bracket, tubes, main controller, priming pump, fuel supply pump, rocker arm assembly, fuel injector assembly, push rods, rocker housing, exhaust manifold, air intake manifold cover, cylinder head, front cover, supply pump drive gear, oil pump, oil pan, camshaft, tappets, piston cooling nozzles, piston and connecting rod assemblies, flywheel, flywheel housing, rear seal housing, gear housing, crankshaft, and cylinder liners. Assembly covers the reverse sequence with all tightening torques, sealant application points, and measurement checks including cylinder liner projection, crankshaft end play, camshaft end play and backlash, flywheel radial and facial runout, and valve clearance adjustment.

Applicable Komatsu Machines

This 114E-3 Series engine shop manual applies to the SAA6D114E-3 engine installed in:

• PC300-7, PC300LC-7 hydraulic excavators
• PC350-7, PC350LC-7 hydraulic excavators
• WA430-6 wheel loader
• D65EX-15, D65PX-15, D65WX-15 bulldozers

Why This Komatsu 114E-3 Shop Manual Matters

Every specification in this manual — from main cap mounting bolt torque and cylinder liner projection to valve clearance, crankshaft end play, and rail pressure limits — is the difference between a repair that holds and one that comes back. The SAA6D114E-3 is a high-pressure common rail engine, and guessing at injector torque, fuel connector tightening, or high-pressure pipe installation can cause leaks, misfires, or no-start conditions that are expensive to chase. This Komatsu 114E-3 Series shop manual spells out the exact sequences, measurement values, and precautions, including the 30-second residual pressure wait before opening the fuel circuit, the two-stage injector holder bolt torque, the high-pressure pipe taper seal inspection, and the edge filter handling that keeps the fuel system clean.

For shops and owner-operators running PC300-7, PC350-7, WA430-6, or D65 series machines, having the correct Komatsu 114E-3 engine service manual means faster diagnostics — the S-mode troubleshooting charts narrow causes by symptom, and the E-mode electrical section gives pin-level checks with standard voltage and resistance values for every sensor and actuator circuit. The disassembly and assembly chapters include component weights, lifting precautions, special tool part numbers, coating material specifications, and the torque sequences that prevent warped cylinder heads, distorted bearing caps, and leaking seals.

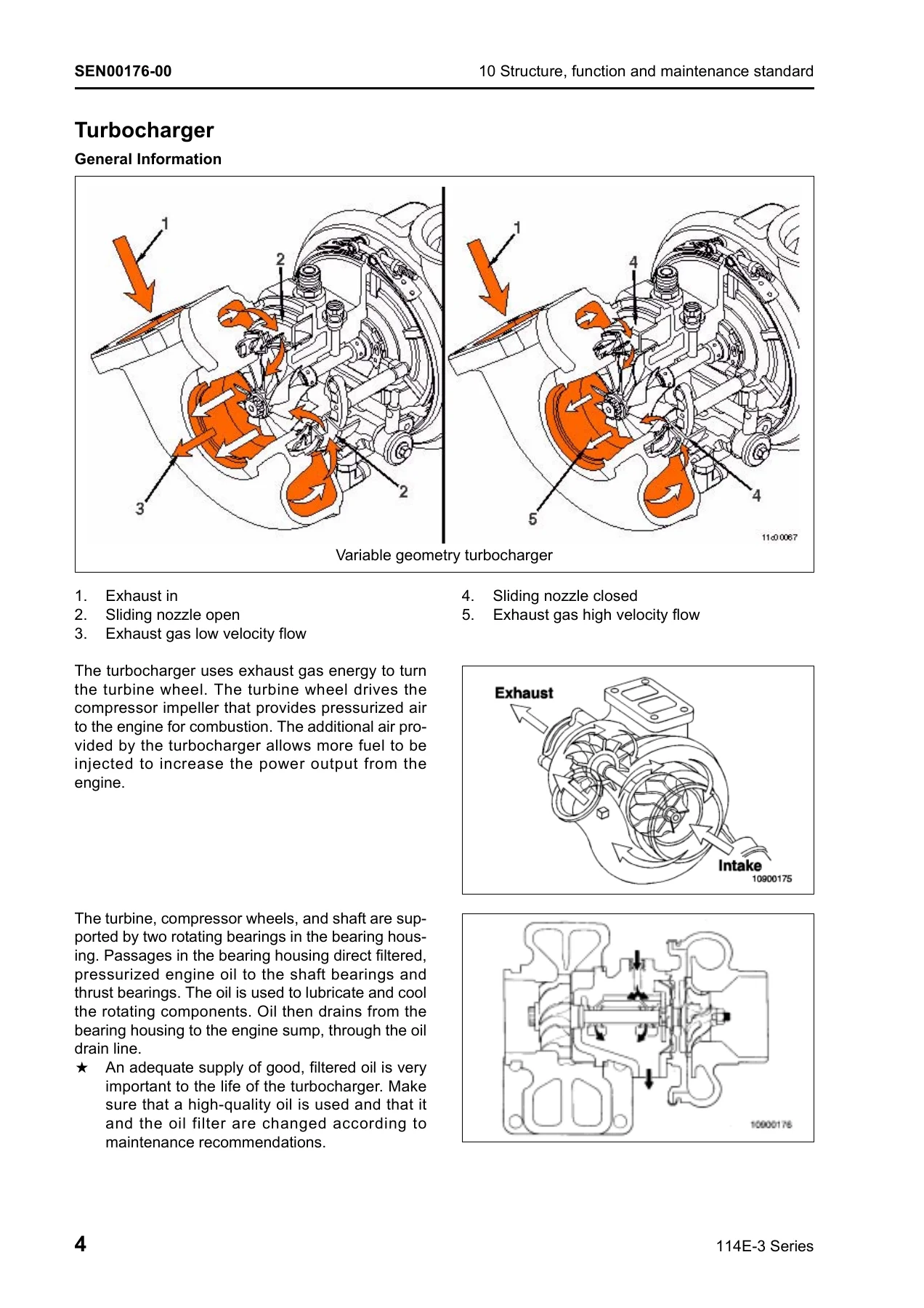

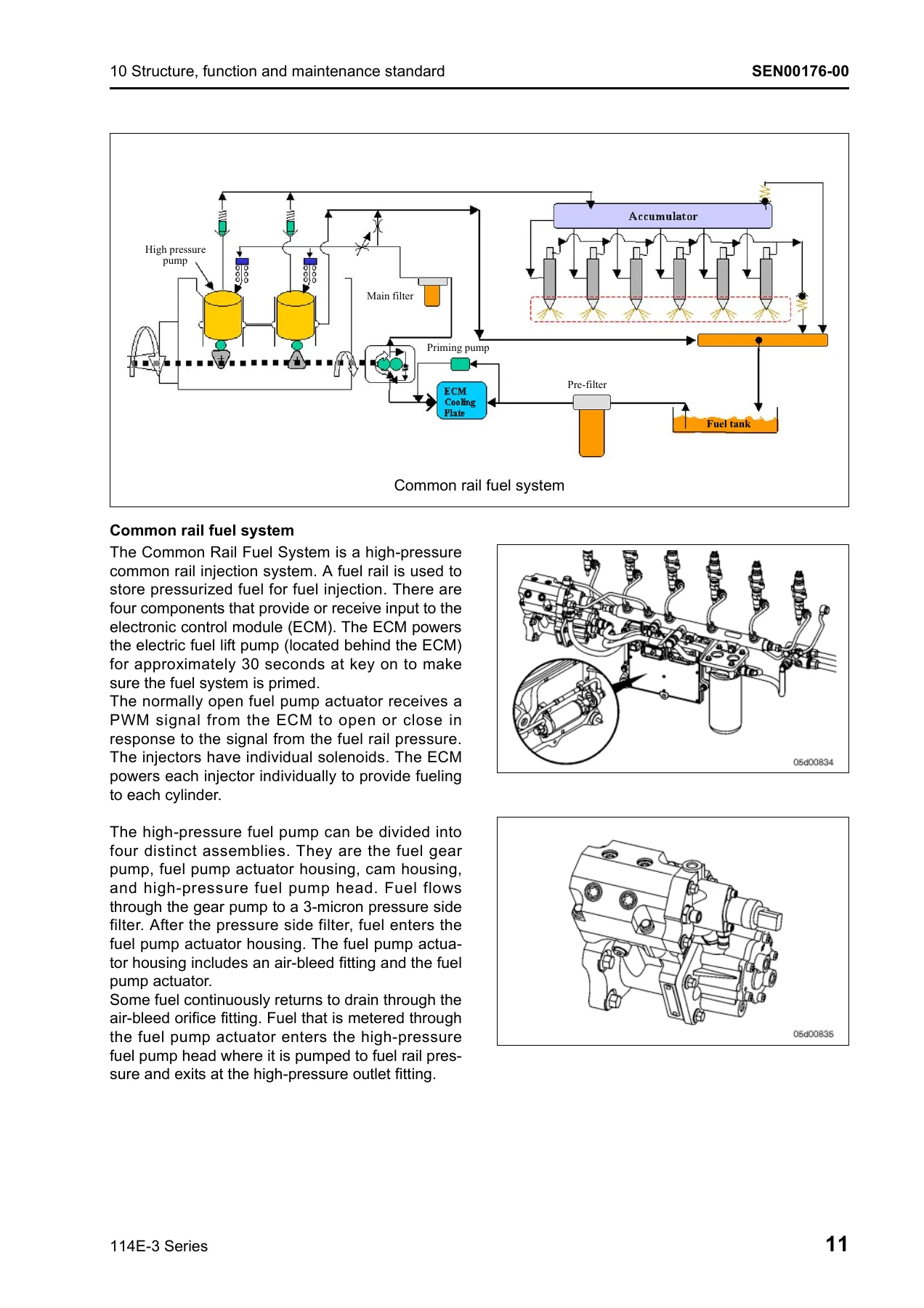

IMAGES PREVIEW

This Komatsu SAA6D114E-3 engine manual is delivered as an instant PDF download after purchase — no shipping, no waiting. The file opens on any device, including phones, tablets, laptops, and desktop computers, and can be printed for use on the shop floor. Keep it on hand for routine maintenance, major overhauls, and everything in between.
