Komatsu 140E-7 Series Engine Shop Manual SEN06498-18 – SAA6D140E-7 Repair PDF 2024

Description

File Details

• Manual type: Engine Shop Manual (engine unit, not machine chassis)
• Brand: Komatsu
• Engine model: SAA6D140E-7
• Series: 140E-7 Series
• Document number: SEN06498-18
• Edition / date: 2024-07 (Rev. 2023.11 coating materials list)
• Language: English
• Format: PDF (download)
• Contents structure: 00 Index and Foreword, 01 Specifications, 10 Structure and Function, 20 Standard Value Table, 50 Disassembly and Assembly, 60 Maintenance Standard

Chapters Covered

• 00 Index and Foreword – Abbreviation List; Foreword, Safety, Basic Information; How to Read the Engine Shop Manual; Safety Notice for Operation; Precautions to Prevent Fire; Procedures If Fire Occurs; Precautions for Disposing of Waste Materials; Engine Technology to Conform Exhaust Gas Emission; Precautions for DEF; Store DEF; Precautions When You Handle Hydraulic Equipment; Precautions When You Disconnect and Connect Pipings; Precautions When You Handle Electrical Equipment; Precautions When You Handle Fuel System Equipment; Precautions When You Handle Intake System Equipment; Disconnect and Connect Push-Pull Type Coupler; Precautions for Disconnection and Connection of Connectors; How to Disconnect and Connect Deutsch / Slide Lock / Lock to Pull / Lock to Push / Housing to Rotate Connectors; How to Read the Codes for Electric Cable; Explanation of Terms for Maintenance Standard; Standard Tightening Torque Table; Conversion Table
• 01 Specifications – Specifications; Outline of Exhaust Gas Regulation; List of Applicable Machines: 140E-7; Engine General View; Weight Table; Engine Performance Curve

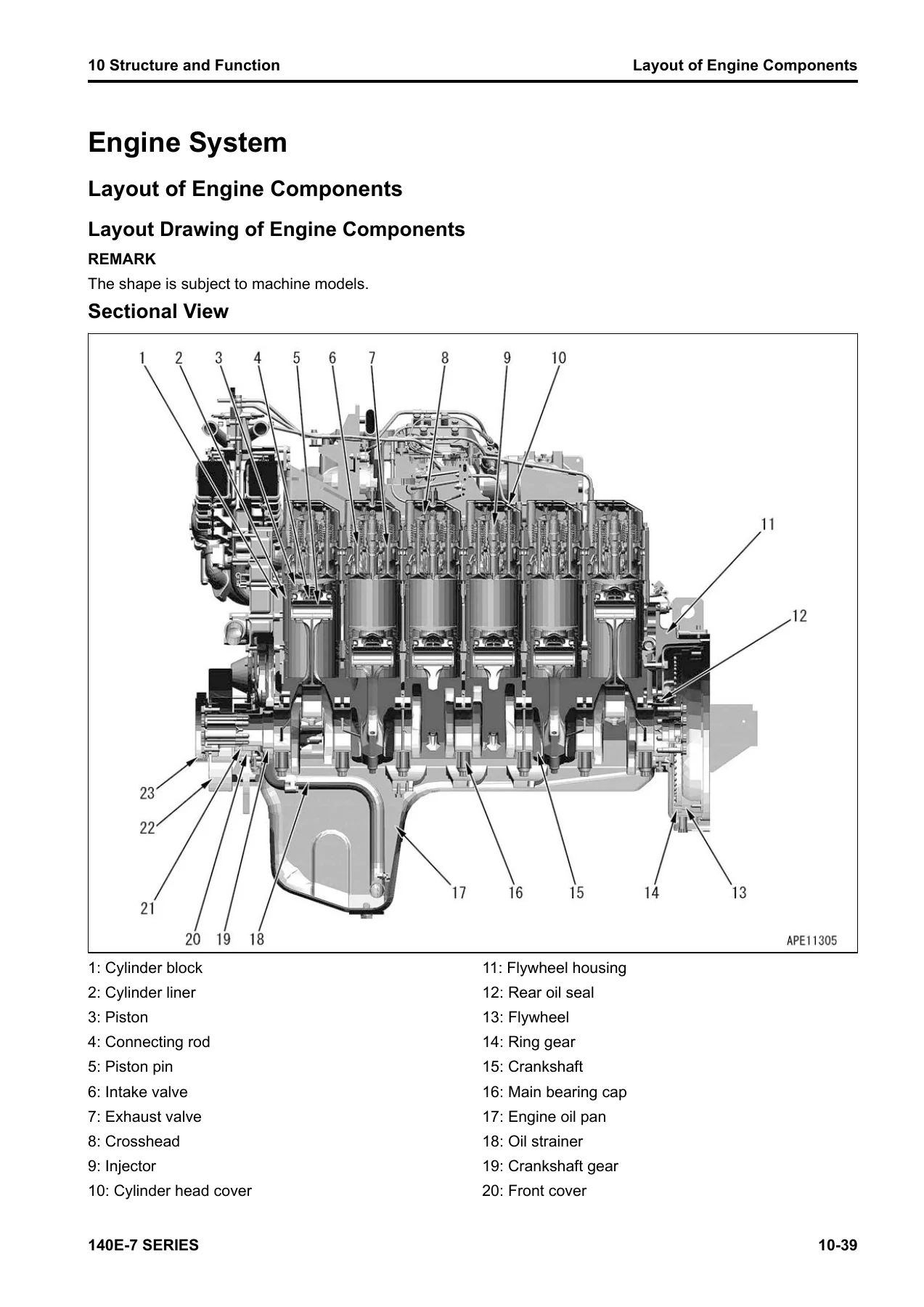

• 10 Structure and Function – Urea SCR System (layout, system diagram, function, component parts); Engine System (layout of engine components, intake and exhaust system parts, engine main body parts); Turbocharger System (VGT, EGR system, EGR valve, EGR cooler, mixing connector, KCCV system and ventilator, KDPF); Lubrication System (engine oil pump, boost oil pump, oil filter, oil cooler, oil pan); Fuel System (CRI system, supply pump, common rail, injector, fuel dosing system, prefilter and main filter); Cooling System (circuit diagram, water pump, thermostat); Electrical System (alternator, starting motor, engine wiring harness, engine controller, fuel feed pump); Sensor
• 20 Standard Value Table – Standard Value Table for Engine per applicable machine; Running-in Standard and Performance Test Standard per applicable machine
• 50 Disassembly and Assembly – Precautions Before Work; Related Information on Disassembly and Assembly; How to Read This Manual; Coating Materials List; Special Tool List and Sketches of Special Tools; Engine System – Disassemble and Assemble Engine Generally; Remove and Install Supply Pump Assembly; Remove and Install Engine Front Oil Seal; Remove and Install Engine Rear Oil Seal
• 60 Maintenance Standard – Intake and Exhaust System Parts (VGT); Engine Main Body Parts (cylinder head, cylinder block, cylinder liner, crankshaft, cam follower and push rod, piston, connecting rod, vibration damper, timing gear, camshaft, valve and valve guide, rocker arm, crosshead and guide, flywheel); Lubrication System (relief valves, safety valve); Cooling System (oil cooler, water pump, thermostat)

This Komatsu 140E-7 Series Engine Shop Manual is written around one powerplant: the SAA6D140E-7, a 6-cylinder 140 x 165 mm, 15.2 litre common rail diesel. Instead of a quick-reference sheet, it walks through the engine as a complete assembly – how the VGT, EGR circuit, KCCV ventilator, KDPF and urea SCR system are laid out and how each one actually works, then the measured values you compare against, then the step-by-step teardown and rebuild, and finally the wear limits that decide whether a part goes back in or gets replaced. The opening chapter carries the safety and handling material that matters on this generation of engine, including DEF handling and storage, high-pressure common rail fuel system cleanliness, face seal and taper seal piping reconnection, push-pull coupler and connector procedures, and the standard tightening torque and conversion tables used throughout the rest of the book.

Engines and Machines Covered

The manual is indexed to the SAA6D140E-7 engine as installed in the following Komatsu machines:

• Bulldozer: D155AX-8, D155AX-8E0, D155AXI-8, D155AXI-8E0, D155CX-8, D155PX-8
• Motor grader: GD955-7, GD955-7E0
• Dump truck: HD325-8, HD325-8E0, HD405-8, HD405-8E0
• Articulated dump truck: HM400-5, HM400-5E0
• Hydraulic excavator: PC650LC-11, PC900LC-11, PC950-11, PC950-11E0, PC950-11R, PC950LC-11, PC950LC-11E0
• Wheel loader: WA500-8, WA500-8E0

Because rated horsepower, idle speeds, boost pressure, exhaust temperature limits and running-in dynamometer loads differ between these installations, the specification, standard value and running-in chapters are broken out machine by machine. That means you read the values that actually apply to the machine in front of you rather than a generic figure. Engine performance curves are supplied for each application group as well.

What This Komatsu 140E-7 Engine Manual Lets You Do

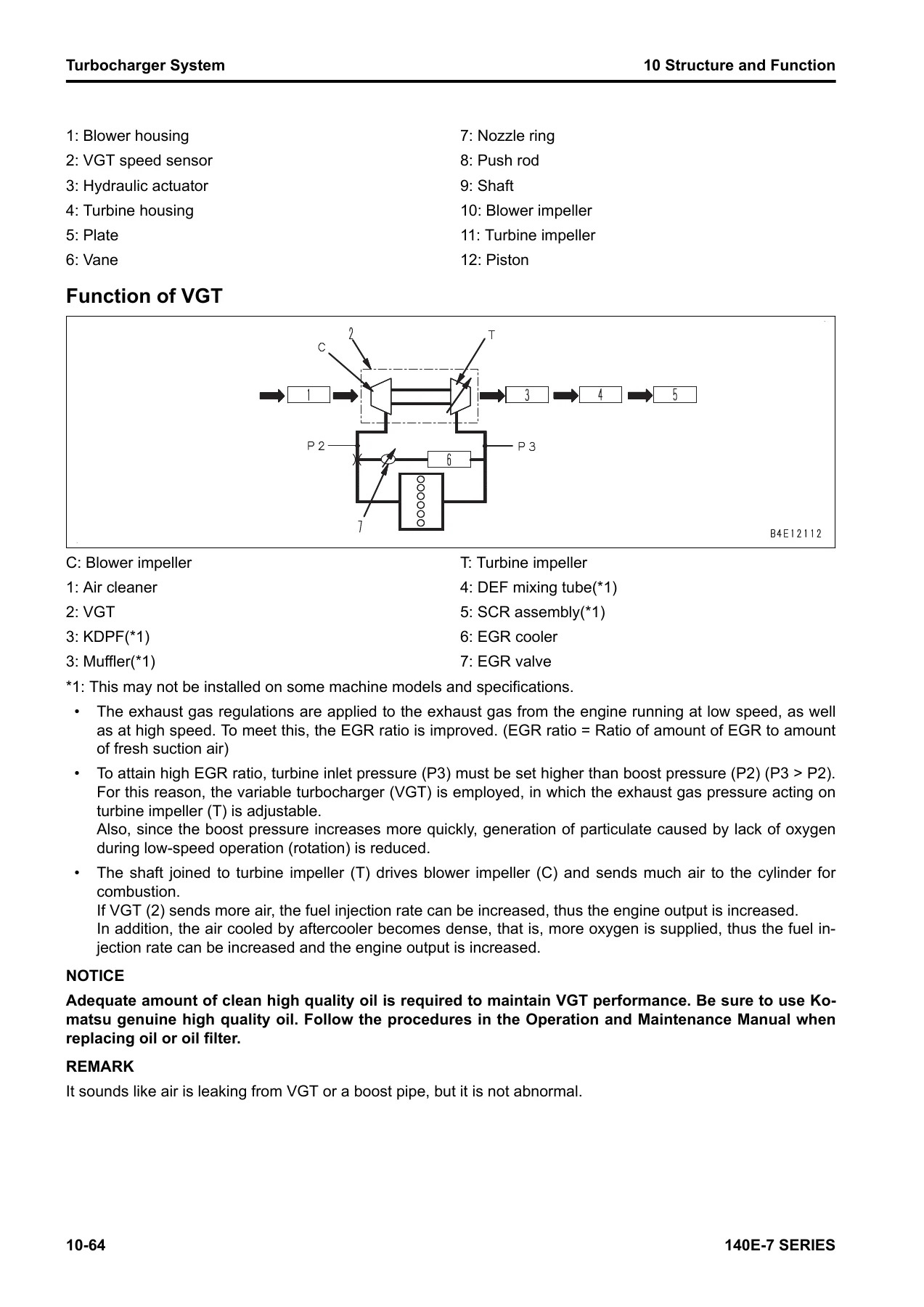

The 10 Structure and Function chapter is where this book earns its place on the bench. The urea SCR section covers the DEF tank, DEF tank sensor, DEF pump, DEF injector, DEF hose and DEF tank heating valve, together with the inducement strategy tables for North America and the European Union, temporary restoration from inducement, and the abnormality recurrence logic. The turbocharger chapter explains VGT operation with the nozzle ring open and closed, the hydraulic actuator, the EGR valve servo mechanism, the EGR cooler, the KCCV ventilator and the KDPF regeneration types – passive, automatic active and manual stationary. The fuel chapter covers the CRI system, supply pump with PCV, common rail with flow damper and pressure limiter, and injector operation at start and finish of injection.

The 20 Standard Value Table gives you the numbers to test against: high idle and low idle speeds, air intake resistance, boost pressure, exhaust temperature and exhaust gas colour, valve clearance, EGR and VGT oil pressure, compression pressure, blowby pressure, engine oil pressure and temperature, oil consumption rate, and the running-in sequence with dynamometer loads and performance test standards for each machine.

The 50 Disassembly and Assembly chapter is the full teardown: draining and setting up the engine, removing the intake tube, starting motor, VGT assembly, EGR cooler, exhaust manifold, oil cooler, water pump, wiring harness, engine controller, fuel prefilter, EGR valve, fuel filter, alternator and air conditioner compressor, intake manifold, common rail, supply pump, rocker arm and shaft assembly, push rods, cam followers, damper, front cover, camshaft, injection drive gear, idler gears, cylinder head, flywheel and flywheel housing, pistons and connecting rods, crankshaft and cylinder liners – then the reverse sequence with the tightening torques, torque-plus-angle procedures, liquid gasket and molybdenum disulphide lubricant points, and the fuel leakage check routine after reassembly. Dedicated sections cover removing and installing the supply pump assembly and the front and rear oil seals, including the standard seal and sleeved seal procedures.

The 60 Maintenance Standard chapter closes the loop with the limits that decide reuse or replacement: cylinder head and block face strain, main bearing and camshaft bushing bore sizes, liner protrusion and interference, crankshaft journal diameters and undersize options, piston ring groove clearances and closed gaps, connecting rod bushing and big end dimensions, timing gear backlash and end play, camshaft cam heights, valve recess, lip thickness, stem clearance and spring loads, rocker arm clearance, and flywheel runout.

IMAGES PREVIEW

Instant PDF Delivery

The Komatsu 140E-7 Series Engine Shop Manual SEN06498-18 is delivered as a downloadable PDF immediately after purchase – no shipping, no waiting, no physical book to keep track of. Open it on a laptop in the workshop, a tablet next to the engine, or a phone under the machine, and print the pages you want to take with you so the screen does not have to survive the job. Whether you are setting valve clearance, chasing a VGT or EGR fault, checking compression and blowby against the standard value table, pulling a cylinder head, measuring a crankshaft journal against its repair limit, or simply working out which torque figure applies to which fastener, having the correct procedure and the correct specification in front of you is what keeps the SAA6D140E-7 running the way it was built to.
