Komatsu PC350LC-8-W2 Parts Catalog – Serial Number 60001 and Up – Complete Illustrated Parts Manual PDF

Description

Komatsu PC350LC-8-W2 Parts Catalog – Serial Number 60001 and Up

This is the complete illustrated parts catalog for the Komatsu PC350LC-8-W2 excavator, covering machines from serial number 60001 and up. Every major assembly is broken down into exploded-view diagrams with item numbers, genuine part numbers, descriptions, quantities required, and serial number applicability notes. Whether you are ordering a single O-ring or rebuilding a complete hydraulic circuit, this catalog gives you the exact part number for your machine’s serial range.

File Details

• Manual type: Illustrated Parts Catalog
• Brand: Komatsu
• Model: PC350LC-8-W2
• Serial number coverage: 60001 and up
• Engine model: SAA6D114E-3D-WT
• Language: English
• Format: PDF
• Page count: Approximately 634 pages

Chapters and Systems Covered

The catalog is organised by assembly group, following the same structure as the Komatsu master parts system. Each section includes exploded diagrams with item-number callouts and a corresponding parts table.

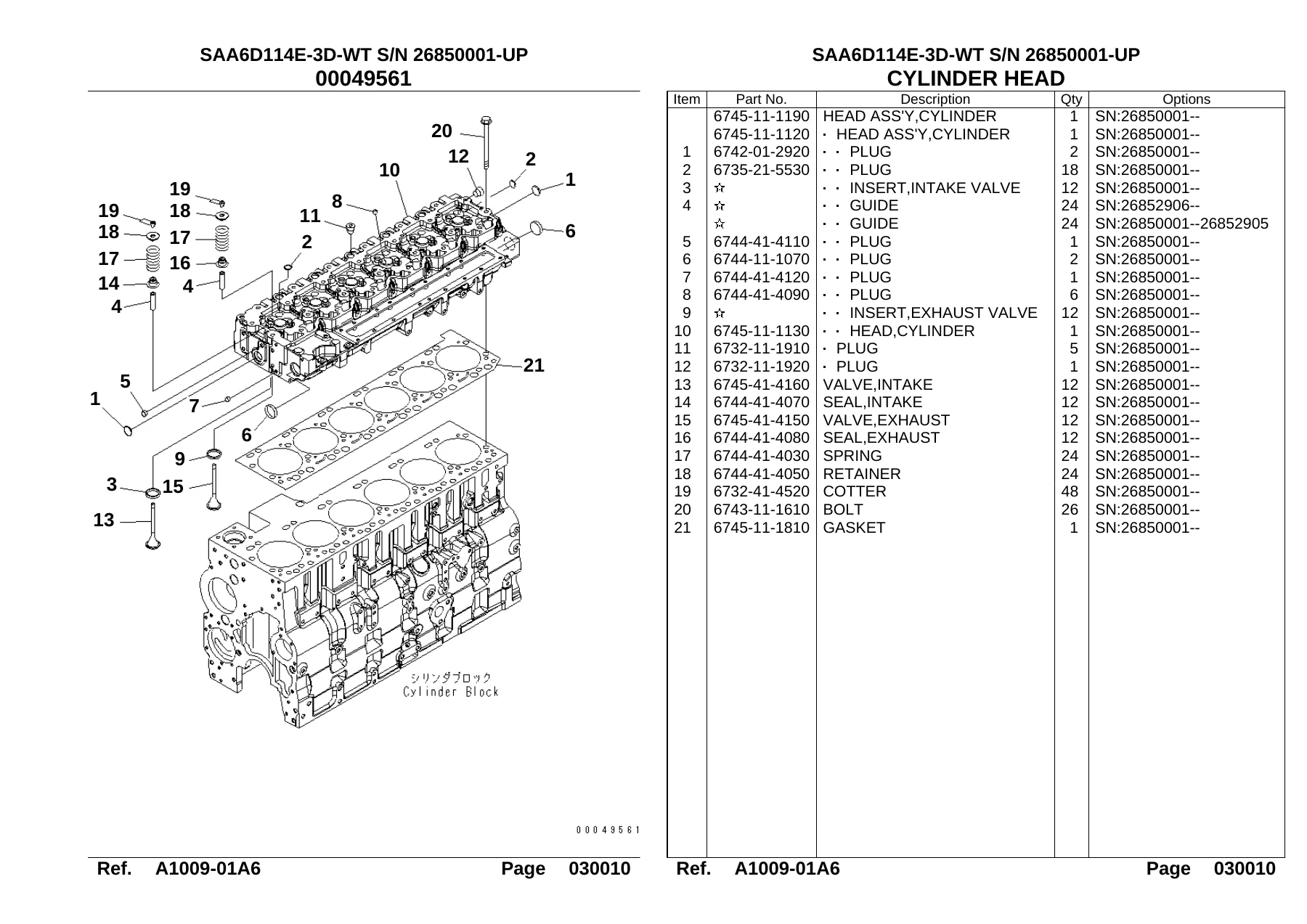

• Engine – Cylinder Head: Head assembly, valve guides, intake and exhaust valves, springs, retainers, cotter pins, cylinder head bolts, head gasket, plugs and inserts.
• Engine – Cylinder Block: Block assembly, cylinder liners, liner seals, main bearing caps, dowel pins, cooling nozzles, drain cock, tappets, plugs and sealing washers.
• Engine – Front Cover and Gear Train: Front gear housing, seals, cover, O-rings, liquid gasket, bolts and washers.
• Engine – Flywheel and Housing: Flywheel assembly, ring gear, flywheel mounting bolts and washers, flywheel housing, rear seals, cover plates and gaskets.
• Engine – Crankshaft and Damper: Crankshaft assembly, main metal set, thrust washers, damper, crank pulley and mounting bolts.
• Engine – Camshaft and Valve Train: Camshaft, gear, thrust support, rocker lever assembly, valve cover, vibration isolators, breather assembly, O-rings and related hardware.
• Engine – Pistons and Connecting Rods: Piston assemblies, rings, pins, connecting rod bearings and related components.

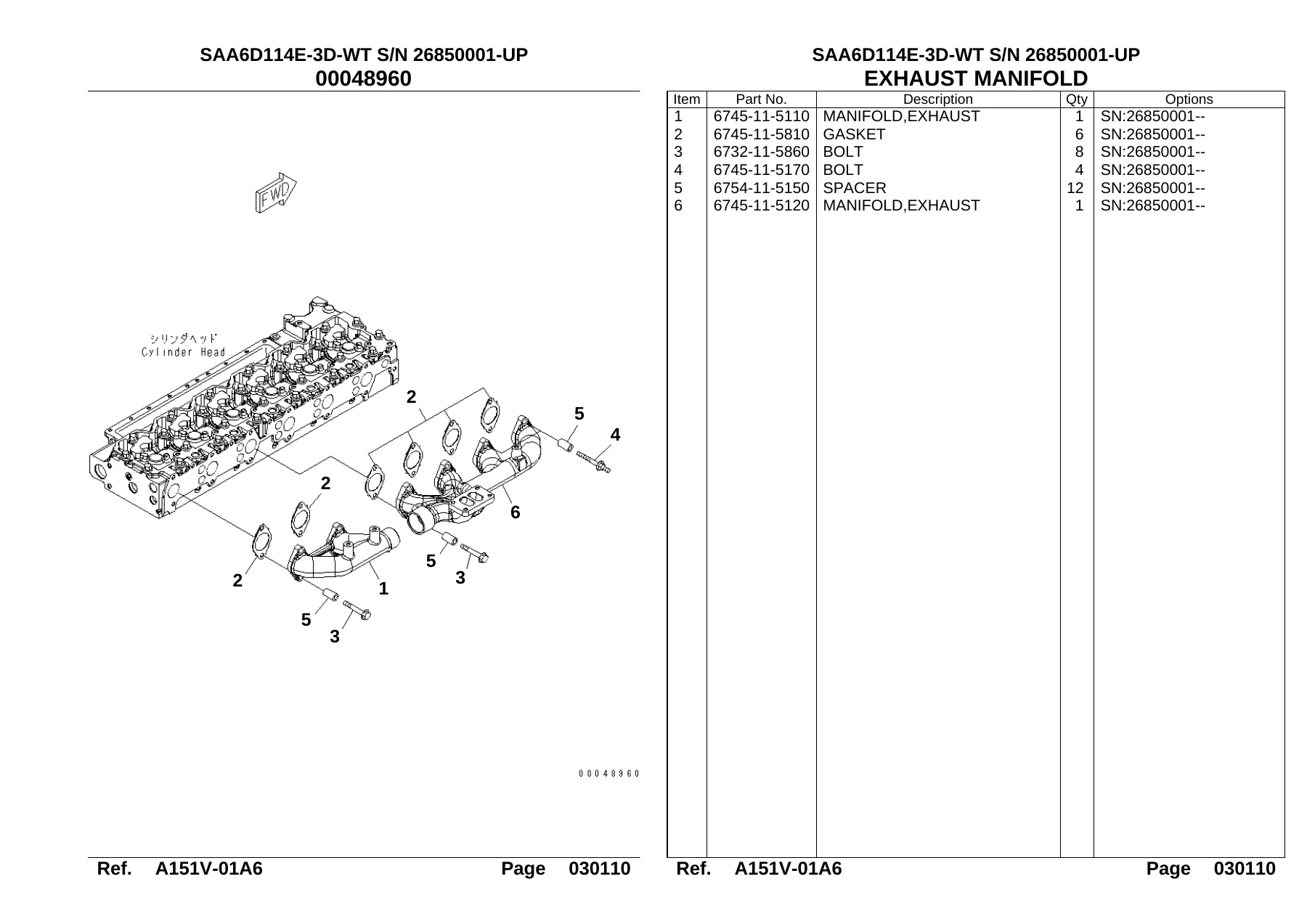

• Engine – Turbocharger and Exhaust: Turbocharger assembly, exhaust manifold, gaskets, studs, nuts, heat shields, oil drain gaskets and O-rings.
• Engine – Air Intake System: Air intake manifold, intake connector, air intake heater, gaskets, clamps and mounting bolts.
• Engine – Cooling System: Water pump, water inlet connection, water outlet connection, thermostat (two serial ranges), coolant piping, fan drive pulley, fan drive belt, cooling fan and related hardware.
• Engine – Fuel System: Fuel pump assembly, fuel filter (standard and additional filter specifications), fuel injection piping, fuel transfer pump, injectors, electronic controller and related piping and fittings.
• Engine – Lubrication System: Oil pump, oil filter and piping, oil cooler, oil pan and suction tube, oil level gauge (two serial ranges), oil level sensor and related components.
• Engine – Electrical: Alternator (60A) with inner parts breakdown, starting motor (7.5KW and 11KW) with inner parts breakdowns, starting motor mounting, belt tensioner, corrosion resistor (two serial ranges) and related wiring brackets.

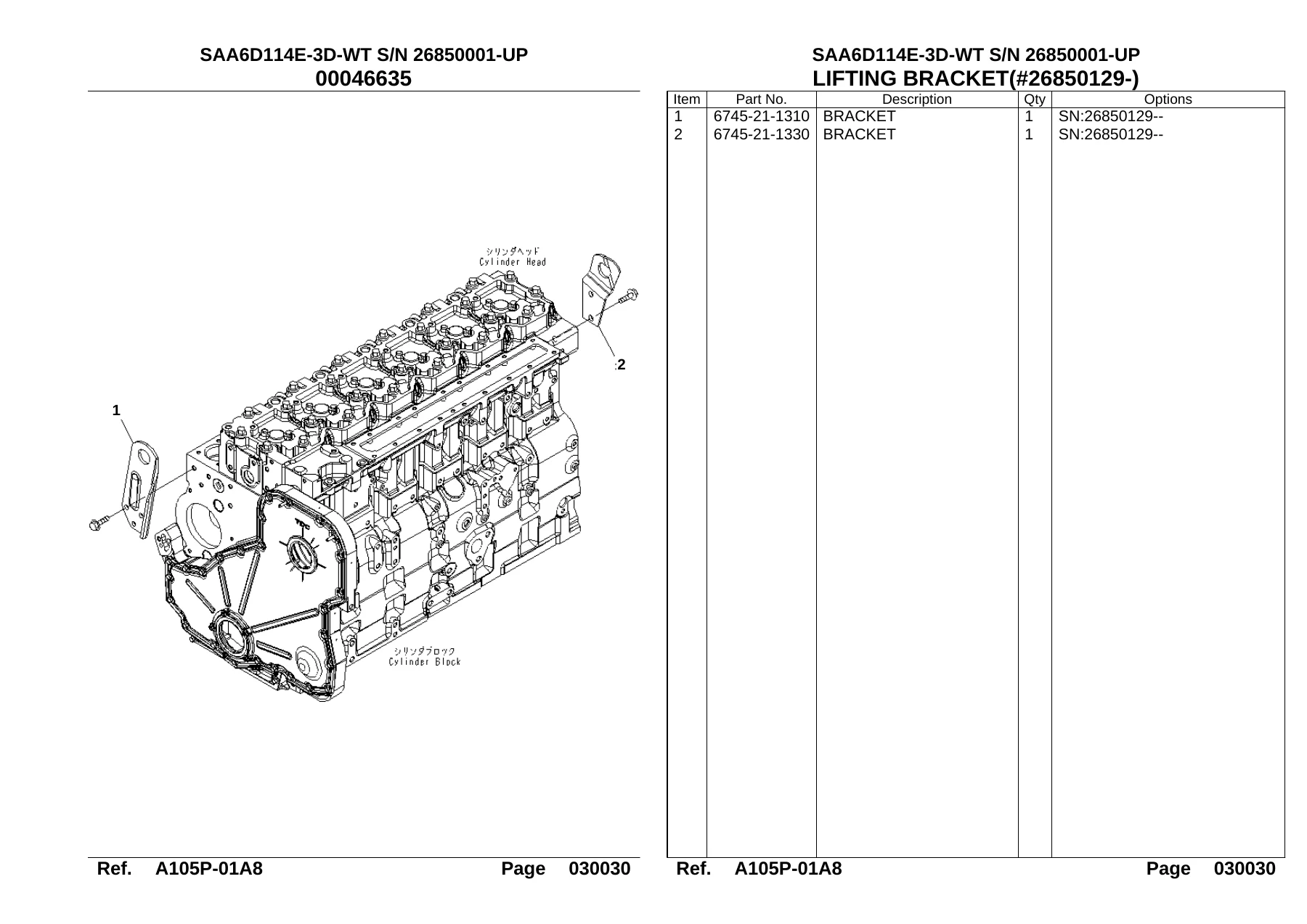

• Engine – Accessories: Accessory drive pulley (standard and sand terrain specification), lifting brackets and mounting bolts.
• Cooling System (Machine Side): Radiator assembly, oil cooler, after cooler, condenser, shroud, cooling fan, radiator piping, hoses, clamps, sub tank and all related seals and mounting hardware.
• Fuel Tank and Lines: Fuel tank, fuel lines, pre-filter and related parts, fuel lines for extra poor fuel specification, hoses, clamps and fittings.
• Hydraulic System: Hydraulic tank (with burst valve and quick coupler configurations), main valve connecting parts (multiple actuator configurations), main pump connecting parts, suction line, delivery line with in-line filter, oil cooler lines, return lines, drain lines, boom lines, arm and bucket lines, travel lines, swing lines, LS lines, solenoid valves, pressure switches and PPC main lines.
• Main/Revolving Frame: Revolving frame with deck guard, boom foot pin (standard and 100-hour greasing type), frame sheets and related mounting hardware.
• Operator’s Compartment and Control System: Operator’s seat (suspension type, air suspension type with heater, rigid type, PVC leather), seat belt (50mm and 78mm wide), luggage box net, top guard, front guard, half guard, front full guard, floor mat, rain visor, sun visor, window washer, air conditioner compressor and hose, fire extinguisher (multiple languages), operator’s cab (multiple configurations including cab and window, front window, front lower window, roof window, door, door lock, open lock and door catch, wiper and room lamp, speaker and window washer, roof cover and air intake, pressure valve and grip, plug bolt and galeo plate, cab in parts including monitor and cover, monitor cover, luggage plate, monitor duct, air duct, partition and filter, sub plate and relay, air conditioner controller, main harness clamp, rear cover, floor frame, travel control, foot rest L.H. and R.H., first attachment control, base, harness, harness clamp and earth, window washer hose, lever L.H., valve L.H., console L.H., PPC lock lever and radio less, arm rest L.H., lever R.H., valve R.H., console R.H., arm rest R.H., air conditioner unit, air conditioner hose, heater hose, PPC piping for travel valve, PPC piping for pilot valve, PPC hose clamp, pit block and seal, rear camera cable), floor mounts, PPC work line clamp, switch (model selection connector).
• Guard: Hood, frame (machine cab) (standard and for extra poor fuel), left side door, right side door, partition (engine room front and pump/radiator side), cover upper (standard and with pre-cleaner), battery case, handrail, rear view mirror L.H. and R.H., counterweight (6371KG), counterweight mounting, under cover (revolving frame) (L.H., center, right – demolition spec and heavy duty).
• Swing Circle and Related Parts: Swing circle assembly, swing machinery, swing motor connecting parts, swivel joint.
• Travel and Lower Piping: Travel piping, final drive assembly with inner parts breakdown.
• Undercarriage: Front idler (standard and with antirust spring), idler cushion (standard and with antirust spring), track roller (standard, single flange, double flange), carrier roller, track shoe (triple grouser with hole – 600mm and 700mm wide), track frame (standard and for under cover), under cover for track frame, full roller guard.
• Work Equipment: Boom (heavy duty) with boom and top pin (500-hour and 100-hour greasing types), boom arm cylinder line, boom lubricating line, boom bucket cylinder line, boom cylinder pin and working lamp (500-hour and 100-hour greasing types), boom additional line for additional piping, boom additional line clamp, boom cylinder (for burst valve), boom cylinder (500-hour and 100-hour greasing types), arm cylinder (500-hour and 100-hour greasing types), parts for less arm, arm (3.2M heavy duty – 500-hour and 100-hour greasing types, with and without additional piping), arm (2.2M – 500-hour greasing type for South Africa, with additional piping), arm (2.6M heavy duty – 100-hour greasing type with additional piping for Turkey), arm (2.2M – 100-hour greasing type with additional piping for Turkey), arm bucket link (100-hour greasing type), arm pin bucket cylinder hose (500-hour and 100-hour greasing types for 3.2M and 2.2M/2.6M arms), arm additional piping (3.2M and 2.2M), arm valve for additional piping, arm heavy duty plug for Turkey, bucket less, ripper bucket 0.9M3 1200MM, bucket 1.2M3 heavy duty horizontal pin type, side cutter for heavy duty bucket, hook for heavy duty bucket, breaker adapter (for Krupp, Nippon Pneumatic, Montaber, Matuda, Okada with high pressure accumulator).
• Marks and Plates: Decal and plates (Turkish, English, English lettering type for USA, Spanish lettering type), plate lubrication standard chart (500-hour and 100-hour greasing types, with and without extra poor fuel), caution plate (cab windshield lock operation in English lettering type, English, Turkish, Indonesian, Chinese, Arabic, Persian, Russian), Komatsu logo (counterweight, boom and counterweight), logo small, plate load rating chart and front regulation plate, plate load rating chart (English, Spanish), battery caution (except Japan), caution plate (arm), caution plate (top guard, front guard, top and front guard in multiple languages), service instruction (air cleaner in Russian, Spanish, Chinese, English, Arabic, Persian, Indonesian), caution plate (1-accumulator and 2-accumulator in multiple languages), plate (swing or backing up warning), plate (12V power source).
• Accessory: Spare parts (standard and for extra poor fuel), cap and overall, tool kit.
• Miscellaneous: Grease pump (electrical type), blind parts (body, body with 1 actuator, boom, boom with 1 actuator, blind part unit boom for component, blind part unit boom with 1 actuator for component), engine drain hose.
• Service Kit and Component Parts: Swing machinery supply only, shoe bolt and nut service kit (standard and for double grouser type), track link (96 set) supply parts, air cleaner inner parts, precleaner inner parts, fuel pre-filter, rubber antenna, operator’s seat assembly (standard, PVC leather, suspension, air suspension), main pump (1/11 through 11/11), boom cylinder (for burst valve and greasing types across serial ranges), arm cylinder (500-hour and 100-hour greasing types), bucket cylinder (for 2.2M/2.6M and 3.2M/4.0M arms across greasing types and serial ranges), swivel joint, swing motor (1/3 through 3/3), travel motor (1/3 through 3/3), main valve (1/20 through 20/20, 1-actuator 1/23 through 23/23, 2-actuator quick coupler 1/24 through 24/24, 2-actuator 1/25 through 25/25), PPC valve (for travel 1/2 and 2/2, for work equipment, for 1-attachment, for 2-attachment), selector valve, burst valve (for boom cylinder L.H. and R.H.), accumulator (AL300-1) inner parts, filter inner parts, solenoid valve, valve for accumulator, compressor assembly for air conditioner, air conditioner unit.

What This Parts Catalog Provides

This is not a service manual or a repair guide. It is a comprehensive parts identification and ordering reference. Every illustration is an exploded view that shows how components fit together, and every item number on those illustrations corresponds to a line in the parts table with the Komatsu part number, description, quantity required, and serial number applicability.

Because this catalog covers serial number 60001 and up, you can confidently identify the correct part for your specific machine. Where a part changed during production, the catalog shows both options with the serial number break point clearly marked. This is critical for avoiding ordering mistakes, especially on wear items, seals, gaskets, and components that were revised mid-production.

The engine section alone covers the complete SAA6D114E-3D-WT diesel engine, including cylinder head, cylinder block, front gear train, flywheel housing, crankshaft, camshaft, pistons, turbocharger, air intake, cooling, fuel, lubrication, and electrical systems. Each system is broken down to the individual bolt, O-ring, and gasket.

The hydraulic section covers the main pump, main valve in every configuration (standard, 1-actuator, 2-actuator with quick coupler, 2-actuator), all lines and piping, solenoid valves, pressure switches, and accumulators. The undercarriage section covers the complete track frame, idlers, track rollers, carrier rollers, track shoes, and final drives. The work equipment section covers booms, arms, buckets, cylinders, and all attachment lines.

The operator’s compartment section is particularly detailed, covering every cab configuration and interior component, from the seat and seat belt to the air conditioner, monitor, wiring harness, floor components, and all control levers and valves.

Why This Parts Catalog Matters

Ordering the wrong part is expensive and frustrating. It costs you time, return shipping, and downtime. This catalog eliminates that risk by giving you the exact part number for your machine’s serial number. The exploded diagrams also help you understand how assemblies come apart and go back together, which is invaluable when you are working on a complex system like the main valve or the swing machinery.

Whether you are a Komatsu dealer parts counter, an independent repair shop, a fleet maintenance manager, or an owner-operator who does their own repairs, having the complete parts catalog for your machine means you can identify any component on the excavator and order it with confidence.

Delivery

IMAGES PREVIEW

This Komatsu PC350LC-8-W2 parts catalog is delivered as an instant PDF download after payment. No shipping, no waiting for a physical book. The file works on any device that can display a PDF — computer, tablet, or smartphone. You can print individual pages if you prefer a paper copy for the shop, or keep the entire catalog on your device for quick reference in the field.

The catalog covers every major system and assembly on the PC350LC-8-W2 from serial number 60001 and up, including the engine, cooling system, fuel system, hydraulic system, main frame, operator’s compartment, guard, swing circle, travel piping, undercarriage, work equipment, marks and plates, accessories, miscellaneous items, and service kits. Whether you need a single O-ring or a complete assembly breakdown, this is the reference you will reach for again and again.
