Komatsu PC200F-8 Parts Book KEPB006504 — Complete Parts Catalog

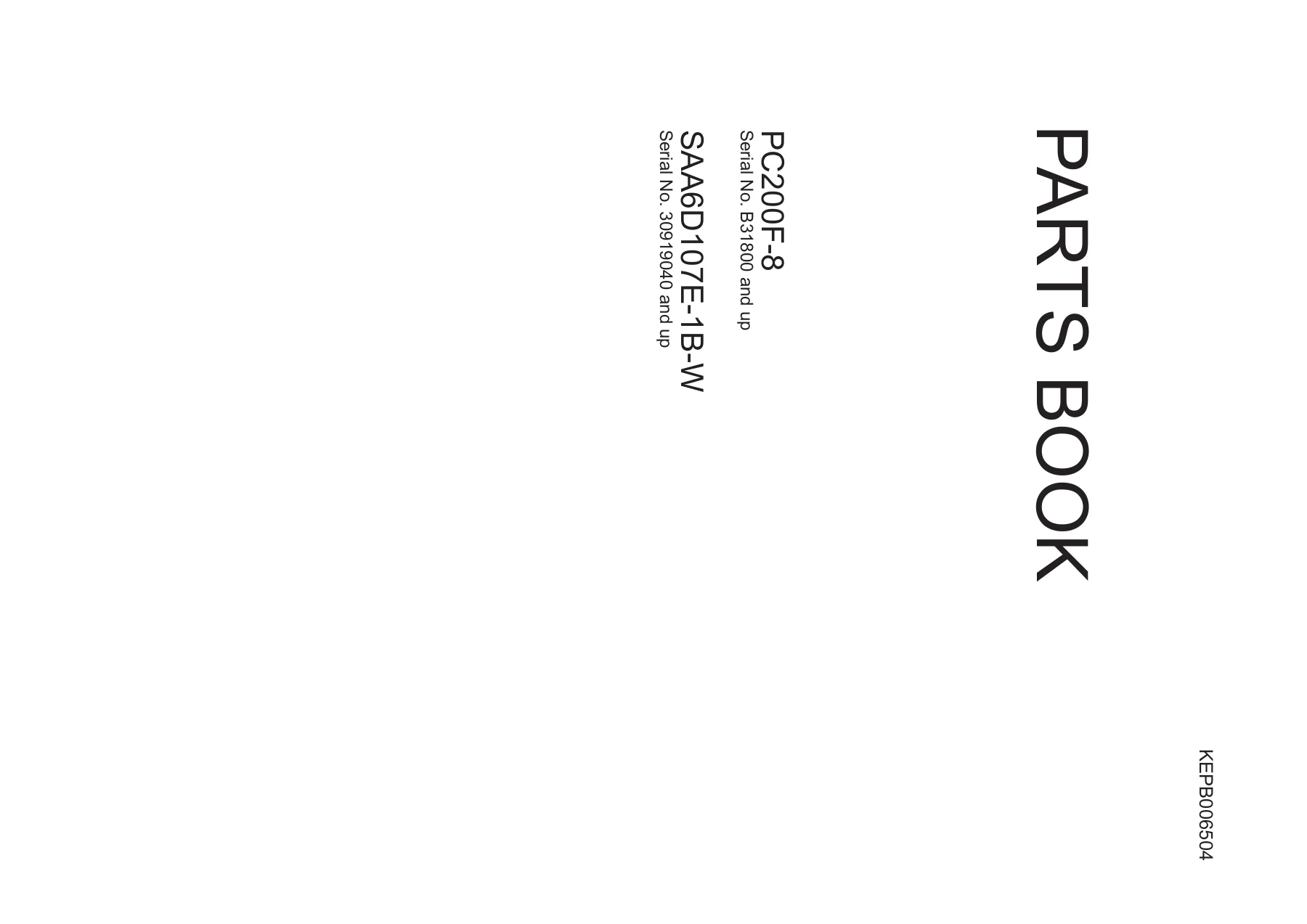

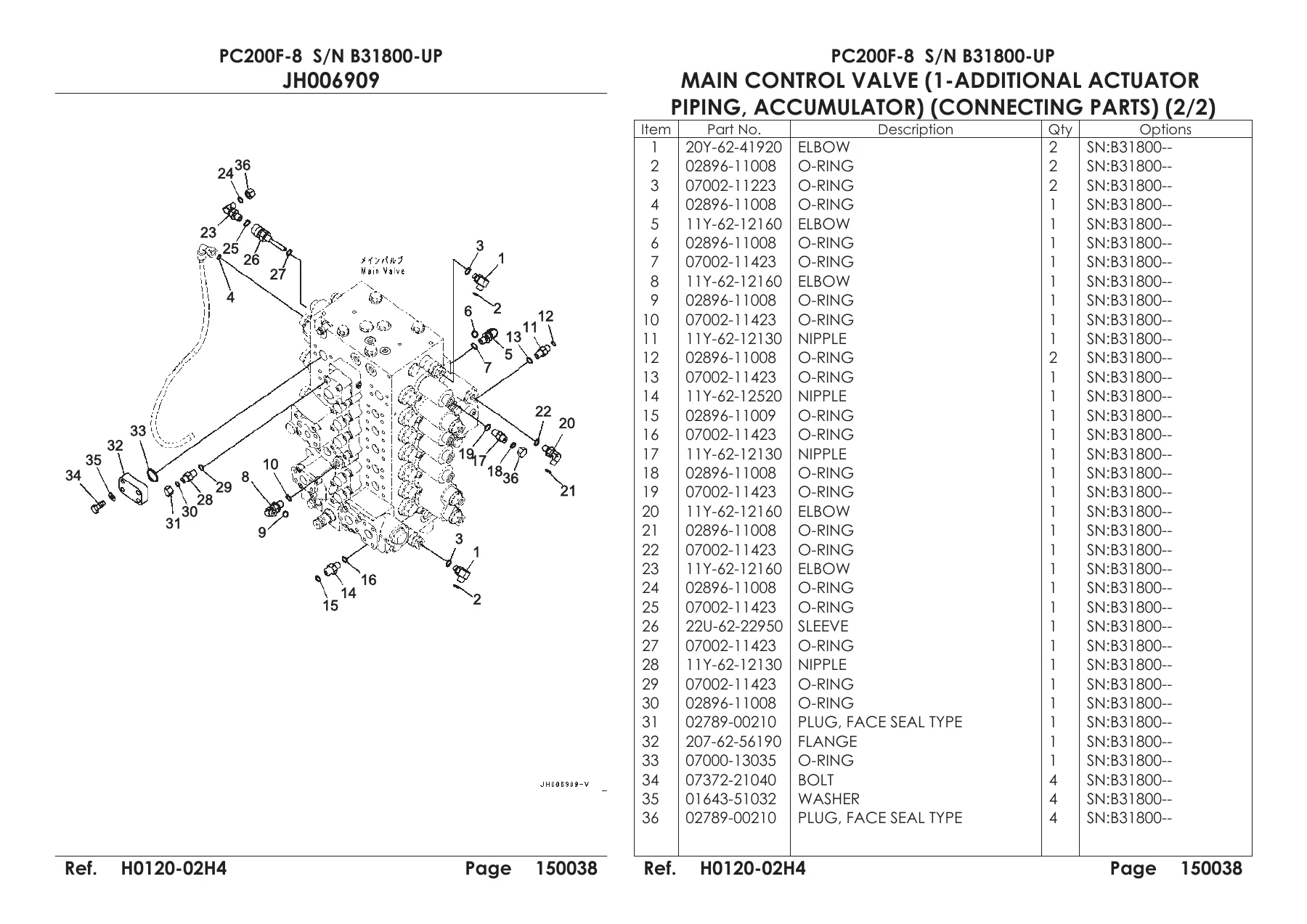

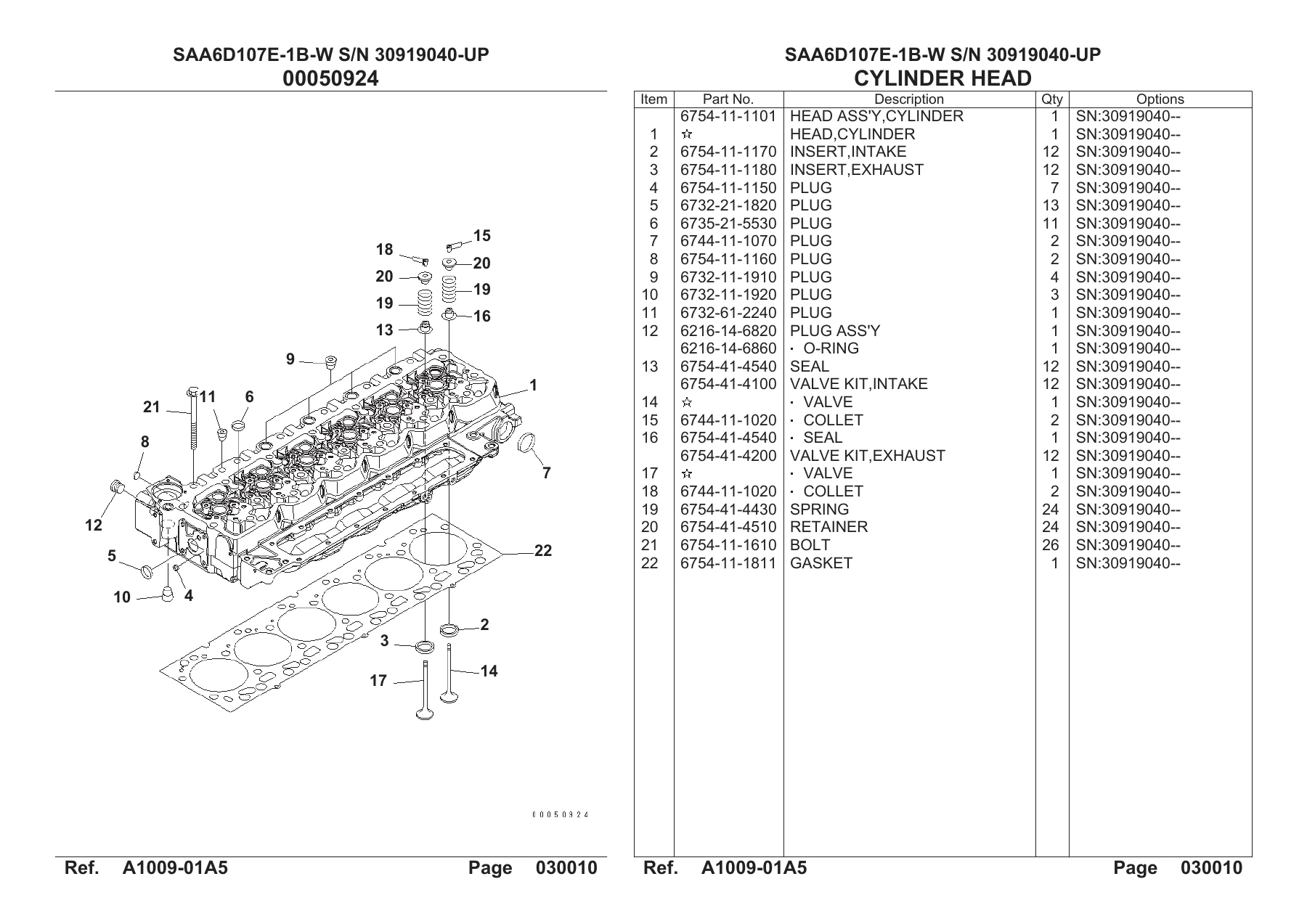

This Komatsu PC200F-8 Parts Book (document number KEPB006504) is the complete parts catalog for the PC200F-8 hydraulic excavator, covering machine serial numbers B31800 and up, equipped with the SAA6D107E-1B-W engine (engine serial numbers 30919040 and up). Every assembly on the machine is broken down into exploded-view illustrations with indexed parts lists showing part numbers, descriptions, quantities, and serial number applicability.

The Komatsu PC200F-8 Parts Book KEPB006504 is the reference every workshop, parts counter, and owner needs when ordering spare parts, identifying components, or verifying what fits a specific serial number range. Whether you are rebuilding an engine, replacing hydraulic components, or tracking down a discontinued part and its replacement, this PC200F-8 parts catalog provides the exact part numbers and assembly relationships to get it right the first time.

File Details

• Manual Type: Parts Book / Parts Catalog
• Brand: Komatsu
• Model: PC200F-8
• Engine: SAA6D107E-1B-W
• Machine Serial Range: B31800 and up
• Engine Serial Range: 30919040 and up
• Document Number: KEPB006504
• Language: English, Spanish, Portuguese, Arabic, Russian, Chinese
• File Format: PDF
• Page Count: 533 pages

Chapters Covered

The Komatsu PC200F-8 Parts Book KEPB006504 is organized by assembly group, with each section containing an exploded-view illustration on one page and the matching parts list on the adjacent page. The parts catalog covers the following major sections:

• Engine: Cylinder Head, Lifting Bracket, Head Cover, Breather and Hose, Air Intake Connector, Air Intake Heater, Exhaust Connector Clamp, Exhaust Manifold, Turbocharger, Thermostat, Water Outlet Connector, Tappet and Plate, Cylinder Block, Front Gear Cover, Oil Pan, Oil Level Sensor, Flywheel Housing, Flywheel, Crankshaft, Damper, Piston and Connecting Rod, Rocker Arm, Camshaft, Rear Gear Housing, Oil Pump, Oil Filter and Piping, Oil Cooler, Fuel System, Fuel Injection Pump, Fuel Filter, Fuel Piping, Injector, Fuel Injection Controller, Water Pump, Cooling Fan, Alternator, Starting Motor, Wiring Harness
• Engine Related Parts: Damper, Exhaust Muffler and Mounting Bracket, Oil Pan Drain, Cooling Fan, Alternator (35A/80A), Starting Motor (4.5KW), Cooling Fan Belt, Engine Mount, Air Cleaner, Air Cleaner Connecting Parts, Pressure Kit
• Cooling System: Radiator, Oil Cooler, Shroud and After Cooler, Fuel Cooler and Condenser, Cooling Tank Radiator
• Fuel Tank and Related Parts: Fuel Tank, Extra Diesel Tank, Frontal Protector, Case Saw and Chain, Main Switch, Latch Key, External Extinguisher, Fuel Line, Fuel Pre-Filter
• Electrical System: Battery, Electric Wiring (Starting Harness, Main Harness), Additional Work Lamp, Horn, Travel Alarm, Rear View Monitoring System, Head Lights, LED Head Lights, Connection Box
• Hydraulic System: Vacuum Pump, Quick Coupling, Main Control Valve, Main Pump, Suction Line, Delivery Line, Oil Cooler Lines, Return Filter, Drain Lines, Boom Line, Arm and Bucket Line, Attachment Line, Travel Line, Swing Lines, LS Lines, Solenoid Valve Circuit, Pressure Switch Block, PPC Main Piping
• Main Frame and Related Parts: Revolving Frame, Boom Foot Pin, Protector Assembly
• Operator’s Compartment and Control System: Operator’s Seat, Seat Belt, Top Guard, Floor Mat, Carpet, Window Washer, Heater, Operator’s Cab (all variants including vandalism protection, Lexan cab, rear emergency exit, door lock, wiper, speaker, air conditioner, monitor, KOMTRAX), Control Box, Support Computer, Floor Mounts, Mode Selection Connectors, Internal Extinguisher, Curtain
• Guard and Related Parts: Hood, Machine Cab Frame, Side Covers, Partitions, Machine Cab Cover, Battery Case, Counter Weight, Under Cover, Protector Engine, Catwalk, Protection
• Swing Circle and Related Parts: Swing Circle, Swing Machinery, Swivel Joint
• Travel and Lower Piping: Travel Piping, Final Drive, Travel Motor and Final Drive
• Under Carriage: Front Idler, Idler and Cushion, Track Roller, Carrier Roller, Track Shoe, Track Frame, Track Roller Guard, Full Roller Guard, Protector Greasing
• Work Equipment: Boom, Boom Cylinder, Arm, Arm Cylinder, Bucket Cylinder, Boom Cylinder Guard, Tip Adapter, Pin Lubrication
• Marks and Plates: Mark and Name Plates, Lubrication Chart, Caution Plates, KOMATSU Logo, Coolant Decal
• Accessory: Spare Parts, Tool Kit
• Miscellaneous: Step, Heat Shield, Fire Suppression Unit (Auto and Manual), Lubrication Automatic Assembly, Off Line Filter
• Service Kit and Component Parts: Swing Machinery Assembly, Shoe Bolt and Nut Service Kit, Track Link Assembly, Fuel Self Charge Pump, Rubber Antenna, Main Pump, Boom Cylinder, Arm Cylinder, Swivel Joint, Swing Motor, Travel Motor, Main Valve, Service Valve, PPC Valve, Safety Valve, Lock Valve, Selector Valve, Filter, Solenoid Valve, Valve for Accumulator
• Numerical Index: Complete parts number index with figure and page references

The Komatsu PC200F-8 Parts Book KEPB006504 is far more than a simple parts list. It is a complete visual disassembly guide for every major system on the machine. Each exploded-view illustration shows how components fit together, what fasteners and seals are used, and which parts are available separately versus only as assemblies. The parts lists specify exact part numbers, descriptions, quantities, and serial number ranges so you can confirm fitment before ordering. Whether you are servicing a PC200F-8 in the field, managing a fleet, or restoring a machine, this parts catalog gives you the component relationships and part identification you need.

Why This Parts Book Matters

Ordering the wrong part costs time and money. The Komatsu PC200F-8 Parts Book KEPB006504 eliminates guesswork by showing every part in its assembly context, with the exact part number and the serial number range it applies to. This is the same reference used by Komatsu distributors and service technicians to identify and order components for the PC200F-8 excavator. With 533 pages of exploded views, parts lists, and numerical index, this PC200F-8 parts catalog covers the full machine — from the engine cylinder head to the undercarriage track shoe and every hydraulic valve in between.

What You Can Do With This Parts Catalog

• Identify and order the correct part number for any assembly on the PC200F-8
• Verify part applicability against your machine serial number (B31800 and up) and engine serial number (30919040 and up)
• Understand how components assemble and disassemble with exploded-view illustrations
• Find replacement part numbers for discontinued components
• Confirm quantities and hardware (bolts, washers, O-rings, seals) required for a repair
• Reference the numerical index to locate any part number quickly across the entire catalog
• Cross-reference parts between different sections of the machine
