Hitachi EX200-5 Series Excavator Parts Catalog PDF Download – P14H-1-4

Hitachi EX200-5 Series Excavator Parts Catalog

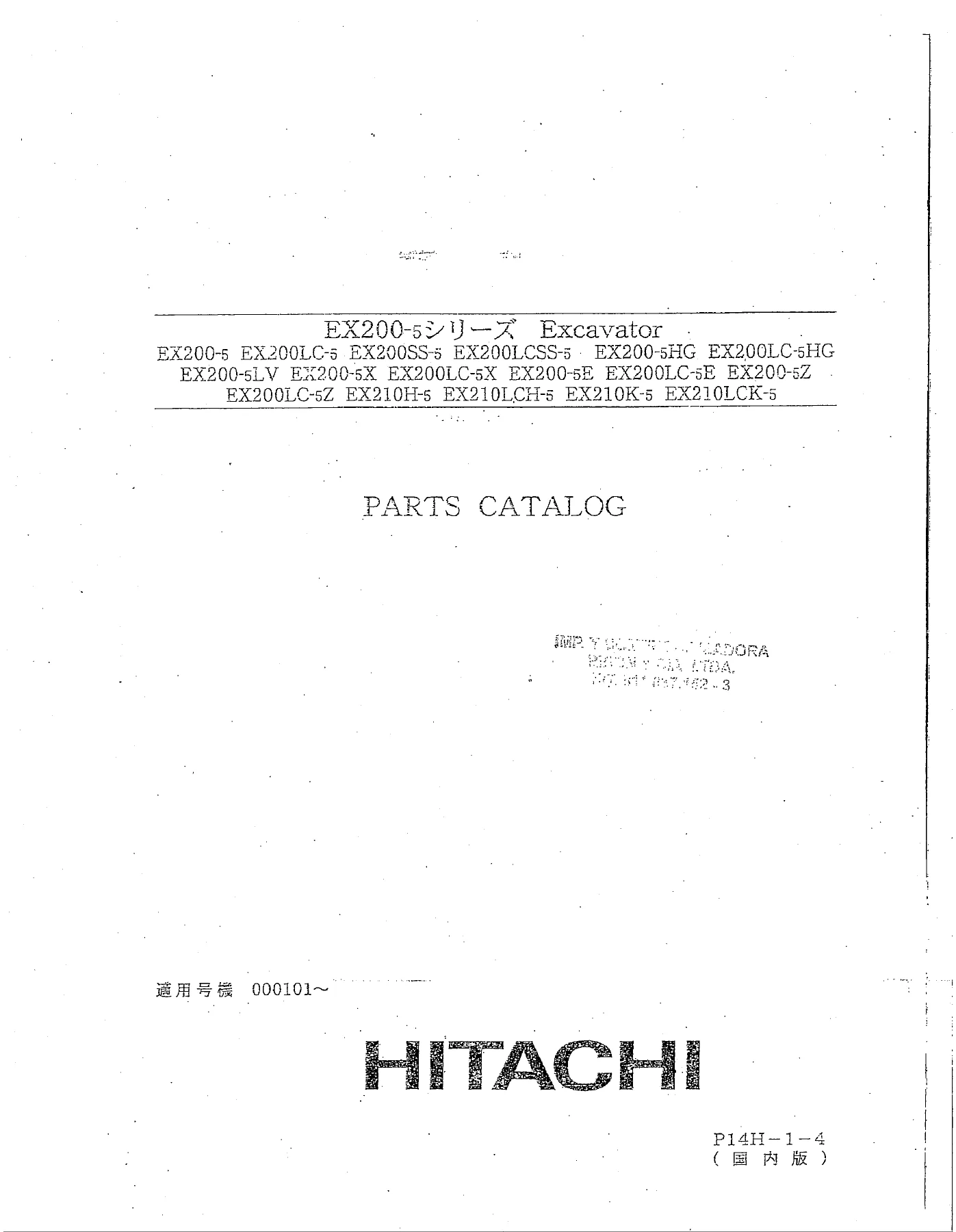

The Hitachi EX200-5 Series Excavator Parts Catalog is a complete illustrated parts reference for the EX200-5 and EX210-5 excavator family. Issued under document number P14H-1-4 and applicable from serial number 000101 onward, this parts catalog provides exploded-view illustrations paired with detailed part listings for every major assembly on the machine. If you own, service, or rebuild an EX200-5 series excavator, this is the reference that lets you identify the correct component and order the right part the first time.

File Details

• Manual Type: Illustrated Parts Catalog
• Brand: Hitachi
• Series: EX200-5 / EX210-5 Excavator
• Document Number: P14H-1-4
• Edition: 国内版 (Domestic Version)
• Serial Number Application: 000101~
• Language: Japanese and English (bilingual part names and headings)
• Page Count: 928 pages
• File Format: PDF

Models Covered

This Hitachi EX200-5 parts catalog covers the following excavator variants in one document:

• EX200-5
• EX200LC-5
• EX200SS-5
• EX200LCSS-5
• EX200-5HG
• EX200LC-5HG
• EX200-5LV
• EX200-5X
• EX200LC-5X
• EX200-5E
• EX200LC-5E
• EX200-5Z
• EX200LC-5Z
• EX210H-5
• EX210LCH-5
• EX210K-5
• EX210LCK-5

Chapters Covered

The catalog is organised into assembly groups, each with a dedicated exploded illustration and matching parts table. Major sections include:

• Frame and Center Joint Parts (Upperstructure)
• Counterweight
• Engine and Engine Support
• Radiator and Radiator Support
• Reserve Tank
• Air Cleaner, Air Cleaner Support and Air Cleaner Parts
• Muffler
• Fuel Tank, Fuel Tank Support and Fuel Piping
• Additional Fuel Tank
• Fuel Feed Pump and Fuel Double Filter
• Pump Device (200/SS/HG/LV/X/H/K, E, Z variants) and Pump Device Support
• Swing Device and Swing Device Support
• Oil Tank, Suction Piping, Delivery Piping, Return Piping, Drain Piping
• Main Piping (1 through 4)
• Boom Bottom Piping and Boom Damping System
• Swing Reactionless Valve
• Engine Control, Engine Control Motor and Engine Stop Cable
• Control Lever (Front & Swing), Grip (R/L) and Pilot Valve
• Control Lever (Travel), Travel Pedal, Foot Rest and Travel Lever Damper
• Lock Lever, Control Valve and Control Valve Support
• Solenoid Valve
• Pilot Piping sections (1 through 11, plus low-vibration and variant-specific sets)
• Console, Console Covers, Right Cover and Monitor Cover
• Controller, Monitor, Work Position Monitor, EFCT Switch
• AM Radio and AM/FM Radio
• Engine Control Unit
• Electric Parts (A through F, HG, EFCT)
• Front Head Lamp, Rear Head Lamp
• Angle Sensor Harness, Boom Light Harness and Boom Light
• Horn, Swing Motion Alarm and Travel Motion Alarm
• Air Conditioner (1, 2, 3), Air-Con Unit, Evaporator and Air-Con Parts
• Heater Piping, Car Heater, Heater Unit, Heater Controller and Heater Parts
• Duct sections, Rear Box (Air-Con / Heater) and Rear Cover
• Cab Group and Cab assemblies (variants including B-Type, HG-Type)
• Rearview Mirror, Power Window and Power Window Parts
• Window Washer and Sunshade
• Floor Parts, Floor Plate, Seat and Seat Stand
• Cover sections (1 through 8, Low Vibration, Tropical)
• Door Lock, Weather-Strip and Latch
• Engine Cover, Tool Cover and Under Cover (including B-Type and HG-Type)
• Track Frame (Std. and LC Track), Track Guards and Full-Length Track Guards
• Track-Link Guide, Track Under Cover
• Swing Bearing and Swing Bearing Support
• Grease-Bath Cover
• Travel Device and Travel Device Support
• Front Idler (Steel and Rubber Crawler) and Adjuster
• Upper Roller and Lower Roller (Std. and LC Track) with supports
• Track-Link (Std. and LC Track, including 600G Lubricated Type)
• Rubber Crawler
• Center Joint and Center Joint Support (Track)
• Travel Piping (Std. and LC Track) and Travel Motor Cover
• Boom assemblies (Std., HG, EFCT, K, H)
• Arm assemblies (Std. 2.91M, HG 2.91M, EFCT 2.91M, K 2.91M B-Type, K 2.91M HG-Type, H 2.91M, Short 2.22M)
• Link A (With Hook), Angle Sensor and Angle Sensor Harness
• Laser Kit
• Front Piping
• Boom Cylinder (R and L), Arm Cylinder and Bucket Cylinder
• Lubricate Piping, Auto Lubricate Device and Auto Lubricate Piping (Boom and Arm)
• Bucket sections (0.51, 0.8, 0.91, 1.1, 1.2 JIS 94, Side-Pin Type, Ripper Bucket, One-Point Ripper, Slope-Finishing Blade)
• Clamshell Buckets (1, 2, 3) and Clamshell Piping
• Hose Rupture Valve Piping (Boom and Arm)
• River Maintenance Front (15 Type), Boom (Type 15), Arm (Type 15) and Ditch Cleaning Buckets
• Front Piping and Lubricate Piping (Type 15)
• Breaker & Crusher Parts including Pilot Piping, Main Piping, Boom Piping and Arm Piping
• NPK and OKD Common Piping (Breaker & Crusher)
• High-Pressure Piping (Flow Rate Selector) and Pilot Piping (Flow Rate Selector)
• Electric Parts (Flow Rate Selector)
• Assist Piping, Pump Parts (Assist / Flow Rising)
• High-Pressure Piping (PTO) and Pilot Piping (PTO)
• Assist Front Piping (L and R)
• Electric Type Control Parts (PTO / Assist)
• Control Pedal (Assist / Breaker & Crusher)
• Hydraulic Type Control Parts (Assist / PTO & Flow Rate Selector)
• 2 Way Multi Lever and 2 Way Multi Lever Piping (1–3)
• 4 Way Multi Lever and 4 Way Multi Lever Piping (1–5)
• Tools (200/SS/HG/LV/X/H/K)
• Name-Plate
• Parts Index

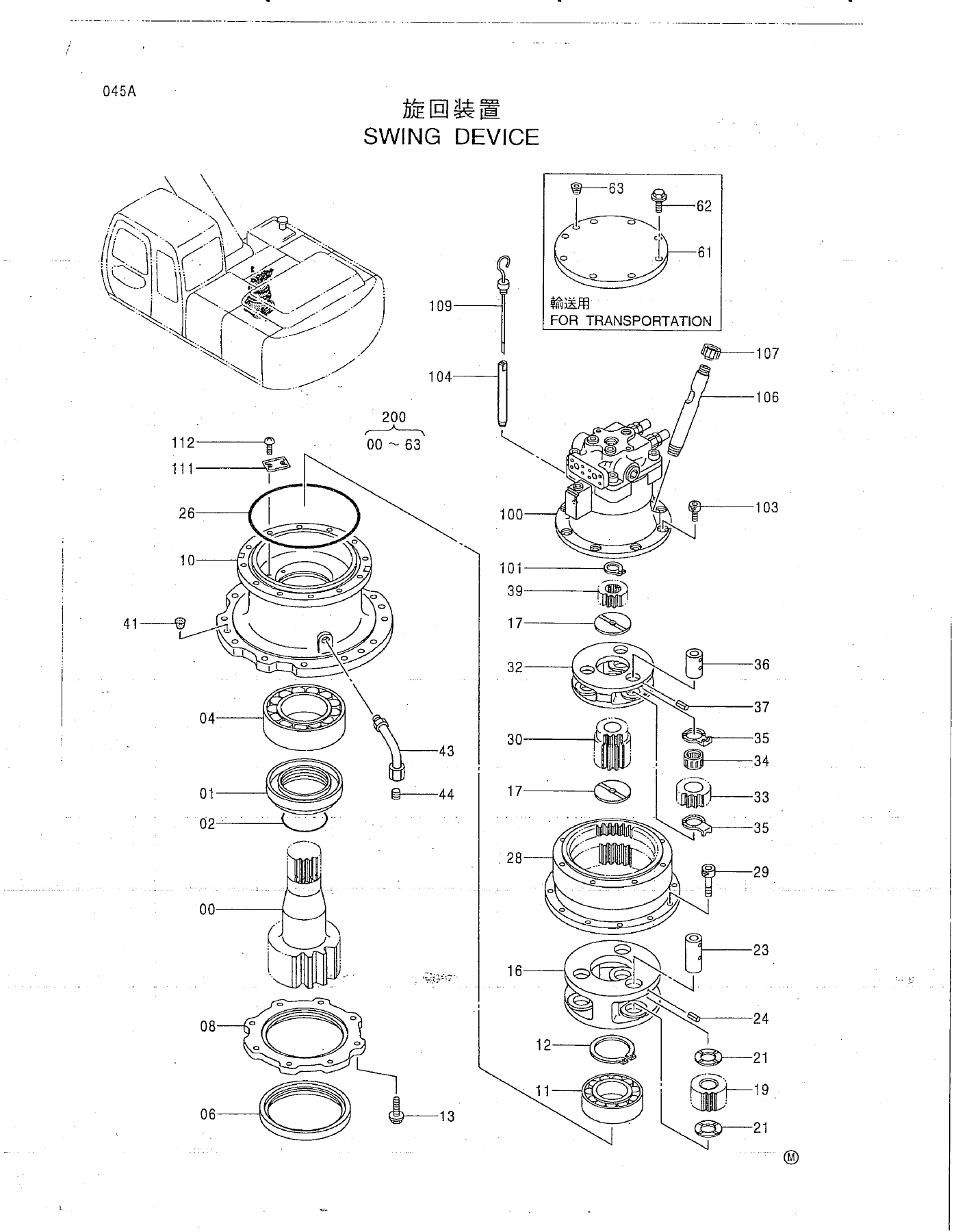

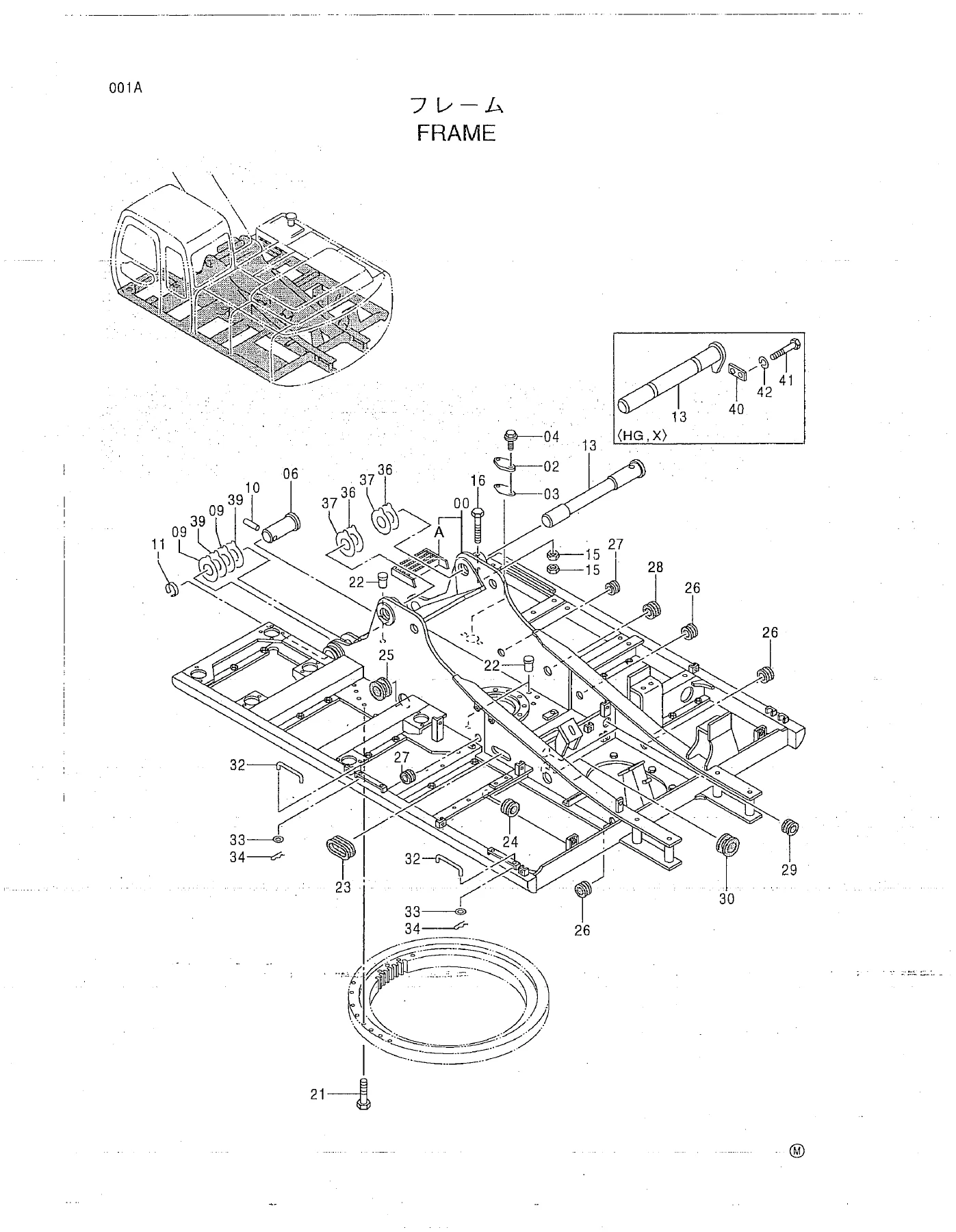

This is a genuine illustrated parts catalog, not a generic service manual. Every assembly group follows the same structure: an exploded-view drawing with numbered callouts, followed by a parts table giving the item number, part number, part name, quantity, service code, applicable serial number range, interchangeability flags and replacement part references. The bilingual part names (Japanese and English) make it straightforward for any technician or parts counter to cross-reference components regardless of which market the machine was originally sold in.

IMAGES PREVIEW

How This Parts Catalog Helps You

Ordering the wrong part for an excavator is expensive and time-consuming. This Hitachi EX200-5 parts catalog removes the guesswork by showing exactly how each assembly is built up and which part number belongs in each position. You can identify a component by its position in the exploded view, read its part number directly from the table, and check the applicability notes to confirm it fits your specific machine variant. The catalog covers not only the base EX200-5 but also the long-undercarriage (LC), short-tail (SS), high-grade (HG), low-vibration (LV), EFCT, Z, E and K variants, so whether you are working on a standard machine or a specialised configuration, the relevant sections are included.

Beyond simple part lookup, the exploded views are useful for anyone rebuilding a subassembly. They show the order of assembly, the fasteners and seals involved, and how the components relate to one another. The hydraulic piping sections are particularly detailed, with separate pilot, main, return, drain, delivery and suction piping diagrams that make tracing a hose or tube far easier than working from memory. The electrical sections include wiring-related parts listings, and the undercarriage sections break down the track frame, rollers, idlers, track links and guards in enough detail to support a full undercarriage overhaul.

Who This Catalog Is For

This Hitachi EX200-5 Series Excavator Parts Catalog is intended for equipment owners, fleet maintenance departments, independent repair shops, and parts professionals who need accurate component identification for the EX200-5 and EX210-5 families. It suits anyone who regularly orders parts for these machines, as well as technicians performing major repairs who want a reliable assembly reference alongside their service documentation. Because it covers seventeen model variants and the full range of optional front-end attachments, it works as a single reference across an entire fleet rather than requiring a separate book per machine.

Get Instant Access

This Hitachi EX200-5 parts catalog PDF is available for immediate download after purchase. There is no shipping, no waiting for a physical book, and no risk of a damaged or incomplete copy arriving in the mail. You can open the file on a workshop PC, a laptop, a tablet, or a smartphone, search through the sections, zoom into the exploded views, and print only the pages you need for the job at hand. Whether you are ordering a single O-ring or planning a complete hydraulic system rebuild, the correct part numbers and assembly layouts are right there in the document.

Stop guessing at part numbers and start working from the same illustrated catalog the professionals use. Download the Hitachi EX200-5 Series Excavator Parts Catalog today and get the complete parts reference for your EX200-5 or EX210-5 machine in one PDF.
