New Holland E215 Crawler Excavator Parts Catalog

This New Holland E215 Crawler Excavator Parts Catalog is the complete illustrated parts reference for the E215 family of crawler excavators. Whether you operate a single E215 or manage a fleet that includes the LC, E, T, LCT, ET, EL and ELT variants, this PDF gives you the exploded views and OEM part numbers needed to identify, order and replace components accurately. The catalog is organized by assembly groups, so you can navigate from the engine through the hydraulic system, undercarriage, cab, electrical circuits and every optional attachment without leaving the document.

File Details

• Manual Type: Illustrated Parts Catalog
• Brand: New Holland
• Model: E215 Crawler Excavator
• Covered Models: E215, E215LC, E215E, E215T, E215LCT, E215ET, E215EL, E215ELT
• Engine Models: CNH or IVECO F4BE0684BD402 (up to Serial No. 2831), F4BE0684MD600 (from Serial No. 2832)
• Language: English (multilingual headings with English designations)
• Page Count: 695
• File Format: PDF
• Publication Date: 1/05 (January 2005)
• Document Type: Parts Catalog with exploded illustrations and part number tables

Chapters Covered

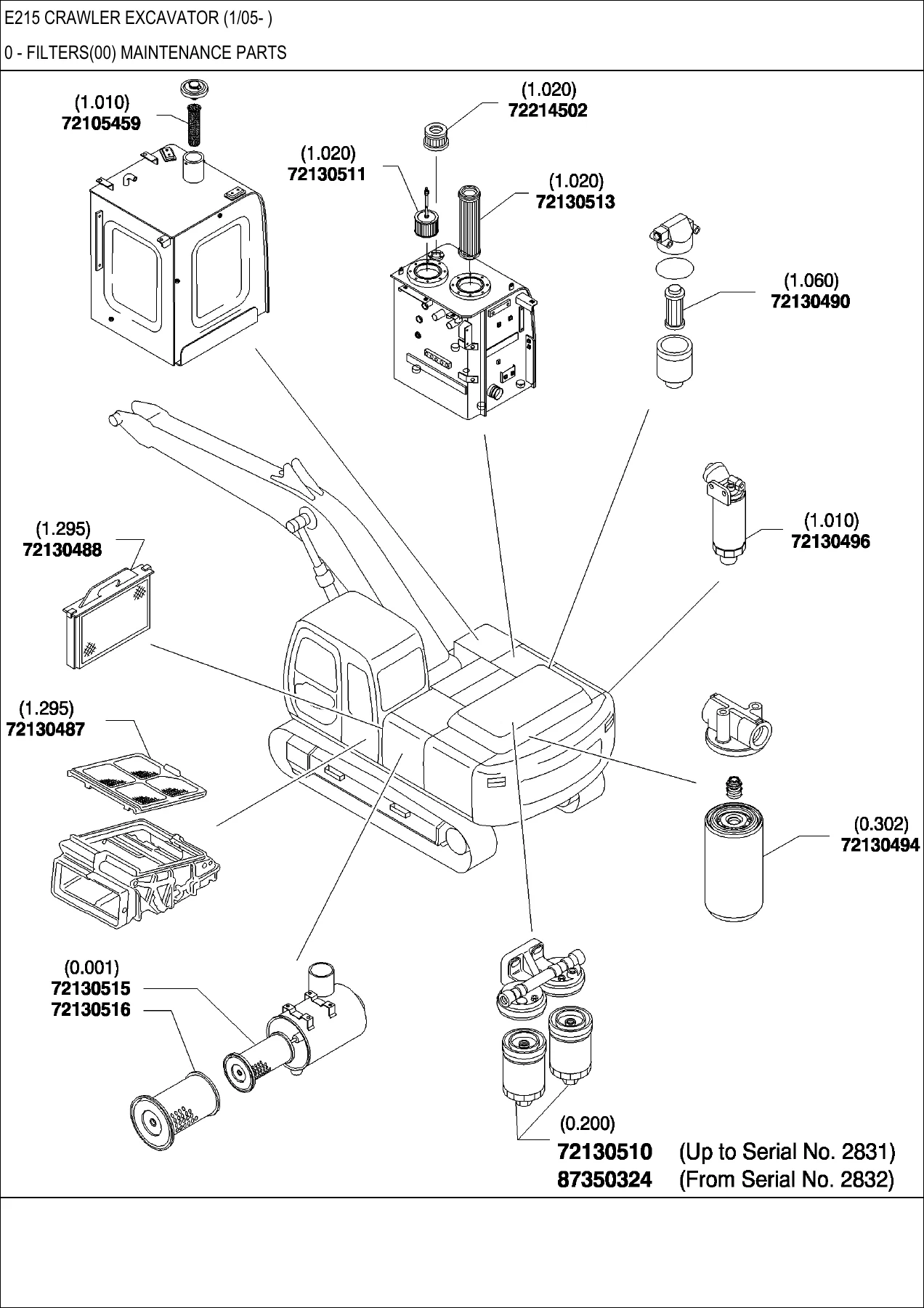

• 0 – Filters (00): Maintenance parts, air cleaner, fuel filter, engine oil filter, hydraulic filter assemblies
• 0 – Version (00): Identification and version list, model codes, engineering codes, serial number ranges

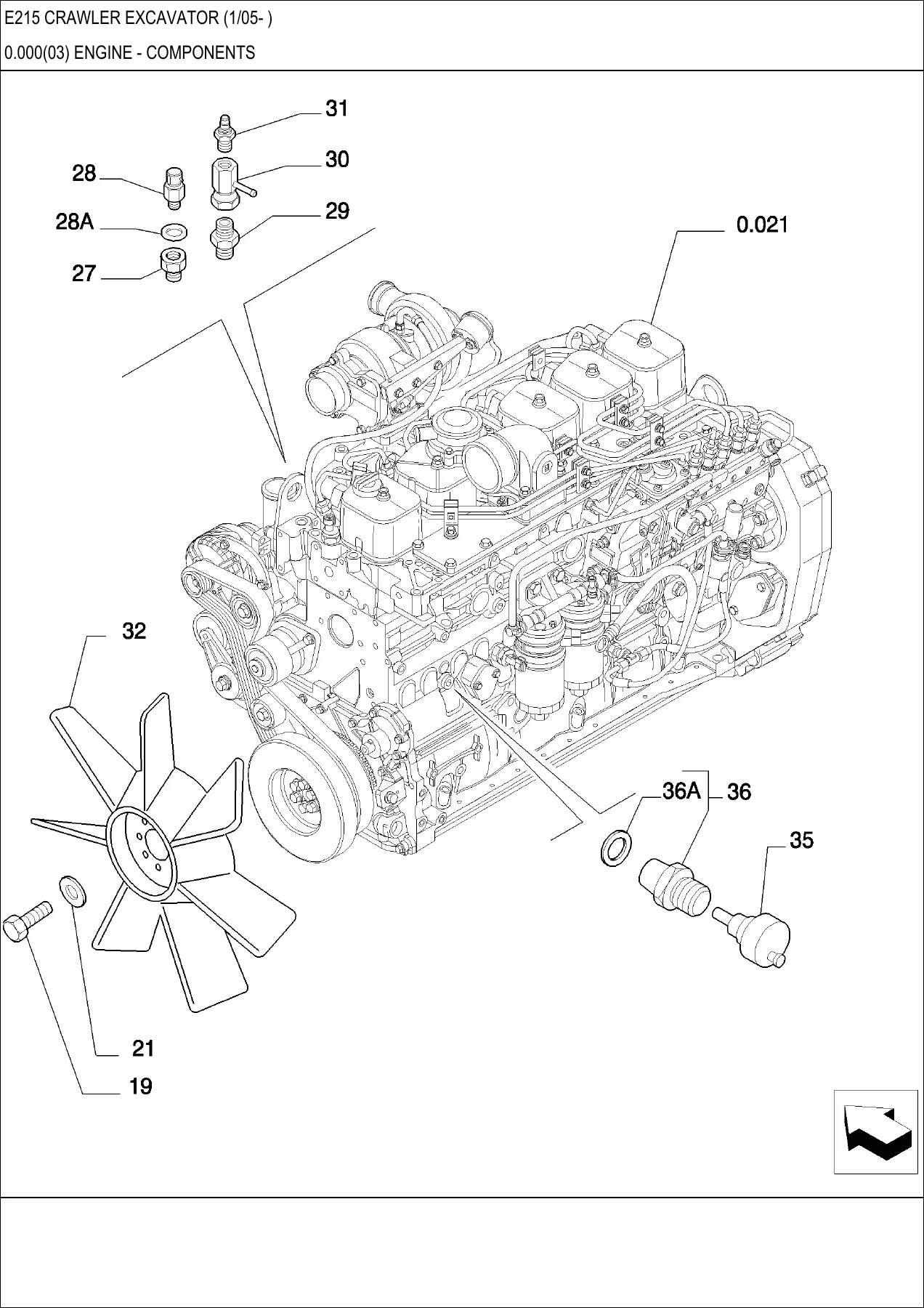

• 0.000 Engine: Engine suspensions, piping engine oil, engine components, crankcase, engine oil sump, crankcase covers, breather, cylinder head, cylinder head covers, rocker shaft, intake manifold, exhaust manifold, crankshaft, connecting rod, piston, flywheel, pulley crankshaft, camshaft timing control, injection pump, injection equipment, fuel filter, fuel pump, piping fuel, turbocharger, engine oil dipstick, oil pump, oil filters, piping engine oil, heat exchanger, water pump, piping engine cooling system, thermostat, water pump control, fan drive, power take off, starter motor, alternator, hooks

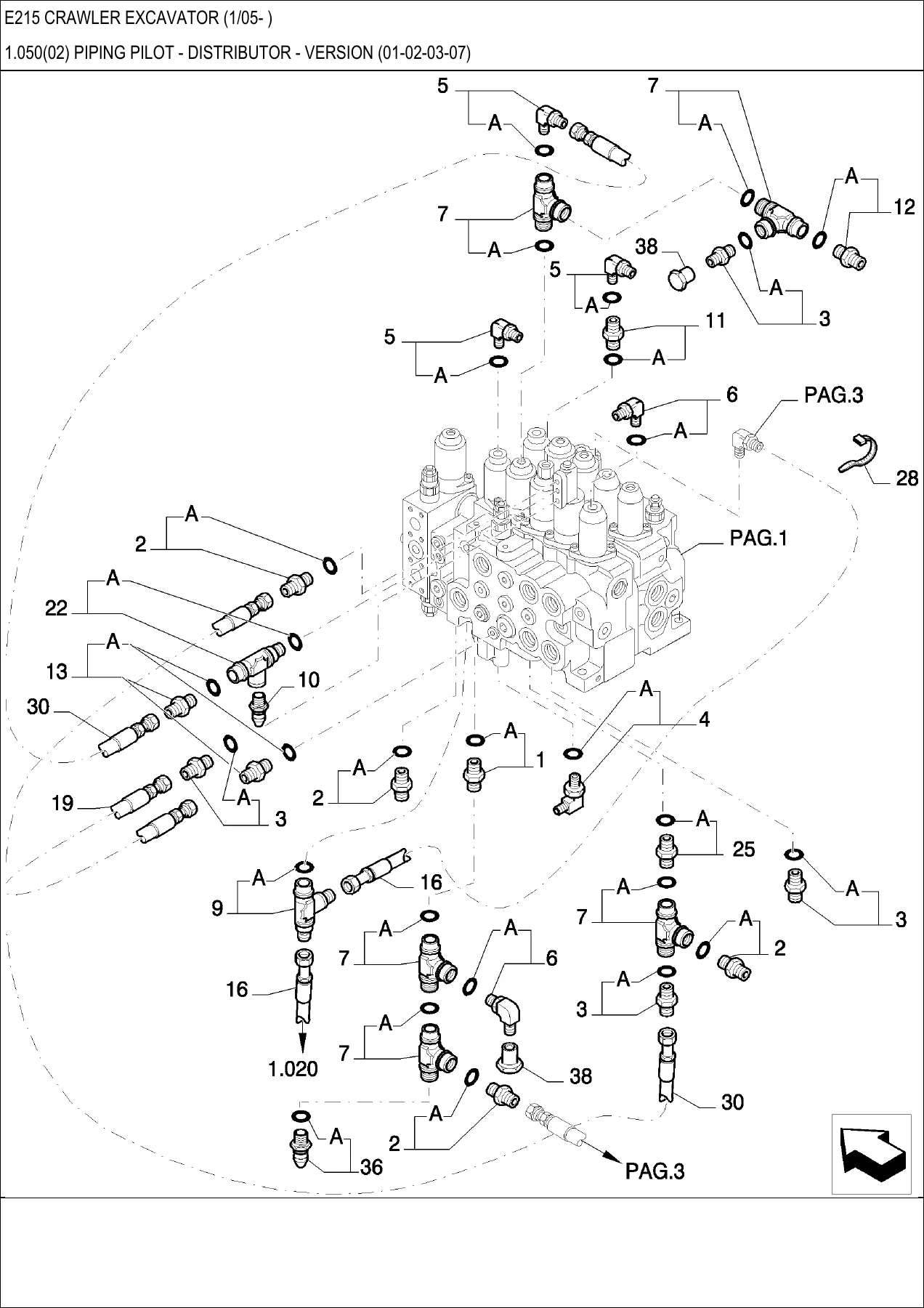

• 1.000 Upper Frame: Frame assembly, fuel tank, piping fuel, fuel transfer pump, fuel transfer pump components, oil tank, hydraulic pump, hydraulic pump components, swing reduction unit, swing motor, hydraulic control valve, piping pilot distributor, hydraulic pump pilot system pipes, oil return pipes, controls, pilot piping, collector PTB, electric system, window washer, cab, seat belt, operator’s seat, floor cab, rear support, radio, air conditioning, hoods and guards
• 2.000 Boom and Arm: Monobloc boom, lift boom, positioner arm, boom piping, lift cylinder, dipper stick cylinder, bucket cylinder, lubric fitting piping
• 3.000 Lower Frame: Lower frame versions, travel reduction units, track idler, track carrier roller, track roller, rotary distributor, travel piping lower
• 4.000 Tools and Decals: Tools kit, decals and data plates
• 5.000 Optional Equipment: Track chains (500mm, 600mm, 700mm, 800mm, 900mm), dipper sticks (2.08m, 2.4m, 2.94m, 3.5m), hydraulic hammer application, cold weather starting aid, north countries version, lower frame guard, track guide, rotation bucket provision, boom safety valve, arm safety valve, object handling, buckets (750mm to 1500mm), rock buckets, rock bucket XHD, link rod, hydraulic quick coupling, heated seat, pneumatic cushioning heated seat, cab guard, sun canopy, cab lights, piping for bucket tilt, piping for hydraulic hammer, heavy duty buckets

Every section in this New Holland E215 parts catalog is built around detailed exploded illustrations with reference numbers that map directly to part number tables. The engine group alone covers everything from the crankcase and cylinder head down to individual valves, bearings, gaskets and seals. The hydraulic section includes the main control valve, pilot piping, swing motor, travel motors and all associated connectors and hoses. The undercarriage chapter breaks down the track idler, carrier rollers, track rollers, reduction units and track chains by shoe width. The cab and electrical sections cover the operator station, air conditioning, instrumentation and complete wiring components. Optional equipment chapters cover hammers, quick couplers, tilt buckets and various bucket capacities with tooth and shank part numbers.

Why This Parts Catalog Matters

Ordering the wrong part for a crawler excavator is expensive and delays the job. This E215 parts catalog removes the guesswork by showing you exactly how each assembly goes together and which part number belongs in each position. The illustrated breakdowns make it straightforward to identify a specific bolt, seal, hose, connector or structural component even if you only have the old part in hand. Serial number and version code information at the front of the catalog helps you match the correct parts to your machine’s production range, which is critical because New Holland made running changes across the E215, E215LC, E215E, E215T, E215LCT, E215ET, E215EL and E215ELT lines.

What You Can Do With This Manual

• Identify and order replacement parts for any major assembly on the E215 crawler excavator
• Look up OEM part numbers for engine, hydraulic, electrical and undercarriage components
• Verify part compatibility against machine serial number and version code
• Reference exploded views when disassembling or reassembling components
• Find part numbers for optional equipment including buckets, hammers, quick couplers and safety valves
• Cross-reference fasteners, seals, gaskets and hoses by size and location
