Komatsu PC400-7E0, PC400LC-7E0, PC450-7E0, PC450LC-7E0 Hydraulic Excavator Shop Manual

Description

Komatsu PC400-7E0, PC400LC-7E0, PC450-7E0, PC450LC-7E0 Hydraulic Excavator Shop Manual

The Komatsu PC400-7E0, PC400LC-7E0, PC450-7E0, PC450LC-7E0 Hydraulic Excavator Shop Manual is the definitive, multi-section technical workshop reference engineered specifically for heavy equipment technicians, field mechanics, and fleet maintenance specialists. Covering the GALEO series excavators with Tier 3 / Stage IIIA compliant powertrains, this manual delivers complete factory specifications, operating principles, testing benchmarks, fault code troubleshooting flows, and full disassembly/assembly sequences for serial number ranges PC400/LC-7E0 (60001 and up) and PC450/LC-7E0 (30001 and up).

File Details

• Manual Type: Shop Manual / Workshop Service Manual
• Machine Models: Komatsu PC400-7E0, PC400LC-7E0, PC450-7E0, PC450LC-7E0
• Coverage Serial Numbers: PC400-7E0: 60001 and up; PC400LC-7E0: 60001 and up; PC450-7E0: 30001 and up; PC450LC-7E0: 30001 and up
• Engine Model: Komatsu SAA6D125E-5 (6-cylinder, direct injection, turbocharged, air-to-air aftercooled)

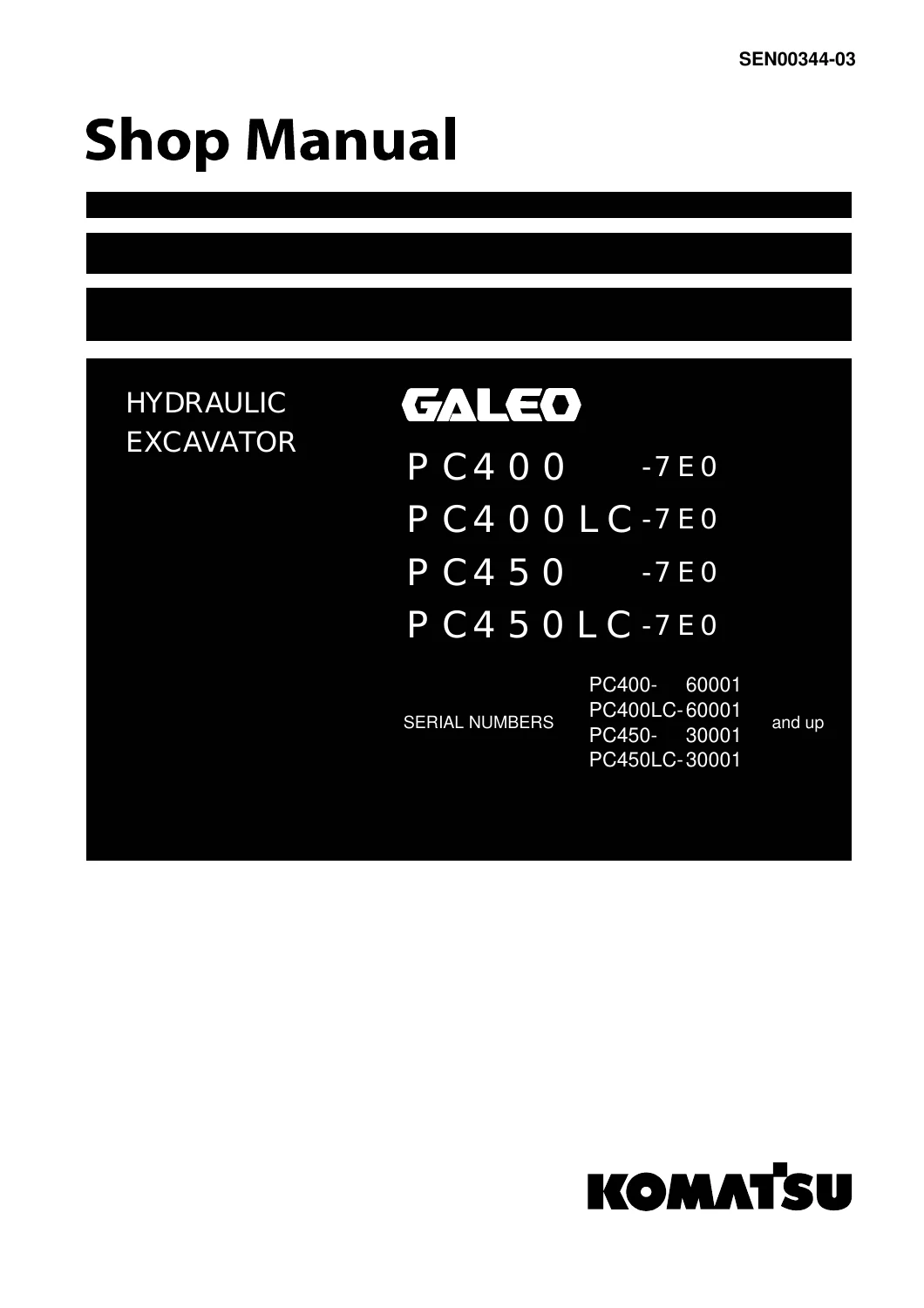

• Publication Form Number: SEN00344-03 (Modular Section Binder Set SEN00345-03 through SEN00862-00)
• Language: English
• File Format: Portable Document Format (PDF)

Heavy Powertrain & Mechanical Architecture

At the mechanical core of these machines is the Komatsu SAA6D125E-5 diesel engine, rated at 257 kW (345 HP) at 1,900 rpm with a displacement of 11.045 liters and a peak torque output of 1,383 Nm at 1,400 rpm. This Komatsu PC400-7E0, PC400LC-7E0, PC450-7E0, PC450LC-7E0 Hydraulic Excavator Shop Manual outlines every operational standard for the engine assembly and its interface with the main hydraulic pumps via a wet-type torsional damper assembly (1.07-liter oil capacity). Technicians will find detailed maintenance standards for the cooling pack—including the four-row aluminum wave-type radiator, hydraulic oil cooler, intercooler, and air conditioning condenser.

The powertrain transmission path is documented with exact gear reduction data and component wear limits. The manual explains the dual KMV200ADT-2 variable displacement axial piston travel motors paired with planetary final drives yielding an overall reduction ratio of -68.600. Detailed dimensional clearance tables provide criteria for backlash between the No. 1 and No. 2 sun gears, planetary gears, and ring gears, down to permissible limits. Undercarriage overhaul sections detail the repair limits for track link pitch (standard 228.9 mm; repair limit 231.9 mm), track roller assemblies, carrier rollers, idler guides, recoil springs (845.3 mm free length, 239 kN installed load), and drive sprockets, complete with full-scale tooth wear profile templates.

Closed-Center Load Sensing System (CLSS) & Hydraulic Controls

Understanding and diagnosing the hydraulic architecture is made straightforward through dedicated functional descriptions and high-resolution schematics. The primary hydraulic system relies on an HPV190+190 variable displacement tandem piston pump delivering up to 2 x 345 liters/minute at a rated pressure of 37.8 MPa (380 kg/cm²). The Komatsu PC400-7E0, PC400LC-7E0, PC450-7E0, PC450LC-7E0 Hydraulic Excavator Shop Manual provides an exhaustive breakdown of pump regulation mechanics, including:

• LS (Load Sensing) Valve: Senses differential pressure between pump delivery and actuator load (standard delta PLS set between 1.18 and 2.65 MPa via the LS-EPC proportional solenoid) to regulate swash plate servo piston angle.
• PC (Pressure Compensation) Valve: Monitors mean pump discharge pressure to govern maximum hydraulic horsepower absorption, matching pump output directly against engine torque curves across P, E, B, and L working modes.
• 7-Spool Main Control Valve: Incorporates individual pressure compensation valves with internal shuttle valves, unload valves, LS bypass valves, travel junction spools for straight-line tracking, and merge-divider circuits.
• Regeneration & Safety Circuits: Covers boom down regeneration, arm digging regeneration, 2-stage relief valves (raising system relief from 34.8 MPa to 37.2 MPa during power max boost), and hydraulic drift prevention holding valves.
• Swing & Travel Motors: Documents the KMF230ABE-5 fixed displacement swing motor with reverse rotation prevention valves and holding brake circuits, alongside the variable displacement travel motors with integrated counterbalance valves.

Chapters Covered

• 00 Index and Foreword: Binder organization list, general safety notices, handling guidelines for electronic and hydraulic components, wire coding methodology, push-pull coupler disconnection and reconnection steps, standard bolt and split-flange tightening torque tables, and unit conversion charts.
• 01 Specification: Dimension drawings for fixed-gauge and variable-gauge excavators, working ranges (maximum digging depth, reach, vertical wall, and dumping height), component weight tables, and fluid capacity specifications for engine oil, swing machinery, final drives, and hydraulic circuits.

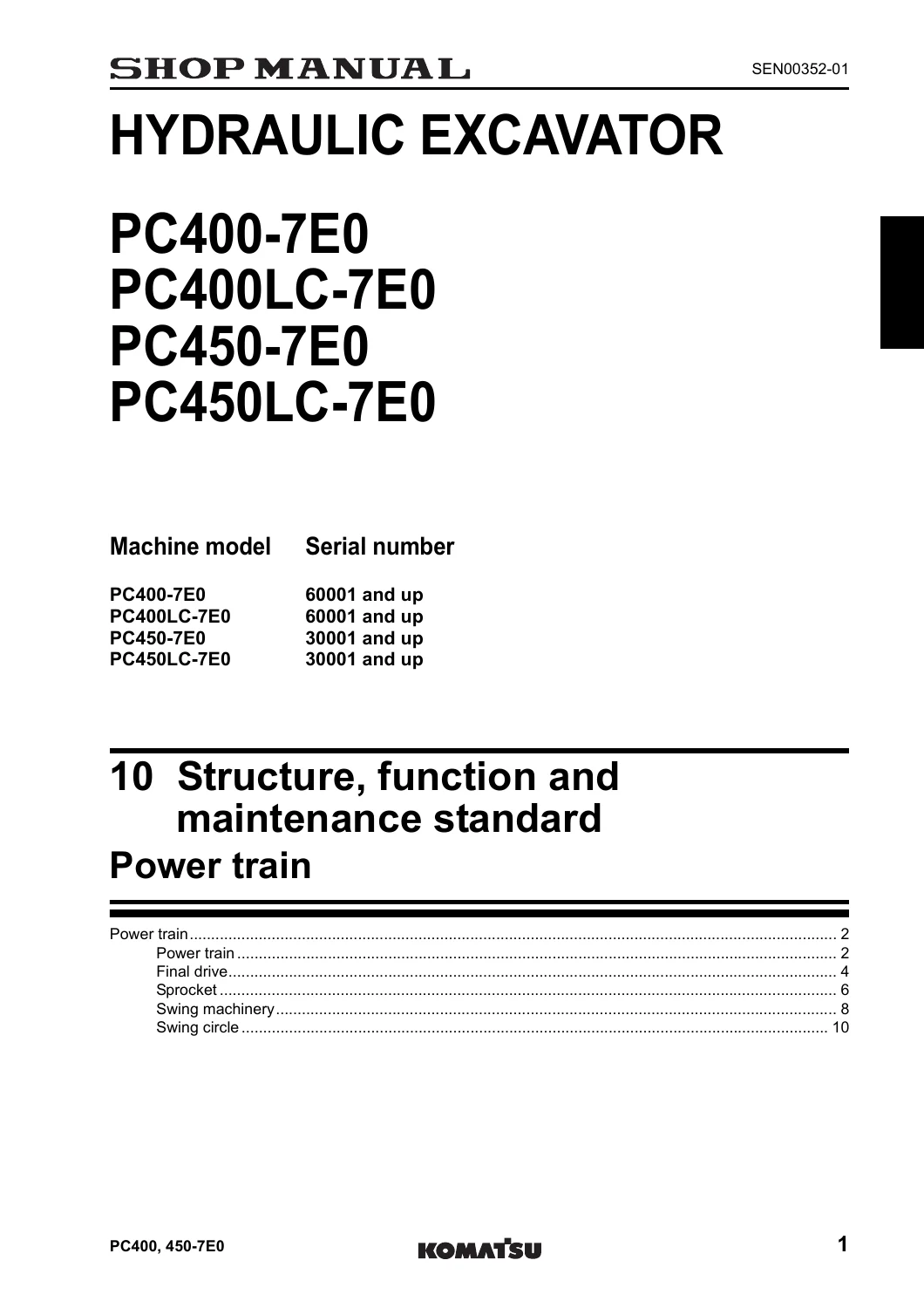

• 10 Structure, Function and Maintenance Standard: Technical explanations and service criteria for the engine damper, cooling system, power train, final drives, sprockets, swing machinery, swing circle bearing, track frame, idlers, rollers, track shoes, hydraulic pumps (HPV190+190), control valve spools and relief valves, PPC pilot valves, solenoid blocks, travel motors, swing motors, hydraulic cylinders, boom/arm dimensions, cab fittings, electronic engine control (controllers CN-CE01, CN-CE02, CN-CE03), pump controller inputs/outputs, monitor display panels, and KOMTRAX satellite telematics.
• 20 Standard Value Table: Service limit criteria for engine high/low idle speeds, boost pressure, exhaust temperature, compression pressure, blow-by pressure, hydraulic circuit relief pressures, spool strokes, pilot operating efforts, cycle speeds, and swing/travel drift rates.
• 30 Testing and Adjusting: Field testing procedures using specialized service tools; measuring engine rpm, air boost pressure, exhaust color, and valve clearances; cylinder cut-out operations; testing common rail fuel pressure and return rates; checking track shoe sag; setting main, port, and pilot relief pressures; adjusting PC and LS pump valves; bleeding air from pumps, cylinders, and travel motors; and accessing special monitor service functions.
• 40 Troubleshooting: Comprehensive electrical, hydraulic, and mechanical fault-finding; connector pin arrangements and T-box adapter charts; diagnostic logic trees for displayed failure codes (CA111 through CA2556 engine codes; DA2RMC to DY2EKB network and pump codes); E-mode electrical failure troubleshooting (E-1 to E-31); H-mode hydraulic system troubleshooting (H-1 to H-31); and S-mode engine performance troubleshooting (S-1 to S-16).
• 50 Disassembly and Assembly: Step-by-step procedures for component removal and overhaul; special service tool sketches; coating materials and sealant applications; removal of common rail fuel pumps, injectors, cylinder heads, engine packs, radiators, oil coolers, final drives, swing circles, track frames, revolving frames, main control valves, hydraulic pumps, center swivel joints, and work equipment cylinders.
• 90 Diagrams and Drawings: Full-page hydraulic circuit schematics, complete electrical wiring diagrams, and multi-pin connector arrangement layouts.

Rather than merely outlining the contents, this manual functions as a complete engineering guide. It equips technicians with the exact test ports, connector pins, factory tolerances, and mechanical methods needed to verify machine performance against genuine Komatsu manufacturing standards.

Electronic Diagnostics & Multi-Mode Control Systems

Modern excavator operation depends on seamless communication between the electronic engine governor and the machine pump controller. This Komatsu PC400-7E0, PC400LC-7E0, PC450-7E0, PC450LC-7E0 Hydraulic Excavator Shop Manual details the full wiring harness pin-outs for the engine controller (connectors CN-CE01, CN-CE02, and CN-CE03) and pump controller (CN-CP01, CN-CP02, and CN-CP03). Technicians can trace signal paths for critical sensors—including boost pressure, common rail fuel pressure, NE speed pickup, backup engine speed, oil pressure, coolant temperature, and EGR lift sensors.

When electrical or functional abnormalities arise, the troubleshooting sections provide structured diagnostic charts categorized by failure mode. The manual provides systematic troubleshooting steps for displayed fault codes, from critical ECM internal errors (CA111) and speed sensor discrepancies (CA115) to high-pressure common rail deviations (CA449, CA559), EGR valve servo faults (CA1228, CA1625), and proportional solenoid open/short circuits (DW43KA, DXA0KA, DXE0KA). Mechanical and hydraulic H-mode tables guide the mechanic through low power, slow travel speed, machine deviation, boom/arm lag, excessive hydraulic drift, and swing overrunning issues.

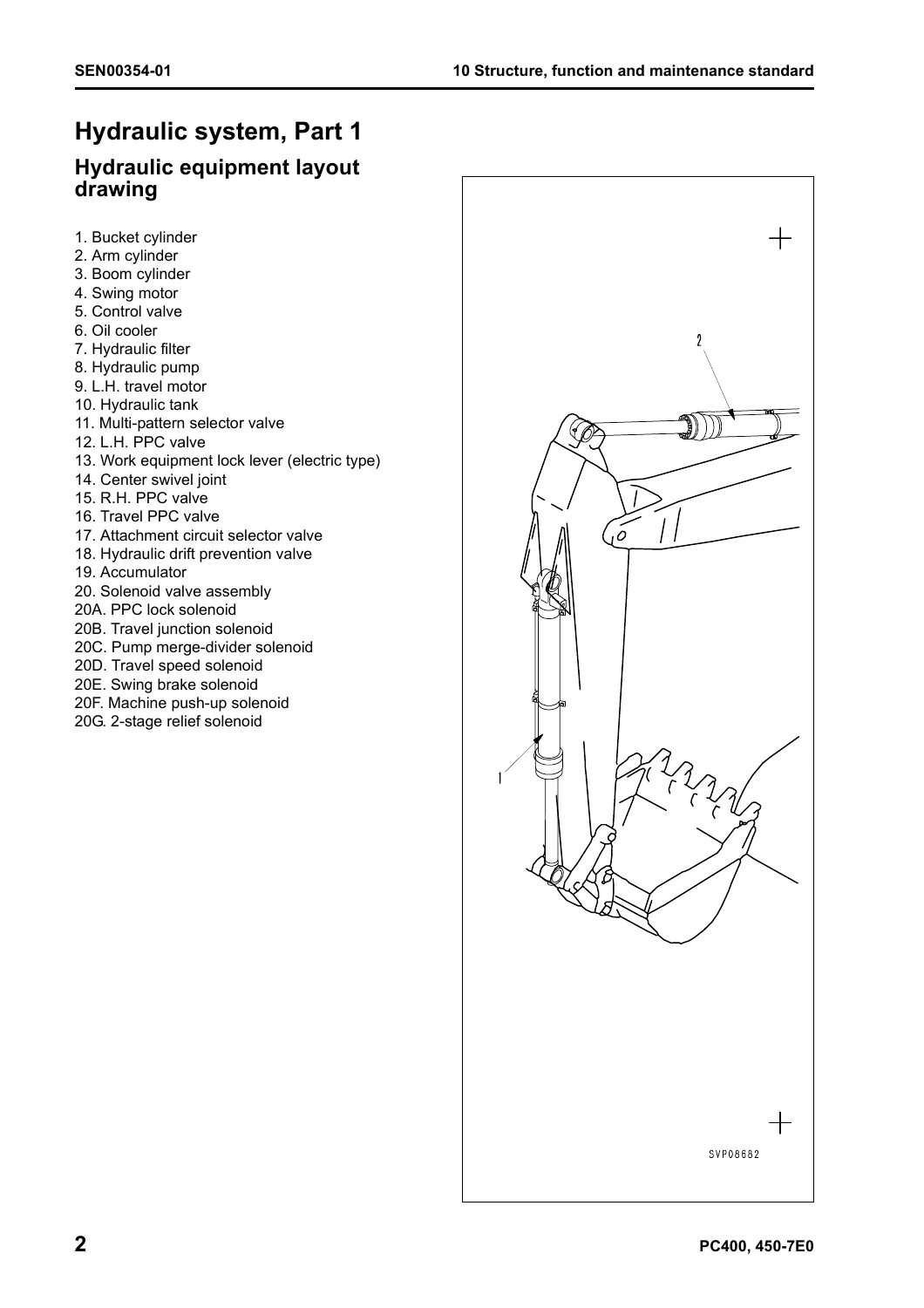

IMAGES PREVIEW

Testing, Calibration & Workshop Service Limits

Every critical system requires periodic verification to ensure optimum fuel economy and operational safety. This manual specifies precise testing setups using pressure gauges, digital thermometers, push-pull scales, and blow-by checkers. Key inspection procedures include:

• Engine Performance Benchmarks: High idle (1,930 ± 50 rpm), low idle (1,000 ± 25 rpm), compression pressure (minimum 2.9 MPa / 30 kg/cm² at 200–250 rpm), blow-by pressure (minimum 0.98 kPa at rated output), and valve clearances (intake: 0.33 mm; exhaust: 0.71 mm).
• Hydraulic Pressure Standards: Work equipment and swing circuit relief pressures (standard: 34.81 MPa / 355 kg/cm²; with power max: 37.27 MPa / 380 kg/cm²), travel relief pressure (37.27 MPa), unload circuit pressure (4.2 ± 1.0 MPa), and control circuit pilot pressure (3.24 ± 0.2 MPa).
• Permissible Component Wear Limits: Swing circle bearing axial play (standard clearance 0.5–1.6 mm; repair limit 3.2 mm), track pin/bushing press-fitting forces (118–304 kN), sprocket tooth width (standard 90 mm; repair limit 87 mm), and cylinder bushing clearance limits.

Professional Capability, Precision & Instant PDF Delivery

Owning the Komatsu PC400-7E0, PC400LC-7E0, PC450-7E0, PC450LC-7E0 Hydraulic Excavator Shop Manual empowers equipment owners, independent repair shops, and field mechanics to handle complete in-house maintenance, major component rebuilding, and sophisticated electronic diagnostics without relying on guesswork. Having immediate access to genuine factory specifications protects high-pressure hydraulic components from cavitation, ensures precise torque sequences during engine assembly, and prevents costly machine downtime on production jobsites.

Delivered as an instant digital PDF download immediately upon checkout, this shop manual provides zero wait time and no shipping delays. The digital document is fully compatible with Windows, macOS, iOS, Android, and Linux devices, allowing you to view detailed circuit diagrams on a workshop computer, refer to troubleshooting charts on a mobile tablet inside the cab, or print out physical high-resolution service sheets directly for hands-on workbench use.
