Komatsu PC400-8 PC400LC-8 PC450-8 PC450LC-8 Excavator Shop Manual SEN02223-03

Original price was: $39.95.Current price is: $23.95.

Complete Komatsu shop manual for PC400-8, PC400LC-8, PC450-8 and PC450LC-8 hydraulic excavators. Covers the SAA6D125E-5 engine, hydraulics, undercarriage, electrical systems, troubleshooting, disassembly and assembly, plus full specifications and torque values.

Instant PDF Download
Available immediately
💾
Save to Your Device
Download & keep forever
🛡️
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

Komatsu PC400-8, PC400LC-8, PC450-8, PC450LC-8 Excavator Shop Manual

This Komatsu PC400-8 PC400LC-8 PC450-8 PC450LC-8 Excavator Shop Manual SEN02223-03 is the complete workshop reference for the PC400-8, PC400LC-8, PC450-8 and PC450LC-8 hydraulic excavators, serial number 70001 and up. It covers the SAA6D125E-5 engine and every major machine system — powertrain, undercarriage, hydraulics, work equipment, cab and electrical — with specifications, testing procedures, troubleshooting tables, disassembly and assembly instructions, and hydraulic and electrical diagrams.

Whether you are servicing a single machine or running a fleet, this Komatsu PC400-8 PC400LC-8 PC450-8 PC450LC-8 shop manual gives you the factory procedures and standard values needed to diagnose faults correctly and complete repairs to specification.

File Details

  • Manual type: Shop Manual
  • Brand: Komatsu
  • Models covered: PC400-8, PC400LC-8, PC450-8, PC450LC-8
  • Serial number: 70001 and up
  • Engine: SAA6D125E-5
  • Document number: SEN02223-03
  • Language: English
  • File format: PDF
  • Publication date: 2008 (05-08) with earlier sections dated 2007 (04-07)
  • Page count: 1,023 pages

Chapters Covered

  • 00 Index and foreword — composition of shop manual, safety notice, how to read the shop manual, explanation of terms for maintenance standard, handling of connectors for engines, handling of electric equipment and hydraulic components, how to read electric wire code, precautions when carrying out operation, disassembling and connecting push-pull couplers, standard tightening torque table, conversion table
  • 01 Specification — specification dimension drawings, specifications, weight table, table of fuel, coolant and lubricants
  • 10 Structure, function and maintenance standard — Engine and cooling system, Power train (swing circle, swing machinery, final drive, sprocket), Undercarriage and frame (track frame and recoil spring, idler, carrier roller, track roller, track shoe), Hydraulic system Parts 1–3 (hydraulic equipment layout, hydraulic tank and filter, hydraulic pump, control valve, CLSS, attachment circuit selector valve, holding valve, valve control, solenoid valve, PPC accumulator, return oil filter, travel motor, swing motor, hydraulic cylinder), Work equipment, Cab and its attachments, Electrical system (engine control, electronic control system, monitor system, idle stop guidance, user code/failure code display, sensor, KOMTRAX)
  • 20 Standard value table — standard service value table for engine related parts, standard value table for chassis related parts
  • 30 Testing and adjusting — tools for testing, adjusting and troubleshooting, engine speed, air boost pressure, exhaust temperature, exhaust gas color, valve clearance, compression pressure, blow-by pressure, engine oil pressure, EGR valve drive pressure, fuel system handling, fuel pressure, cylinder cut-out operation, fuel return rate and leakage, bleeding air from fuel circuit, fuel circuit leakage, fan/alternator belt, air conditioner compressor belt, swing circle bearing clearance, track shoe tension, work equipment/swing/travel circuit oil pressure, control circuit basic pressure, pump PC and LS control circuit oil pressure, solenoid valve output pressure, PPC valve output pressure, PPC valve play, hydraulic drift inspection, residual pressure release, oil leakage testing, bleeding air from various parts
  • 40 Troubleshooting — failure code table and fuse locations, general information on troubleshooting, troubleshooting by failure code (Parts 1–3), troubleshooting of electrical system (E-mode), troubleshooting of hydraulic and mechanical system (H-mode), troubleshooting of engine (S-mode)
  • 50 Disassembly and assembly — general information, engine and cooling system, power train, undercarriage and frame, hydraulic system, work equipment, cab and its attachments, electrical system

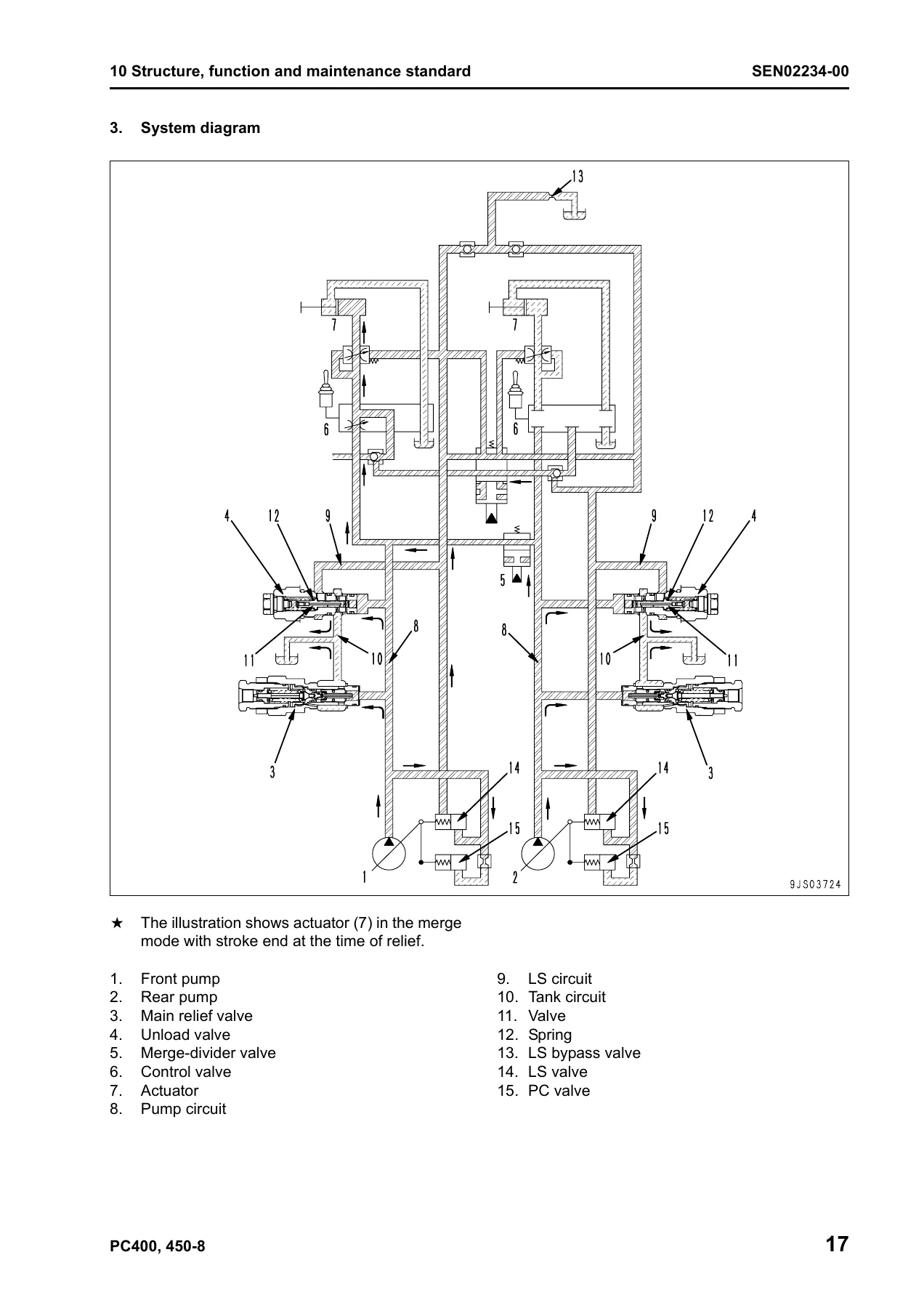

  • 90 Diagrams and drawings — hydraulic circuit diagram, electrical circuit diagram, connector arrangement diagram

IMAGES PREVIEW

Komatsu PC400-8 PC400LC-8 PC450-8 PC450LC-8 Excavator Shop Manual SEN02223-03 — PDF page 58 preview
Komatsu PC400-8 PC400LC-8 PC450-8 PC450LC-8 Excavator Shop Manual SEN02223-03 — PDF page 72 preview
Komatsu PC400-8 PC400LC-8 PC450-8 PC450LC-8 Excavator Shop Manual SEN02223-03 — PDF page 143 preview

Across these sections the manual documents the complete SAA6D125E-5 engine service data, the CLSS (Closed center Load Sensing System) hydraulic circuit, the swing and travel motor assemblies, the control valve and pressure compensation valves, the undercarriage and recoil spring, and the electronic control system linking the pump controller, engine controller and machine monitor. Standard values, repair limits and tightening torques are given alongside the procedures so that each repair can be checked against a known reference.

What This Manual Enables You To Do

With this Komatsu PC400-8 PC400LC-8 PC450-8 PC450LC-8 shop manual you can carry out engine diagnostics and top-end overhauls, rebuild final drives and swing machinery, set up and adjust the hydraulic pump and control valve, service the undercarriage, and trace electrical faults using the E-mode, H-mode and S-mode troubleshooting charts and the failure code tables. The testing and adjusting chapter walks through each pressure and speed check with standard and permissible values, so you can confirm whether a component is within specification or due for replacement.

Complete PDF Bookmark Tree

Complete Bookmarks

The complete bookmarks in the “Komatsu PC400-8 PC400LC-8 PC450-8 PC450LC-8 Excavator Shop Manual SEN02223-03” are as follows:

COVERp. 1
00 Index and foreword
Indexp. 3
Composition of shop manualp. 4
Table of contentsp. 6
Foreword and general informationp. 15
Safety noticep. 16
How to read the shop manualp. 21
Explanation of terms for maintenance standardp. 23
Handling of electric equipment and hydraulic componentp. 25
Handling of connectors newly used for enginesp. 34
How to read electric wire codep. 37
Precautions when carrying out operationp. 40
Method of disassembling and connecting push-pull type couplerp. 43
Standard tightening torque tablep. 46
Conversion tablep. 50
01 Specification
Specification and technical datap. 57

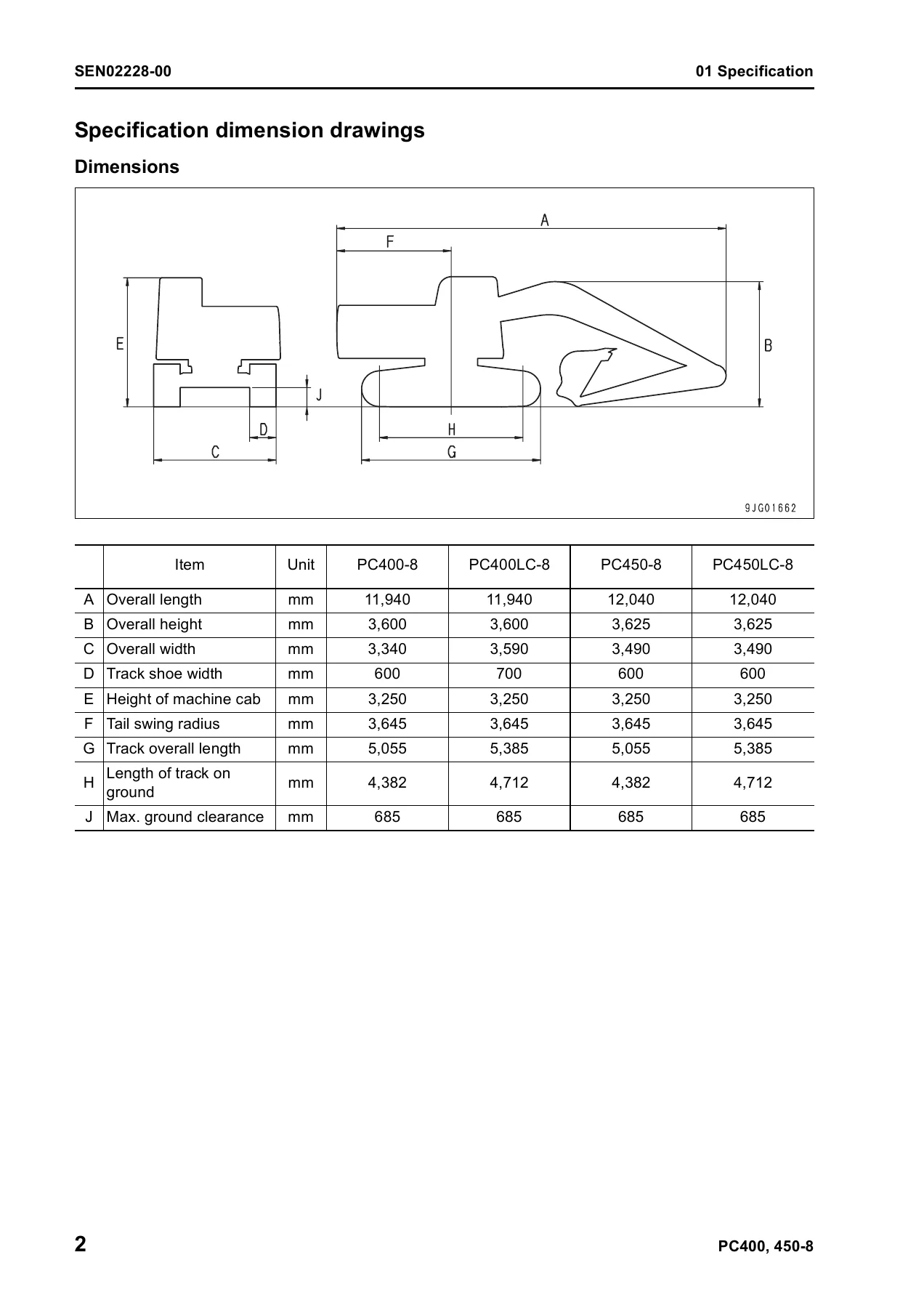

Specification dimension drawingsp. 58
Specificationsp. 60
Weight tablep. 64
Table of fuel, coolant and lubricantsp. 68
10 Structure, function and maintenance standard
Engine and cooling systemp. 71

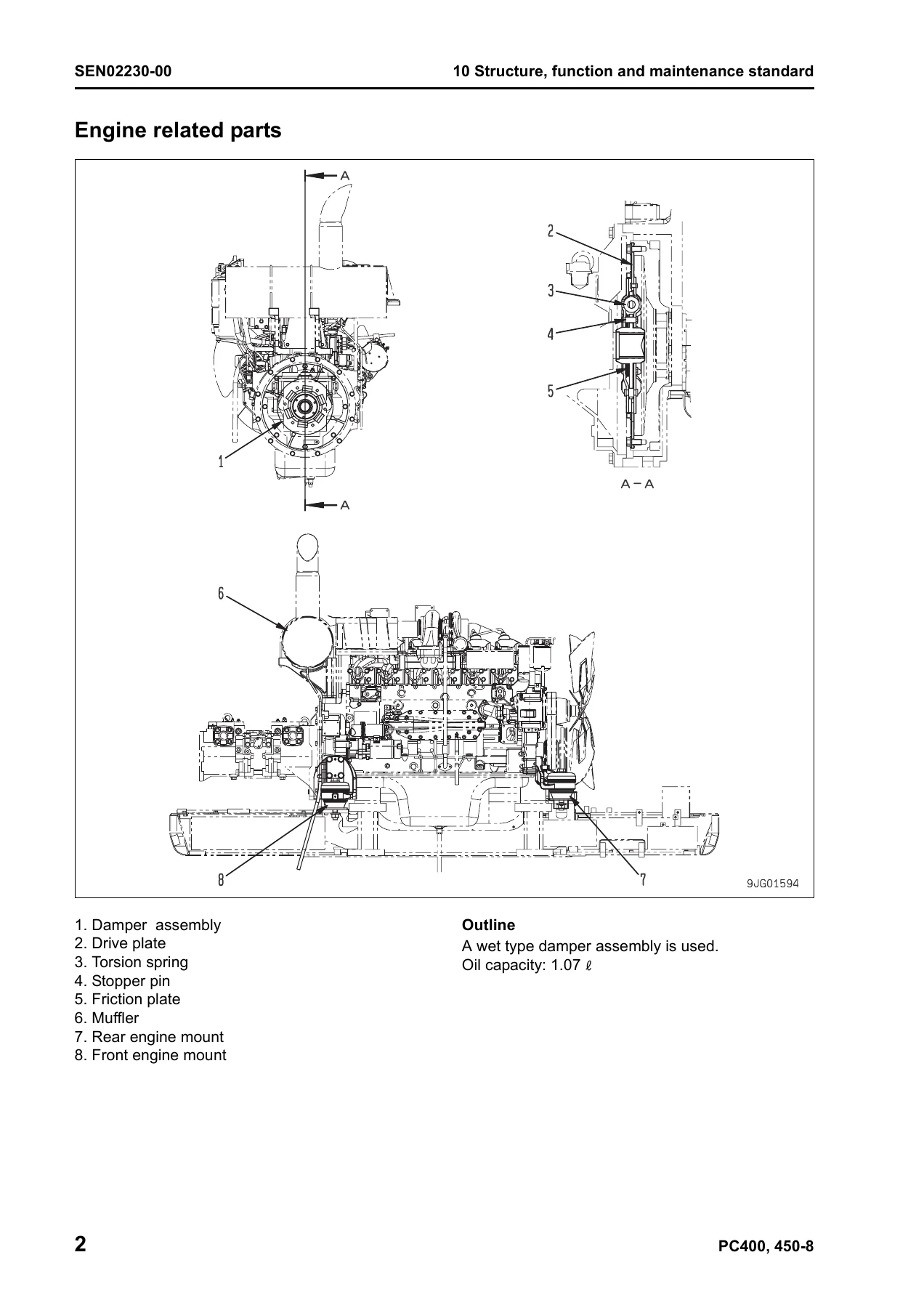

Engine related partsp. 72
Radiator, oil cooler and aftercoolerp. 73
Power trainp. 75
Power trainp. 76
Swing circlep. 77
Swing machineryp. 78
Final drivep. 80
Sprocketp. 82
Undercarriage and framep. 85
Track frame and recoil springp. 86
Idlerp. 88
Carrier rollerp. 90
Track rollerp. 91
Track shoep. 92
Hydraulic system, Part 1p. 97
Hydraulic equipment layout drawingp. 98
Hydraulic tank and filterp. 100
Hydraulic pumpp. 102
Hydraulic system, Part 2p. 127
Control valvep. 128
CLSSp. 140
Functions and operation by valvep. 144
Attachment circuit selector valvep. 184
Holding valvep. 186
Hydraulic system, Part 3p. 193
Valve controlp. 194
Solenoid valvep. 212
PPC accumulatorp. 214
Return oil filterp. 215
Center swivel jointp. 216
Travel motorp. 217
Swing motorp. 229
Hydraulic cylinderp. 238
Work equipmentp. 241
Work equipmentp. 242
Dimensions of componentsp. 244
Cab and its attachmentsp. 249
Air conditioner pipingp. 250
Electrical systemp. 253
Engine controlp. 254
Electronic control systemp. 265
Monitor systemp. 290
Idle stop guidance functionp. 314
User code/failure code display functionp. 316
Sensorp. 317
KOMTRAX terminal systemp. 320
20 Standard value table
Standard service value tablep. 323
Standard value table for engine related partsp. 324
Standard value table for chassis related partsp. 325
30 Testing and adjusting
Testing and adjusting, part 1p. 335
Tools for testing, adjusting and troubleshootingp. 337
Testing engine speedp. 341
Testing air boost pressurep. 342
Testing exhaust temperaturep. 343
Testing exhaust gas colorp. 344
Adjusting valve clearancep. 345
Testing compression pressurep. 347
Testing blow-by pressurep. 349
Testing engine oil pressurep. 350
Testing EGR valve drive pressurep. 351
Handling fuel system partsp. 352
Releasing residual pressure from fuel systemp. 352
Testing fuel pressurep. 353
Handling during cylinder cut-out operationp. 354
Handling during no injection cranking operationp. 354
Testing fuel return rate and leakagep. 355
Bleeding air from fuel circuitp. 358
Checking fuel circuit for leakagep. 359
Checking and adjusting fan belt and alternator beltp. 360
Checking and adjusting air conditioner compressor belt tensionp. 361
Testing swing circle bearing clearancep. 362
Checking and adjusting track shoe tensionp. 363
Testing and adjusting oil pressure in work equipment, swing, and travel circuitsp. 364
Testing control circuit basic pressurep. 368
Checking and adjusting pump PC control circuit oil pressurep. 369
Checking and adjusting pump LS control circuit oil pressurep. 372
Testing solenoid valve output pressurep. 377
Testing PPC valve output pressurep. 380
Adjusting play of work equipment and swing PPC valvesp. 381
Inspecting locations of hydraulic drift of work equipmentp. 382
Releasing residual pressure from hydraulic circuitp. 384
Testing oil leakage amountp. 385
Bleeding air from various partsp. 388
Testing and adjusting, Part 2p. 393
Special functions of machine monitorp. 394
Testing and adjusting, Part 3p. 449
Handling voltage circuit of engine controllerp. 450
Preparation work for troubleshooting of electrical systemp. 451
Procedure for testing diodesp. 456
Pm Clinic servicep. 457
Undercarriage troubleshooting reportp. 464
40 Troubleshooting
Failure code table and fuse locationsp. 467
Failure codes tablep. 468
Fuse locationsp. 471
General information on troubleshootingp. 477
Points to remember when troubleshootingp. 478
Sequence of events in troubleshootingp. 479
Checks before troubleshootingp. 480
Classification and troubleshooting stepsp. 481
Information in troubleshooting tablep. 482
Connection table for connector pin numbersp. 487
T- branch box and T- branch adapter tablep. 523
Troubleshooting by failure code (Display of code), Part 1p. 527
Failure code [A000N1] Eng. Hi Out of Stdp. 529
Failure code [AA10NX] Air cleaner Cloggingp. 530
Failure code [AB00KE] Charge Voltage Lowp. 532
Failure code [B@BAZG] Eng Oil Press. Lowp. 534
Failure code [B@BAZK] Eng Oil Level Lowp. 536
Failure code [B@BCNS] Eng. Water Overheatp. 538
Failure code [B@BCZK] Eng Water Level Lowp. 540
Failure code [B@HANS] Hydr Oil Overheatp. 542
Failure code [CA111] ECM Critical Internal Failurep. 543
Failure code [CA115] Eng Ne and Bkup Speed Sens Errorp. 543
Failure code [CA122] Chg Air Press Sensor High Errorp. 544
Failure code [CA123] Chg Air Press Sensor Low Errorp. 546
Failure code [CA131] Throttle Sensor High Errorp. 548
Failure code [CA132] Throttle Sensor Low Errorp. 550
Failure code [CA135] Eng Oil Press Sensor High Errorp. 552
Failure code [CA141] Eng Oil Press Sensor Low Errorp. 554
Failure code [CA144] Coolant Temp Sens High Errorp. 556
Failure code [CA145] Coolant Temp Sens Low Errorp. 558
Failure code [CA153] Chg Air Temp Sensor High Errorp. 560
Failure code [CA154] Chg Air Temp Sensor Low Errorp. 562
Failure code [CA187] Sens Supply 2 Volt Low Errorp. 564
Failure code [CA221] Ambient Press Sens High Errorp. 566
Failure code [CA222] Ambient Press Sens Low Errorp. 568
Failure code [CA227] Sens Supply 2 Volt High Errorp. 570
Failure code [CA234] Eng Overspeedp. 571
Failure code [CA238] Ne Speed Sens Supply Volt Errorp. 572
Failure code [CA263] Fuel Temp Sensor High Errorp. 574
Failure code [CA265] Fuel Temp Sensor Low Errorp. 576
Failure code [CA271] IMV/PCV1 Short Errorp. 578
Failure code [CA272] IMV/PCV1 Open Errorp. 580
Failure code [CA273] PCV2 Short Errorp. 582
Failure code [CA274] PCV2 Open Errorp. 584
Failure code [CA322] Inj #1 Open/Short Errorp. 586
Failure code [CA323] Inj #5 Open/Short Errorp. 588
Failure code [CA324] Inj #3 Open/Short Errorp. 590
Failure code [CA325] Inj #6 Open/Short Errorp. 592
Failure code [CA331] Inj #2 Open/Short Errorp. 594
Failure code [CA332] Inj #4 Open/Short Errorp. 596
Troubleshooting by failure code (Display of code), Part 2p. 599
Failure code [CA342] Calibration Code Incompatibilityp. 601
Failure code [CA351] Injectors Drive Circuit Errorp. 602
Failure code [CA352] Sens Supply 1 Volt Low Errorp. 604
Failure code [CA386] Sens Supply 1 Volt High Errorp. 606
Failure code [CA441] Battery Voltage Low Errorp. 608
Failure code [CA442] Battery Voltage High Errorp. 610
Failure code [CA449] Rail Press Very High Errorp. 612
Failure code [CA451] Rail Press Sensor High Errorp. 616
Failure code [CA452] Rail Press Sensor Low Errorp. 618
Failure code [CA553] Rail Press High Errorp. 620
Failure code [CA554] Rail Press Sensor In Range Errorp. 621
Failure code [CA559] Rail Press Low Errorp. 622
Failure code [CA689] Eng Ne Speed Sensor Errorp. 626
Failure code [CA731] Eng Bkup Speed Sens Phase Errorp. 628
Failure code [CA757] All Persistent Data Lost Errorp. 630
Failure code [CA778] Eng Bkup Speed Sensor Errorp. 632
Failure code [CA1228] EGR valve servo error 1p. 634
Failure code [CA1625] EGR valve servo error 2p. 635
Failure code [CA1633] KOMNET Datalink Timeout Errorp. 636
Failure code [CA2185] Throt Sens Sup Volt High Errorp. 638
Failure code [CA2186] Throt Sens Sup Volt Low Errorp. 640
Failure code [CA2249] Rail Press Very Low Errorp. 641
Failure code [CA2271] EGR valve lift sensor high errorp. 642
Failure code [CA2272] EGR valve lift sensor low errorp. 644
Failure code [CA2351] EGR valve solenoid operation short circuitp. 646
Failure code [CA2352] EGR valve solenoid operation disconnectp. 648
Failure code [CA2555] Grid Htr Relay Volt High Errorp. 650
Failure code [CA2556] Grid Htr Relay Volt Low Errorp. 652
Failure code [D110KB] Battery Relay Drive S/Cp. 654
Failure code [D196KA] Service Return Relay Disc.p. 656
Failure code [D196KB] Service Return Relay S/Cp. 658
Failure code [DA25KP] 5V sensor power supply output 1 abnormalityp. 660
Troubleshooting by failure code (Display of code), Part 3p. 665
Failure code [DA2RMC] CAN discon (Pump con detected)p. 668
Failure code [DA2SKQ] Model Selection Abnormalityp. 670
Failure code [DAFRMC] CAN discon (Monitor detected)p. 672
Failure code [DHPAMA] F Pump Press Sensor Abnormalityp. 674
Failure code [DHPBMA] R Pump Press Sensor Abnormalityp. 676
Failure code [DHS3MA] Arm Curl PPC Sen. Abnormalityp. 678
Failure code [DHS4MA] Bucket Curl PPC Press Sensor Abnormalityp. 680
Failure code [DW43KA] Travel Speed Sol. Disc.p. 682
Failure code [DW43KB] Travel Speed Sol. S/Cp. 684
Failure code [DW45KA] Swing Brake Sol. Disc.p. 686
Failure code [DW45KB] Swing Brake Sol. S/Cp. 690
Failure code [DW91KA] Travel Junction Sol. Disc.p. 692
Failure code [DW91KB] Travel Junction Sol. S/Cp. 694
Failure code [DWJ0KA] Merge-divider Sol. Discp. 696
Failure code [DWJ0KB] Merge-divider Sol. S/Cp. 698
Failure code [DWK0KA] 2-stage Relief Sol. Disc.p. 700
Failure code [DWK0KB] 2-stage Relief Sol. S/Cp. 702
Failure code [DXA0KA] PC-EPC Sol. Disc.p. 704
Failure code [DXA0KB] PC-EPC Sol. S/Cp. 706
Failure code [DXE0KA] LS-EPC Sol. Disc.p. 708
Failure code [DXE0KB] LS-EPC Sol. S/Cp. 710
Failure code [DXE4KA] Service Current EPC Disc.p. 712
Failure code [DXE4KB] Service Current EPC S/Cp. 713
Failure code [DY20KA] Wiper Working Abnormalityp. 714
Failure code [DY20MA] Wiper Parking Abnormalityp. 716
Failure code [DY2CKB] Washer Drive Shortp. 718
Failure code [DY2DKB] Wiper Drive (For) Shortp. 720
Failure code [DY2EKB] Wiper Drive (Rev) Shortp. 722
Troubleshooting of electrical system (E-mode)p. 725
Before carrying out troubleshooting of electrical systemp. 728
Information contained in troubleshooting tablep. 730
E-1 Engine does not startp. 731
E-2 Auto-decelerator does not operatep. 734
E-3 Automatic warming-up system does not operatep. 736
E-4 Preheater does not operatep. 738
E-5 All work equipment, swing, and travel mechanism do not movep. 740
E-6 Power maximizing function does not operatep. 742
E-7 Machine monitor does not display at allp. 744
E-8 Machine monitor does not display some itemsp. 746
E-9 Contents of display by machine monitor are different from applicable machinep. 746
E-10 Fuel level monitor was lighted in red while engine runningp. 747
E-11 Engine coolant temperature gauge does not indicate normallyp. 748
E-12 Hydraulic oil temperature gauge does not indicate normallyp. 750
E-13 Fuel level gauge does not indicate normallyp. 751
E-14 Swing lock monitor does not indicate normallyp. 752
E-15 When monitor switch is operated, monitor displays nothingp. 754
E-16 Windshield wiper and window washer do not operatep. 756
E-17 Machine push-up function does not operate normallyp. 760
E-18 Monitoring function fails to display “boom raise” normallyp. 762
E-19 Monitoring function fails to display “boom lower” normallyp. 764
E-20 Monitoring function fails to display “arm IN” normallyp. 766
E-21 Monitoring function fails to display “arm OUT” normallyp. 768
E-22 Monitoring function fails to display “bucket CURL” normallyp. 770
E-23 Monitoring function fails to display “bucket DUMP” normallyp. 772
E-24 Monitoring function fails to display “swing” normallyp. 774
E-25 Monitoring function fails to display “travel” normallyp. 776
E-26 Monitoring function fails to display “travel differential pressure” normallyp. 778
E-27 Monitoring function fails to display “service” normallyp. 780
E-28 KOMTRAX system does not operate normallyp. 782
E-29 Air conditioner does not operatep. 784
E-30 Travel alarm does not sound or does not stop soundingp. 786
E-31 Horn does not soundp. 788
Troubleshooting of hydraulic and mechanical system (H-mode)p. 791
System chart for hydraulic and mechanical systemp. 794
Information contained in troubleshooting tablep. 796
H-1 All work equipment lack power, or travel and swing speeds are slowp. 798
H-2 Engine speed sharply drops or engine stallsp. 800
H-3 No work equipment, swing or travel movep. 801
H-4 Abnormal noise is heard from around hydraulic pumpp. 801
H-5 Auto-decelerator does not workp. 802
H-6 Fine control mode does not function or responds slowp. 802
H-7 Boom moves slowly or lacks powerp. 803
H-8 Arm moves slowly or lacks powerp. 804
H-9 Bucket moves slowly or lacks powerp. 805
H-10 Work equipment does not move in its single operationp. 805
H-11 Work equipment has a bit too fast hydraulic driftp. 806
H-12 Work equipment has big time lagp. 808
H-13 Other work equipment moves when relieving single circuitp. 808
H-14 Power max. switch does not operatep. 808
H-15 Machine push-up function does not operate.p. 809
H-16 In compound operation of work equipment, speed of part loaded more is lowp. 810
H-17 When machine swings and raises boom simultaneously, boom rising speed is lowp. 810
H-18 When machine swings and travels simultaneously, travel speed lowers largelyp. 810
H-19 Machine deviates during travelp. 811
H-20 Travel speed is lowp. 812
H-21 Machine is not steered well or steering power is lowp. 813
H-22 Travel speed does not change or travel speed is low or highp. 814
H-23 Travel system does not move (only one side)p. 815
H-24 Upper structure does not swingp. 816
H-25 Swing acceleration or swing speed is lowp. 818
H-26 Upper structure overruns remarkably when it stops swingingp. 820
H-27 Large shock is made when upper structure stops swingingp. 821
H-28 Large sound is made when upper structure stops swinging.p. 821
H-29 Hydraulic drift of swing is largep. 822
H-30 Attachment circuit is not changedp. 823
H-31 Oil flow in attachment circuit cannot be controlledp. 823
Troubleshooting of engine (S-mode)p. 825
Method of using troubleshooting chartp. 827
S-1 Starting performance is poorp. 830
S-2 Engine does not startp. 832
S-3 Engine does not pick up smoothlyp. 836
S-4 Engine stops during operationsp. 837
S-5 Engine does not rotate smoothlyp. 838
S-6 Engine lacks output (or lacks power)p. 839
S-7 Exhaust smoke is black (incomplete combustion)p. 840
S-8 Oil consumption is excessive (or exhaust smoke is blue)p. 841
S-9 Oil becomes contaminated quicklyp. 842
S-10 Fuel consumption is excessivep. 843
S-11 Oil is in coolant (or coolant spurts back or coolant level goes down)p. 844
S-12 Oil pressure dropsp. 845
S-13 Oil level rises (Entry of coolant or fuel)p. 846
S-14 Coolant temperature becomes too high (overheating)p. 848
S-15 Abnormal noise is madep. 849
S-16 Vibration is excessivep. 850
50 Disassembly and assembly
General information on disassembly and assemblyp. 853
How to read this manualp. 854
Coating materials listp. 856
Special tools listp. 859
Sketches of special toolsp. 863
Engine and cooling systemp. 867
Removal and installation of fuel supply pump assemblyp. 868
Removal and installation of fuel injector assemblyp. 872
Removal and installation of engine front sealp. 878
Removal and installation of engine rear sealp. 879
Removal and installation of cylinder head assemblyp. 882
Removal and installation of radiator assemblyp. 891
Removal and installation of hydraulic oil cooler assemblyp. 893
Removal and installation of aftercooler assemblyp. 895
Removal and installation of engine and hydraulic oil pump assemblyp. 896
Power trainp. 905
Removal and installation of final drive assemblyp. 906
Disassembly and assembly of final drive assemblyp. 907
Removal and installation of swing motor and swing machinery assemblyp. 915
Disassembly and assembly of swing motor and swing machinery assemblyp. 916
Removal and installation of swing circle assemblyp. 923
Undercarriage and framep. 925
Disassembly and assembly of carrier roller assemblyp. 926
Disassembly and assembly of track roller assemblyp. 928
Disassembly and assembly of idler assemblyp. 929
Disassembly and assembly of recoil spring assemblyp. 932
Removal and installation of sprocketp. 934
Expansion and installation of track shoe assemblyp. 935
Removal and installation of revolving frame assemblyp. 937
Removal and installation of counterweight assemblyp. 940
Hydraulic systemp. 943
Removal and installation of center swivel joint assemblyp. 944
Disassembly and assembly of center swivel joint assemblyp. 946
Removal and installation of hydraulic tank assemblyp. 947
Removal and installation of control valve assemblyp. 949
Disassembly and assembly of control valve assemblyp. 952
Removal and installation of hydraulic pump assemblyp. 956
Removal and installation of oil seal in hydraulic pump input shaftp. 959
Disassembly and assembly of work equipment PPC valve assemblyp. 960
Disassembly and assembly of travel PPC valve assemblyp. 961
Disassembly and assembly of hydraulic cylinder assemblyp. 962
Work equipmentp. 969
Removal and installation of work equipment assemblyp. 970
Cab and its attachmentsp. 975
Removal and installation of operator cab assemblyp. 976
Removal and installation of operator cab glass (stuck glass)p. 979
Removal and installation of front window assemblyp. 989
Removal and installation of floor frame assemblyp. 996
Electrical systemp. 1001
Removal and installation of air conditioner unit assemblyp. 1002
Removal and installation of KOMTRAX communication modem assemblyp. 1005
Removal and installation of monitor assemblyp. 1006
Removal and installation of pump controller assemblyp. 1008
Removal and installation of engine controllerp. 1010
90 Diagrams and drawings
Hydraulic diagrams and drawingsp. 1013
Hydraulic circuit diagramp. 1015
Electrical diagrams and drawingsp. 1018
Electrical circuit diagramp. 1020
Connector arrangement diagramp. 1021

Why Correct Procedures and Specifications Matter

Komatsu excavators in the PC400 and PC450 class rely on precise hydraulic and electronic calibration. Using the wrong pump control pressure, valve clearance or torque figure can cause poor digging performance, overheating, or premature component failure. This shop manual provides the exact measurement conditions, adjustment values, and disassembly sequences required to keep the machine running to factory tolerances.

Instant PDF Delivery

The manual is delivered as a PDF download immediately after payment — no shipping, no waiting. It can be viewed on any device, printed for the workshop, and taken to the job site. Pages are laid out in the original factory section order so you can navigate from index to specification to procedure quickly.

This Komatsu PC400-8 PC400LC-8 PC450-8 PC450LC-8 Excavator Shop Manual SEN02223-03 covers serial numbers 70001 and up and is intended for professional technicians, fleet maintenance departments and owner-operators who need the full factory service documentation for these machines.

Reviews

There are no reviews yet.

Be the first to review “Komatsu PC400-8 PC400LC-8 PC450-8 PC450LC-8 Excavator Shop Manual SEN02223-03”

What Our Customers Say

★★★★★ Live reviews from customers
Loading customer reviews...
0
    0
    Your Cart
    Your cart is emptyReturn to Shop
    🛒
    Recently Purchased
    🕒 verified order
