Komatsu SAA6D107E-1-A Engine Shop Manual 6D107E-BE1 for FD100-8 FD115-8 FD135-8 FD150E-8 FD160E-8 PDF Download

Description

Komatsu SAA6D107E-1-A Engine Shop Manual 6D107E-BE1

This detailed Komatsu SAA6D107E-1-A engine shop manual is the engine-volume repair reference for the diesel engine installed in the FD100-8, FD115-8, FD135-8, FD150E-8 and FD160E-8 lift trucks listed in the manual. With 317 PDF pages, it goes well beyond basic servicing information: the material covers engine specifications, system construction, component maintenance standards, test values, measuring procedures, common-rail fuel-system work, fault-code diagnosis, mechanical troubleshooting and complete engine disassembly and assembly.

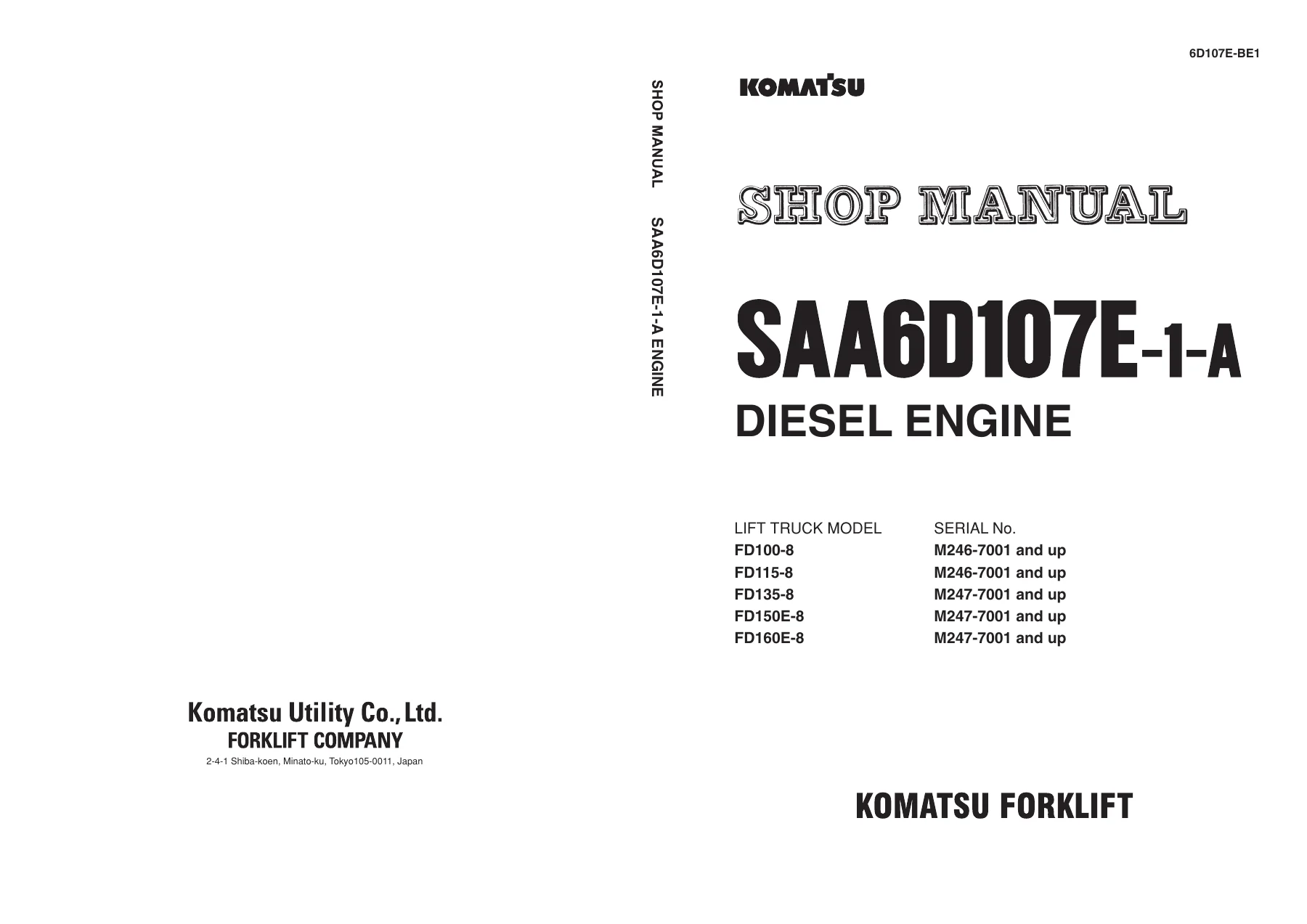

The manual identifies the applicable lift-truck serial coverage as M246-7001 and up for FD100-8 and FD115-8, and M247-7001 and up for FD135-8, FD150E-8 and FD160E-8. Its technical coverage is specifically centered on the SAA6D107E-1-A six-cylinder diesel engine and the shop-manual form 6D107E-BE1.

File Details

• Manual type: Engine Shop Manual
• Brand: Komatsu
• Engine: SAA6D107E-1-A
• Applicable lift trucks: FD100-8, FD115-8, FD135-8, FD150E-8, FD160E-8
• Language: English
• Pages: 317
• File format: PDF
• Form No.: 6D107E-BE1

Engine and Application Coverage

The specification section identifies the SAA6D107E-1-A as a six-cylinder engine with a bore and stroke of 107 × 124 mm and total piston displacement of 6.69 l {6,690 cc}. The listed gross flywheel horsepower is 128.7 kW {173.0 HP} at 2,200 rpm, with maximum gross torque of 590 Nm {60.2 kgm} at 1,600 rpm. The manual also gives high- and low-idle speeds, dry weight, lubrication and coolant quantities, electrical equipment data and the HOLSET HX35W turbocharger designation.

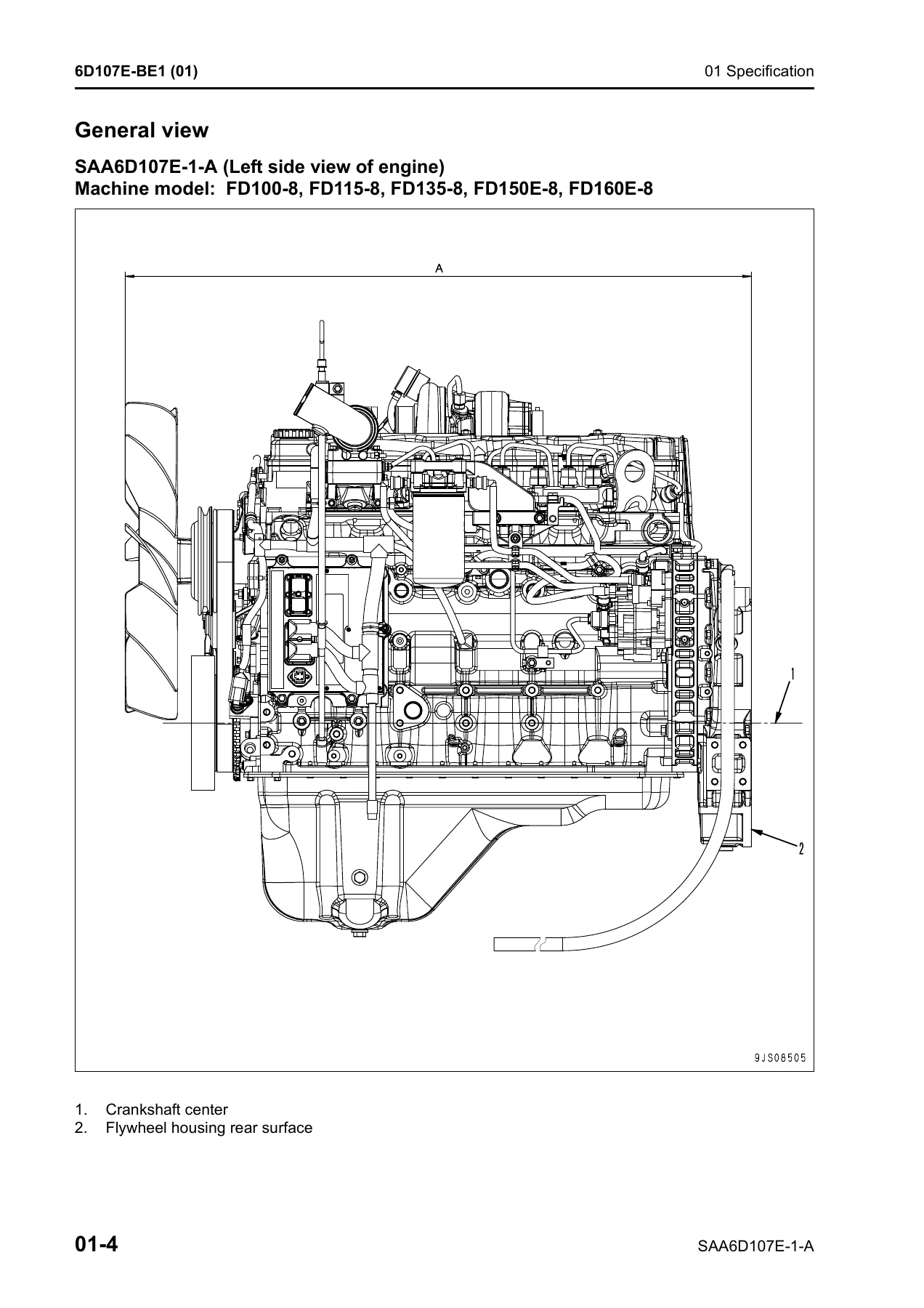

General-view drawings show the engine from the left, right, front and rear, with reference dimensions for test-bench setup. The manual then follows the engine system by system, giving diagrams and service criteria for the intake, exhaust, turbocharger, lubrication, cooling and high-pressure common-rail fuel circuits before moving into internal engine components.

Chapters Covered

• 00 Index and foreword
• 01 Specification
• 10 Structure, function and maintenance standard
• 20 Standard value table
• 30 Testing and adjusting
• 40 Troubleshooting
• 50 Disassembly and assembly

00 Index and foreword

The opening section establishes the service conventions used throughout the Komatsu SAA6D107E-1-A shop manual. It explains safety symbols, maintenance-standard terminology, standard sizes and tolerances, clearances, interference values, repair limits and allowable values. It also provides guidance for electrical connectors and wiring harnesses, controller handling, electric-wire codes, general repair precautions, push-pull couplers, standard tightening-torque tables and unit conversions. This material is useful when interpreting later repair limits and carrying out assembly work correctly.

01 Specification

The specification chapter identifies the applicable engine and lift-truck models and provides dimensional and operating data for the SAA6D107E-1-A. It includes cylinder count, bore and stroke, displacement, firing order, engine dimensions, gross power and torque, idle speeds, dry weight, HPCR fuel-injection system, electronic fuel control, lubrication-oil quantity, coolant quantity, alternator, starting motor, battery and turbocharger information. Detailed engine views and an engine performance curve are included for practical reference.

10 Structure, function and maintenance standard

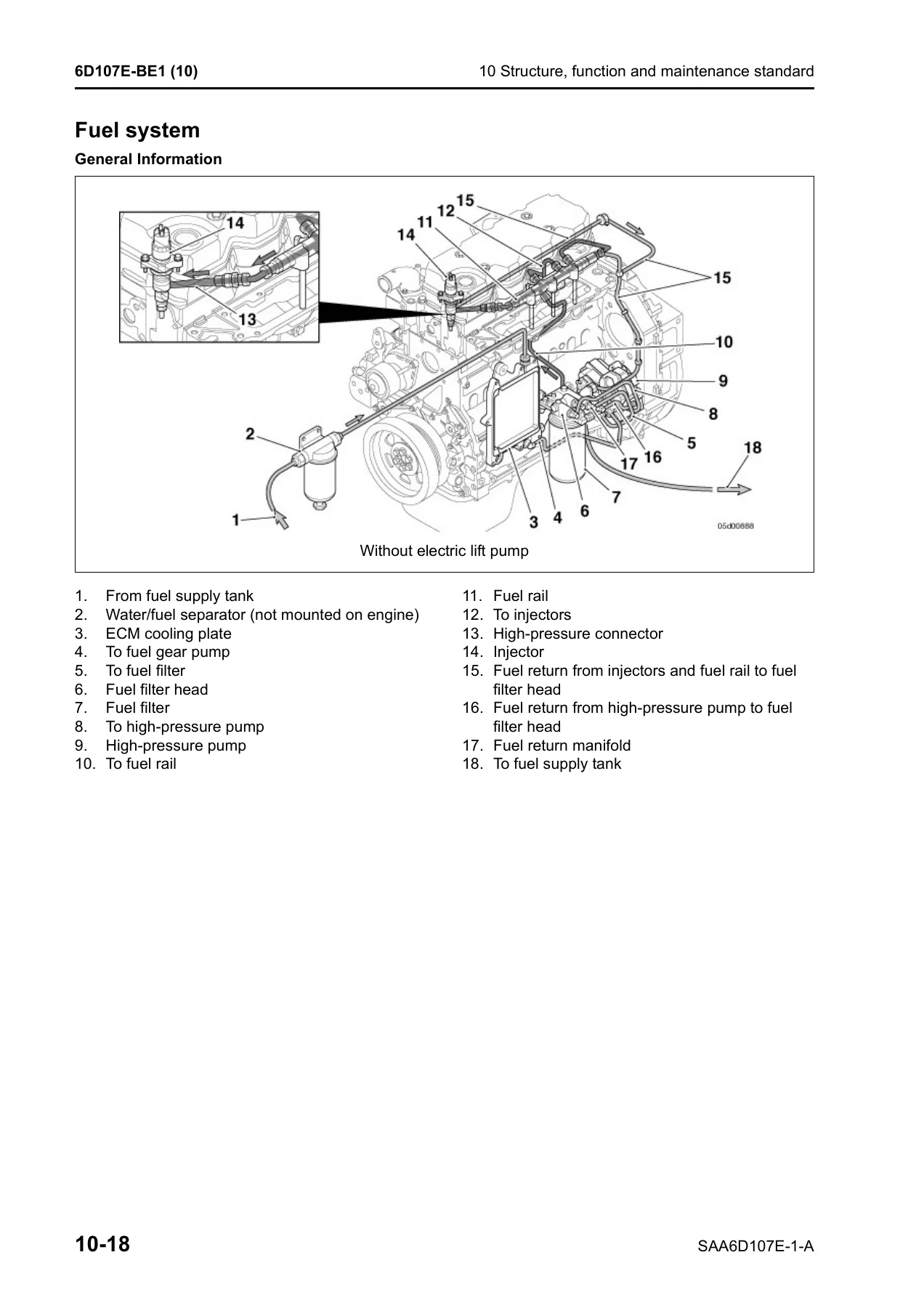

This is a core technical section of the 6D107E-BE1 engine shop manual. It explains the air-intake and exhaust arrangement, turbocharger construction and operating principles, lubrication routes, cooling-system flow and common-rail fuel system. The fuel-system material traces fuel from the tank through the separator, filters, gear pump, high-pressure pump, fuel rail and injectors, and explains electronic injector actuation and return flow.

The chapter then moves into engine hardware and measurable service standards. Coverage includes the cylinder head, cylinder block, crankshaft, piston, piston rings, piston pin, connecting rods, vibration damper, timing gears, camshaft, valves and valve guides, rocker arms, shaft and tappets, oil pump, oil pan, flywheel and flywheel housing, oil filter, oil cooler, fuel supply pump, water-pump drive and fan drive. Tables provide clearances, journal diameters, wear criteria, runout limits, backlash values and tightening procedures for many of these assemblies. Examples include cylinder-head mounting-face limits, crankshaft journal data, piston-ring gaps, connecting-rod measurements, valve dimensions and valve-clearance information.

20 Standard value table

The standard-value section consolidates test, adjustment and troubleshooting data for the SAA6D107E-1-A. It lists engine-speed values, intake resistance, intake pressure, exhaust temperature, exhaust-gas color, valve clearance, compression pressure, blow-by pressure, lubricating-oil pressure and temperature, oil-consumption ratio and fan speed. Both standard-new-machine and permissible values are shown where provided.

A separate run-in and performance-test section gives engine-speed and dynamometer-load stages, output targets and performance-test criteria. It also records rated horsepower, maximum torque, coolant temperature, lubricating-oil temperature, lubricating-oil pressure and exhaust-temperature criteria used when evaluating engine performance.

30 Testing and adjusting

The testing chapter is written for actual workshop diagnosis rather than simple inspection. It begins with a dedicated testing-and-adjusting tools list and then gives procedures for measuring air boost pressure, setting valve clearance, testing compression pressure, checking blow-by pressure and measuring engine-oil pressure. Each operation specifies tool arrangements, measuring locations, safety precautions and the steps needed to return the engine to service condition.

The common-rail fuel-system coverage is especially substantial. Procedures include safe release of residual fuel pressure, checking low-pressure and return-circuit pressure, measuring fuel-system negative pressure, evaluating supply-pump delivery and return rate, checking leakage from the pressure limiter, measuring injector return rate, bleeding air from the fuel circuit and checking the completed fuel system for leakage. The manual also describes reduced-cylinder operation for isolating a cylinder with abnormal combustion and no-injection cranking for lubricating engine components without fuel injection.

Additional material covers fan-belt replacement and precautions for the engine-controller high-voltage injector circuit. The troubleshooting-tool section explains failure-code checking with diagnostic software or through warning-lamp blinking patterns, giving technicians a way to connect electronic symptoms with the detailed diagnostic charts that follow.

40 Troubleshooting

The troubleshooting section combines symptom-based mechanical diagnosis with extensive electronically generated failure-code diagnosis. Mechanical S-mode charts address poor starting, no-start conditions, poor pickup, engine stopping during operation, irregular rotation, lack of power, black exhaust smoke, excessive oil consumption or blue smoke, rapid oil contamination, excessive fuel consumption, oil in coolant, low oil pressure, rising oil level from coolant or fuel entry, overheating, abnormal noise and excessive vibration.

These charts do more than list possible causes. They organize questions, visual checks, direct tests and corrective actions so a technician can narrow the fault before unnecessary dismantling. Potential causes include intake restriction, fuel-supply faults, injector problems, turbocharger faults, valve and compression issues, lubrication failures, cooling-system faults and engine-electrical problems.

The electrical E-mode section contains a large failure-code set covering the engine controller, Ne and backup speed sensors, charge-pressure and temperature sensors, throttle sensor, coolant-temperature sensor, sensor power supplies, IMV circuits, individual injector circuits, common-rail pressure, water-in-fuel sensing, idle validation, oil-pressure sensing, supply voltage, supply-pump pressure, intake-air-heater relay and other electronically monitored conditions. Diagnostic tables provide the controller response, symptoms, possible causes, circuit information and test standards used to verify the fault.

50 Disassembly and assembly

The final chapter is devoted to major engine workshop work. It explains how the removal, installation, disassembly and assembly instructions are organized, including safety marks, coating symbols, oil and coolant quantities, tightening torques and special-tool references. A coating-materials list and special-tools list support the procedures that follow.

The general disassembly sequence takes the SAA6D107E-1-A engine through progressive strip-down, while the general assembly sequence provides the corresponding build-up procedure. The instructions include component handling, installation precautions, torque requirements, sealing and coating references and lubrication points. The assembly coverage culminates in removal from the engine repair stand and refilling the engine with oil to the specified level. For a workshop undertaking internal engine repair, this section ties the measurements and maintenance limits from earlier chapters directly to the physical overhaul process.

A Workshop Reference for Diagnosis, Measurement and Engine Repair

The value of this Komatsu SAA6D107E-1-A Engine Shop Manual 6D107E-BE1 is the way its sections work together. A technician can identify the correct FD100-8, FD115-8, FD135-8, FD150E-8 or FD160E-8 application, check the engine specifications, understand the relevant system, compare measurements with maintenance standards, perform the prescribed pressure or compression tests, follow mechanical or electronic troubleshooting charts and then carry out the required disassembly and assembly procedure.

For jobs involving common-rail fuel pressure, injector return flow, low engine power, starting trouble, black or blue exhaust smoke, overheating, oil-pressure problems, valve adjustment, compression testing, turbocharger checks, internal-engine inspection or complete engine overhaul, having the correct procedures and service limits at hand helps avoid diagnosis by guesswork. Measurements such as clearances, pressure values, repair limits and tightening sequences are presented alongside the procedures that use them, making this a practical repair reference for the SAA6D107E-1-A engine.

IMAGES PREVIEW

Delivered as an instant PDF download after payment. There is no physical book and no shipping delay. Save the Komatsu SAA6D107E-1-A shop manual to your computer, tablet or phone for workshop access, and print the pages you need for a specific test, adjustment or engine repair job.
