Komatsu WA380-8E0 Wheel Loader Parts Book – VENPC52000 PDF Download

Description

Komatsu WA380-8E0 Wheel Loader Parts Book – VENPC52000 PDF

This Komatsu WA380-8E0 Wheel Loader Parts Book is the complete parts catalog for machines from serial number H65451 and up, with engine serial number 22353330 and up. Published under document number VENPC52000 (CD edition) and VENPB52000 (hardcopy edition), this parts book delivers exploded-view illustrations and detailed part number listings for every major assembly on the WA380-8E0 wheel loader. Whether you are ordering a single replacement part, rebuilding a component, or maintaining a fleet, this parts catalog ensures you identify the correct part number every time.

File Details

• Manual Type: Parts Book / Parts Catalog
• Brand: Komatsu
• Model: WA380-8E0 Wheel Loader
• Machine Serial Number: H65451 and up
• Engine Serial Number: 22353330 and up
• Document Number: VENPC52000 (CD), VENPB52000 (Hardcopy)
• Language: English, French, German, Italian, Portuguese, Arabic, Russian, Chinese
• Page Count: Approx. 1,233 pages
• File Format: PDF

Chapters Covered

This parts book is organized by assembly groups, each with its own figure number, exploded illustration, and parts list. The main sections include:

• A0 — Engine Cylinder Head and Related Parts
• B0 — Engine Cylinder Block and Related Parts
• CO — Engine Lubrication System
• DO — Engine Fuel System
• EO — Engine Cooling System
• FO — Engine Electrical System
• GO — Engine Accessories and Others
• IO — Engine Marks and Plates
• JO — Chassis Transfer Parts
• YO — Field Repair Service Parts
• BO — Engine Related Parts
• CO — Cooling System
• DO — Fuel System
• E0 — Electrical System
• F0 — Power Transmitting System
• H0 — Hydraulic System
• J0 — Frame and Its Related Parts
• K0 — Operator’s Compartment and Control System
• M0 — Guards and Covers
• S0 — Suspension, Wheel and Their Related Parts
• T0 — Work Equipment
• U0 — Marks and Plates
• V0 — Auxiliary Parts and Tool
• W0 — Miscellaneous
• X0 — Special Equipment
• Y0 — Field Repair Service Parts
• KIT — Service Kit Parts
• Numerical Index

Within these sections, the parts book covers every major system and component of the WA380-8E0, including:

• Engine cylinder head, cylinder block, crankshaft, pistons, and connecting rods
• Lubrication system, oil filter, oil cooler, and oil pump
• Fuel system, fuel filter, fuel supply pump, and fuel piping
• Cooling system, water pump, thermostat, radiator, and cooling fan
• Electrical system, alternator, starting motor, wiring harness, and sensors
• Power train, torque converter, transmission, propeller shafts, and axles
• Hydraulic system, hydraulic tank, control valves, and hydraulic pumps
• Steering system, steering cylinders, and steering demand valve
• Frame, front frame, rear frame, and hinge pins
• Operator’s compartment, seat, ROPS cab, and control levers
• Work equipment, boom, bell crank, buckets, lift cylinders, and bucket cylinders
• Guards, covers, hood, fenders, and handrails
• Marks and plates, decals, and safety labels
• Special equipment, attachments, and options
• Service kits and field repair service parts

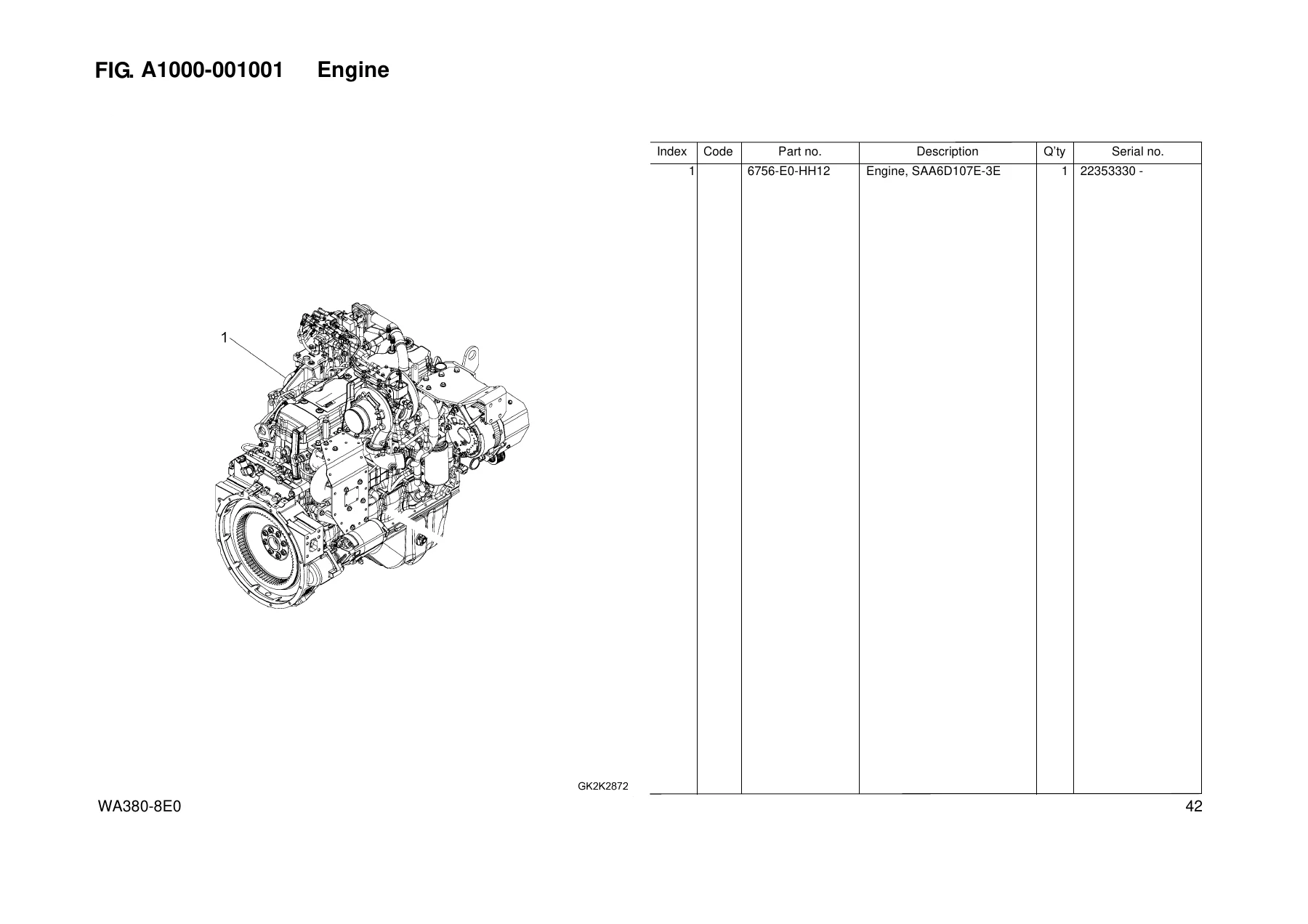

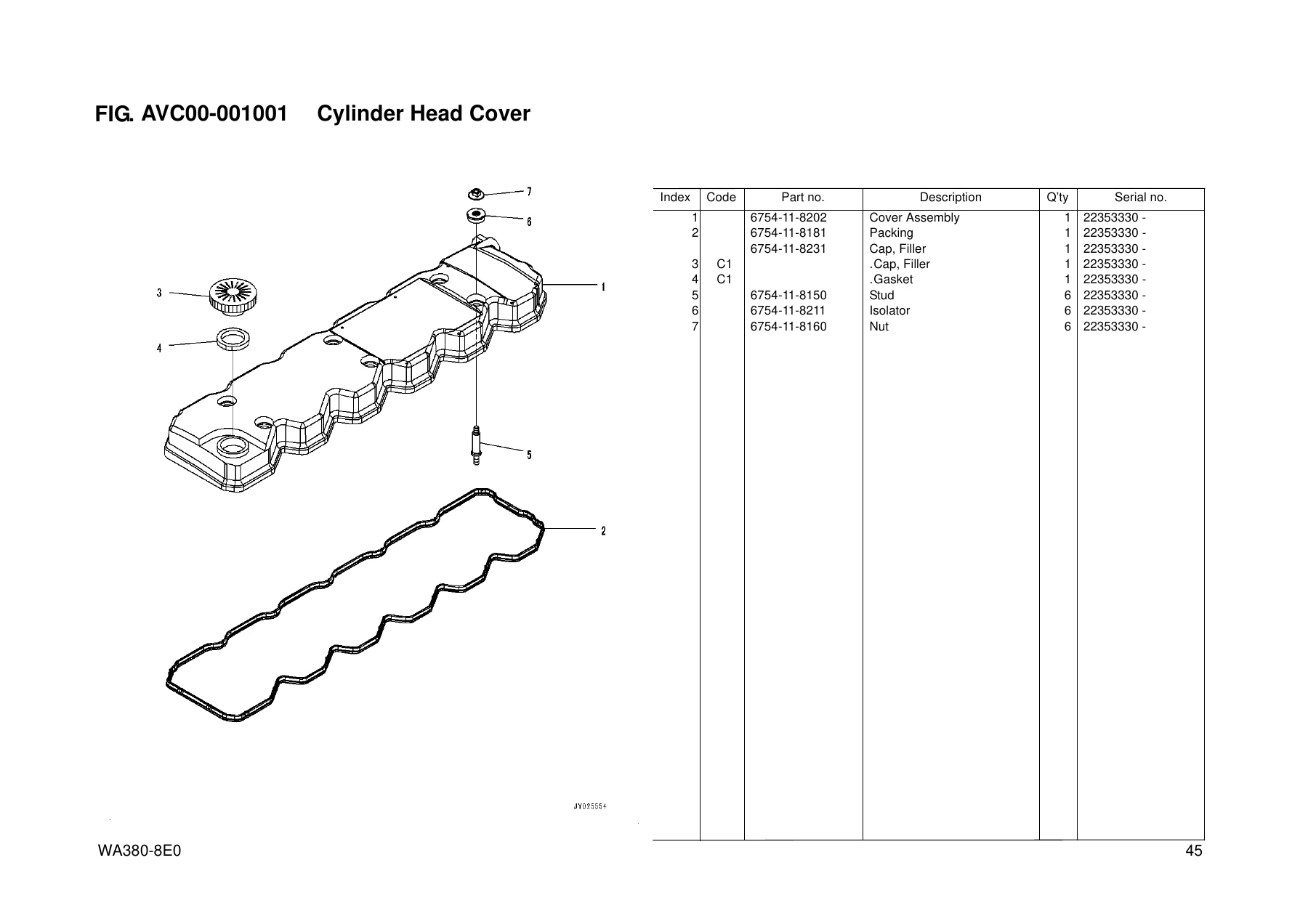

What This Parts Book Provides

Each figure in this Komatsu WA380-8E0 parts book presents a detailed exploded-view illustration with every component identified by an index number. Following each illustration is a corresponding parts list that gives the index number, part number, description, quantity required, and applicable serial number range. The parts lists use standard Komatsu codes (A1, A2, A3, A4, B1, B2, C1, C2, C3) to indicate interchangeability, supersession, and supply conditions, so you know exactly which parts can be substituted or must be ordered as an assembly.

The serial number columns are critical for the WA380-8E0. Machine serial number H65451 and up and engine serial number 22353330 and up determine which parts apply to your specific machine. Because Komatsu updated components across production runs, ordering by part number alone is not enough — you need the serial number verification that this parts book provides. Each parts list includes the applicable serial number range, so you can confirm fitment before placing an order.

How to Use This Parts Book

Start by identifying the assembly you need using the section headings and figure numbers. Each figure number (FIG.) corresponds to a specific illustration and parts list. Once you locate the figure, find the index number on the exploded view, then look up that index number in the parts list to get the part number, description, and quantity. The numerical index at the back of the book lets you search by part number to find which figure and index number that part appears under — useful when you already have a part number but need to confirm its location or applicable serial range.

This parts book covers not only standard equipment but also optional equipment and attachments. The special equipment section includes items such as Teflon-coated coolers, front cameras, protection guards, quick couplers, and cold-area kits. The field repair service parts section lists service kits for major components including transmission service kits, hydraulic cylinder seal kits, and bearing kits. These kits are essential for planned maintenance and rebuilds.

Who This Parts Book Is For

This Komatsu WA380-8E0 parts catalog is designed for equipment owners, fleet maintenance managers, mechanics, and parts personnel who need accurate part identification for the WA380-8E0 wheel loader. It is equally valuable for workshops that service Komatsu wheel loaders and need to order parts efficiently. The exploded views and parts lists make it straightforward to identify every component, from a single O-ring to a complete assembly, without guesswork.

Because the parts book covers the complete machine — engine, powertrain, hydraulics, electrical, operator’s compartment, and work equipment — you do not need multiple documents to find the right part. Everything is organized in one place, with cross-references and serial number applicability clearly stated.

Get Your Komatsu WA380-8E0 Parts Book Today

With this parts book, you can identify and order the correct parts for your WA380-8E0 wheel loader with confidence. The exploded illustrations, part numbers, quantities, and serial number ranges give you everything you need to keep your machine running. Whether you are performing routine maintenance, repairing a failed component, or rebuilding an assembly, having the correct parts book saves time and prevents ordering errors.

IMAGES PREVIEW

Delivery is instant. This Komatsu WA380-8E0 parts book is available as a PDF download — no shipping, no waiting. Access it on any device, print the pages you need for the workshop, and keep the digital file for future reference. The PDF format means you can zoom in on illustrations, search for part numbers, and store the entire parts catalog on your computer, tablet, or smartphone.

Don’t waste time with incorrect part orders or incomplete diagrams. Get the complete Komatsu WA380-8E0 Wheel Loader Parts Book — VENPC52000 — and have every part number at your fingertips.
