Kubota 05-E2B and 05-E2BG Series Diesel Engine Workshop Manual

Description

Kubota 05-E2B and 05-E2BG Series Diesel Engine Workshop Manual

This technical publication provides comprehensive overhaul, maintenance, disassembly, and servicing data for the Kubota 05-E2B and 05-E2BG series diesel engines. Built to comply with Tier 2 and Phase 2 emission standards, these multi-cylinder, water-cooled four-cycle powerplants are thoroughly detailed across mechanical construction, diagnostic checks, and overhaul standards.

File Details

Engine Models & Variants Covered

• Kubota D905-E2B: 3-cylinder vertical water-cooled diesel engine (898 cm³)
• Kubota D1005-E2B: 3-cylinder vertical water-cooled diesel engine (1001 cm³)
• Kubota D1105-E2B: 3-cylinder vertical water-cooled diesel engine (1123 cm³)
• Kubota D1105-T-E2B: 3-cylinder turbocharged diesel engine (1123 cm³)
• Kubota V1305-E2B: 4-cylinder vertical water-cooled diesel engine (1335 cm³)
• Kubota V1505-E2B: 4-cylinder vertical water-cooled diesel engine (1498 cm³)
• Kubota V1505-T-E2B: 4-cylinder turbocharged diesel engine (1498 cm³)
• Kubota D905-E2BG: 3-cylinder generator application diesel engine (BG1 rating)
• Kubota D1005-E2BG: 3-cylinder generator application diesel engine (BG1 rating)
• Kubota D1105-E2BG: 3-cylinder generator application diesel engine (BG1 rating)
• Kubota V1305-E2BG: 4-cylinder generator application diesel engine (BG1 rating)
• Kubota V1505-E2BG: 4-cylinder generator application diesel engine (BG1 rating)

Chapters Covered

• General Information: Engine identification, model name stamping, serial number year/month decoding system, and cylinder numbering sequences starting from the gear case side.
• General Precautions & Safety: Workshop safety rules, live-wire battery disconnection guidelines, genuine replacement part usage, O-ring and oil seal lubrication, and snap ring orientation.
• Maintenance Check List: Scheduled operational check points for daily checks, initial 50 hours, every 50 hours, 100 hours, 200 hours, 400 hours, 500 hours, 1 to 2 months, 1 year, 800 hours, 1500 hours, 3000 hours, and 2-year service intervals.
• Check and Maintenance: Oil level verification, coolant inspection, bleeding fuel delivery systems, fan belt tension adjustments, battery electrolyte hydrometer testing, valve clearance adjustment at cold state, fuel injection pressure checks, turbocharger inspections, and injection timing shim setup.

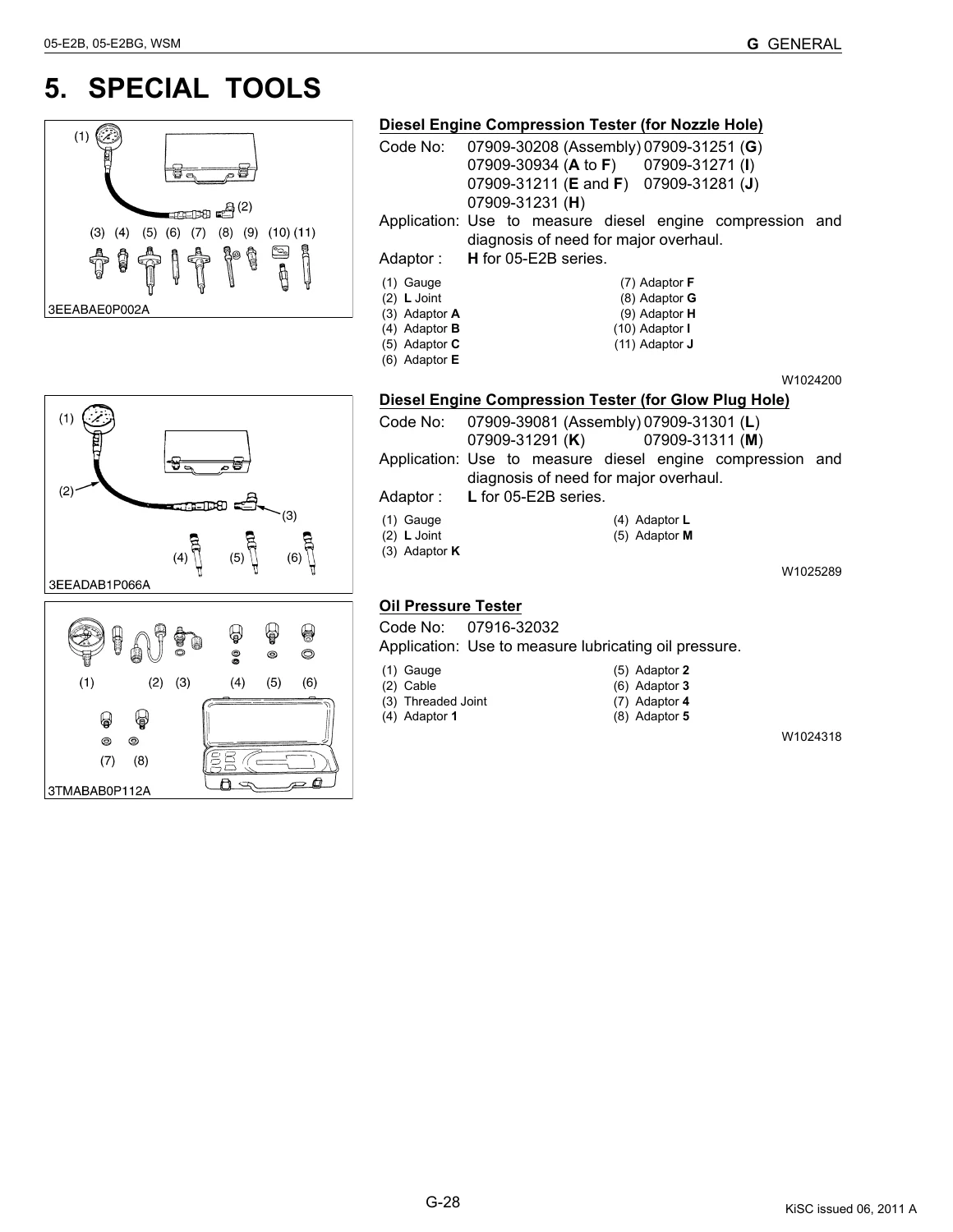

• Special Tools: Detailed shop tool specs, fabrication drawings, part numbers, and dimensions for nozzle compression adaptors, glow plug compression adaptors, oil pressure testing kits, injection pump pressure testers, valve guide replacers, bushing replacers, flywheel stoppers, and crankshaft bearing installation tools.
• Mechanism — Engine Body: Construction and operation of the closed breather system for naturally aspirated engines, three-lever type mechanical flyweight governor for standard units, two-lever type governor for BG series generator engines, and boost compensators for turbocharged units.
• Servicing — Troubleshooting: Systematic diagnostics for engine failure to start, rough running, starter motor faults, abnormal exhaust smoke (white, blue, black, and dark gray), low power output, excessive oil consumption, fuel or water dilution in crankcase, and overheating.
• Servicing Specifications: Complete tables of factory specifications and allowable service limits for compression pressure, cylinder head flatness, valve recessing, valve stem/guide clearances, valve springs, push rod alignment, rocker assemblies, and timing gear backlash.
• Servicing Specifications — Lower Engine: Factory clearances and wear limits for idle gear bushings, camshaft journals, cam lobes, piston pins, piston ring end gaps, ring groove clearances, connecting rods, crankpin oil clearances, crankshaft main journals, and cylinder liner diameters (standard and oversized).
• Servicing Specifications — Auxiliary Systems: Trochoid oil pump lobe and body clearances, cooling thermostat opening temperatures, radiator cap relief pressures, injection pump fuel tightness limits, glow plug resistance values, starter motor commutator/brush limits, and alternator stator/rotor/brush dimensions.
• Tightening Torques: Complete torque tables for standard general fasteners (grades 4 and 7) and dedicated engine hardware including cylinder head bolts, main bearing case bolts, flywheel bolts, connecting rod bolts, rocker arm nuts, and fan drive pulley fasteners.
• Disassembling and Assembling: Step-by-step tear-down and reassembly sequences for cooling radiator drain, air cleaner, muffler, starter, alternator, cylinder head cover, injection piping, nozzle heat seals, rocker assembly, cylinder head, tappets, valves, and water thermostat.
• Disassembling and Assembling — Timing & Block: Disassembly and assembly procedures for fan drive pulley, timing gear case cover, turbocharger assembly, boost compensator, speed control plate, fuel injection pump removal and timing shims, cam gears, idle gears, governor shaft, oil pan, oil strainer, connecting rods, pistons, and ring compressor use.
• Disassembling and Assembling — Crankshaft & Electrical: Step-by-step procedures for flywheel removal, bearing case cover, crankshaft withdrawal, main bearing cases, planetary gear reduction starters, electromagnetic starters, and alternator internal components.
• Component Servicing: Detailed measurement and reconditioning procedures for cylinder block surface grinding, valve seat cutting and lapping, valve guide pressing, idle gear bushing replacement, piston pin fitment, crankshaft journal grinding to undersize dimensions, cylinder re-boring to 0.5 mm oversize, and electrical bench testing.

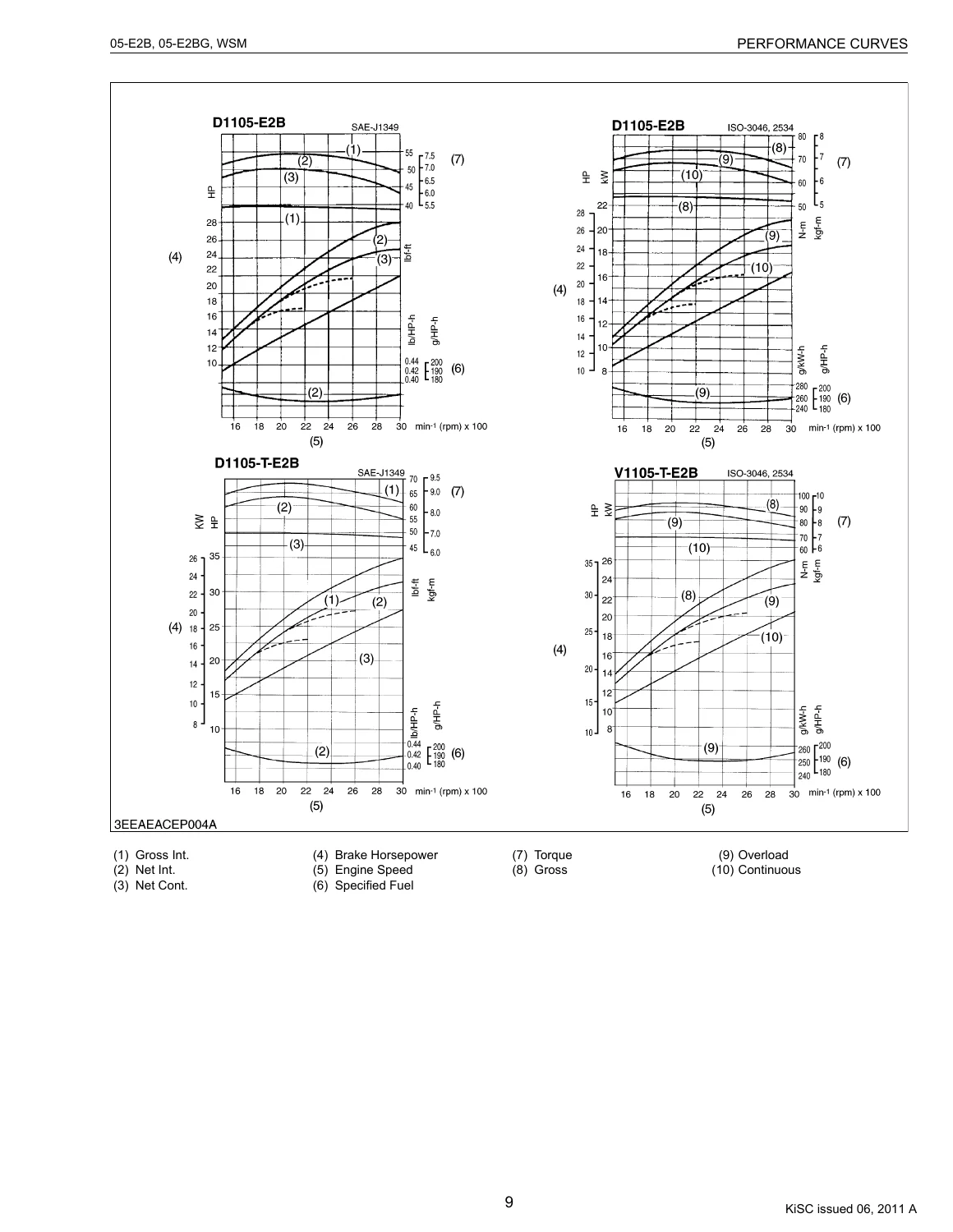

IMAGES PREVIEW

By consulting this Kubota 05-E2B and 05-E2BG Series Diesel Engine Workshop Manual, technicians obtain the exact factory clearances, tightening sequences, and diagnostic steps required to inspect, service, or completely rebuild these industrial and generator engines. Working strictly with the factory-prescribed tolerances ensures proper engine performance, prevents oil burning or premature bearing failure, and maintains clean emission performance across all covered models.

This manual is provided as an instant PDF download, granting immediate access upon payment with no waiting for delivery. It can be opened on any desktop computer, laptop, tablet, or smartphone, and allows you to print out specific overhaul procedures or torque specification charts directly for use at the workbench.
