Nissan SD22 SD23 SD25 SD33 Diesel Engine Service Manual PDF Download

Description

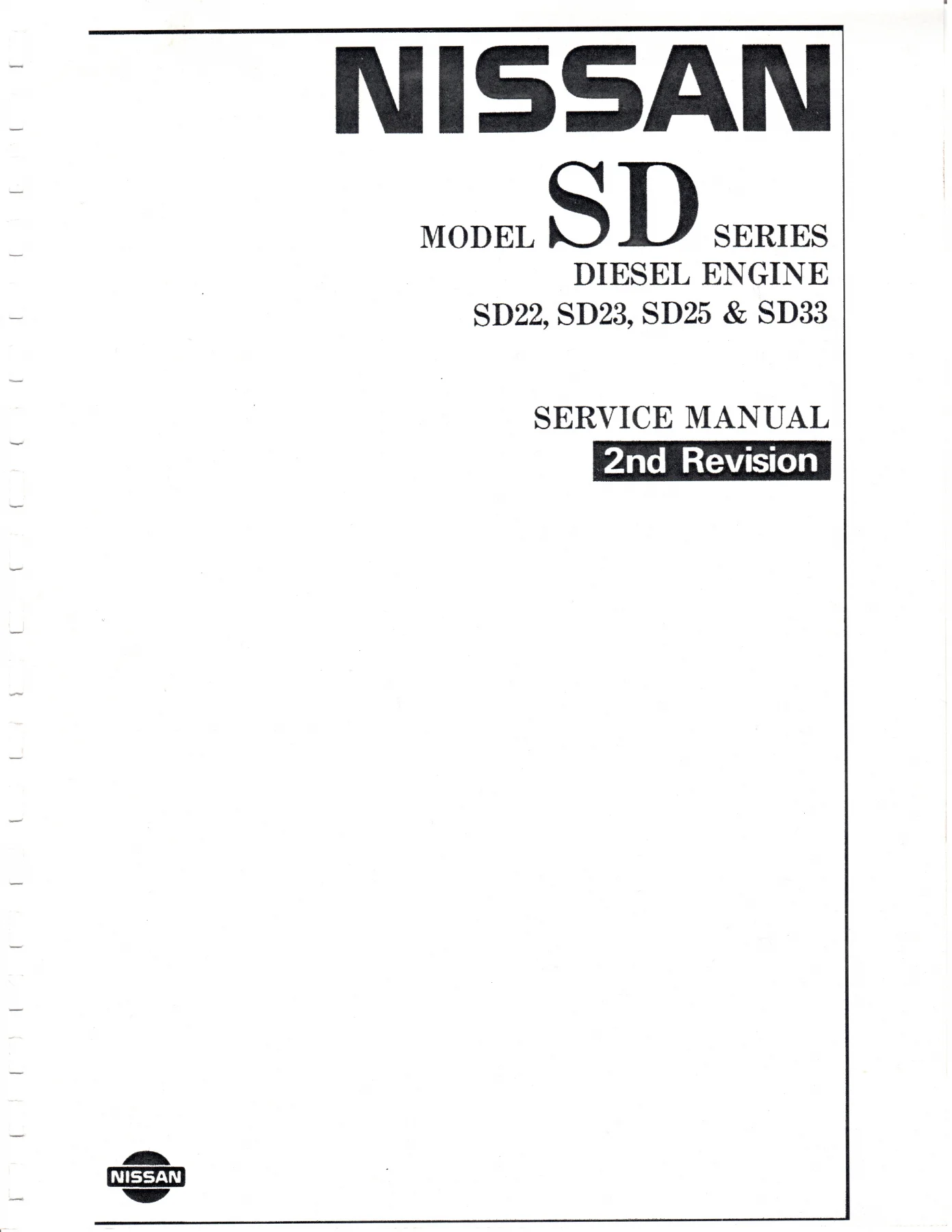

Nissan SD Series Diesel Engine Service Manual

This 150-page service manual covers the Nissan SD22, SD23, SD25 and SD33 diesel engines. It provides illustrated service procedures, inspection and adjustment information, troubleshooting charts, service specifications and repair guidance across the engine mechanical, lubrication, cooling and fuel-injection systems.

Engines & Applications Covered

The manual is specifically identified for the Nissan SD Series diesel engine family:

• SD22
• SD23
• SD25
• SD33

The general-information section also contains a model-to-engine application table covering Nissan vehicle/model designations including 430, 160, H40, W40, 140, F22, E23 and 720, with the corresponding SD-series engine applications shown in the manual.

Main Systems & Subjects Included

• General engine specifications and engine serial-number location
• Standard bolt tightening-torque information
• Routine maintenance and basic mechanical adjustments
• Injection and fuel-system inspection and adjustment
• Cooling and lubrication maintenance
• Electrical-system maintenance checks including glow plugs
• Service data, specifications and tightening torques
• Detailed troubleshooting and correction charts
• Engine mechanical disassembly, inspection, repair and assembly
• Engine lubrication and cooling systems
• Diesel fuel-injection pump, nozzle and related fuel-system service
• Special service tools and their applications

Engine Mechanical Repair Coverage

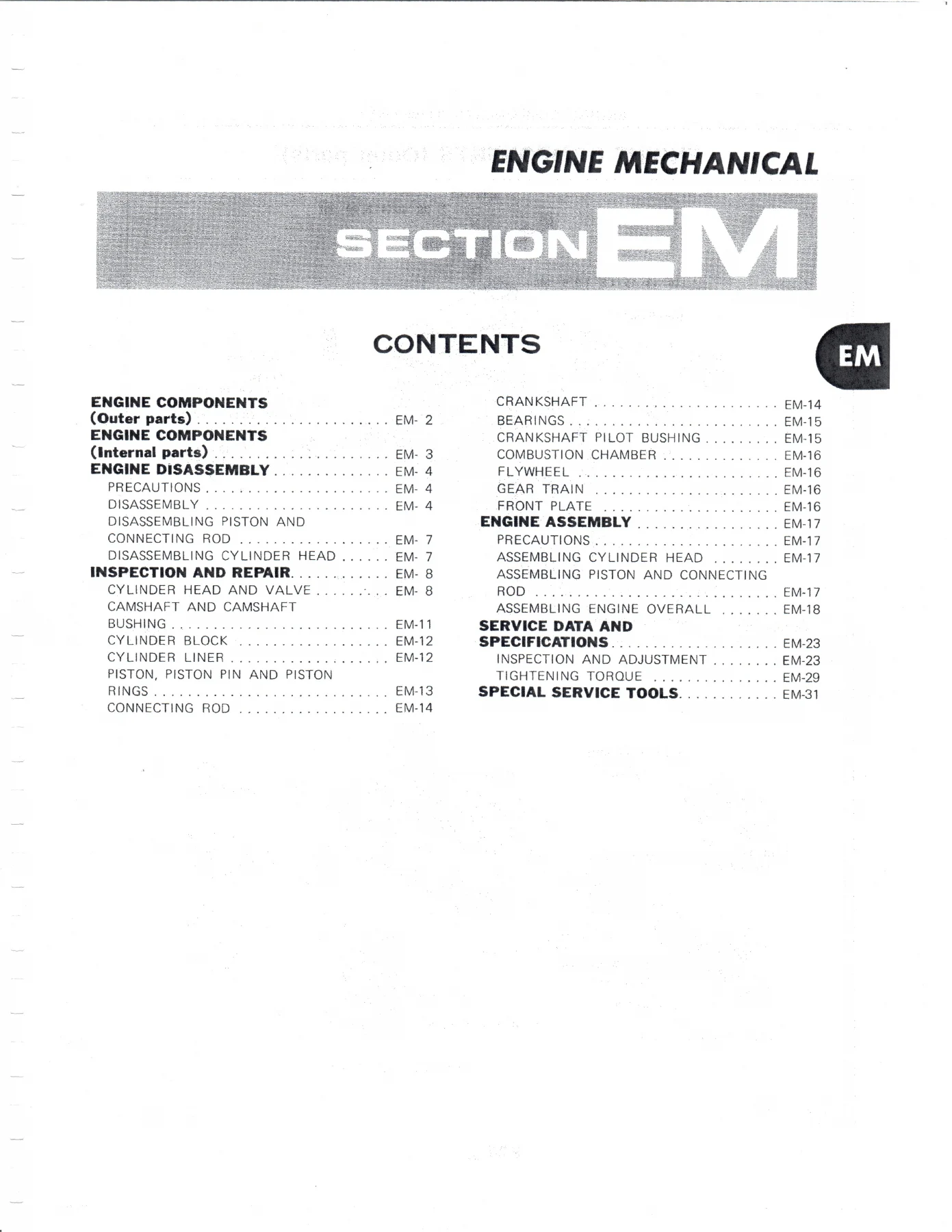

The engine-mechanical section takes the engine from component identification through disassembly, inspection, repair and reassembly. Illustrated procedures cover the cylinder head, valves and valve mechanism, rocker shaft, cylinder block and liner, pistons and piston pins, connecting rods, crankshaft, bearings, camshaft, flywheel, front plate and gear train. The manual also provides service-data tables, inspection and adjustment criteria, tightening torques and special-service-tool information.

Maintenance & Troubleshooting

The maintenance section includes valve-clearance adjustment, drive-belt inspection, compression-pressure testing, injection timing and idle/max-speed adjustment, injection-nozzle checks, air-cleaner servicing, fuel-filter and water-draining procedures, coolant and engine-oil service, injection-pump lubrication and glow-plug checks. Troubleshooting flow charts address conditions including difficult starting, unstable idle, excessive white or black smoke, low power, water leakage, oil leakage, overheating, an engine that will not stop and abnormal engine noise.

Lubrication & Cooling System Service

Dedicated coverage includes lubrication and cooling circuits, oil pump removal and inspection, oil filters and brackets, oil cooler service, piston and gear-train oil jets, water-pump service, thermostat inspection, radiator servicing and associated service-data specifications.

Fuel Injection System Coverage

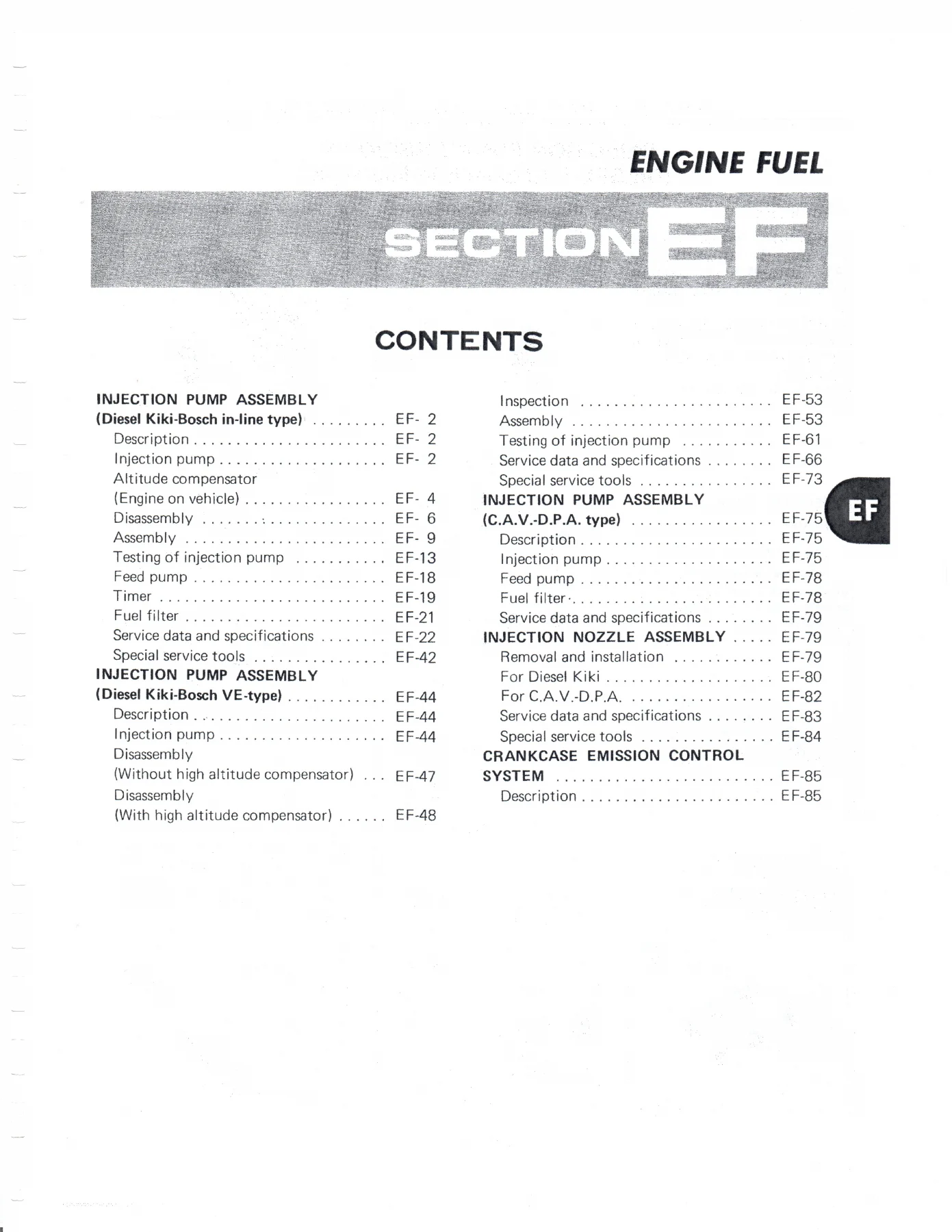

The fuel section provides extensive illustrated service information for diesel injection equipment. Coverage includes Diesel Kiki-Bosch in-line and VE-type injection pumps, pump removal and installation, adjustment, disassembly and assembly, testing, fuel-system bleeding, injection nozzles, fuel filters, crankcase-emission-control information and detailed service specifications. The manual also shows special tools and component diagrams used during pump and nozzle work.

Why This Manual Is Useful

This manual brings together the mechanical procedures, service limits, adjustment data, diagnostic charts and fuel-system information needed when maintaining or repairing an SD-series Nissan diesel engine. The numerous diagrams, exploded component views, torque values and inspection procedures make it particularly useful when disassembling components, checking wear, setting adjustments or tracing an engine-performance problem.

Instant PDF Download

Supplied as a digital PDF for instant download after payment. Keep it available on a computer, tablet or phone for workshop reference whenever you need it.
